Name: Beyma CD-10Fe/N Kompressionstreiber
Brand: Beyma
SKU: CD-10Fe/N
Price: 79.95 EUR
Availability: BackOrder

1" | 8 Ω

66,07 €79,95 € Nicht auf Lager3 erwartet auf 02-01-2026

Backorder

Wir versenden nach
Bald wieder auf Lager
Mindestens zwei Jahre Garantie
45 Tage Widerrufsrecht

Kundenbewertung:

Vergleichen

Angebot anfordern

Haben Sie eine Frage zu diesem Produkt?

Unser Mitarbeiter hilft Ihnen gerne, das richtige Produkt zu finden

Produktbeschreibung Beyma CD-10Fe/N Kompressionstreiber

The Beyma CD-10Fe/N is a compact and efficient 1” compression driver engineered for natural sound reproduction and high output. Designed with a PM-4 polymer diaphragm, lightweight aluminum ribbon voice coil, and a robust ferrite magnet, it offers excellent performance in a lightweight and versatile package.

Highlights of the Beyma CD-10Fe/N

1” throat exit with ultra-lightweight 1.75” aluminum ribbon voice coil
Delivers 140 W program power above 1.2 kHz with 109 dB sensitivity
PM-4 polymer diaphragm ensures clean, natural high-frequency response
Compact ferrite-based motor structure optimized for efficient sound systems

Product details Beyma CD-10Fe/N

Beyma CD-10Fe/N Compression Driver

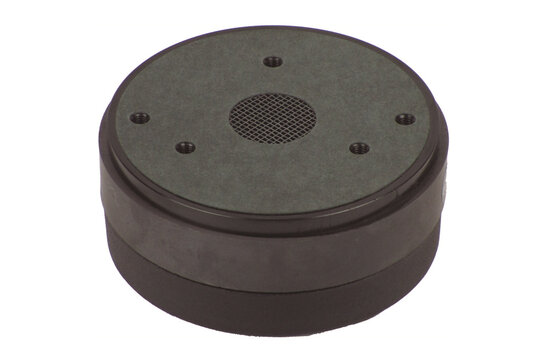

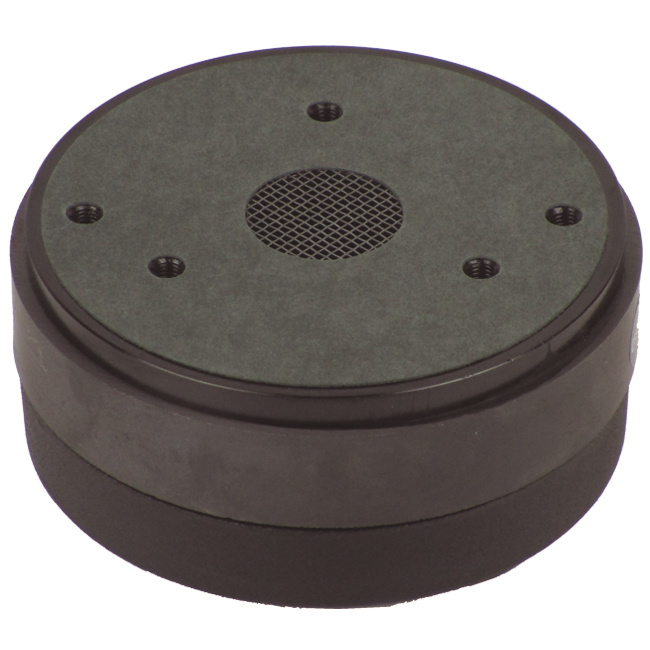

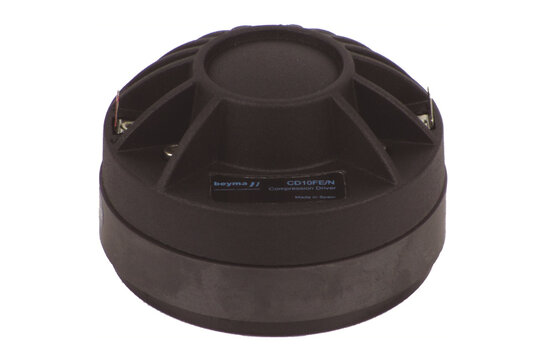

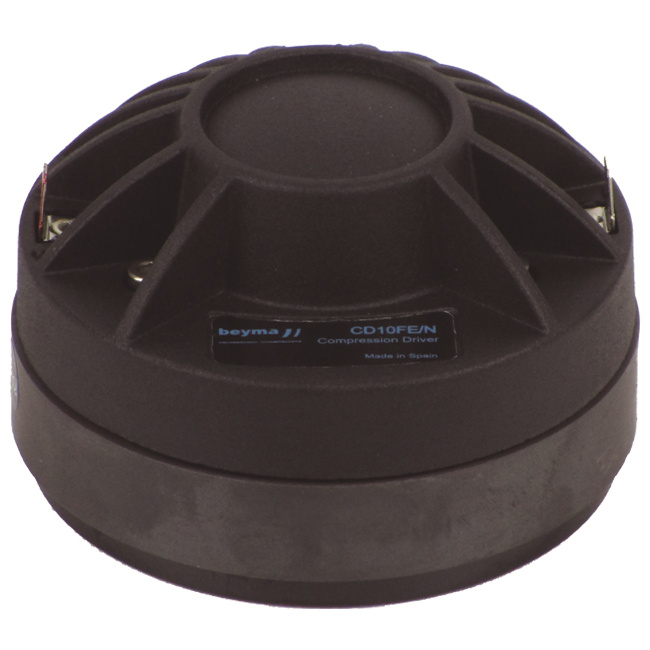

The Beyma CD-10Fe/N is a 1” exit high-frequency compression driver designed for efficient sound reproduction in compact systems. It features a 1.75” ultra-light edgewound aluminum ribbon voice coil, enabling fast transient response and excellent thermal handling. This driver delivers 70 W AES power and 140 W program power above 1.2 kHz, with a high sensitivity of 109 dB (1W/1m). At the core of the CD-10Fe/N is a PM-4 polymer diaphragm, chosen for its natural tonal characteristics and durability. The ferrite magnetic assembly produces a 1.65 T flux density and a Bl factor of 6.6 N/A, ensuring reliable and clean high-frequency output across its wide frequency range of 0.7 to 19 kHz. Physically compact, the CD-10Fe/N measures just 100 mm in diameter and 62 mm in depth. It features flexible mounting options: three M5 threaded holes (120° apart on a 57 mm circle) and two additional holes (180° apart on a 76.2 mm circle), making it compatible with a variety of horn designs and enclosures. Weighing only 1.3 kg, it’s a lightweight yet robust solution for both portable PA systems and installed sound applications.
