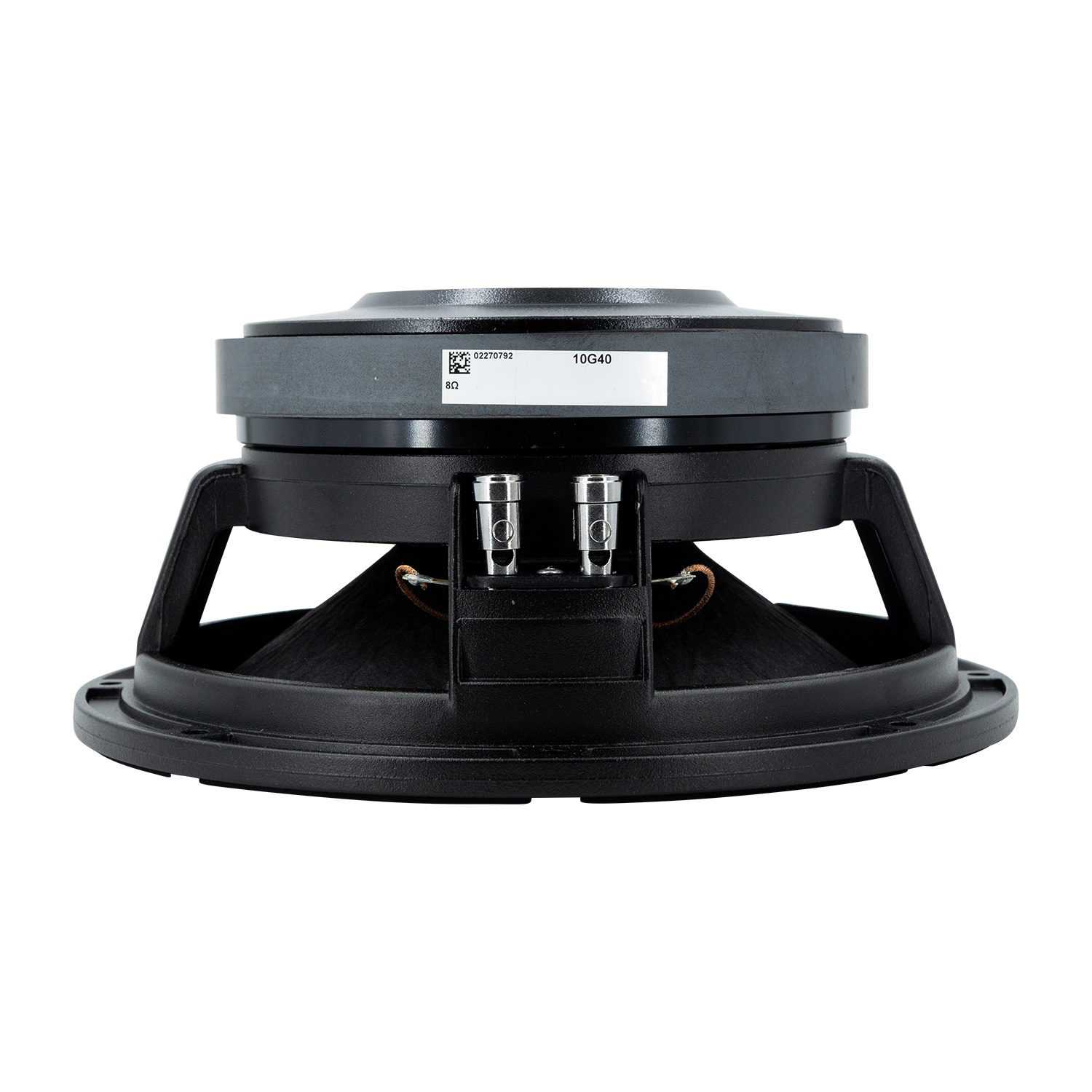

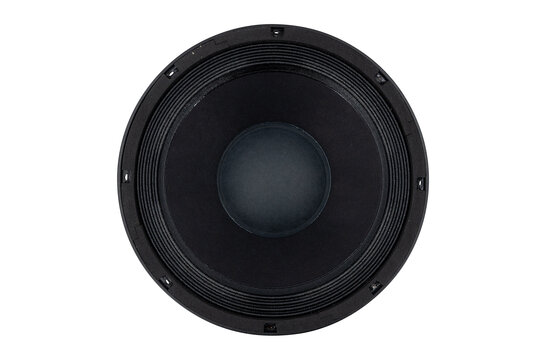

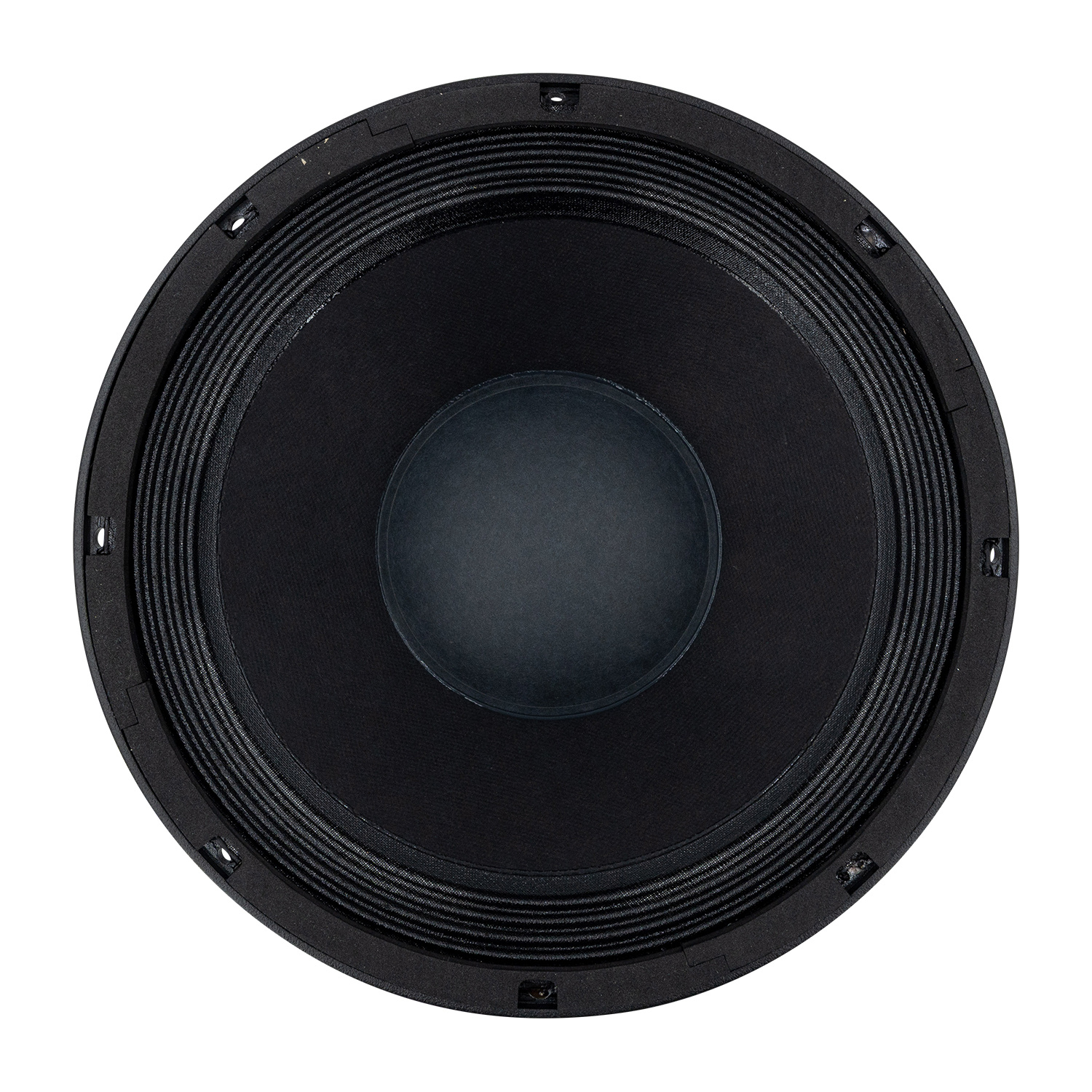

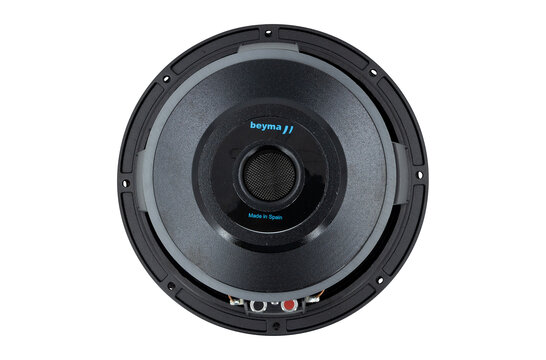

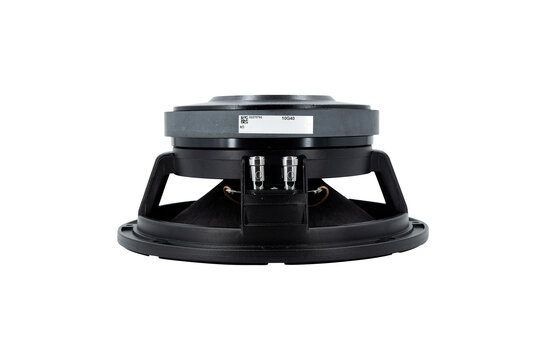

Name: Beyma 10G40 Tiefmitteltöner
Brand: Beyma
SKU: 10G40
Price: 169.95 EUR
Availability: InStock

10" | 8 Ω

140,45 €169,95 € 5 Auf Lager

Kostenloser Versand (DE & A)
Vor 16:00 Uhr bestellt, heute versandt
Mindestens zwei Jahre Garantie
45 Tage Widerrufsrecht

Kundenbewertung:

Vergleichen

Angebot anfordern

Haben Sie eine Frage zu diesem Produkt?

Unser Mitarbeiter hilft Ihnen gerne, das richtige Produkt zu finden

Produktbeschreibung Beyma 10G40 Tiefmitteltöner

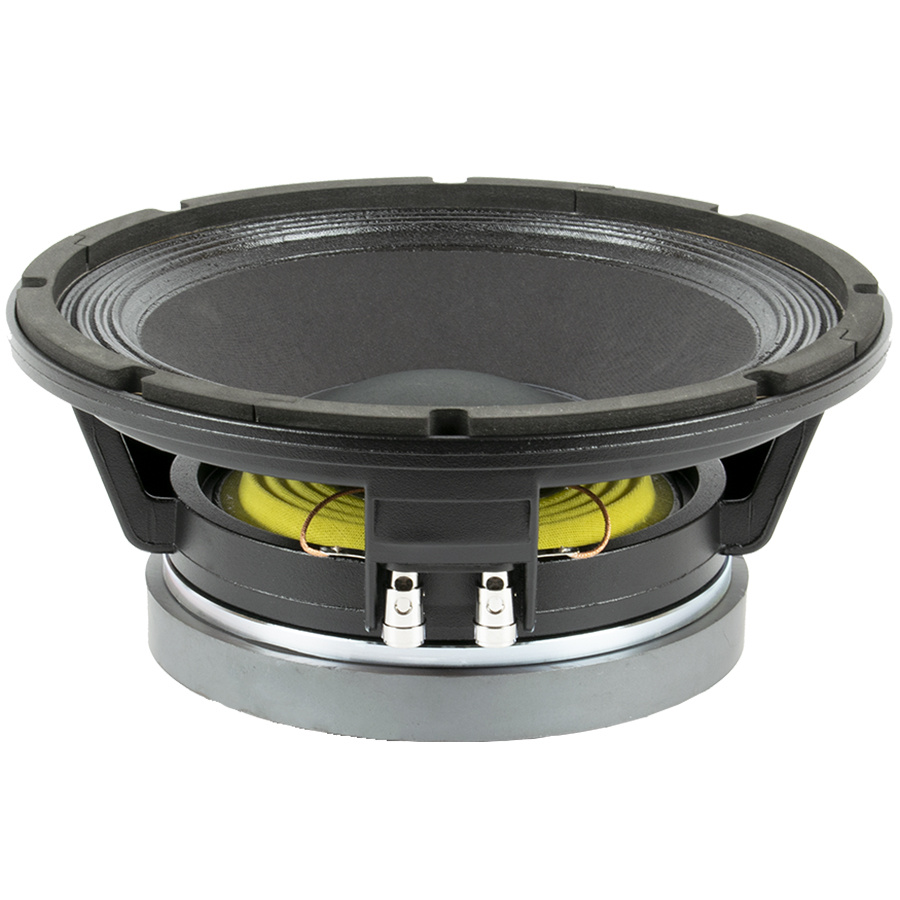

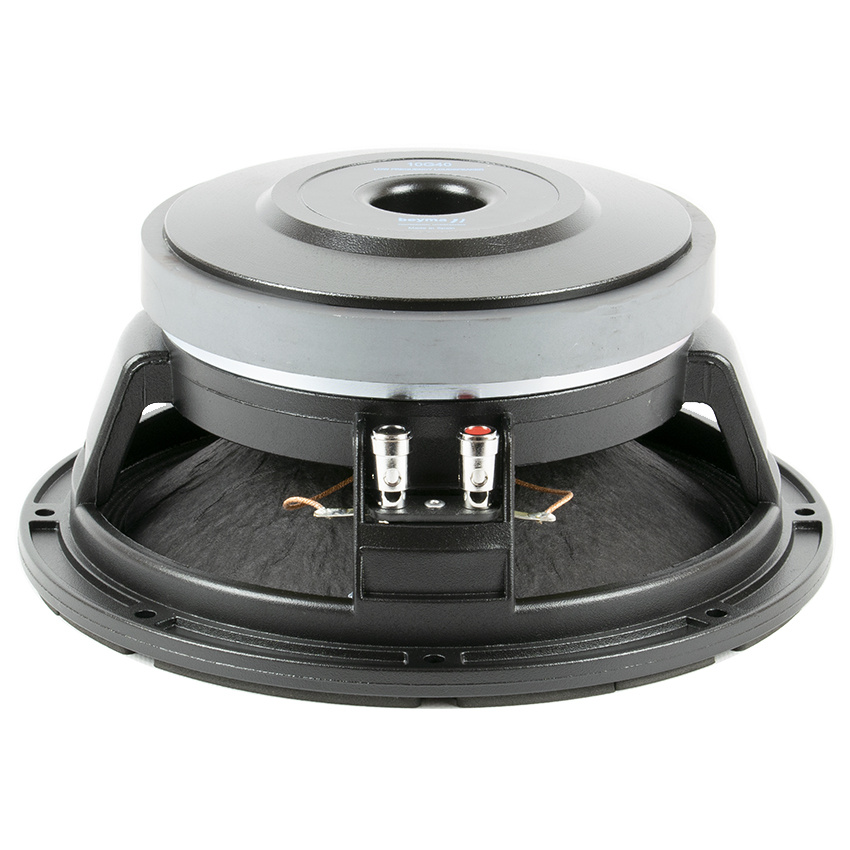

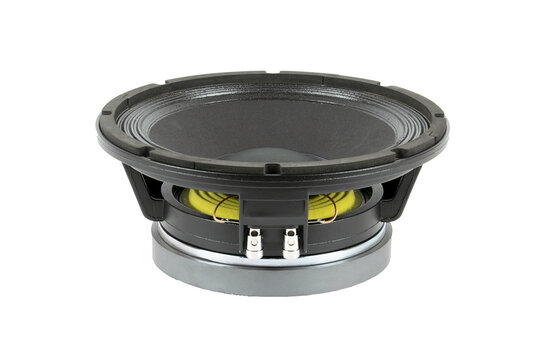

The Beyma 10G40 is a robust 10” low-frequency transducer built for clean bass reproduction in compact reflex enclosures. With a 3” copper voice coil and high mechanical compliance, it offers solid performance for professional woofer applications.

Highlights of the Beyma 10G40

400 W AES / 800 W program power with 95 dB sensitivity
3” copper voice coil on polymide fiberglass former
±7 mm Xmax and 28 mm peak-to-peak excursion for controlled bass output
Optimized for small bass-reflex cabinets (20–70 liters)

Product details Beyma 10G40

Beyma 10G40 Low Frequency Transducer

The Beyma 10G40 is a 10-inch woofer from the G40 Series, designed for efficient low-frequency reproduction in compact enclosure designs. With a power handling capacity of 400 W AES and 800 W program power, it delivers a consistent and powerful response while maintaining a sensitivity of 95 dB (1W/1m). The transducer features a 3” copper voice coil wound on a polymide fiberglass former and housed within a large magnetic structure for optimal heat dissipation. With an extended Xmax of ±7 mm and peak-to-peak excursion up to 28 mm, it ensures clean and punchy bass even at high drive levels. Operating from 45 Hz to 4,000 Hz, the 10G40 is ideal for woofer applications in small reflex enclosures (recommended 20 to 70 liters). With a net weight of 5.7 kg and a shallow depth of 118 mm, it provides ease of integration into compact, portable speaker systems without compromising performance.
