Arylic Up2Stream amp 2.0 V3 WiFi and Bluetooth 5.0 Stereo Amplifier Board

Marke: Arylic
Bewertungen: (1) Kundenmeinung hinzufügen
Vergleichen
Vergleichen
Auf den Wunschzettel

Lieferzeit: 1-2 Werktage

Artikelnummer: Up2Stream Amp 2.0
Vorrat: >10 Auf Lager

Does your next project require a high-end amplifier, Bluetooth 5.0 connection, Wi-Fi streaming, multi-room use, or maybe even all of them? Then boy, do I have news for you! The brand new Up2Stream Amp V3 is here to satisfy all your needs!

79,95 € 67,96 Inkl. MwSt.

Kaufen Sie 4 für je €75,95 und sparen Sie 5% Sale 5%

Menge Auf den Wunschzettel

Heute verschickt? Du hast noch: 2018/12/25
Gratis DHL-Versand ab 149€ (DE, A) Tooltip
Bestellungen an Werktagen vor 16Uhr werden noch am selben Tag versandt. Weitere Informationen
Versand am selben Tag
45 Tage Bedenkzeit
Zahlung mit Paypal/Kreditkarte

Produktbeschreibung
Eigenschaften
Bewertungen
Data sheet EN/DE

Arylic Up2Stream amp 2.0 V3 WiFi and Bluetooth 5.0 Stereo Amplifier Board

Does your next project require a high-end amplifier, Bluetooth 5.0 connection, Wi-Fi streaming, multi-room use or maybe even all of them? Then boy, do I have news for you! The brand new Up2Stream Amp V3 is here to satisfy all your needs!

Highlights

Wireless streamer and amplifier in one
Bluetooth 5.0 and Wi-Fi streaming using the free app
Supports multi-room use.

Product details

Arylic Up2Stream amp 2.0 V3 WiFi and Bluetooth 5.0 Stereo Amplifier Board

Does your next project require a high-end amplifier, Bluetooth 5.0 connection, Wi-Fi streaming, multi-room use, or maybe even all of them? Boy, do I have good news for you! The brand new Up2Stream Amp is here to satisfy all your needs!

This amplifier can stream music off of any reputable streaming service using its free Android and iOS app; Wi-Fi, Bluetooth 5.0, DLNA, AirPlay, Spotify, Deezer, Tidal, Qobuz, iheartRadio, Napster, internet radio you name it. Not only is the app very useful for uncompressed music streaming, but it also allows you to change the name of every Arylic product on your network and to set up a multi-room sound system.

The amplifier uses a powerful low distortion class D amplifier chip outputting up to 50 Watts per channel into 4 Ohms. It features every connection one may need and even has a USB port that can either be used as a USB DAC or for USB storage of your favorite tracks.

To control the amplifier, the free app, a PC or the optional remote control can be used.

What’s in the box?

Up2Stream 2.0 Amp
4-pin analog connector
4-pin cable
Screw Driver

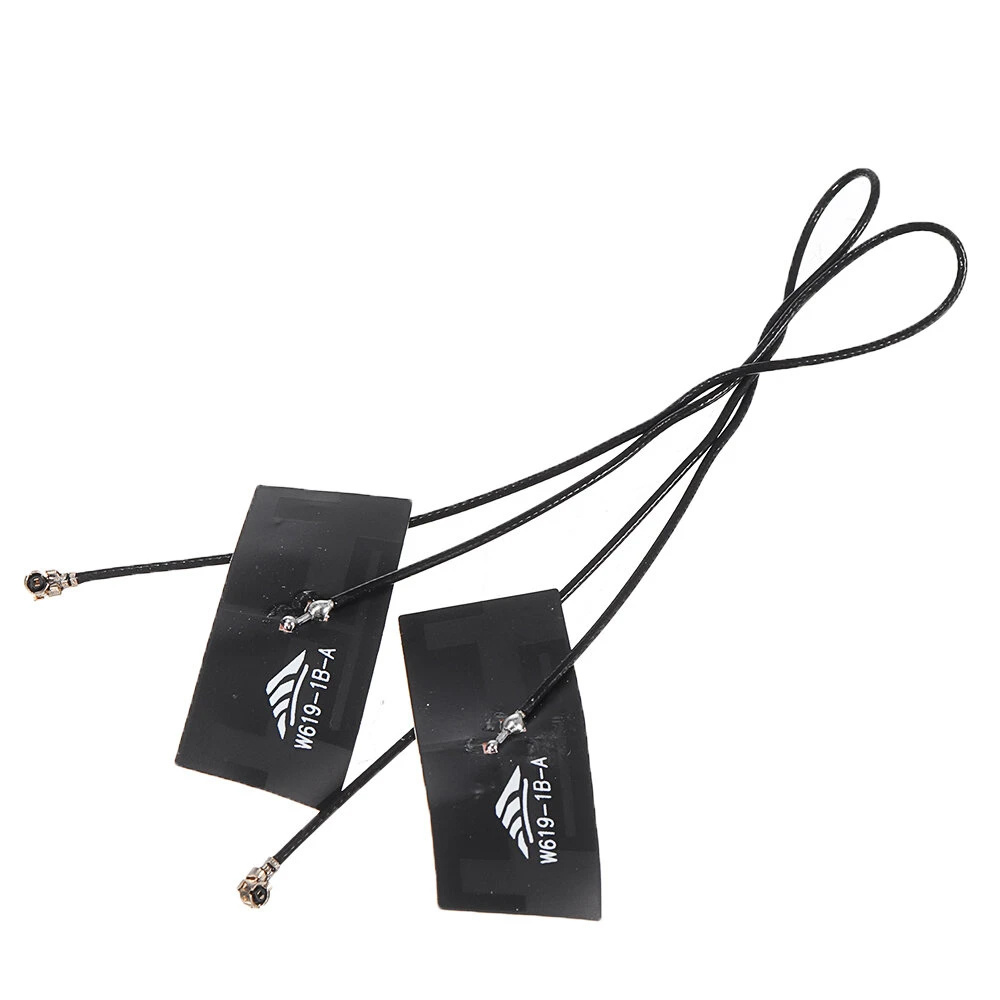

Wi-Fi Antenna
User manual

Warning: Up2Stream Amp 2.0 V3 must use 12V-26 VDC input, higher voltage power supply may damage the board.

Spezifikationen für: Up2Stream amp 2.0 V3 WiFi and Bluetooth 5.0 Stereo Amplifier Board

Rated power output (RMS)Die elektrische Leistung, gemessen in Watt, die ein Verstärker pro ausgangskanal erzeugen kann, ohne dass der Verstärker beschädigt wird oder das Ausgangssignal begrenzt wird. RMS=Root Mean Square 2 x 50 watts at 4 ohms (21 V)
Bridged power output (RMS)Die elektrische Leistung, gemessen in Watt, die ein Verstärker pro Brücken ausgangskanalkanal (2 x Stereo nach 1 x Mono Output), erzeugen kann, ohne dass der Verstärker beschädigt wird oder das Ausgangssignal begrenzt wird. RMS=Root Mean Square -
Minimum loadBezeichnet die minimale Belastung, in Ohm, die ein Verstärker kontrollieren kann. Von einer geringeren Belastung ist abzuraten, wenn diese geringer ist als die minimale Impedanz des Verstärkers. Ein Verstärker funktioniert am besten, wenn die Impedanz des Lautsprechers in den vom Verstärker vorgegebenen Impedanzbereich fällt (zum Beispiel 4 bis 8 ohm) 4 Ohms
Signal-to-noise ratio (SNR)Gibt die Stärke des Signals im Verhältnis zum Schallleistungspegel an. Allgemein gilt: je höher der Wert desto besser. 91 dB
Distortion SPEC Distortion 0.03 % THD at 1 kHz, 50 Watts
View all specifications
Distortion bridged -
Efficiency -
Frequency response 20 - 20,000 Hz
Input impedance -
Input sensitivity -
Auto turn-on sensitivity -
DSP -
DAC micro-USB DAC
Maximum sampling rate up to 24bit, 192kHZ
Circuit Topology -
Amplifier classification Class D
Speaker output channels Left and Right
Subwoofer output channel -
Analog in/out 2/1
Optical S/PDIF in/out -
Coaxial in/out -
RCA in/out -
AUX in/out -
Bus in/out -
XLR in/out -
USB USB power, USB DAC, USB storage
Memory card slot -
Network connection Single 10/100M RJ45
Headphone jack -
Subwoofer pre-out -
Bluetooth Bluetooth 5.0
NFC -
Wi-Fi IEEE802.11 b/g/n 2.4G
Banana plug compatible -
Remote control IR remote compatible
App control Free Android and iOS app
Auto turn-on -
Accepted file formats FLAC, MP3, AAC, AAC+, ALAC, APE, WAVE
Equalizer (EQ) adjustment in-app equalizer adjustment
Equalizer (EQ) profiles -
Multi zone/room App supports Multi-Room playback
Crossover frequency adjustment -
Bridge mode -
Power requirements DC 12V-26V 4A
Power inlet connector 5.5 mm x 2.1 mm DC plug
Power consumption
Stand-by power consumption -
Dimensions (D x W x H) 80 x 100 x 20 mm
Case material
