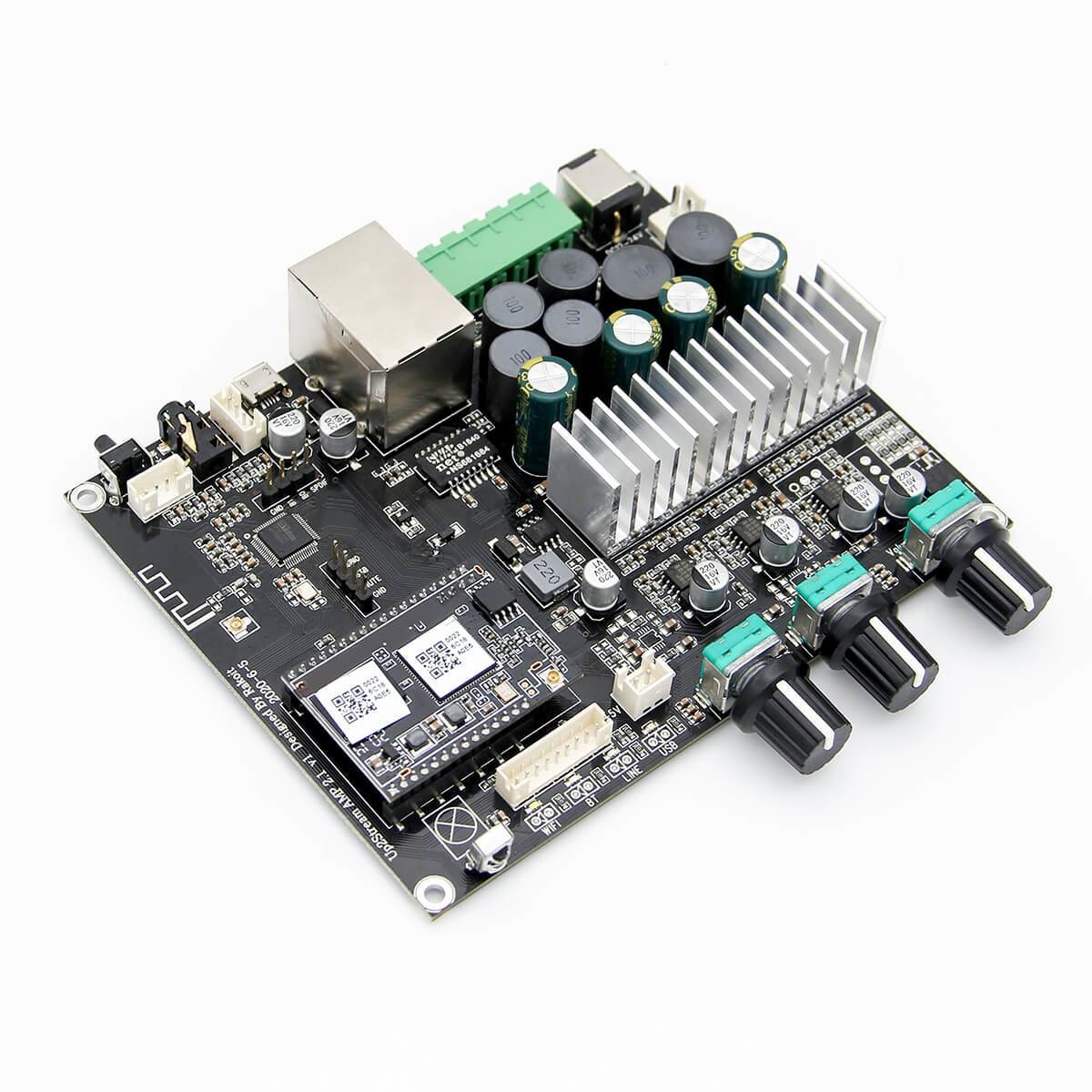

Arylic Up2Stream amp 2.1 WiFi and Bluetooth 5.0 Stereo Amplifier Board

Marke: Arylic
Bewertungen: (2) Ihre Bewertung hinzufügen
Vergleichen
Vergleichen
Zur Wunschliste hinzufügen

Lieferzeit: 1-2 Werktage

Artikelnummer: Up2Stream 2.1 AMP
Vorrat: >10 Auf Lager

€ 99,95 Inkl. MwSt.

4 für je €94,95 kaufen und 5% sparen Sale 5%

Menge Zur Wunschliste hinzufügen

Heute verschickt? Du hast noch: 2018/12/25
Gratis DHL-Versand ab 149€ (DE, A) Tooltip
Bestellungen an Werktagen vor 16Uhr werden noch am selben Tag versandt. Weitere Informationen
Versand am selben Tag
45 Tage Bedenkzeit
Zahlung mit Paypal/Kreditkarte

Produktbeschreibung
Eigenschaften
Bewertungen
User manual

Arylic Up2Stream amp 2.1 WiFi and Bluetooth 5.0 Stereo Amplifier Board

Highlights

Rotary Knob Control
Equipped with 50W*2 stereo pair + 100W high-powered subwoofer
First Wifi 2.1 amplifier board
Precisely EQ Adjustment
Wireless Connectivity

Product details

Arylic Up2Stream amp 2.1 WiFi and Bluetooth 5.0 Stereo Amplifier Board

The Up2stream Amp 2.1 is a specialized wireless subwoofer amplifier module designed for DIY users and subwoofer lovers. In addition to the undistorted sound quality and a powerful subwoofer output, you also get the most advanced wireless technology. With wifi, Bluetooth 5.0, Airplay, Spotify Connect, also DLNA and UPnP protocols for wireless control. It's worth mentioning that the sound quality via wifi streaming is without any compression and no distance limitation as long as your wifi signal is strong enough, which upgrades your home audio system to be more usable and enjoyable to listen to.

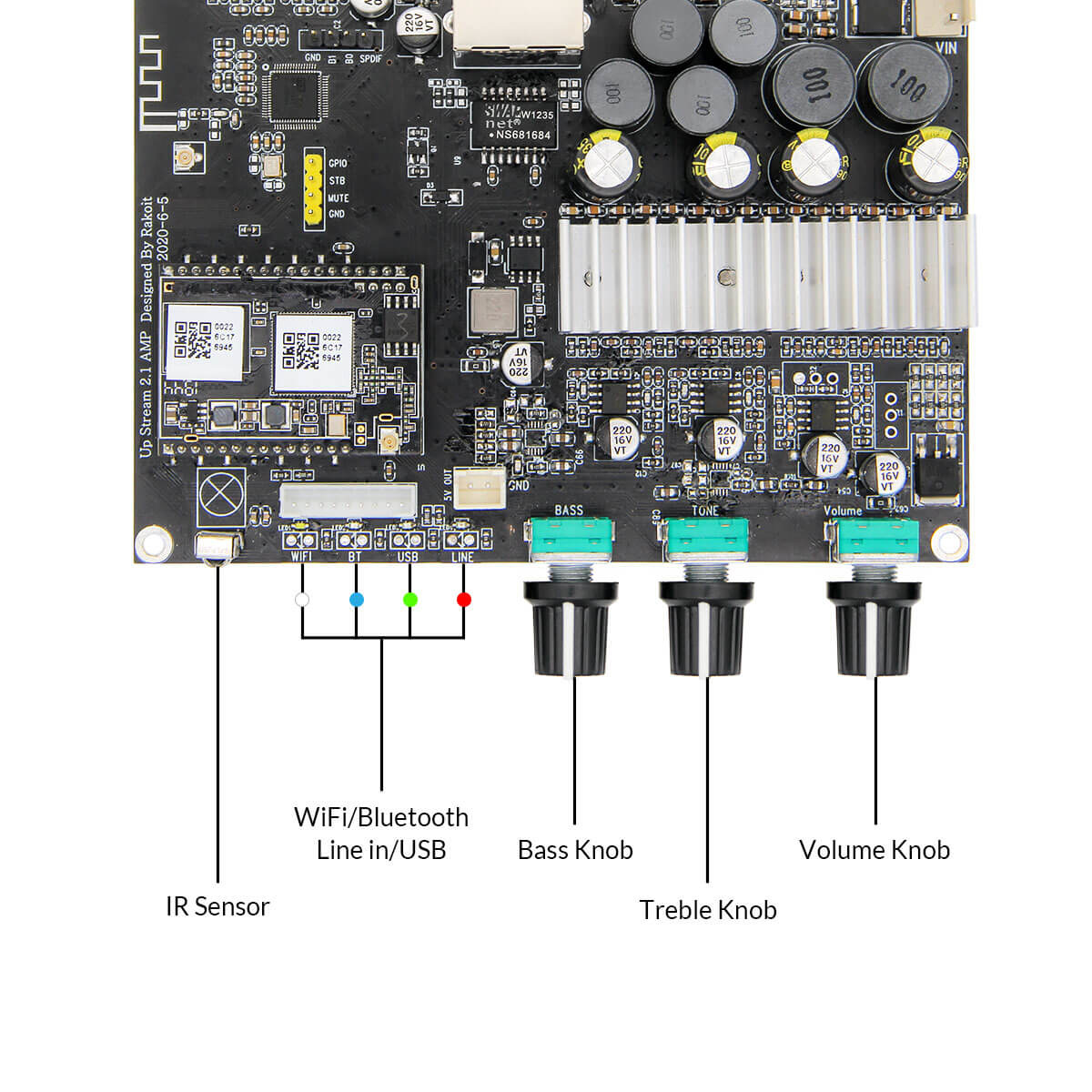

Besides adjusting the volume in real-time, you can also change your Treble and Bass while listening to your music through the corresponding knob. When it comes to audio products, especially subwoofers, players are very interested in EQ control. Up2stream Amp 2.1 can adjust Treble and Bass via remote control, app, and knobs, but the best way is to use our ACPWorkbench tuning tool, which adjusts EQ precisely.

Huge music resources supported like Spotify, Pandora, Amazon Music, Tidal, Deezer, Qobuz, Internet Radio, iheart Radio, Napster etc. Except online music, you also can play local music by NAS, USB storage where you have collected your favorite song for years. Streaming your audio all the way by Wifi, Bluetooth 5.0, DLNA, UpPnP, Airplay, Spotify Connect.

The App called “4stream” that is compatible to your iOS & Android system. All the features can be simply controlled by App. And you also can receive the notification for our regular online firmware update automatically in our App.

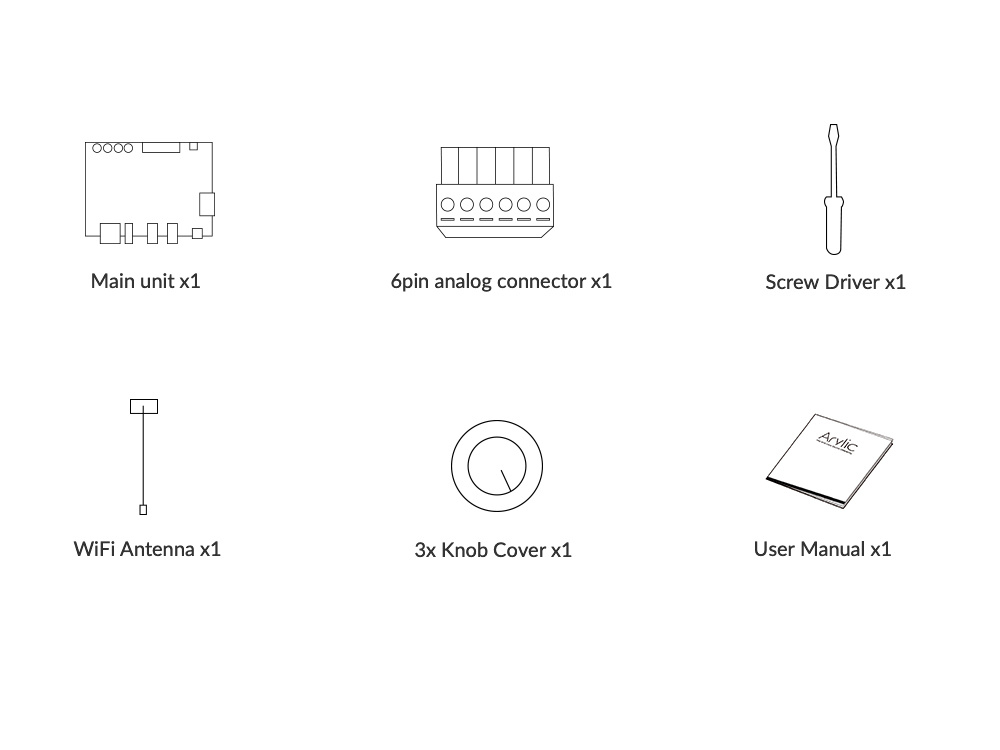

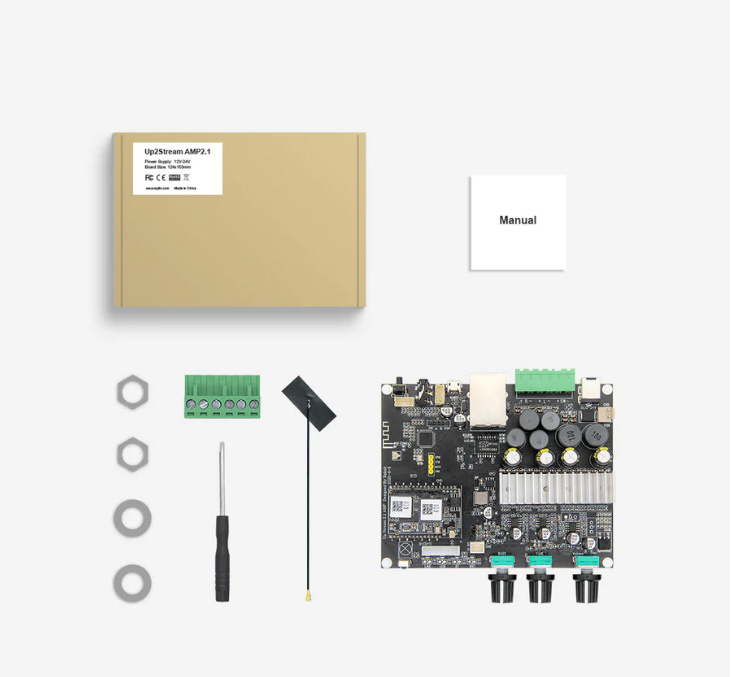

What’s in the box?

Up2Stream 2.1 Amp
6-pin analog connector
Screw Driver
Wi-Fi Antenna
3 x Know Cover
User manual

Spezifikationen für: Up2Stream amp 2.1 WiFi and Bluetooth 5.0 Stereo Amplifier Board

Rated power output (RMS)Die elektrische Leistung, gemessen in Watt, die ein Verstärker pro ausgangskanal erzeugen kann, ohne dass der Verstärker beschädigt wird oder das Ausgangssignal begrenzt wird. RMS=Root Mean Square 2 x 50W @ 4Ω + 100W @ 2Ω BTL load at 24 V
Bridged power output (RMS)Die elektrische Leistung, gemessen in Watt, die ein Verstärker pro Brücken ausgangskanalkanal (2 x Stereo nach 1 x Mono Output), erzeugen kann, ohne dass der Verstärker beschädigt wird oder das Ausgangssignal begrenzt wird. RMS=Root Mean Square
Minimum loadBezeichnet die minimale Belastung, in Ohm, die ein Verstärker kontrollieren kann. Von einer geringeren Belastung ist abzuraten, wenn diese geringer ist als die minimale Impedanz des Verstärkers. Ein Verstärker funktioniert am besten, wenn die Impedanz des Lautsprechers in den vom Verstärker vorgegebenen Impedanzbereich fällt (zum Beispiel 4 bis 8 ohm) 4 Ohms
Signal-to-noise ratio (SNR)Gibt die Stärke des Signals im Verhältnis zum Schallleistungspegel an. Allgemein gilt: je höher der Wert desto besser.
Distortion SPEC Distortion <0.03%, @1kHz/1W/24V/4Ω
View all specifications
Distortion bridged
Efficiency
Frequency response 20Hz to 20kHz
Input impedance 4-8 Ohms
Input sensitivity
Auto turn-on sensitivity
DSP
DAC micro-USB DAC
Maximum sampling rate Up to 24bit/192kHz
Circuit Topology
Amplifier classification Class D
Speaker output channels
Subwoofer output channel
Analog in/out
Optical S/PDIF in/out
Coaxial in/out
RCA in/out
AUX in/out
Bus in/out
XLR in/out
USB Play USB music
Memory card slot
Network connection
Headphone jack
Subwoofer pre-out
Bluetooth 5.0, SBS/AAC
NFC
Wi-Fi IEEE802.11 b/g/n 2.4G
Banana plug compatible
Remote control Optional
App control
Auto turn-on
Accepted file formats
Equalizer (EQ) adjustment
Equalizer (EQ) profiles
Multi zone/room
Crossover frequency adjustment
Bridge mode
Power requirements
Power inlet connector
Power consumption
Stand-by power consumption
Dimensions (D x W x H) 124*100*25mm
Case material

User manual

Erfahrungsberichte 5 / 5 Bewertungen: (2)

JH Durch John H. an 15-12-2020 13:38

5 / 5

Koper heeft geen omschrijving achtergelaten.
TS Durch Tomas an 22-09-2020 14:14

5 / 5

Really impressive for the money.
It's got enough power for any normal home use and plenty of connectivity, including AirPlay.
Things I didn't like:
- Getting the board to connect to my home wifi was a pain, I could connect my phone to board just fine, but then the app just didn't want to work with it - disable mobile data while doing this. After that, WiFi works just fine, amp remembers WiFi networks it was connected to and keeps a stable connection. Not having 5GHz wireless is no issue.
- WPS button, which acts as on/standby switch, is on the back of the board by default. You can connect another one via a 9-pin header, though.
- Not sure how to use SPDIF input, it's not in the inputs you can select by mode button and pressing it on the remote doesn't seem to do much. Board has a 5V output, so Toslink should be possible. Haven't really tried this yet, though, it's not an accessory you can buy with the amp.
- USB connection is only live when USB input is selected. If you switch to other input, USB will disconnect. It wasn't reconnecting back on my PC by switching input back to USB, I had to unplug and plug the cable.

Board also has a DSP, which is fantastic, but the application for programming it is sold separately - haven't had the opportunity to try it yet.
