Arylic DAC Expansion Board

Lieferzeit: 1-2 Werktage

  • Artikelnummer: DAC Board
  • Vorrat: 4 Auf Lager

This DAC board lets you add a digital to analog output to your Arylic streaming device. Due to the DAC chip used in this board, the sound quality is an improvement to the one onboard.

€ 26,45 Inkl. MwSt.

  • Kaufen Sie 4 für je €25,13 und sparen Sie 5% Sale 5%

Auf den Wunschzettel

  • Gratis DHL-Versand ab 149€ (DE, A) Tooltip

    Bestellungen an Werktagen vor 16Uhr werden noch am selben Tag versandt. Weitere Informationen

  • Versand am selben Tag
  • 45 Tage Bedenkzeit
  • Zahlung mit Paypal/Kreditkarte

Produktbeschreibung

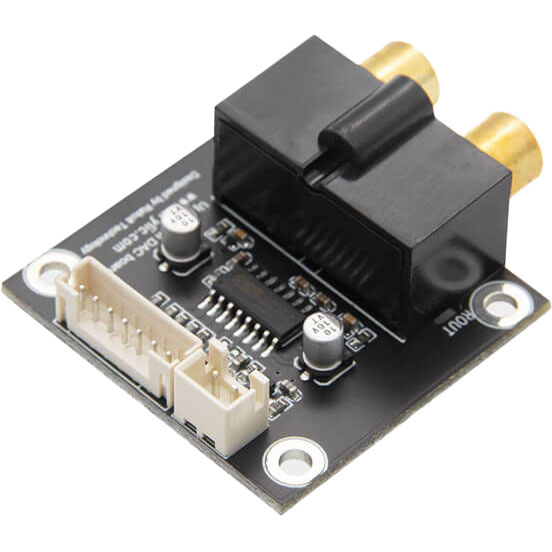

Arylic DAC Expansion Board

This DAC board lets you add a digital to analog output to your Arylic streaming device. Due to the DAC chip used in this board, the sound quality is an improvement to the one onboard.



Highlights

  • Improved sound quality
  • High sample rate up to: 24bit/192Khz
  • Low distortion
  • Cable included

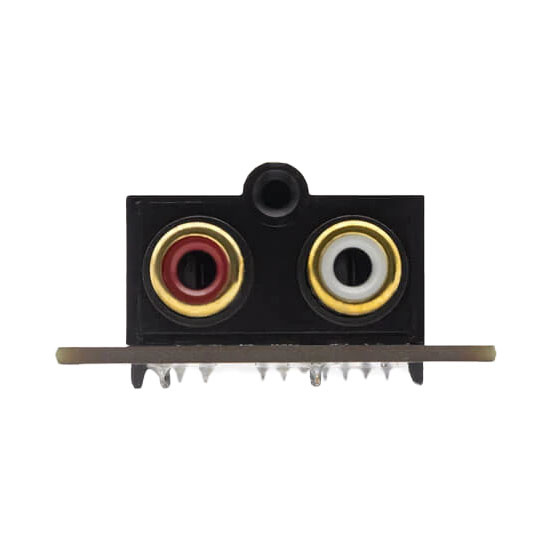

  • Adds stereo RCA connection



Product details

Arylic DAC Expansion Board

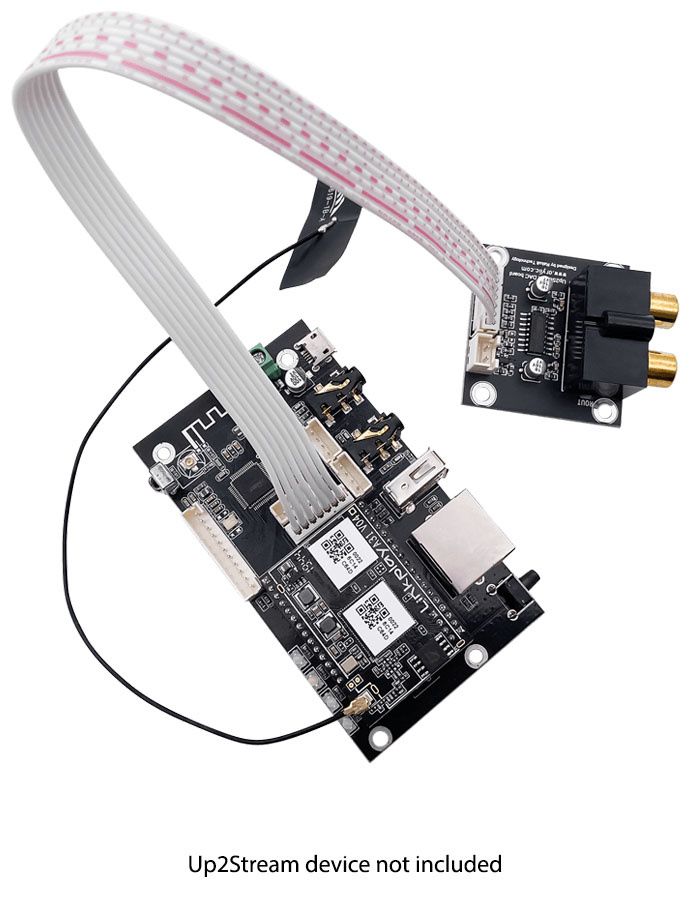

The Arylic DAC board allows you to add a higher quality analog output to your Arylic device, with a simple plug and play expansion. Providing you with a high quality and low distortion D/A conversion with a stereo RCA/cinch connector. With a sample rate of 24bit/192Khz and 112 dB of dynamic range.



Compatibility

This DAC is compatible with the following products:

  • Up2Stream Mini v3
  • Up2Stream Pro v3



What’s in the box?

  • DAC Board
  • Connector cable



Specifications

Size (mm)

40x38

Sample rate

24bit/192Khz

Dynamic range

112 dB

Interchannel Isolation

100 dB

THD+N 0dB FS

0,002%

Power supply

3.3V+-5% / 5.0V+-5%+  23mA



Bewertungen

Erfahrungsberichte 2 / 5 Bewertungen: (1)

  • MD Durch Martin D. an 31-10-2020 13:59

    2 / 5

    There is quite a lot of distortion when you fit it with the standard cable. The cable carries I2S data which the DAC uses but it also has an unterminated SPDIF feed and this is the cause of the problem. It took a while to find the solution but you can unclip the SPDIF wire from the JST connector at the feed end of the lead and the performance is much improved. They need to update the lead and also consider better I2S termination. Some flat ferrite filters may also be a good idea. Once fixed it sounds considerably better than the standard inbuilt DAC in the main processor.
