C158-8-085 Ceramic 6.25'' Tiefmitteltöner

€389,95

Zum Warenkorb hinzufügen

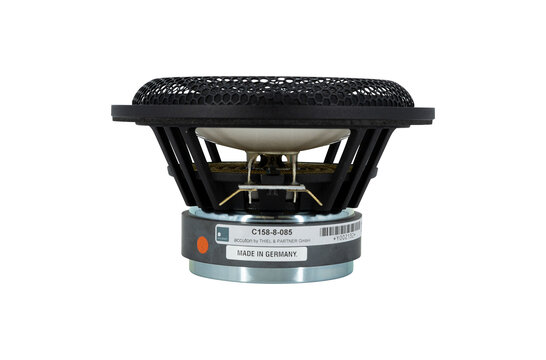

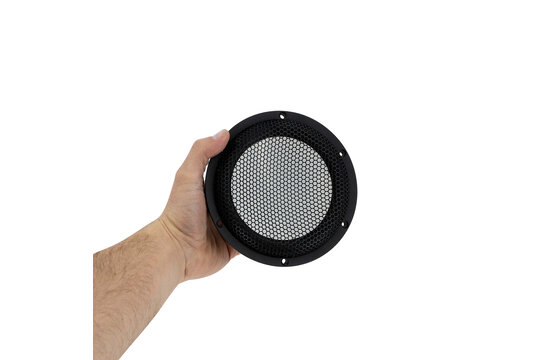

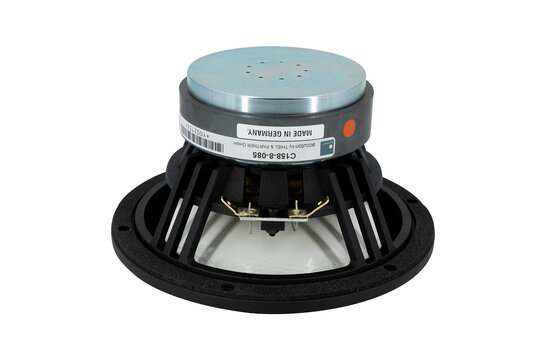

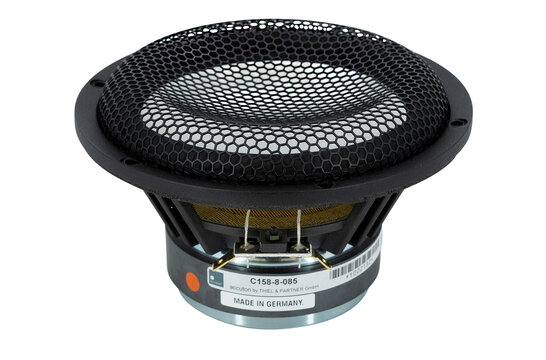

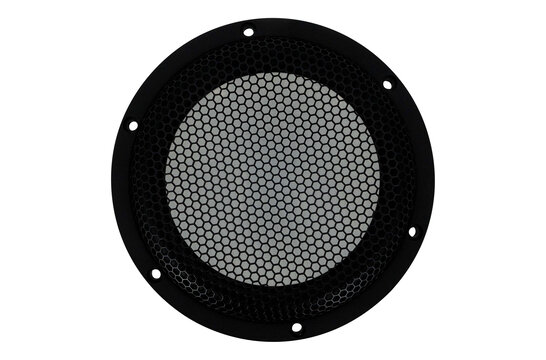

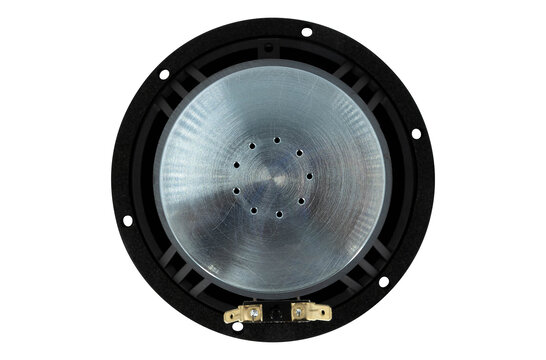

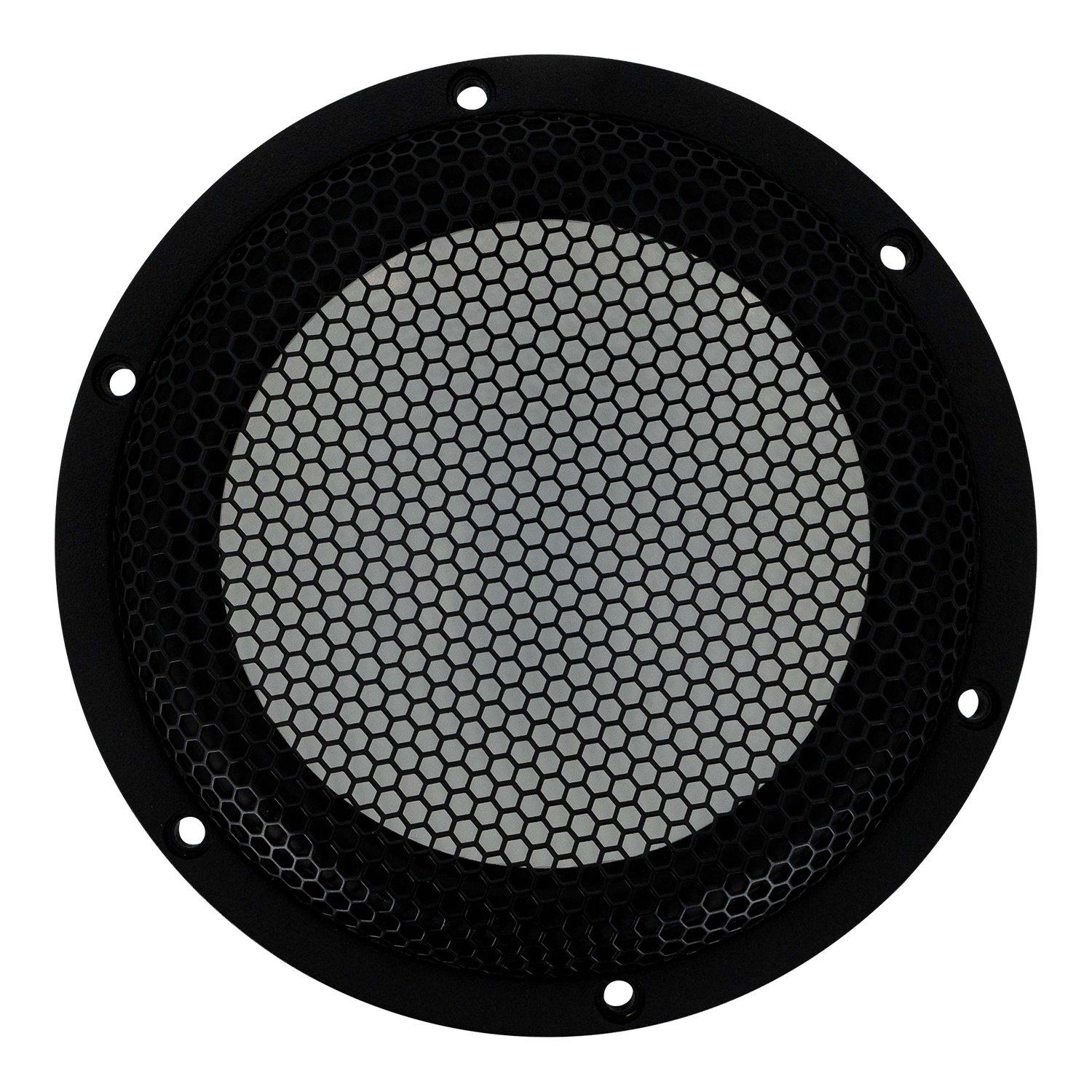

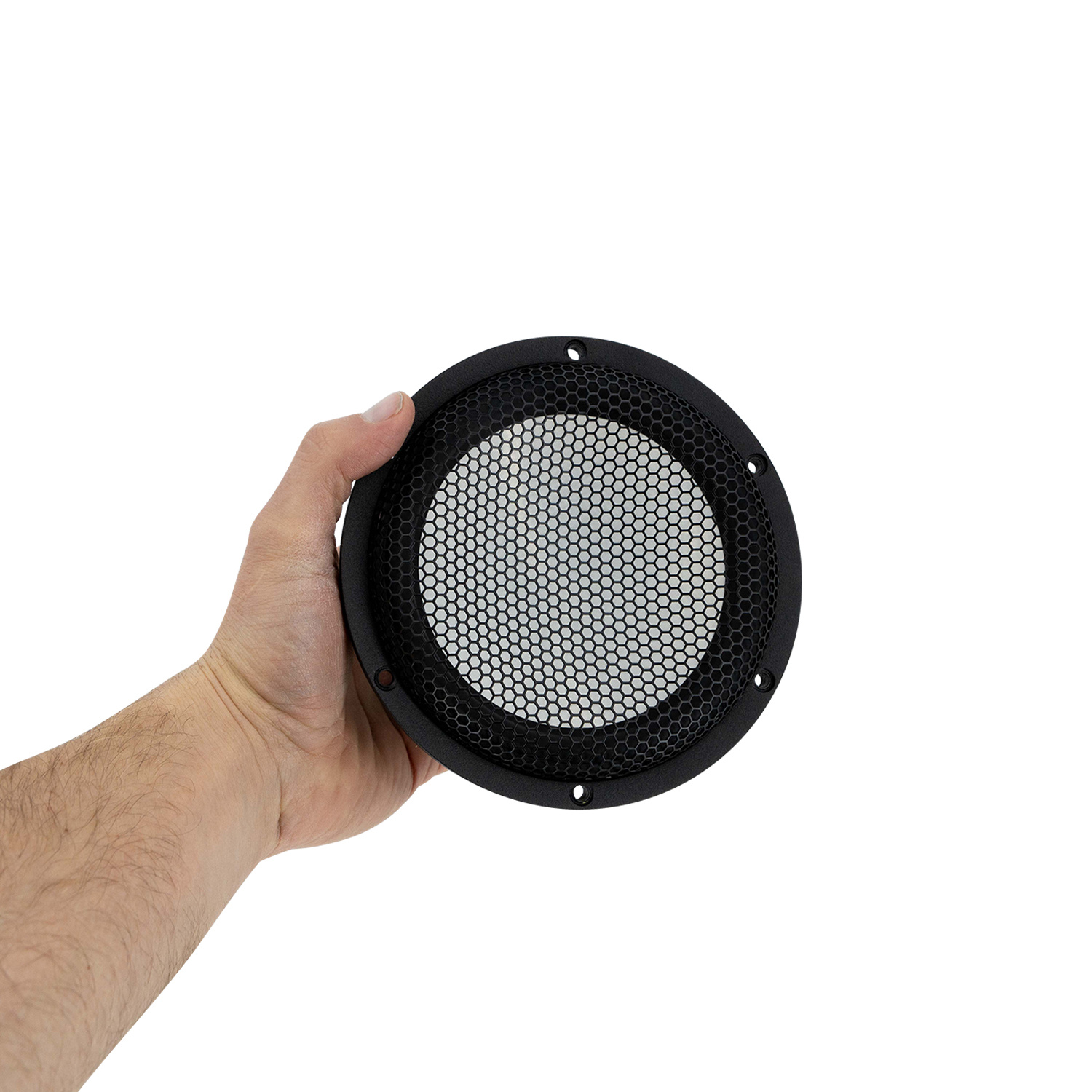

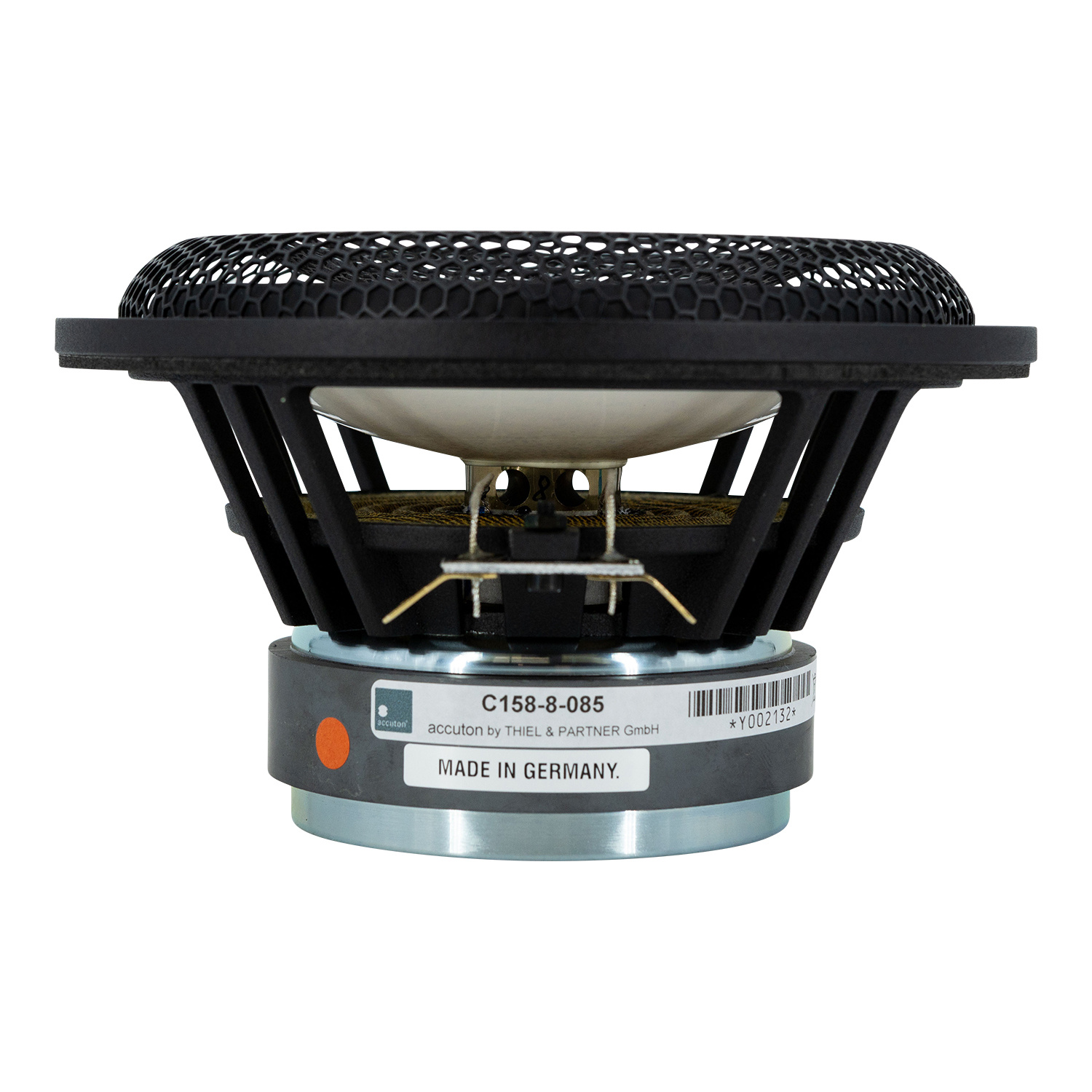

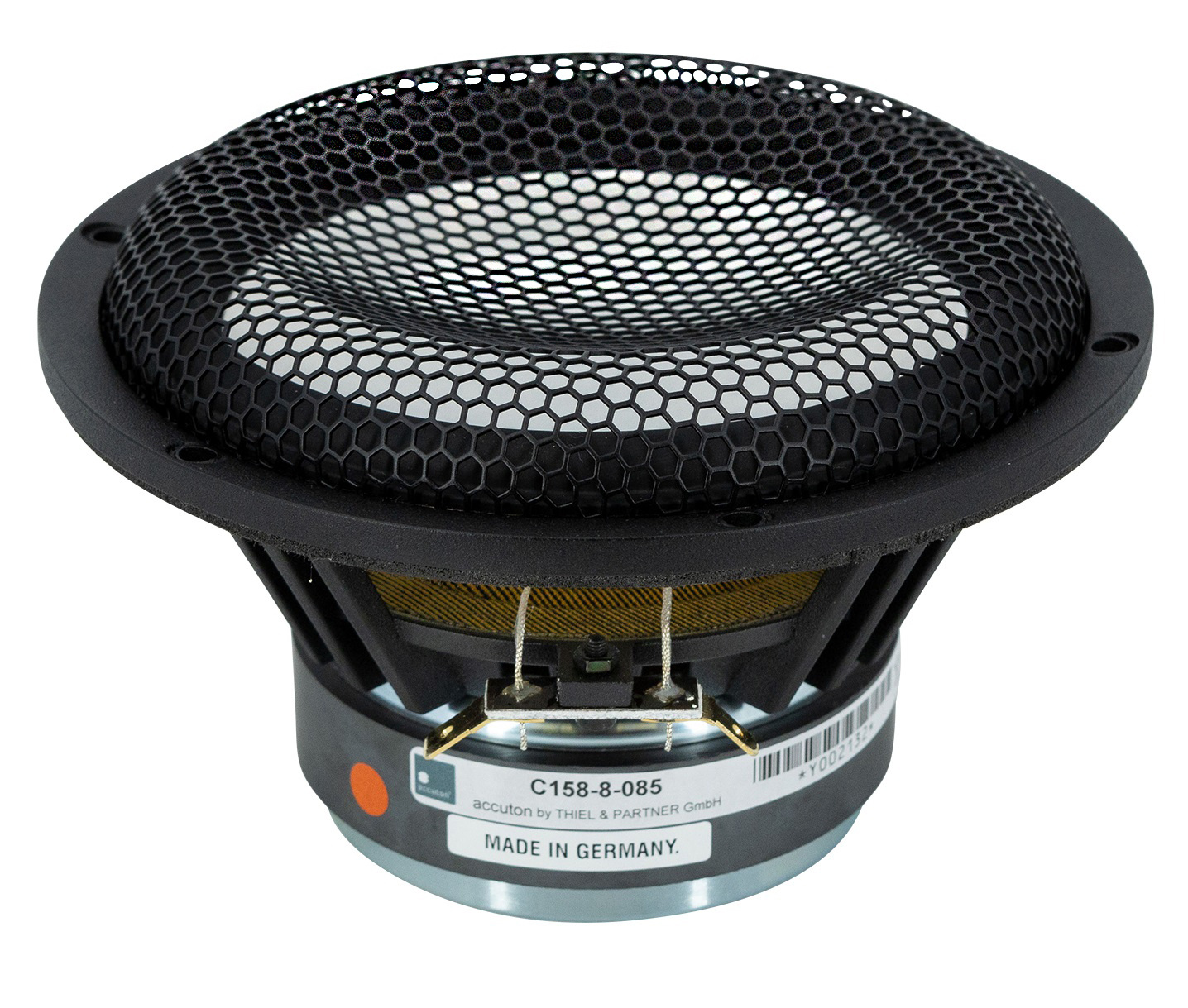

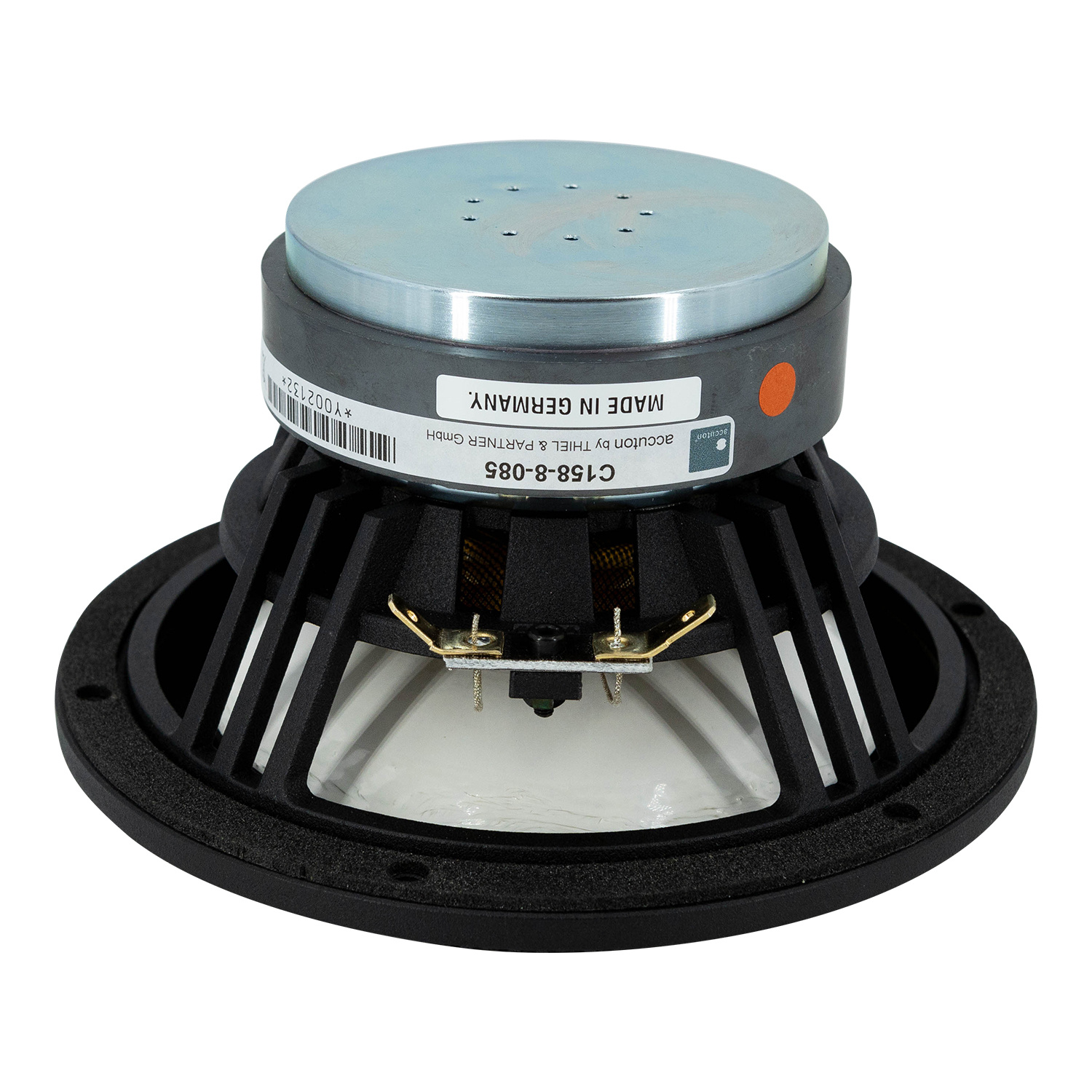

Accuton C158-8-085 Ceramic 6.25'' Tiefmitteltöner

Name: Accuton C158-8-085 Ceramic 6.25'' Tiefmitteltöner
Brand: Accuton
SKU: C158-8-085
Price: 389.95 EUR
Availability: BackOrder

0 reviews

Marke: Accuton

Zeige alle Tiefmitteltöner

6.25" | 8Ω

C158-8-085 Ceramic 6.25'' Tiefmitteltöner

322,27 €389,95 € Nicht auf Lager8 erwartet auf 25-10-2024

Backorder

Kostenloser Versand (DE & A)
Jetzt bestellt, am Montag versendet
Mindestens zwei Jahre Garantie
45 Tage Widerrufsrecht

Kundenbewertung:

Vergleichen

Angebot anfordern

Haben Sie eine Frage zu diesem Produkt?

Unser Mitarbeiter hilft Ihnen gerne, das richtige Produkt zu finden

Produktbeschreibung

The Accuton C158-8-085 is a 6.25-inch speaker component for small bookshelf or slim floorstanding speakers. It has a small, lightweight voice coil with a 25mm titanium former, which improves midrange resolution. Its long excursion design also allows for high SPL capabilities.

Highlights

Overhung motor design
25 mm Titanium VC Former
Soft Rubber Surround
Vented VC, Pole Piece & Spider
38 HZ - 3 KHZ in vented Box

Product details

Accuton C158-8-085 Ceramic 6.25'' Bass-midwoofer

The Accuton C158-8-085 is a ceramic bass-midrange driver with a 6.25-inch diameter, designed for use in small bookshelf monitors or slim floorstanding speakers. It features a small and lightweight voice coil with a 25mm titanium former, which provides high resolution in the midrange frequencies. The long excursion design of the driver ensures high SPL capabilities.

In terms of technical specifications, the C158-8-085 has a sensitivity of 87.5 dB, a DC resistance of 8.1 Ohm, and a resonance frequency of 37 Hz. Its equivalent volume of air is 27.3 liters, and it has a mechanical Q of 4.91, an electrical Q of 0.39, and a total Q of 0.36. The effective piston area is 113 cm2, and the moving mass is 12.1 g.

The driver also features an overhung motor design, a soft rubber surround, and vented voice coil, pole piece, and spider. It has a power handling capacity of 100 W and a linear excursion of +/-5 mm. The voice coil diameter is 25 mm and is made of copper, with a voice coil inductance of 0.54 mH.

Overall, the Accuton C158-8-085 is a high-quality bass-midrange driver that offers excellent performance in terms of midrange resolution and SPL capabilities.
