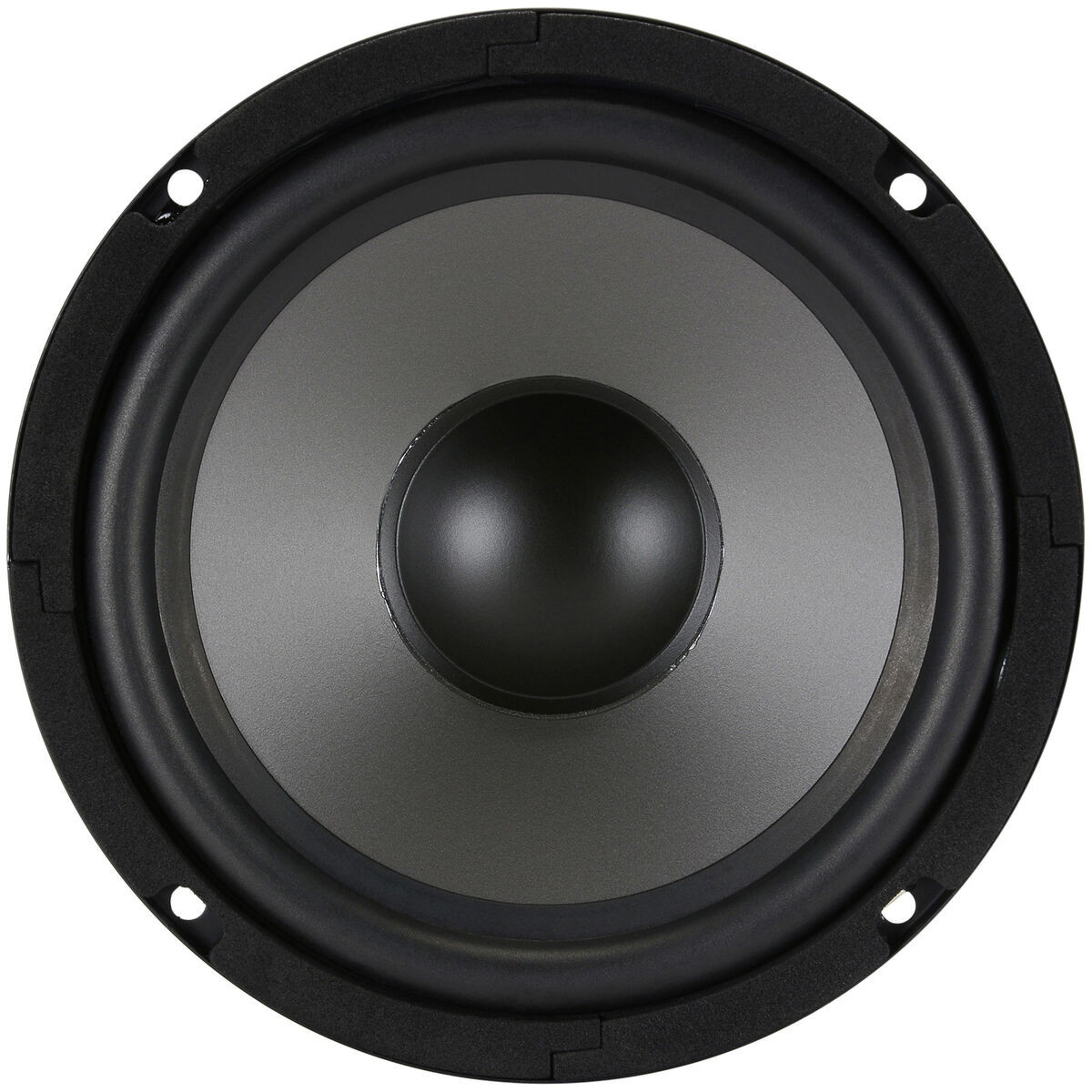

6-1/2" Poly Cone Midbass Woofer 4 Ohm

€ 10,70€ 12,95 Nicht auf Lager: Lieferzeit beträgt 3 bis 6 Wochen
This 6-1/2" woofer is the perfect replacement for worn, tired sealed bookshelf speakers. The extended frequency response allows it to mate well with tweeters without a low pass filter.... Mehr anzeigen
Bulk discount Genießen Sie diese tollen Rabattangebote
  • -5% Kauf 4 für nur €12,30 pro stück
  • Versicherter Versand mit Sendungsverfolgung
  • Kostenloser Versand ab 149€ (DE, A)
  • Versand am selben Tag*
  • Hausinterner technischer Support

Produktbeschreibung

This 6-1/2" woofer is the perfect replacement for worn, tired sealed bookshelf speakers. The extended frequency response allows it to mate well with tweeters without a low pass filter. Replace your damaged or aging drivers, and restore the sound of your beloved speakers.



Highlights

  • Smooth, natural response doesn't require a low-pass filter
  • Decent Xmax for good bass response
  • Designed for use in sealed cabinets



Product details

6-1/2" Poly Cone Midbass Woofer 4 Ohm



This durable 6-1/2" poly cone woofer with rubber surround is designed to work best in small, sealed bookshelf-style cabinets. The damped poly cone creates smooth sound from 45 Hz all the way up to 3,000 Hz and is easy to integrate with many different tweeters, and the 4-ohm impedance extracts more current from an amplifier for twice the output (3 dB increase) when compared to a similar 8-ohm speaker.



A 1" voice coil is combined with aluminium former for a power handling rating of 30 watts RMS and 60 watts max, and the "Q" of the motor is such that solid bass performance can be achieved in cabinets as small as 0.25 cubic feet, with an f3 of 63 Hz (with a 1/4 pound of acoustic fill).

Eigenschaften

Artikelnummer:
299-609
Nominal Diameter
6-1/2"
Power Handling (RMS)
30 Watts
Power Handling (max)
60 Watts
Impedance
4 Ohms
Sensitivity
88.3dB 2.83V/1m
Frequency Response
50 to 6,000Hz
Voice Coil Diameter
1"
DC Resistance (Re)
3.37Ω
Voice Coil Inductance (Le)
0.48mH
Resonant Frequency (Fs)
52Hz
Mechanical Q (Qms)
2.99
Electromagnetic Q (Qes)
1.4
Total Q (Qts)
0.95
Compliance Equivalent Volume (Vas)
0.65ft³
Maximum Linear Excursion (Xmax)
3.5mm
Cone / Diaphragm Material
Poly
Surround Material
Rubber
Voice Coil Wire Material
Copper
Voice Coil Former
Aluminum
Basket / Frame Material
Steel
Magnet Material
Ferrite
Overall Outside Diameter
6.5"
Overall Depth
2.875"
Baffle Cutout Diameter
5.625"
# Mounting Holes
4
Mounting Hole Diameter
6.125
