Angled Locking Stacking Banana Plugs

0 reviews

Alle anzeigen Bananenstecker

Vergleichen

2 pair

28,06 €33,95 € 5 Auf Lager

Kostenloser Versand ab 149 € (DE & A)
Vor 16:00 Uhr bestellt, heute versandt
Hausinterner technischer Support
45 Tage Widerrufsrecht

Angebot anfordern

Haben Sie eine Frage zu diesem Produkt?

Unser Mitarbeiter hilft Ihnen gerne, das richtige Produkt zu finden

Produktbeschreibung

Milled from solid brass, and 24-karat gold plated for maximum signal transfer, these locking, expanding, angled, and stackable, banana plugs feature a polycarbonate shell to provide protection from unintended contact while accepting up to 8 AWG wire.

Highlights

Locking pin separates the plug increasing retention force
Stackable for use with bi-wired speakers
Color-coded polycarbonate shells
Dual hex screws for maximum cable retention
24 karat gold plated contact surfaces

Product Details

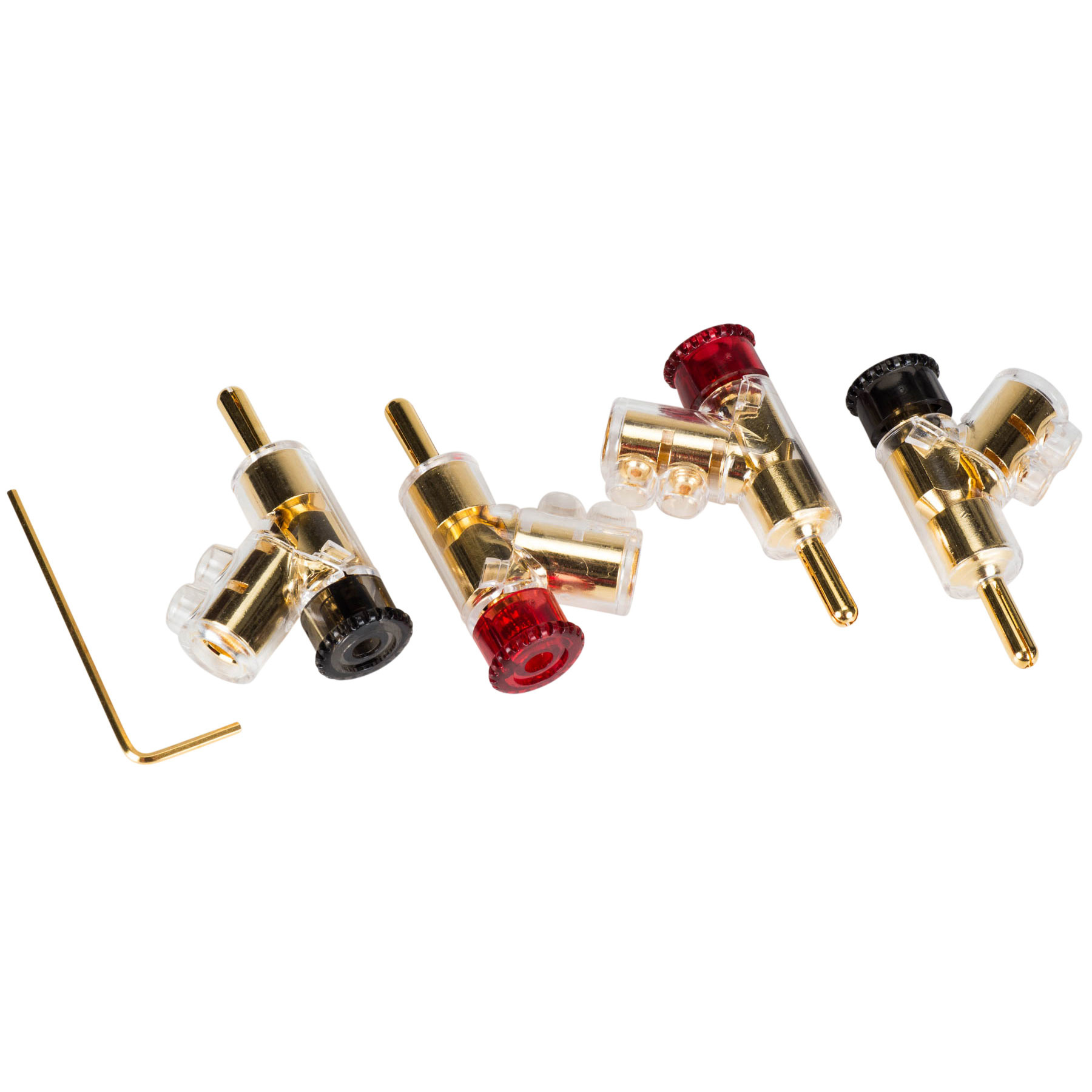

Angled Stacking Banana Plug with Dual Set Screws Poly Shell and Insulated Thumbscrew 2 Pair

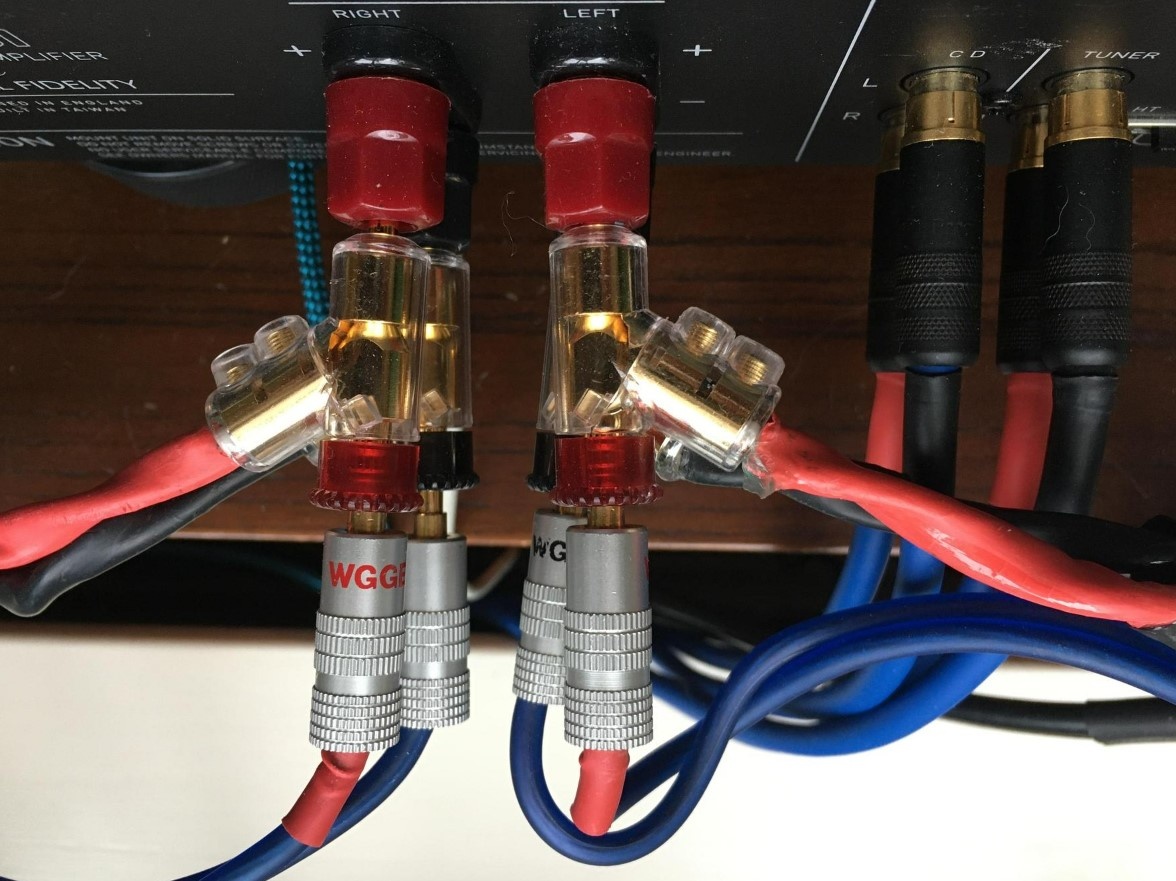

These locking, expanding banana plug connectors are manufactured with color-coded polycarbonate shells for quick polarity identification and protection from possible short-circuiting contact. The angled body allows for stacking multiple connectors atop each other, for quick speaker system expansion and bi-wired speakers.

Milled from solid brass and plated with 24 karat gold, to provide a long lifetime of service free of oxidation, each connector features two hex-head screws to create a gas-free connection that holds your speaker wire firmly in place.

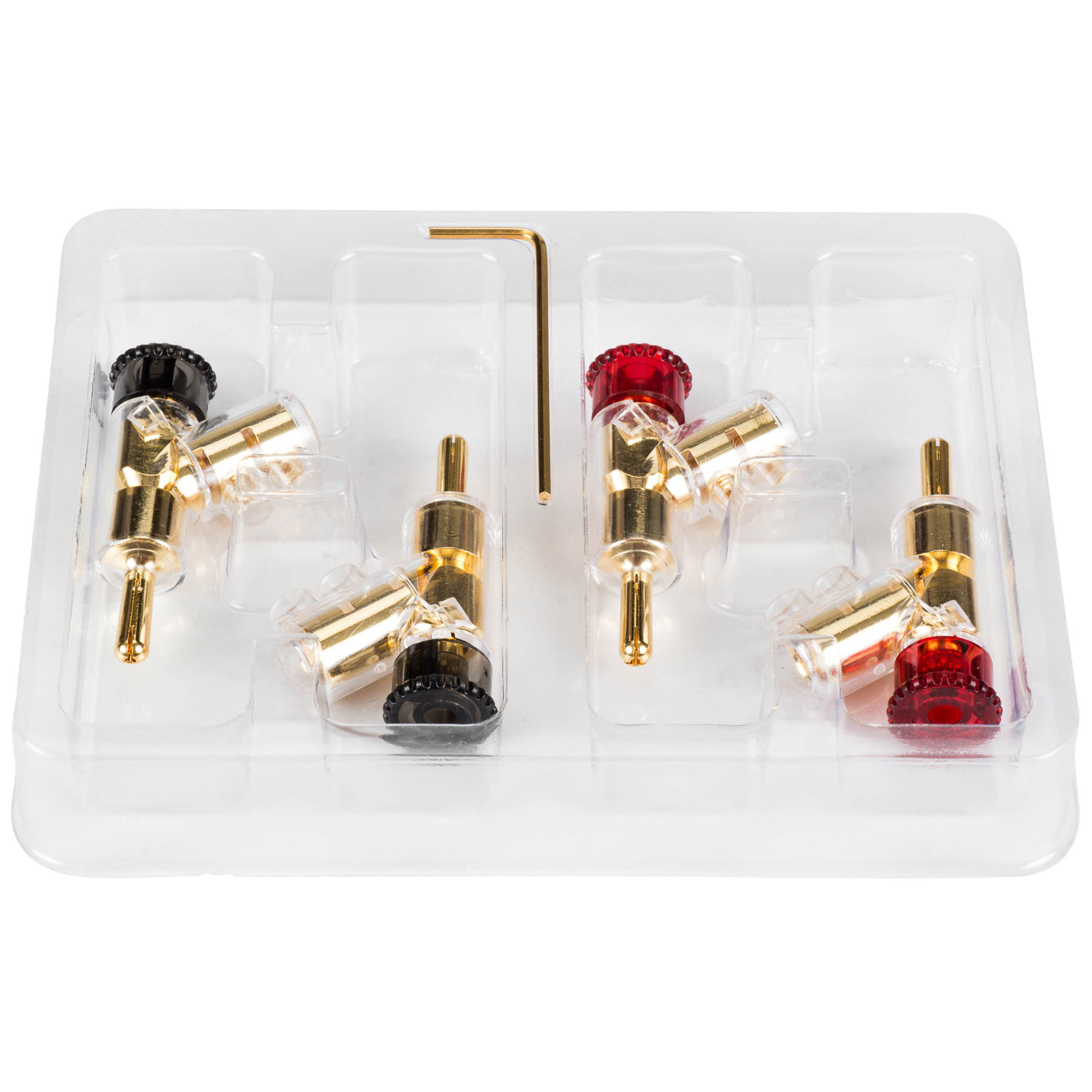

Integral to the design of these banana plugs is a central spike, driven by the insulated thumbscrew, which spreads the banana plug tines. This action firmly locks the banana plug into 5-way binding posts, banana jacks, and stacked banana plugs for a worry-free connection. Accepts up to 8 AWG wire. Sold two pair per package, two red and two black, and includes a hex wrench. Dimensions: 47.6 mm L x 12.7 mm Dia.

Note: When using high-strand cable, tinned leads allow for the greatest retention by the set screws.
