12 Terminal Barrier Strip Jumper Bar 12mm Pitch

0 reviews

Alle anzeigen Schraubklemmen

Vergleichen

12 Terminal Barrier Strip Jumper Bar 12mm Pitch

3,02 €3,65 € 9 Auf Lager: Lieferzeit 1-3 Werktage

Kostenloser Versand ab 149 € (DE & A)
Versicherter Versand am selben Tag
Hausinterner technischer Support
45 Tage Widerrufsrecht

Haben Sie eine Frage zu diesem Produkt?

Unser Mitarbeiter hilft Ihnen gerne, das richtige Produkt zu finden

Produktbeschreibung

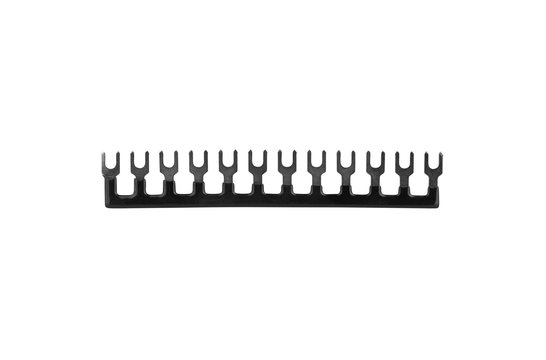

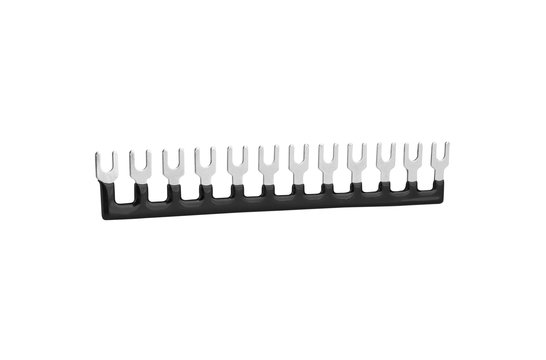

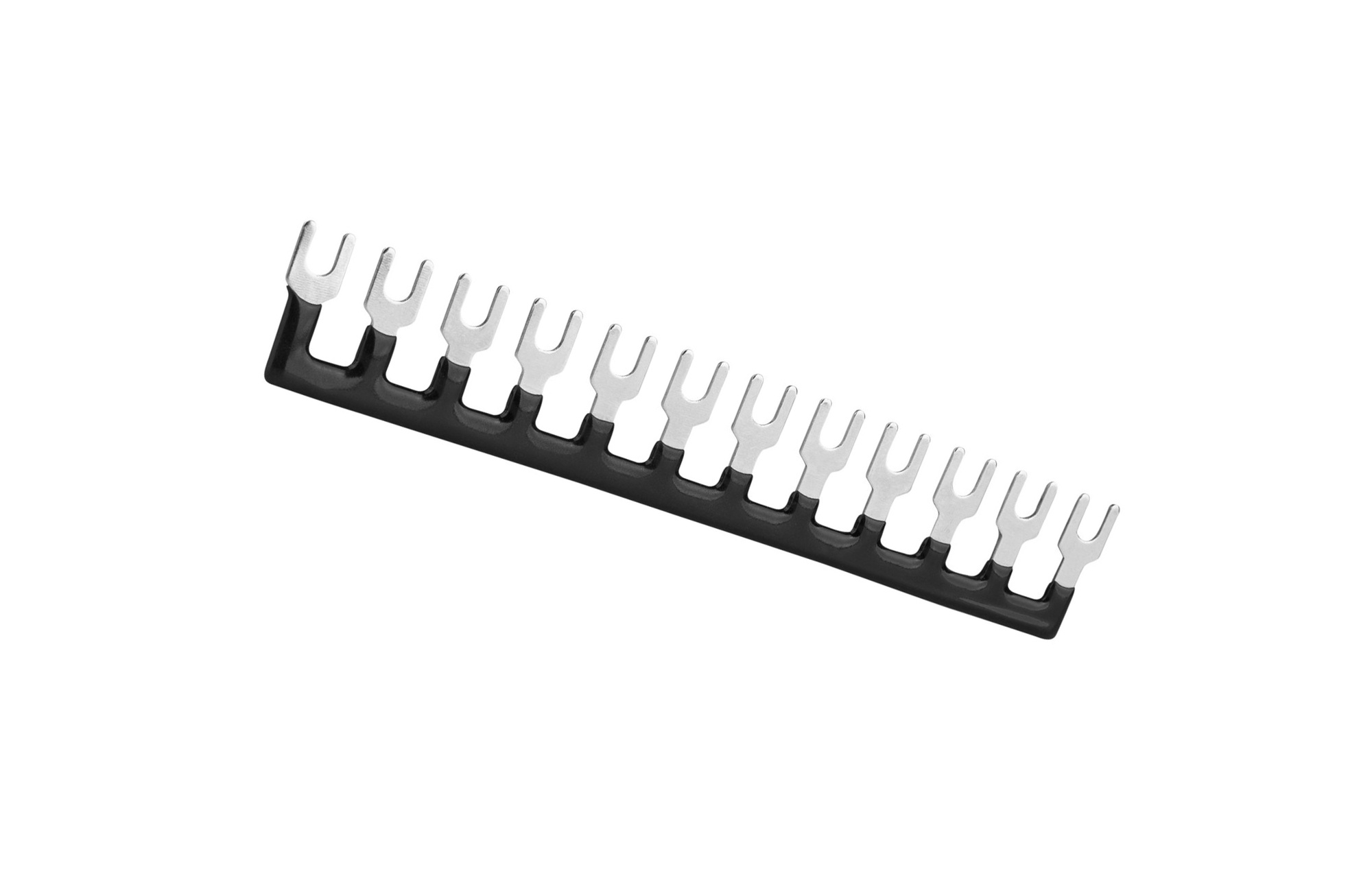

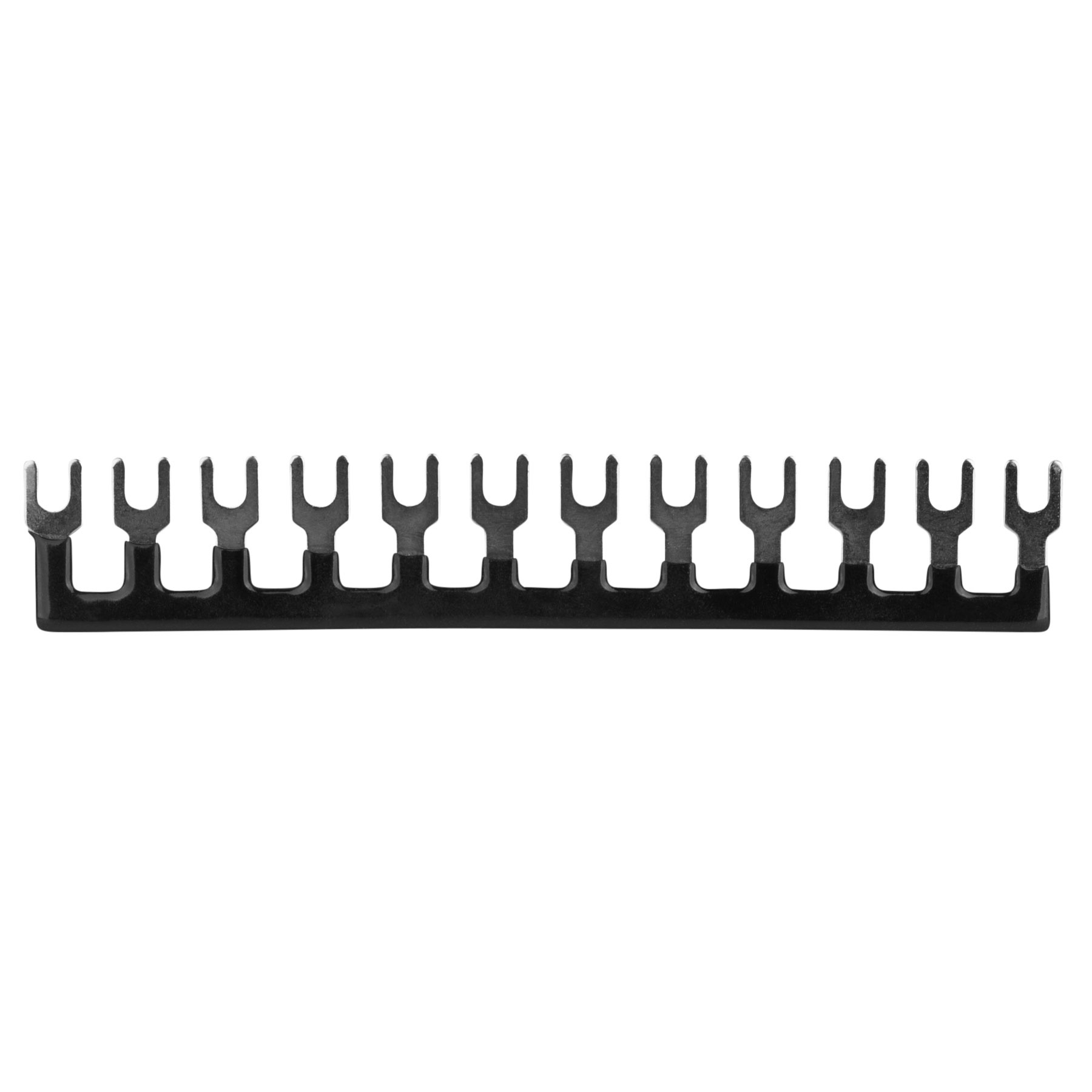

This 12 position insulated terminal block jumper shunt strip fits 12 mm pitch barrier terminal strips. It conveniently connects all 12 poles without having to use extra wires. Break them into smaller jumpers for barrier strips with fewer poles.

Highlights

Fits 12 mm pitch lug type barrier terminal strips
Insulated to prevent accidental electrical shock or short circuit
Break them into smaller jumpers for terminal strips with fewer poles
Quickly connects 12 poles together

Product Details

12 Terminal Barrier Strip Jumper Bar 12mm Pitch

Why fool with stripping wires and wrapping them around screws? This insulated 12 position terminal jumper bar connects all 12 poles together in seconds making the whole barrier strip one conductor for positive or negative hook-up. Break it in half and now you have two 6 position jumper bars making one barrier strip positive and negative, or use it on a smaller 6 pole terminal barrier strip. The insulation helps prevent accidental electrical shock or short circuits. Its 12 mm pitch only fits 12 mm pitch lug terminal barrier strips.

Specifications: • Terminals: 12 • External fork width: 8.07 mm • Internal fork width: 4.1 mm • Fork thickness without insulator: 0.85 mm • Total bar width with forks: 141.16 mm • Pitch: 12 mm.
