Large DPDT switch in panel mount.

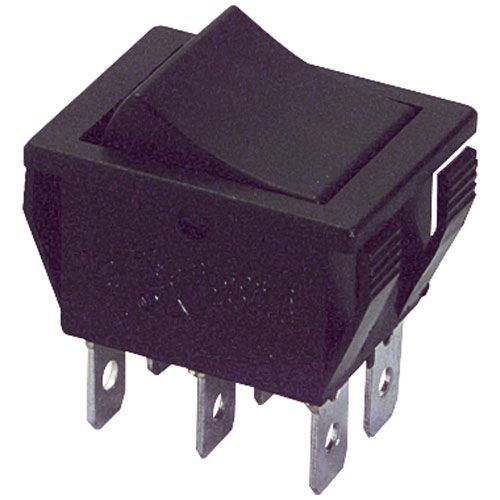

DPDT Rocker Switch
Large DPDT switch in panel mount.
16 amp, 125 VAC. 10 amp 250 VAC. 1-1/8" x 7/8" hole required.
Product Specifications
|
Circuit |
DPDT, ON-ON |
|
Contact rating @ Voltage |
16A 125VAC 10A 250VAC |
|
Illumination |
Non-Illuminated |
|
Cut-out dimensions |
1-1/8’’ x 7/8’’ |
This has to be wired up in a very specific way, I thought it would be similar to an ordinary household switch, it is not. There is also no instructions to give you an idea of how to wire it, and I found it pretty difficult to find a diagram online. When I found a similar switch diagram I tried to de solder the wires from the terminals and one of the prongs somehow melted off the switch. Its now in the bin.
€ 4,25
Auf Lager () Nicht auf Lager
VergleichenYou can compare a maximum of 3 products
Large, ON-ON, DPDT switch in panel mount. 10A 250VAC Zusatzinformationen
