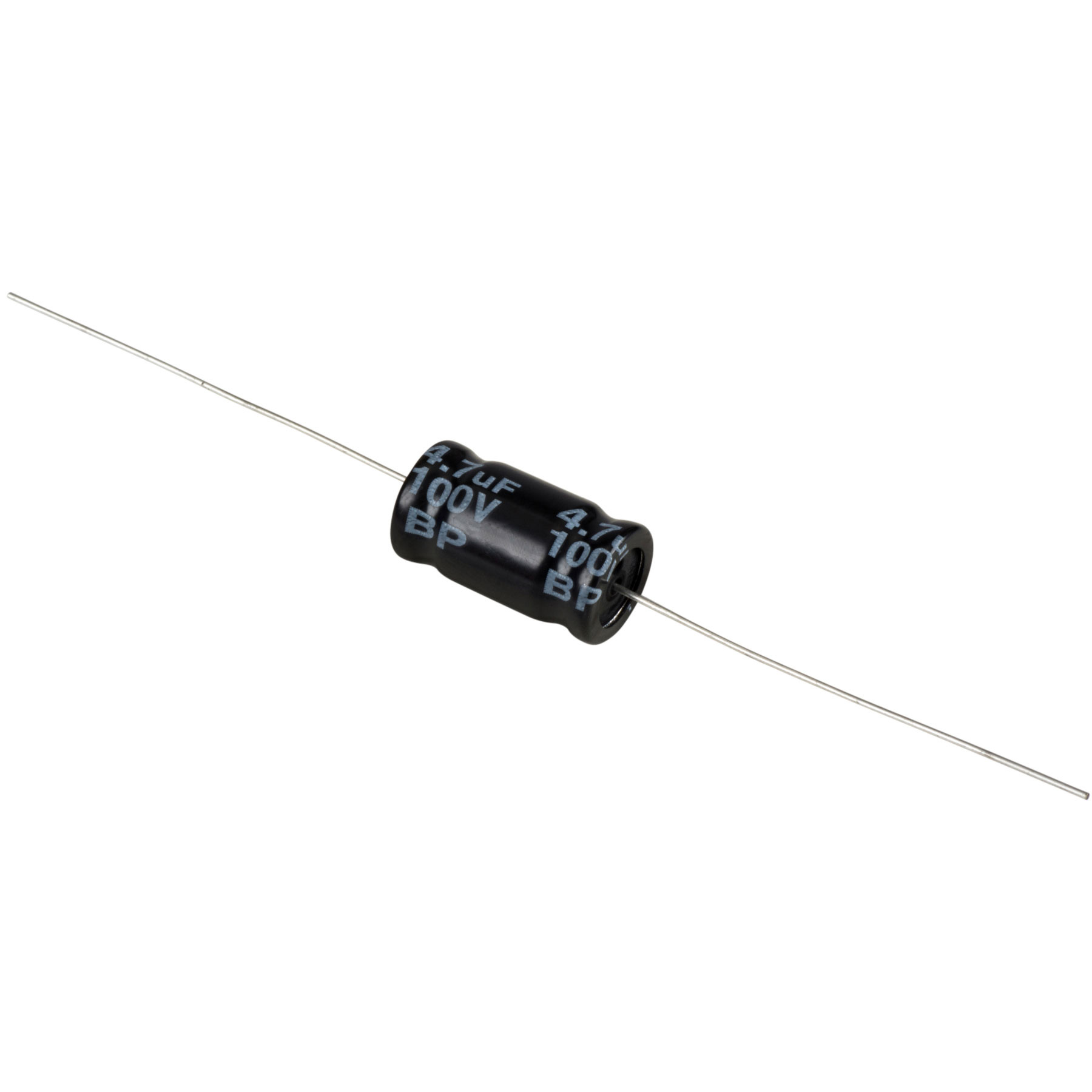

Electrolytic Non-Polarized Cap | 4,7 µF | 10% | 100V
Highlights
- 4.7 microfarad value
- 10 mm diameter x 19 mm long
- 5% dissipation factor and 100 VDC working voltage
- ±10% tolerance
Product details
Electrolytic Non-Polarized Cap | 4,7 µF | 10% | 100V
Electrolytic non-polarized (bi-polar) capacitors are perfect low-cost solutions for use in passive speaker crossovers. These capacitors feature axial leads, a 5% dissipation factor, and are rated at a 100 VDC working voltage which equates to approximately 200 watts power handling. Sold individually.
Specifications: Value: 4.7 µF • Rated: 100 VDC • Tolerance: ±10% • Dissipation Factor: Max 0.5 (5%) @ 1 KHz • Dimensions: 10 mm Dia. x 19 mm L.
