    SMSL SU-9 DAC ES9038Pro USB XMOS Bluetooth 5.0 MQA 32bit 768kHz DSD512

    € 413,18€ 499,95 1 Auf Lager: Lieferzeit 1-3 Werktage
    • Versicherter Versand mit Sendungsverfolgung
    • Kostenloser Versand ab 149€ (DE, A)
    • Versand am selben Tag
    • Hausinterner technischer Support
    Haben Sie eine Frage zu diesem Produkt?

    Haben Sie eine Frage zu diesem Produkt?

    Unser Mitarbeiter hilft Ihnen gerne, das richtige Produkt zu finden

    Produktbeschreibung

    The SMSL SU-9 is a new desktop pure DAC featuring an ESS SABRE9038Pro chipset, with BT5.0 UAT and MQA capability.



    Highlights

    • Latest Bluetooth Codecs including LDAC, AptX, AptXHD, AAC, SBC, it also interestingly includes an even higher codec, UAT
    • Single TOTL ES9038PRO DAC chipset version
    • True balanced DAC around the ES9038PRO chipset
    • Equipped with ES9311 regulator power supply
    • MQA rendering capabilities
    • Ultra-low phase noise and optimized clock processing circuits to achieve ultra-low clock jitter
    • Package includes: a SU-9, remote, USB cable, a power cable, Bluetooth antenna, manual.



    Product details

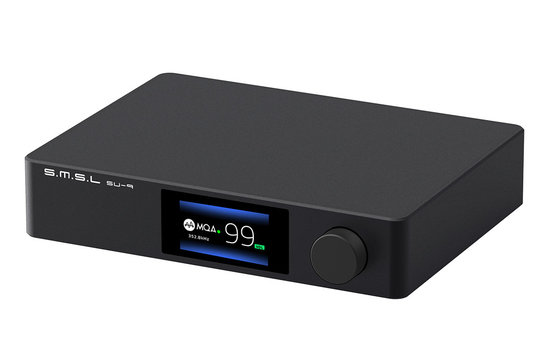

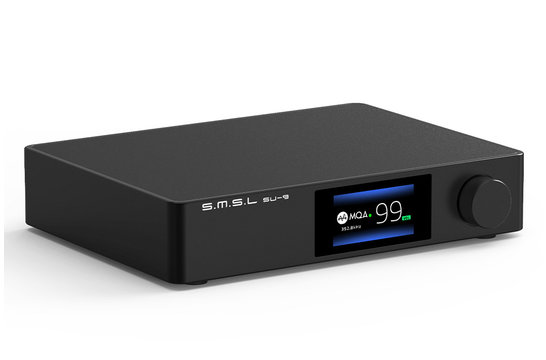

    SMSL SU-9 DAC ES9038Pro USB XMOS Bluetooth 5.0 MQA 32bit 768kHz DSD512

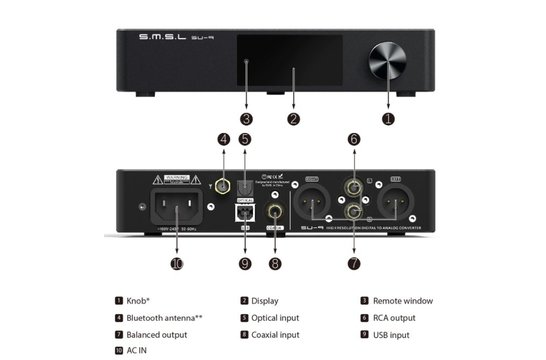

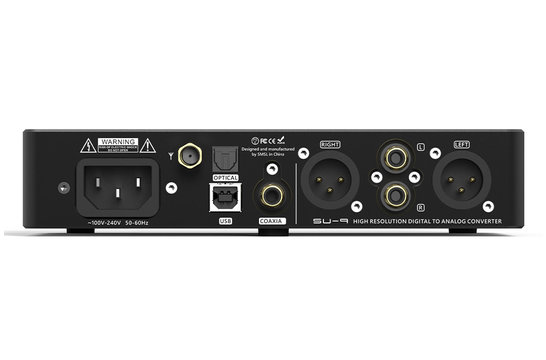

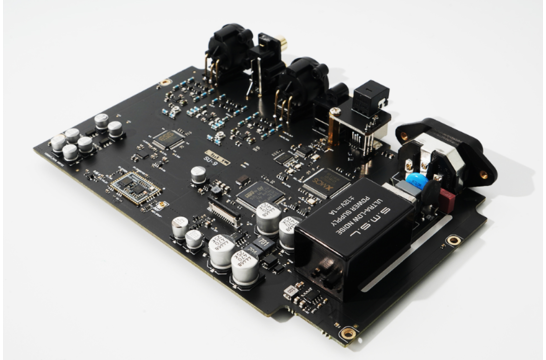

    Successor of the SU-8, the SMSL SU-9 takes up the excellent base of the SU-8 while bringing significant improvements to improve its sound performance. This new version of the DAC also offers support for MQA (Master Quality Authenticated) files, guaranteeing faithful reproduction, as close as possible to studio recording. On the conversion chip side is the excellent and proven DAC ESS ES9038Pro, which supports high-resolution files up to 32bit 768kHz PCM and up to DSD512. The ergonomics of the device have also been reviewed. The front panel now features a rotary knob that allows you to navigate through the menus, adjust the volume level, select a source or turn the device on and off. The color screen has been greatly enlarged for improved navigation and readability. The connections remain unchanged and therefore as complete as ever. We find Toslink Optics, Coaxial and USB (XMOS) in input and unbalanced RCA as well as balanced XLR in output. However, a novelty appears here as well, with the support of Bluetooth 5.0 transmission. Particularly convenient, it is possible to broadcast your music remotely, directly from a smartphone. The SU-9's careful and well-thought-out internal design allows it to unveil a precise, rich and dynamic sound reproduction.



    MQA Support

    Master Quality Authenticated (MQA) files offer the same quality as when the song is recorded in the studio, resulting in much lower distortion, a wider sound stage, and richer, more accurate playback.



    The MQA uses a treatment called "musical origami". This makes this high-resolution file easy to manage in order to make it compatible with all audio playback services and devices. This process consists of 3 steps.



    Bluetooth UAT Reception

    The SMSL SU-9 allows a Bluetooth reception, particularly practical to broadcast music from your phone. It also supports all available transmission codecs, including high-resolution protocols such as LDAC, aptX, aptX-HD, XBC and AAC. It is also compatible with the UAT (Ultra Audio Transmission) format, allowing high-quality reception at 24bit 192kHz.



    Specifications: Product type: DAC • DAC Chip: ESS ES9038Pro • USB Interface: XMOS • Digital reception: cgip ESS ES9311 • Input: USB/Optical/Coaxial/Bluetooth • Output:RCA/XLR • THD+N:0.00009%(-121dB) • Dynamic range:XLR 130dB • RCA 123dB • SNR:130dB • Output impedance:XLR 207Ω • RCA 142Ω • USB transmission:Asynchronization • USB compatibility:Windows 7+,Mac OSX,Linux • Bit depth: USB 1bit,16-32bit • Optical/Coaxial 1bit,16-24bit • Sampling rate: USB PCM 44.1-768kHz • DSD 2.8224-22.5792MHZ • Optical/Coaxial PCM 44.1-192kHZ • DSD dsd64(DoP).

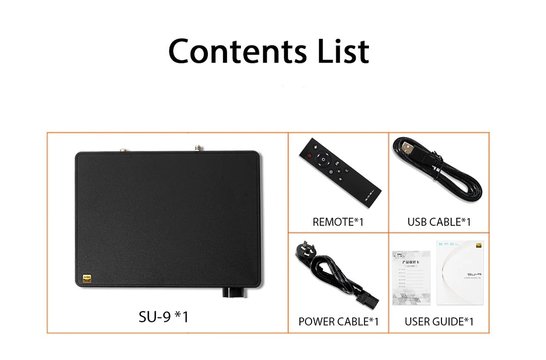

    Whats In The Box

    • 1x SMSL SU-9
    • 1x Remote control
    • 1x USB cable
    • 1x Power cable

    Eigenschaften

    Artikelnummer:
    SU-9
    Produkttyp
    Audio DAC
    Drahtlose Konnektivität
    Bluetooth 5.0 (LDAC, AptX, AptXHD, AAC, SBC, UAT)
    DAC Chipset
    TOTL ES9038PRO
    Codec Unterstützung
    MQA
    DSD512
    PCM
    Eingänge
    1 x USB
    1 x Optical
    1 x Coaxial
    1 x Bluetooth
    Ausgänge
    1 x RCA
    1 x XLR
    THD(+N)
    0.00009% (-121dB)
    Dynamikbereich
    XLR : 130dB
    RCA : 123dB
    SRV
    130dB
    USB Kompatibilität
    Windows 7+
    Mac OSX
    Linux
    Rechenauflösung und Abtastrate
    > 32-bit / 768 kHz (USB)
    > 24-bit / 192 kHz (TOSLINK, COAX)
    DSD64
    Energiebedarf
    100 - 240 VAC
    Stromverbrauch
    5 watts
    Stromverbrauch im Ruhezustand
    < 0.5 watts
    Fernbedienung
    Yes

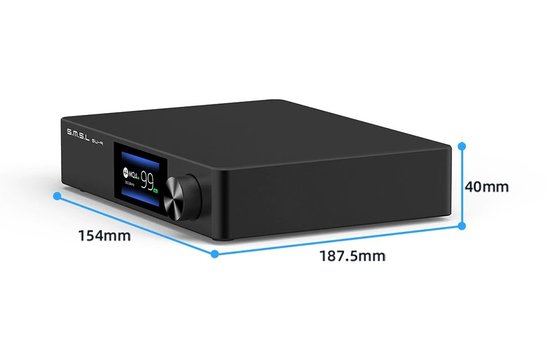

    Abmessungen
    187,5 x 154 x 40 mm
    Gewicht
    790 gr.

    Mehr anzeigen

    Bewertungen

    4 from 5Based on 1 reviews
    Produkt bewerten
    4 von 5

    Scheint technisch einwandfrei zusein, aber die Dokumentation ist nicht ausreichend

    • +Top Leistungswerte
    • -Fehlende Information in der Dokumentation
    Durch AudioChiemgau on 9 März 2022
