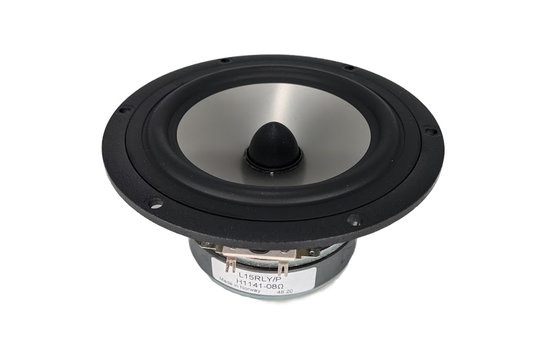

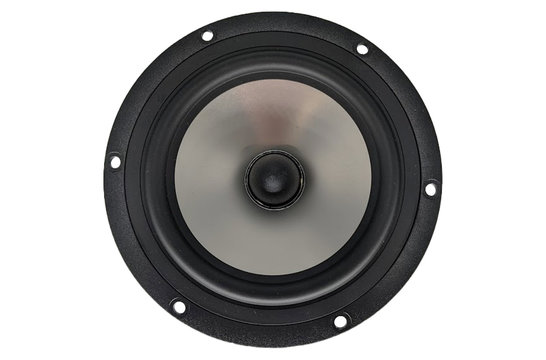

SEAS Prestige L15RLY/P - H1141 5.5" Aluminum Cone Woofer

€ 64,67€ 78,25 >10 Auf Lager: Lieferzeit 1-3 Werktage
The L15RLY/P is a 5" cone driver, developed for use as a long throw high fidelity woofer or woofer/midrange unit. Stiff, yet light aluminum cone and low loss rubber surround show no sign of the familiar 500-1500 Hz cone edge resonance and distortion assoc... Mehr anzeigen
Bulk discount Genießen Sie diese tollen Rabattangebote
  • -5% Kauf 4 für nur €74,34 pro stück
  • Versicherter Versand mit Sendungsverfolgung
  • Kostenloser Versand ab 149€ (DE, A)
  • Versand am selben Tag*
  • Hausinterner technischer Support

Produktbeschreibung

Highlights

  • Developed for use as a long throw high fidelity woofer or woofer/midrange unit
  • Extremely stiff and stable injection molded metal basket
  • Large windows on the basket both above and below the spider allow reduction of sound reflection, air flow noise and cavity resonances to a minimum



Product details

Seas Prestige L15RLY/P - H1141 5.5" Aluminum Cone Woofer



The L15RLY/P is a 5" cone driver, developed for use as a long throw high fidelity woofer or woofer/midrange unit. Stiff, yet light aluminum cone and low loss rubber surround show no sign of the familiar 500-1500 Hz cone edge resonance and distortion associated with soft cones.



Its large magnet system, together with very long, and light weight copper clad aluminum voice coil allow for extreme coil excursion with low distortion and good transient response. Extremely stiff and stable injection molded metal basket, keeps the critical components in perfect alignment. Large windows in the basket both above and below the spider reduce sound reflection, air flow noise and cavity resonances to a minimum.

Eigenschaften

Artikelnummer:
L15RLY/P
Woofer Series
Prestige Series
Woofer Type
Midwoofer
Nominal Diameter
5.5"
Power Handling (RMS)
80 Watts
Power Handling (max)
200 Watts
Impedance
8 ohms
Sensitivity
86 dB 2.83V/1m
Frequency Response
45 to 3,000 Hz
Voice Coil Diameter
1"
Magnet Weight
14 oz.
DC Resistance (Re)
5.5 ohms
Voice Coil Inductance (Le)
0.84 mH
Resonant Frequency (Fs)
44 Hz
Mechanical Q (Qms)
2.10
Electromagnetic Q (Qes)
0.43
Total Q (Qts)
0.35
Diaphragm Mass Inc. Airload (Mms)
8.1g
Mechanical Compliance of Suspension (Cms)
1.6 mm/N
Compliance Equivalent Volume (Vas)
0.42 ft.³
Maximum Linear Excursion (Xmax)
5 mm
Overall Outside Diameter
5.75"
Overall Depth
2.82"
Baffle Cutout Diameter
4.41"
Bolt Circle Diameter
5.37"
# Mounting Holes
6
Mounting Hole Diameter
0.2"
