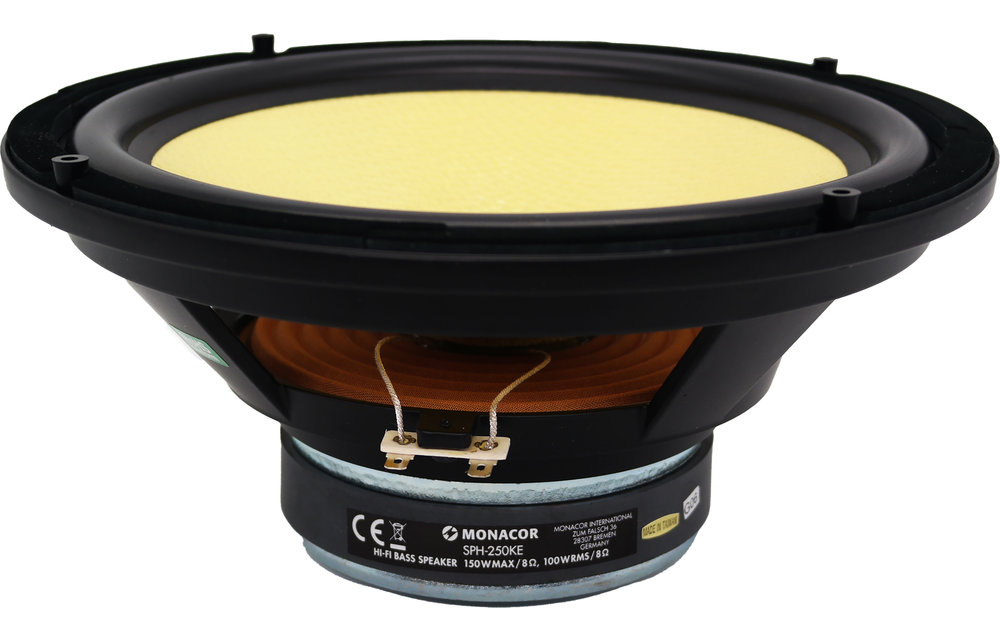

Monacor SPH-250KE 10" Kevlar Cone Woofer 8 Ohm

Name: Monacor SPH-250KE 10" Kevlar Cone Woofer 8 Ohm
Brand: Monacor
Price: 114.95 EUR
Availability: InStock
Rating: 5 (2 reviews)

2 reviews

Marke: Monacor

Alle anzeigen Audio-Komponenten

Vergleichen

10" | 8 Ω

€ 95,-€ 114,95 2 Auf Lager: Lieferzeit 1-3 Werktage

High-end woofer with modern looks thanks to the kevlar cone. Designed for woofer application in large multi-way designs or subwoofer applications in both vented and sealed enclosures... Mehr anzeigen

Versicherter Versand mit Sendungsverfolgung
Kostenloser Versand ab 149€ (DE, A)
Versand am selben Tag*
Hausinterner technischer Support

Produktbeschreibung

High-end woofer with modern looks thanks to the kevlar cone. Designed for woofer application in large multi-way designs or subwoofer applications in both vented and sealed enclosures

Highlights

Kevlar cone
Very refined and well balanced T/S parameters
High excursion capabilities

Product details

Monacor SPH-250KE 10" Kevlar Cone Woofer 8 Ohm

The Monacor SPH-250KE is a very competent woofer with modern engineering and looks thus making it very suitable as the woofer in high-end multi-way speakers. The beautiful finely woven kevlar cone draws plenty of attention and its performance won’t disappoint the listener either. The T/S parameters are tailored towards bass-reflex designs, meaning that deep bass reproduction is possible from vented and transmission line enclosures but the SPH-250KE can even get down in a simple sealed enclosure.

Eigenschaften

Artikelnummer:: SPH-250KE
Woofer Type: Woofer
Nominal Diameter: 10 ''
Power Handling (RMS): 100 Watts
Power Handling (max): 150 Watts
Impedance: 8 Ohms
Sensitivity: 90 dB 1W/m
Frequency Response: 23-700 Hz
Voice Coil Diameter: 50 mm
Magnet Weight: 840 g + 50 g
DC Resistance (Re): 6.1 Ohms
Voice Coil Inductance (Le): 0.7 mH
Resonant Frequency (Fs): 23 Hz
Mechanical Q (Qms): 5.25
Electromagnetic Q (Qes): 0.45
Total Q (Qts): 0.41
Diaphragm Mass Inc. Airload (Mms): 45 g
Mechanical Compliance of Suspension (Cms): 0.94 mm/N
Surface Area of Cone (Sd): 346 cm2

Bewertungen

2 reviews

5 from 5Based on 2 reviews

Produkt bewerten

5 van 5

o.K.

Durch Wolfgang F. on 10 Januar 2021

5 van 5

Great value driver which both looks and sounds amazing. Used the 200w (100w at 8ohms) Monacor plate amp which was a perfect match for my potted enclosure.

Durch SIMON S. on 26 Juni 2020
