- Artikelnummer:

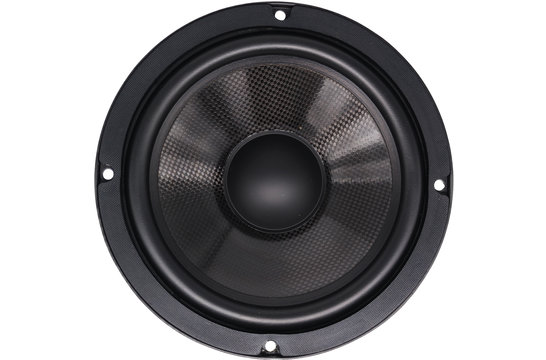

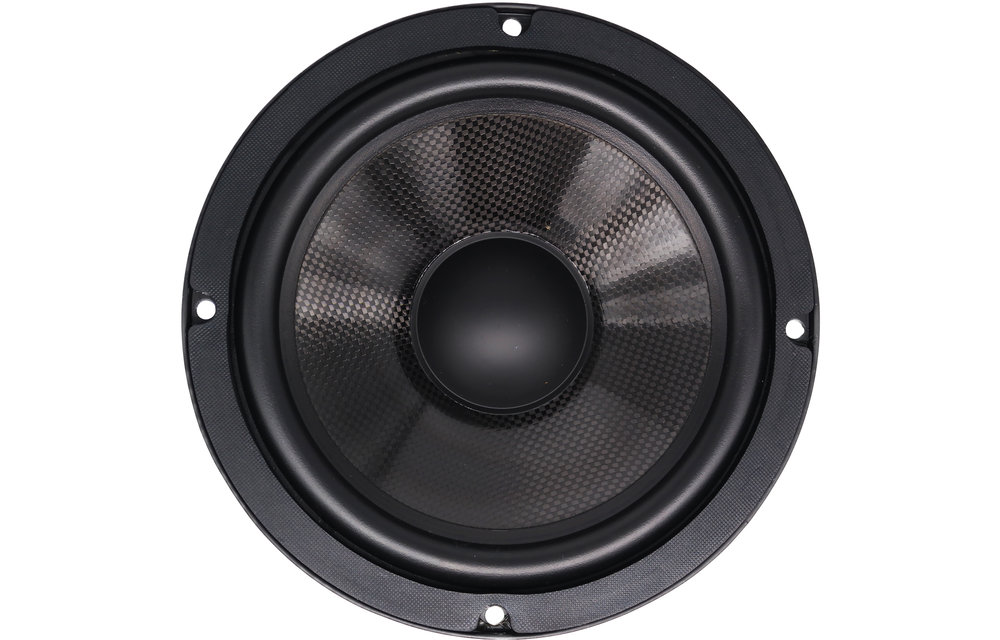

- SPH-200CTC
- Woofer Type
- Subwoofer
- Nominal Diameter
- 8''
- Power Handling (RMS)
- 2 x 60 Watts
- Power Handling (max)
- 2 x 100 Watts
- Impedance
- 2 x 8 Ω
- Sensitivity
- 88 dB 1W/m
- Frequency Response
- 25-1000Hz
- Voice Coil Diameter
- 50 mm
- Magnet Weight
- 840 g
- DC Resistance (Re)
- 2 x 6.8 Ω/ 3.4 Ω
- Voice Coil Inductance (Le)
- 2 x 1.0 mH/ 1.0 mH
- Resonant Frequency (Fs)
- 22 Hz
- Mechanical Q (Qms)
- 4.91
- Electromagnetic Q (Qes)
- 0.52 / 0.23
- Total Q (Qts)
- 0.47 / 0.22
- Diaphragm Mass Inc. Airload (Mms)
- 45 g
- Mechanical Compliance of Suspension (Cms)
- 1.16 mm/N
- Surface Area of Cone (Sd)
- 214 cm2
- BL Product (BL)
- 9 Tm
- Compliance Equivalent Volume (Vas)
- 75 l
- Cone / Diaphragm Material
- Carbon fiber
- Surround Material
- Rubber
- Voice Coil Wire Material
- Copper
- Voice Coil Former
- Kapton
- Dual Voice Coil
- Dual 8 Ohm
- Basket / Frame Material
- Aluminum
- Magnet Material
- Ferrite
- Overall Outside Diameter
- 211 mm
- Overall Depth
- 115 mm
- Baffle Cutout Diameter
- 181 mm
- # Mounting Holes
- 4
- Mounting Hole Diameter
- 6 mm
