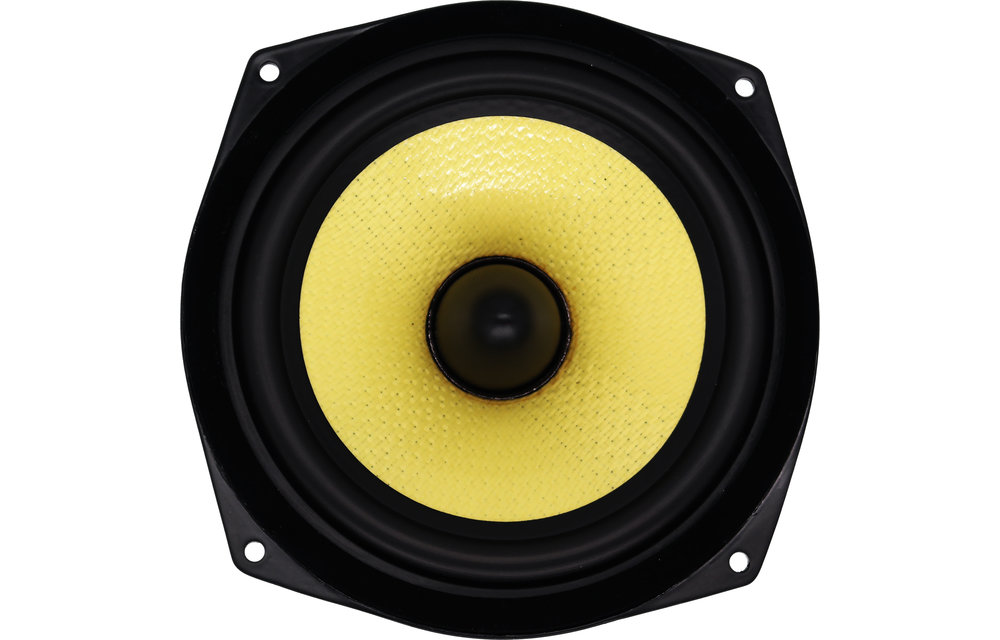

Monacor SPH-165KEP 6-1/2" Kevlar Cone Midwoofer 8 Ohm

€ 82,60€ 99,95 Nicht auf Lager: Lieferzeit beträgt 3 Werktage
A high-tech kevlar cone woofer that is capable of deep bass reproduction and smooth midrange reproduction and therefore ideally suited as the midwoofer in two-way speakers.... Mehr anzeigen
Bulk discount Genießen Sie diese tollen Rabattangebote
  • -5% Kauf 4 für nur €94,95 pro stück
  • Versicherter Versand mit Sendungsverfolgung
  • Kostenloser Versand ab 149€ (DE, A)
  • Versand am selben Tag*
  • Hausinterner technischer Support

Produktbeschreibung

A high-tech kevlar cone woofer that is capable of deep bass reproduction and smooth midrange reproduction and therefore ideally suited as the midwoofer in two-way speakers.



Highlights

  • Kevlar cone
  • Phase plug for optimizing radiation pattern
  • Optimum transient response
  • Very linear response



Product details

Monacor SPH-165KEP 6-1/2" Kevlar Cone Midwoofer 8 Ohm



The resonance-free kevlar cone is not the only feature that makes the SPH-165KEP so high-tech. The phase plug optimizes the radiation pattern and the well balanced suspension makes for optimum transient response, making the SPH-165KEP a very realistic sounding woofer.



High power levels are no issue for the SPH-165KEP, not thermally but also not mechanically. These features and an extremely linear and extended midrange response make it an extremely competent woofer for your next two-way speaker.

Eigenschaften

Artikelnummer:
SPH-165KEP
Woofer Type
Midwoofer
Nominal Diameter
6.5''
Power Handling (RMS)
60 Watts
Power Handling (max)
100 Watts
Impedance
8 Ohms
Sensitivity
89 dB 1W/m
Frequency Response
30-7,000hz
Voice Coil Diameter
35.5 mm
Magnet Weight
500 g + 17 g
DC Resistance (Re)
6 Ohms
Voice Coil Inductance (Le)
0.7 mH
Resonant Frequency (Fs)
30 Hz
Mechanical Q (Qms)
4.85
Electromagnetic Q (Qes)
0.33
Total Q (Qts)
0.31
Diaphragm Mass Inc. Airload (Mms)
17 g
Mechanical Compliance of Suspension (Cms)
1.71 mm/N
Surface Area of Cone (Sd)
127 cm2
BL Product (BL)
7.60 Tm
Compliance Equivalent Volume (Vas)
38 l
Maximum Linear Excursion (Xmax)
4.75 mm
Cone / Diaphragm Material
Kevlar
Surround Material
Rubber
Voice Coil Wire Material
Copper
Voice Coil Former
Kapton
Basket / Frame Material
Aluminum
Magnet Material
Ferrite
Overall Outside Diameter
165 x 165 mm
Overall Depth
90 mm
Baffle Cutout Diameter
142 mm
# Mounting Holes
4
Mounting Hole Diameter
4.5 mm

Bewertungen

3 from 5Based on 2 reviews
Produkt bewerten
1 van 5
Woofers klinken anders dan het paar dat ik al had!?
Ook na een aantal weken inspelen.
Durch Cor R. on 16 April 2021
5 van 5
I've been using a pair of these in bookshelf speakers and have to say these are really good. They can handle a lot of excursion with no aerodynamic noise and if tuned to use their potential, they can go subwoofer low even in a relatively compact enclosure.
Another impressive thing is their flatness up to 6k, so matching them to a similarly flat tweeter shouldn't be a problem.
Durch Tomas K on 3 April 2020
