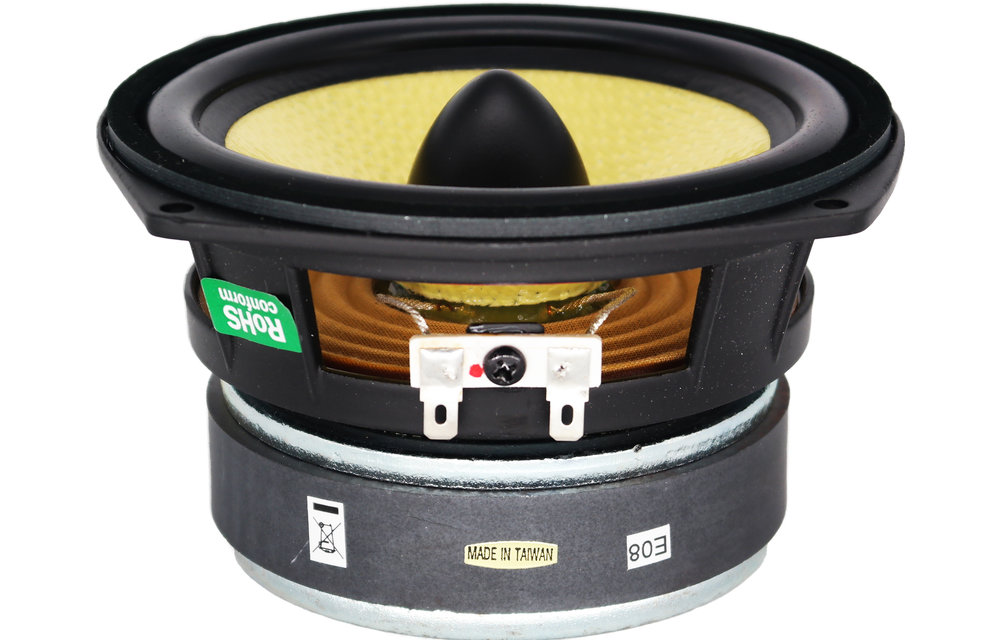

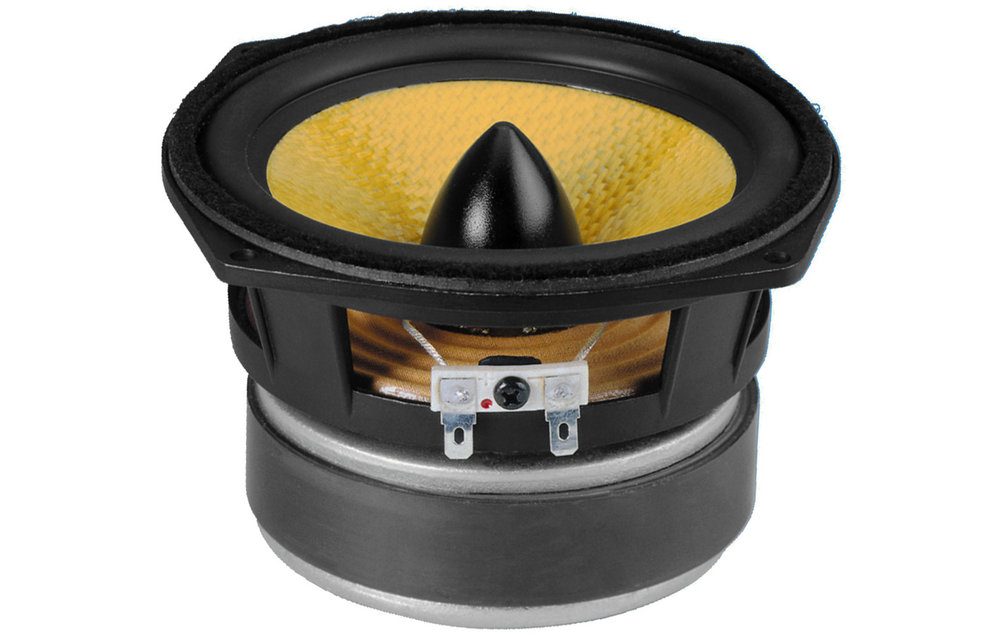

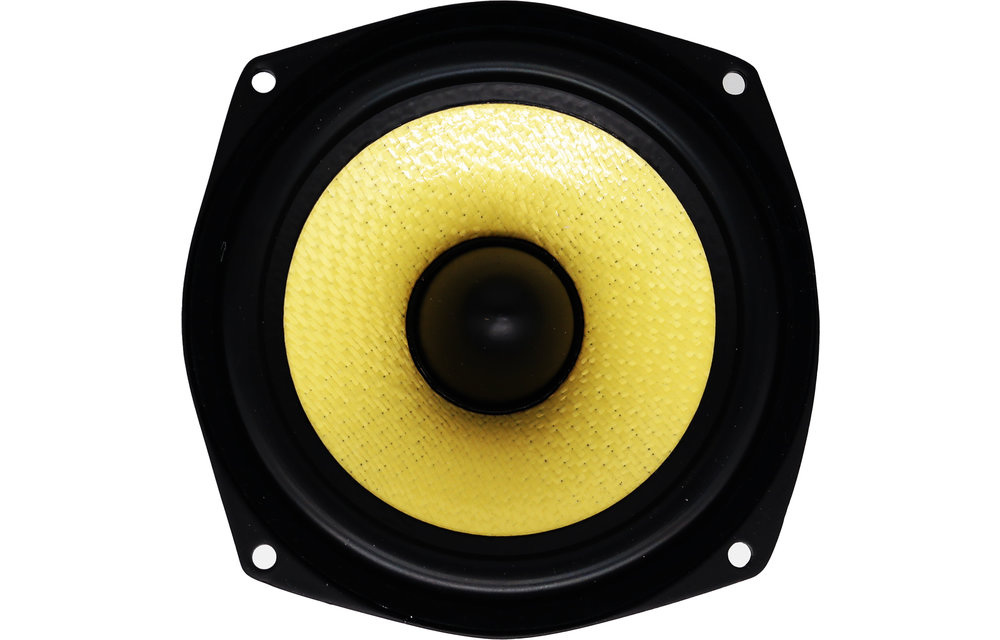

Monacor SPH-135KEP 5-1/4" Kevlar Cone Midwoofer 8 Ohm

€ 61,94€ 74,95 4 Auf Lager: Lieferzeit 1-3 Werktage
A high-tech kevlar cone woofer ideally suited as a midwoofer in two-way speakers or midrange driver in high-end multi-way speakers.... Mehr anzeigen
Bulk discount Genießen Sie diese tollen Rabattangebote
  • -5% Kauf 4 für nur €71,20 pro stück
  • Versicherter Versand mit Sendungsverfolgung
  • Kostenloser Versand ab 149€ (DE, A)
  • Versand am selben Tag*
  • Hausinterner technischer Support

Produktbeschreibung

A high-tech kevlar cone woofer ideally suited as a midwoofer in two-way speakers or midrange driver in high-end multi-way speakers.



Highlights

  • Kevlar cone
  • Phase plug for optimizing radiation pattern
  • Designed for maximum vocal clarity



Product details

Monacor SPH-135KEP 5-1/4" Kevlar Cone Midwoofer 8 Ohm



The Monacor SPH-135KEP is optimized for maximum vocal clarity between 200 Hz and 4,000 Hz. This is done by the beautiful kevlar cone with a phase plug in the middle. This way the radiation pattern is optimized, controlled and tailored in such a way that it is easy to cross this woofer over to a tweeter.

Eigenschaften

Artikelnummer:
SPH-135KEP
Woofer Type
Midwoofer
Nominal Diameter
5.25''
Power Handling (RMS)
50 Watts
Power Handling (max)
80 Watts
Impedance
8 Ohms
Sensitivity
89 dB 1W/m
Frequency Response
45-4,000 Hz
Voice Coil Diameter
35.5 mm
Magnet Weight
550 g + 17 g
DC Resistance (Re)
6 Ohms
Voice Coil Inductance (Le)
0.75 mH
Resonant Frequency (Fs)
45 Hz
Mechanical Q (Qms)
5.54
Electromagnetic Q (Qes)
0.32
Total Q (Qts)
0.30
Diaphragm Mass Inc. Airload (Mms)
10 g
Mechanical Compliance of Suspension (Cms)
1.23 mm/N
BL Product (BL)
7.50 Tm
Compliance Equivalent Volume (Vas)
15.5 l
Maximum Linear Excursion (Xmax)
3.25 mm
Cone / Diaphragm Material
Kevlar
Surround Material
Rubber
Voice Coil Wire Material
Copper
Voice Coil Former
Kapton
Basket / Frame Material
Aluminum
Magnet Material
Ferrite
Overall Outside Diameter
133 x 133 mm
Overall Depth
75 mm
Baffle Cutout Diameter
122 mm
# Mounting Holes
4
Mounting Hole Diameter
4.5 mm
