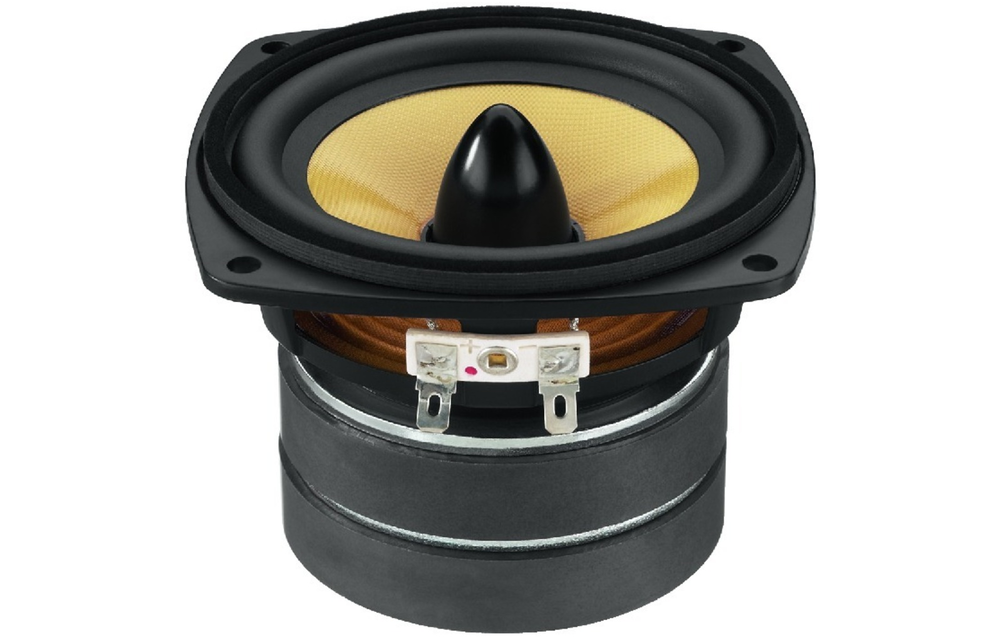

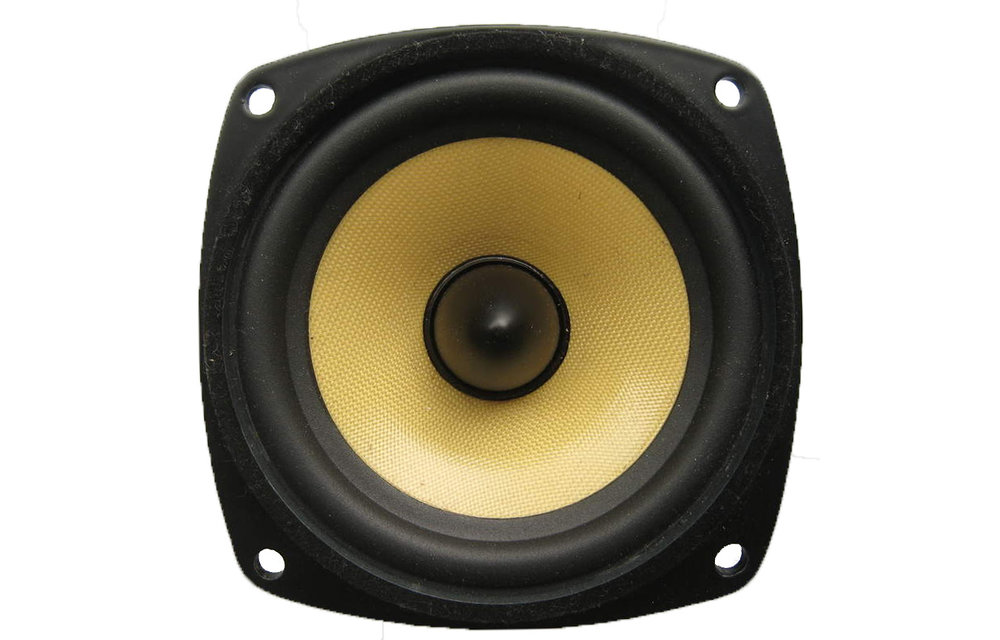

- Artikelnummer:
- SPH-102KEP
- Woofer Type
- Midrange
- Nominal Diameter
- 4.5''
- Power Handling (RMS)
- 40 Watts
- Power Handling (max)
- 120 Watts
- Impedance
- 8 Ohms
- Sensitivity
- 88 dB 1W/m
- Frequency Response
- 95-10,000 Hz
- Voice Coil Diameter
- 25.5 mm
- Magnet Weight
- 2 x 290 g
- DC Resistance (Re)
- 7.2 Ohms
- Voice Coil Inductance (Le)
- 0.20 mH
- Resonant Frequency (Fs)
- 95 Hz
- Mechanical Q (Qms)
- 5.70
- Electromagnetic Q (Qes)
- 0.57
- Total Q (Qts)
- 0.52
- Diaphragm Mass Inc. Airload (Mms)
- 3 g
- Mechanical Compliance of Suspension (Cms)
- 0.94 mm/N
- Surface Area of Cone (Sd)
- 55 cm2
- BL Product (BL)
- 4.75 Tm
- Compliance Equivalent Volume (Vas)
- 3 l
- Maximum Linear Excursion (Xmax)
- 1 mm
- Cone / Diaphragm Material
- Kevlar
- Surround Material
- Rubber
- Voice Coil Wire Material
- Copper
- Voice Coil Former
- Kapton
- Basket / Frame Material
- Aluminum
- Magnet Material
- Ferrite
- Shielded
- Yes
- Overall Outside Diameter
- 106 x 106 mm
- Overall Depth
- 76 mm
- Baffle Cutout Diameter
- 95 mm
- # Mounting Holes
- 4
- Mounting Hole Diameter
- 5 mm
