    Monacor SP-200X 8'' Full Range Driver 8 Ohm

    Marke: Monacor
    Alle anzeigen Audio-Komponenten
    8" | 8 Ω
    SP-200X 8'' Full Range Driver 8 Ohm
    € 44,95 6 Auf Lager: Lieferzeit 1-3 Werktage
    A high efficiency full range woofer with improved high frequency dispersion thanks to the whizzer cone and therefore a jack of all trades; should it be PA, home audio or instrument amplification.... Mehr anzeigen
    Bulk discount Genießen Sie diese tollen Rabattangebote
    • -5% Kauf 4 für nur €42,70 pro stück
    +-
    In den Warenkorb legen
    • Versicherter Versand mit Sendungsverfolgung
    • Kostenloser Versand ab 149€ (DE, A)
    • Versand am selben Tag*
    • Hausinterner technischer Support
    SP-200X 8'' Full Range Driver 8 Ohm

    Produktbeschreibung

    A high efficiency full range woofer with improved high frequency dispersion thanks to the whizzer cone and therefore a jack of all trades; should it be PA, home audio or instrument amplification.



    Highlights

    • High efficiency
    • Relatively linear frequency response
    • Improved high frequency dispersion thanks to the whizzer cone



    Product details

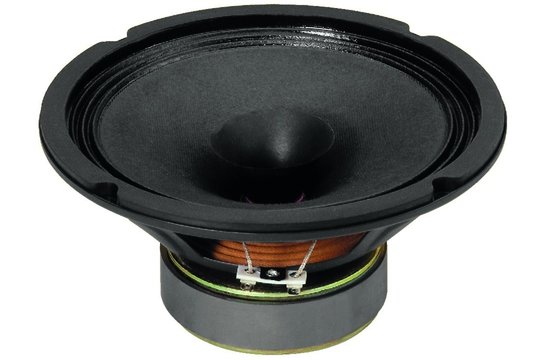

    Monacor SP-200X 8'' Full Range Driver 8 Ohm



    The Monacor SP-200X is a high efficiency 8’’ full range driver with a surprisingly linear response. Furthermore it exhibits all the positive characteristics of a full range speaker, such as the point source reproduction, with reduced beaming in the highs thanks to the well-integrated whizzer cone: The best of both worlds!



    It is efficient enough to be a very competent PA woofer but it is also very well suited for home audio purposes, especially high efficiency point source speaker systems.

    Eigenschaften

    Artikelnummer:
    SP-200X
    Woofer Type
    Full-Range
    Nominal Diameter
    8''
    Power Handling (RMS)
    35 Watts
    Power Handling (max)
    70 Watts
    Impedance
    8 Ohms
    Sensitivity
    92 dB 1W/m
    Frequency Response
    50-16,000 Hz
    Voice Coil Diameter
    25.5 mm
    Magnet Weight
    500 g
    DC Resistance (Re)
    7.2 Ohms
    Voice Coil Inductance (Le)
    0.3 mH
    Resonant Frequency (Fs)
    50 Hz
    Mechanical Q (Qms)
    1.96
    Electromagnetic Q (Qes)
    0.7
    Total Q (Qts)
    0.52
    Diaphragm Mass Inc. Airload (Mms)
    11.5 g
    Mechanical Compliance of Suspension (Cms)
    0.77 mm/N
    Surface Area of Cone (Sd)
    210 cm2
    BL Product (BL)
    6.10 Tm
    Compliance Equivalent Volume (Vas)
    48 l
    Maximum Linear Excursion (Xmax)
    1.6 mm
    Cone / Diaphragm Material
    Paper
    Surround Material
    Cloth
    Voice Coil Wire Material
    Copper
    Voice Coil Former
    Aluminum
    Basket / Frame Material
    Stamped steel
    Magnet Material
    Ferrite
    Overall Outside Diameter
    205 mm
    Overall Depth
    80 mm
    Baffle Cutout Diameter
    182 mm
    # Mounting Holes
    4
    Mounting Hole Diameter
    5 mm
