Robust 315 x 315mm constant directivity horn with 25mm throat and 35.6 mm (1.4") flange connection with standard 4-hole screw connection
Monacor MRH-300 315 x 315mm Constant Directivity Horn

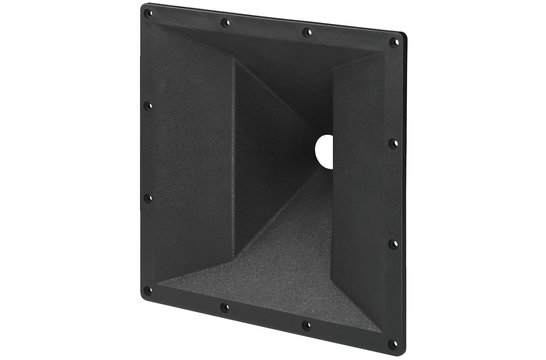

The Monacor MRH-300 is a constant directivity horn made out of 8mm glass fiber reinforced ABS plastic, thus suppressing possible resonances. The square design makes it possible for the horn to be mounted both horizontally and vertically. It has an effective throat diameter of 25mm 35.6 mm (1.4") flange connection with standard 4-hole screw connection (Ø 101.6 mm). Measuring 315 x 315 mm, it provides useful acoustical loading down to 1000Hz.

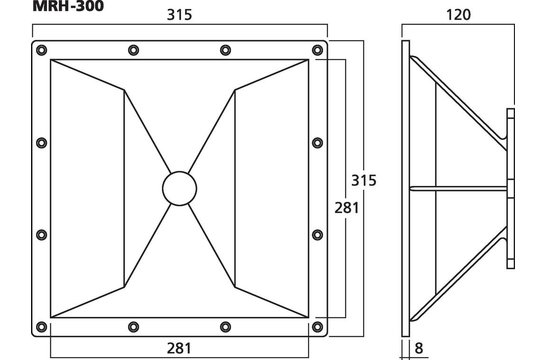

Dimensions: 315 x 315 x 120 mm (W x H x D)
Cutoutdimensions: 281 x 281 (W x H)
Radiationangle: 40°/90°
Recommended minimum crossover frequency: 1 kHz
