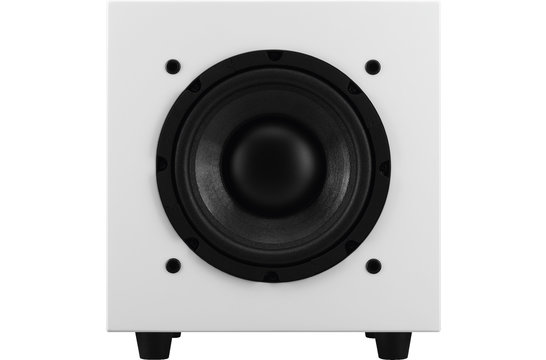

Monacor ESUB-8F/WS | Active Subwoofer | 50W
Highlights
- High-quality bass-reflex MDF cabinet, high-gloss white
- 20 cm (8") bass speaker

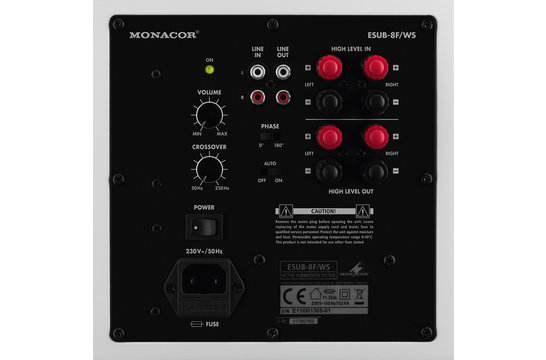

- Inputs via 1 x RCA L/R or screw terminals for high-level L/R
- Parallel line out RCA L/R
- White fabric front cover
Product Details
Monacor ESUB-8F/WS | Active Subwoofer | 50W
A compact active subwoofer of elegant design as an addition to compact speakers for hi-fi, PA, home cinema and home recording. Beside volume control, a phase switch and an automatic switch-on, the amplifier also features an adjustable crossover frequency (50-250 Hz). Additional outputs high-level L/R for mid-high range speakers. Thus, well suited for connection to already existing speaker lines. Housing material: Wood
|
Active/passive: |
Active |
|
Total output power: |
90 W |
|
Power rating (RMS) |
50 W |
|
Frequency range: |
30-250 Hz |
|
Input signal: |
185 mV/9 kΩ (RCA L/R) 4 V/480 Ω (high IN) |
|
Bass speaker: |
20 cm (8") bass speaker |
|
Tweeter: |
25 mm soft dome tweeter |
|
Sensitivity: |
87 dB/W/m |
|
Max. rated SPL: |
105 dB |
|
Inputs: |
1 x RCA (L/R), unbal., IN 1 x screw terminals (stereo), high-level IN |
|
Outputs: |
1 x RCA (L/R) 1 x screw terminals (stereo), high-level OUT |
Specifications: Width: 300 mm • Depth 340 mm • Height: 330 mm • Weight: 9.8 kg • Admiss. ambient temp. 0-40 °C • Power supply: ˜ 230 V/50 Hz/152 VA • Colour: white, high-gloss • Number of speakers: 1 • Speaker size: 20 cm (8")
