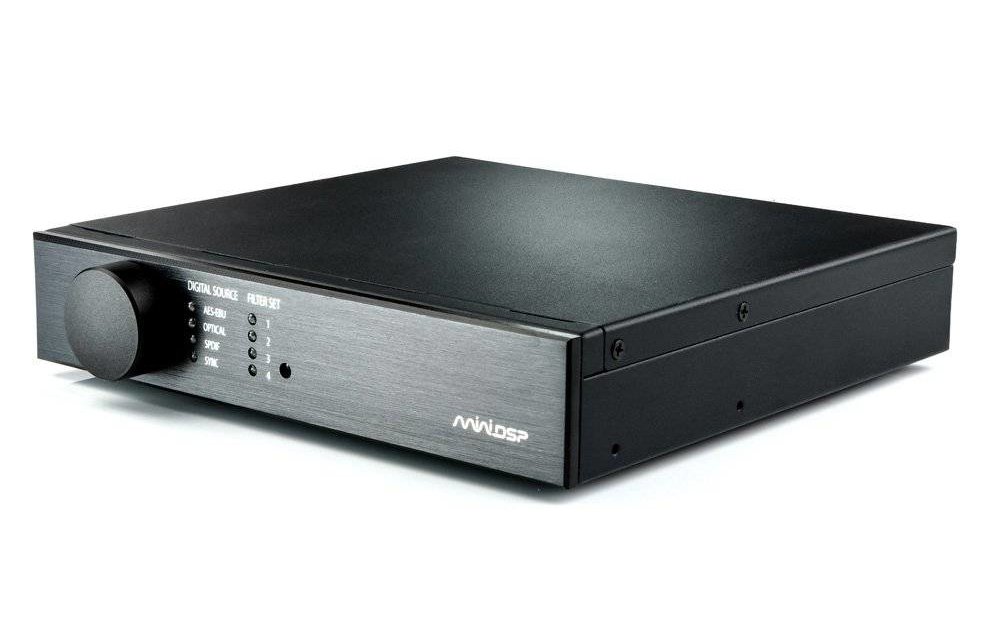

miniDSP OpenDRC-DI All Digital Floating Point Room Correction DSP

€ 459,95 9 Auf Lager: Lieferzeit 1-3 Werktage
All digital floating point room correction DSP with SPDIF/AES-EBU/Toslink interface. Boxed in sturdy aluminum enclosure.... Mehr anzeigen
  • Kostenloser Versand ab 149€ (DE, A)
  • Versand am selben Tag*
  • Bezahlung mit PayPal, Kreditkarte und mehr
  • Hausinterner technischer Support

Produktbeschreibung

All digital floating point room correction DSP with SPDIF/AES-EBU/Toslink interface. Boxed in sturdy aluminum enclosure.



Highlights

  • Room correction with FIR filtering
  • Convolution engine for advanced/Custom filters
  • 2 way advanced filter engine
  • System equalization
  • Coupon for one free Plug-in download



Product details

miniDSP OpenDRC-DI All Digital Floating Point Room Correction DSP

Note: This product comes with a coupon (€9,50) for one free miniDSP plugin download.

Introducing the OpenDRC platform, a new range of digital audio processor with floating point capabilities for an Open Digital Room Correction (DRC) community. Powered by Analog Devices ADSP21369 Sharc DSP, the OpenDRC engine easily handles complex audio filtering processing such as room correction, FIR crossover filtering, reverb engines... Flexibility, high performance and low cost are the obvious hallmarks of the OpenDRC series.



As an all-digital solution, the OpenDRC-DI (DI for Digital) carries the most common stereo digital audio formats (AES-EBU, SPDIF and Toslink) to match your existing equipment. Combined with an high quality Asynchronous Sample Rate Converter, the processor also easily adapts to any sample rate. The IR learning remote feature and/or rotary encoder will allow control of your source, active preset or master volume without the need of any PC once the unit configured.



Last but not least, the OpenDRC-DI follows the footstep of our proven miniDSP concept: "One hardware, many plug-ins". An easy to use platform that received praised for its simplicity of use. By setting some strategic partnership with 3rd party software developers, the OpenDRC takes it one step further. From advanced room correction to full featured linear phase crossover, miniDSP products provide an exciting range of audio processing solutions. A convolution engine without a PC in your system.



Looking for an Analog IN, Analog OUT solution? You may want to consult the OpenDRC-AN version instead.



Documents



What's in the box?

  • 1 x OpenDRC-DI boxed in aluminum enclosure
  • 1 x USB cable Type B
  • 2 x Optical cables
  • 1 x Universal 5VDC power supply with interchangeable plugs for UK/EU/US/AU
  • 1 x Coupon code for miniDSP plugin download.



System Diagram





Mechanical Specifications





Eigenschaften

Artikelnummer:
OpenDRC-DI
Device type
Boxed
Device serie
OpenDRC Series
DSP chip
Analog Devices ADSP21369
Internal processing resolution & sample rate
32 bit / 48 - 96 kHz
Input / ouput configuration
2 / 2
Audio input connectivity
AES/EBU, SPDIF, TOSLINK
Audio output connectivity
AES/EBU, SPDIF, TOSLINK
Max input level
-
Max output level
-
Input impedance
-
Output impedance
-
Calibration software
miniDSP OpenDRC plug-in
IIR
check
FIR
check
Dirac Live®
-
DSP presets
4
Impulse response correction
check
Infrared remote learning
check
Windows / Mac compatible
check / check
UMIK-1 included
-
Room EQ wizard support
check
Dimensions
200 x 180 x 52 mm
Power
5 VDC

Bewertungen

5 from 5Based on 1 reviews
Produkt bewerten
5 van 5
alles so, wie es beschrieben ist, außer der unverständliche softwaredownload
Durch Thomas D. on 18 Dezember 2020
