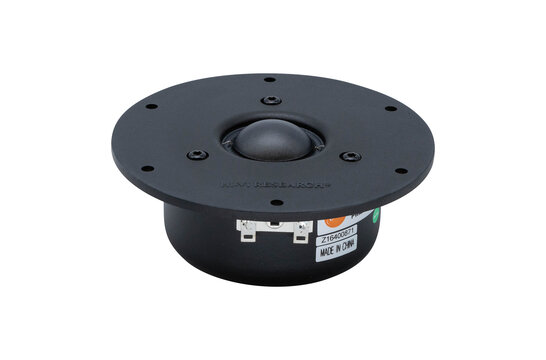

HiVi Q1R 1-1/8" Textile Dome Tweeter

Marke: HiVi

Alle anzeigen Audio-Komponenten

Vergleichen

1⅛" | 6 Ω

€ 29,95 >10 Auf Lager: Lieferzeit 1-3 Werktage

A precisely manufactured German diaphragm is mated to a large shielded motor structure. The result is a tweeter with excellent timbre and low distortion characteristics.... Mehr anzeigen

Versicherter Versand mit Sendungsverfolgung
Kostenloser Versand ab 149€ (DE, A)
Versand am selben Tag*
Hausinterner technischer Support

Produktbeschreibung

A precisely manufactured German diaphragm is mated to a large shielded motor structure. The result is a tweeter with excellent timbre and low distortion characteristics.

Highlights

Extremely flat response from 1,500 to 20,000 Hz
1-1/8" soft dome delivers natural response with great dispersion
Double rear chamber design lowers Fs and improves damping
Popular replacement tweeter for the classic AR3a speaker system

Product details

HiVi Q1R 1-1/8" Textile Dome Tweeter

A precisely manufactured German diaphragm is mated to a large shielded motor structure. The result is a tweeter with excellent timbre and low distortion characteristics. Transient response is improved via the use of ferrofluid and a copper-clad aluminum voice coil. Some of our customers have used this tweeter as a drop in replacement for the popular classic AR3a speaker from the 70"s. Note that they have recommended adding a .07mh 18 gauge inductor in parallel with the tweeter to more mimic the original AR3a sound.

Eigenschaften

Artikelnummer:: Q1R
Tweeter Type: Soft Dome
Cone / Dome Diameter: 1-1/8"
Power Handling (RMS): 15 Watts
Impedance: 6 ohms
Sensitivity: 89 dB 1W/1m
Frequency Response: 2,500 to 20,000 Hz
Resonant Frequency (Fs): 1000 Hz
DC Resistance (Re): 5.3 ohms
Overall Outside Diameter: 4.56"
Cutout Diameter: 3.63"
Depth: 1.63"

Bewertungen

5 from 5Based on 2 reviews

Produkt bewerten

5 van 5

Ingepakt in een doos waar deze prefect in past door het op maat gemaakte verpakkingsmateriaal.
Helaas geen 1op 1 vervanging voor in mijn teledyne AR 91. Maar na wat passen en meten toch goed gekregen.

Deze dome tweeters zijn super van geluid. Goede prijs kwaliteit. Echt een aanrader.

Durch Teun S. on 1 September 2019

5 van 5

An excellent, drop-in replacement for my AR4x tweeters, and a terrific value for the price.

Durch WILLIAM G. on 2 Juli 2019
