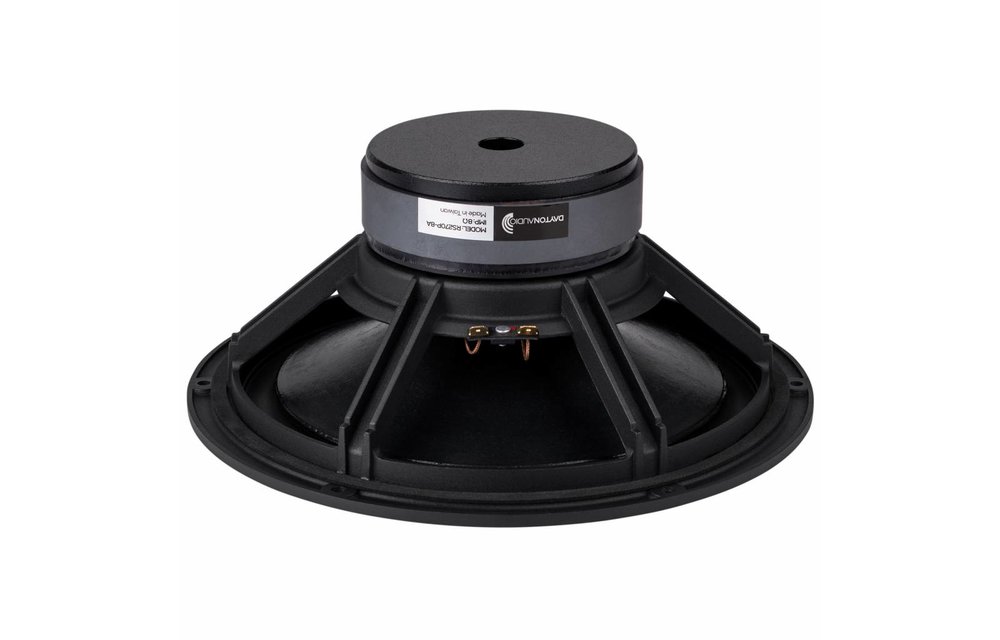

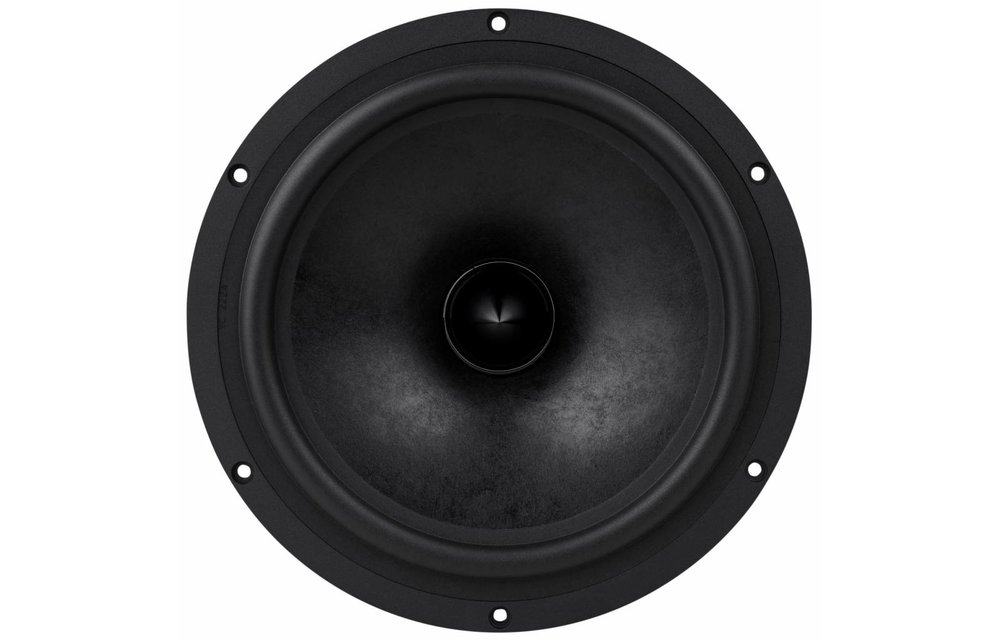

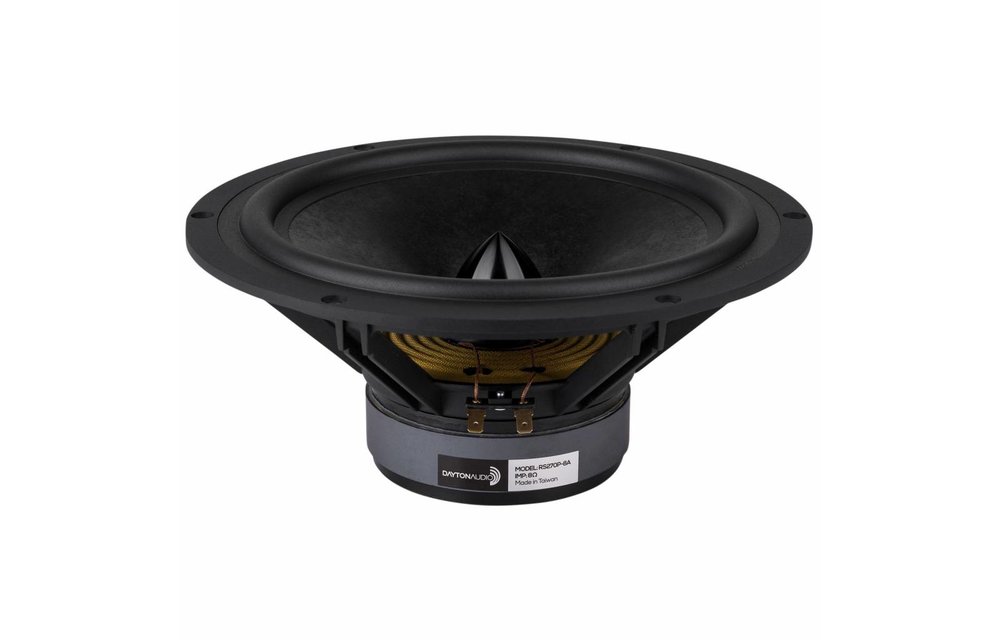

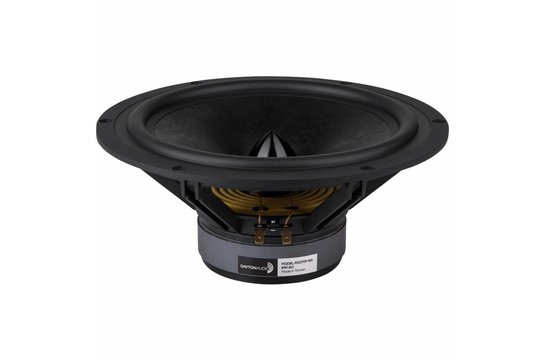

Dayton Audio RS270P-8A 10" Reference Paper Woofer 8 Ohm

€ 99,13€ 119,95 8 Auf Lager: Lieferzeit 1-3 Werktage
Dayton Audio Reference Series paper cone drivers combine class-leading low distortion performance with super smooth frequency response due to the use of a proprietary cone blend.... Mehr anzeigen
Bulk discount Genießen Sie diese tollen Rabattangebote
  • -5% Kauf 4 für nur €113,95 pro stück
  • Versicherter Versand mit Sendungsverfolgung
  • Kostenloser Versand ab 149€ (DE, A)
  • Versand am selben Tag*
  • Hausinterner technischer Support

Produktbeschreibung

Dayton Audio Reference Series paper cone drivers combine class-leading low distortion performance with super smooth frequency response due to the use of a proprietary cone blend.



Highlights

  • Three-part paper composite diaphragm featuring paper, Kevlar, and glass fibers
  • Low-distortion high-excursion motor system with two short-circuit paths
  • Similar cosmetics and design features as original aluminum Dayton Audio Reference Series
  • Perfect for use a woofer, midwoofer, or dedicated midrange driver
  • 5 dB sensitivity and 6 mm of excursion



Product details

Dayton Audio RS270P-8A 10" Reference Paper Woofer 8 Ohm



The performance of the original groundbreaking Reference Series from Dayton Audio, now available with a paper cone! The Reference Series Paper drivers use a proprietary paper cone formulation combining natural paper pulp and synthetic Kevlar® and glass fibers to create an advanced non-woven fiber composite that delivers the perfect combination of excellent detail and smooth, natural sonic character, plus a distinctive, classy look.



All Dayton Audio Reference Series drivers are created with one goal in mind—low distortion. Each speaker was carefully designed and optimized to offer the highest performance with the lowest distortion levels. At the same time, by focusing on features that contribute to sound quality and eliminating unnecessary frills, the drivers offer value unparalleled in the industry.

Eigenschaften

Artikelnummer:
RS270P-8A
Woofer Series
Reference Series
Woofer Type
Midwoofer
Nominal Diameter
10"
Power Handling (RMS)
100 watts
Power Handling (max)
200 watts
Impedance
8 ohms
Sensitivity
87.5 dB @ 2.83V/1m
Frequency Response
23 - 6,000 Hz
Voice Coil Diameter
2"
DC Resistance (Re)
6.8 ohms
Voice Coil Inductance (Le)
0.88 mH
Resonant Frequency (Fs)
22.9 Hz
Mechanical Q (Qms)
1.33
Electromagnetic Q (Qes)
0.42
Total Q (Qts)
0.32
Diaphragm Mass Inc. Airload (Mms)
73.2g
Mechanical Compliance of Suspension (Cms)
0.66 mm/N
Surface Area of Cone (Sd)
346.4 cm²
Volume of Displacement (Vd)
207.8 cm³
BL Product (BL)
13.0 Tm
Compliance Equivalent Volume (Vas)
110.5 liters
Maximum Linear Excursion (Xmax)
6.0 mm
Cone / Diaphragm Material
Paper / Kevlar Cone
Surround Material
Rubber
Voice Coil Wire Material
Copper
Voice Coil Former
Aluminum
Basket / Frame Material
Cast Aluminum
Magnet Material
Ferrite
Overall Outside Diameter
272 mm
Overall Depth
113 mm
Baffle Cutout Diameter
236 mm
Bolt Circle Diameter
258 mm
# Mounting Holes
6
