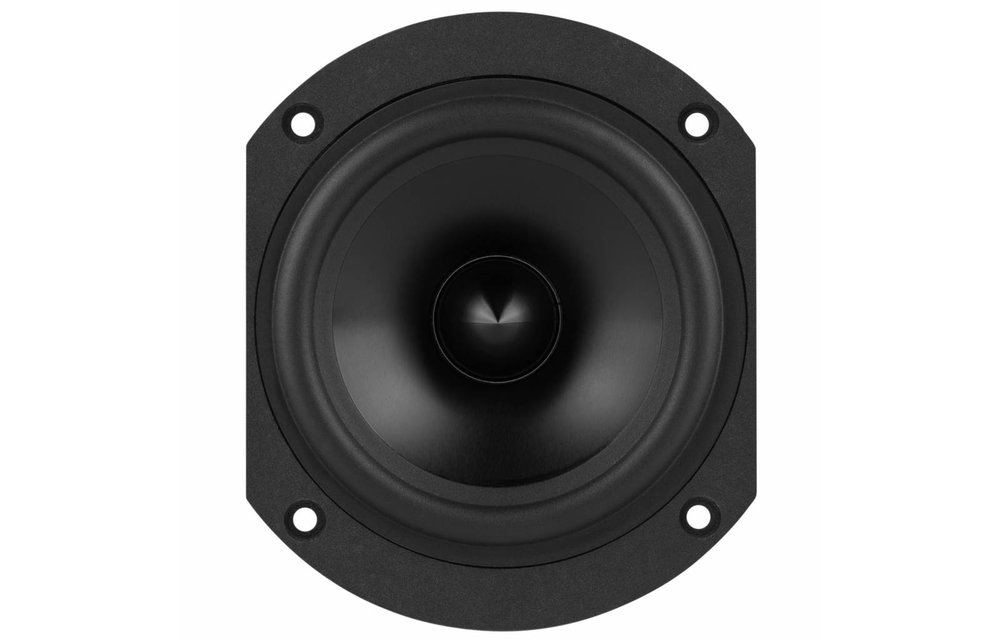

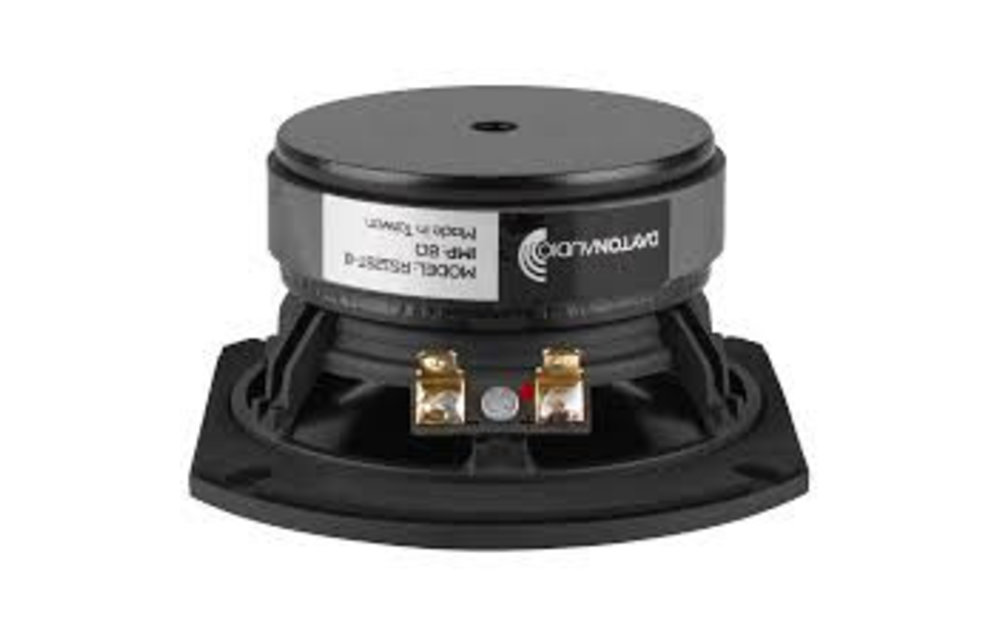

Dayton Audio RS125T-8 5" Reference Woofer Truncated Frame

€ 37,15€ 44,95 >10 Auf Lager: Lieferzeit 1-3 Werktage
Utilizing an advanced motor system and a rigid aluminum cone, the Reference Series can outperform drivers that cost several times the price.... Mehr anzeigen
Bulk discount Genießen Sie diese tollen Rabattangebote
  • -5% Kauf 4 für nur €42,70 pro stück
  • Versicherter Versand mit Sendungsverfolgung
  • Kostenloser Versand ab 149€ (DE, A)
  • Versand am selben Tag*
  • Hausinterner technischer Support

Produktbeschreibung

Utilizing an advanced motor system and a rigid aluminum cone, the Reference Series can outperform drivers that cost several times the price.



Highlights

  • Truncated cast frame, great for line arrays and MTM speaker designs
  • Long-excursion motor and suspension for strong bass performance
  • Advanced low-distortion motor design
  • Distortion-reducing copper ring in magnetic gap
  • Lightweight black anodized aluminum cone
  • Designed and engineered in the U.S.A.



Product details

Dayton Audio RS125T-8 5" Reference Woofer Truncated Frame



The Dayton Audio Reference Series sets a new standard of value in high-performance loudspeaker drivers. Utilizing an advanced motor system and a rigid aluminum cone, the Reference Series can outperform drivers that cost several times the price. Their low-distortion characteristics and high excursion capabilities provide exceptional clarity, detail, and dynamics. Woofer features a black anodized cone, heavy-duty cast frame, low-loss rubber surround, solid aluminum phase plug, distortion-reducing magnetic gap copper ring, rubber magnet boot, and gold terminals.

Eigenschaften

Artikelnummer:
RS125T-8
Woofer Series
Reference Series
Woofer Type
Midwoofer
Nominal Diameter
5"
Power Handling (RMS)
30 watts
Power Handling (max)
60 watts
Impedance
8 ohms
Sensitivity
86.9 dB @ 2.83V/1m
Frequency Response
75 - 9,200 Hz
Voice Coil Diameter
25 mm
DC Resistance (Re)
6.4 ohms
Voice Coil Inductance (Le)
0.58 mH @ 1 kHz
Resonant Frequency (Fs)
76 Hz
Mechanical Q (Qms)
2.62
Electromagnetic Q (Qes)
0.61
Total Q (Qts)
0.50
Diaphragm Mass Inc. Airload (Mms)
5.1g
Mechanical Compliance of Suspension (Cms)
0.87 mm/N
Surface Area of Cone (Sd)
54.1 cm²
Volume of Displacement (Vd)
15.1 cm³
BL Product (BL)
5.04 Tm
Compliance Equivalent Volume (Vas)
3.56 liters
Maximum Linear Excursion (Xmax)
2.8 mm
Cone / Diaphragm Material
Black Anodized Aluminum Cone
Surround Material
Rubber
Voice Coil Wire Material
Copper
Voice Coil Former
Aluminum
Basket / Frame Material
Cast Aluminum
Magnet Material
Ferrite
Overall Outside Diameter
125.5 mm
Overall Depth
55 mm
Baffle Cutout Diameter
94 mm
# Mounting Holes
4
Sealed Volume
0.06 ft.³
Sealed F3
136 Hz
Vented Volume
0.18 ft.³
Vented F3
70 Hz
