DMA90-PR Passivradiator

€13,95

Zum Warenkorb hinzufügen

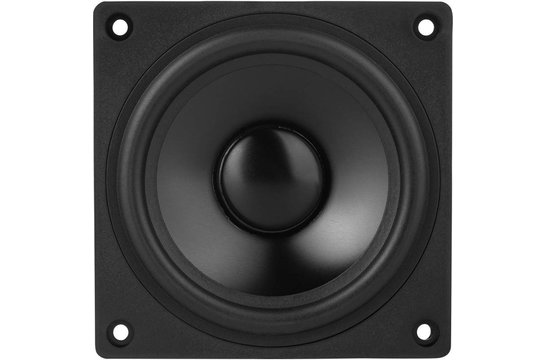

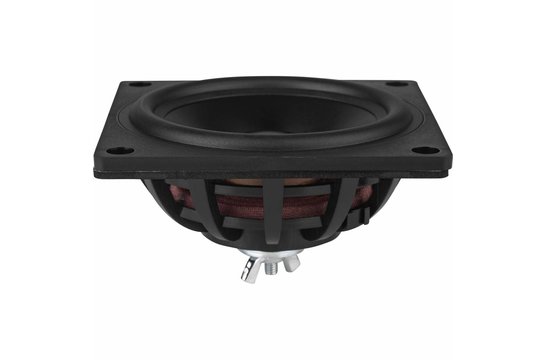

Dayton Audio DMA90-PR Passivradiator

1 reviews

Marke: Dayton Audio

Zeige alle Passivradiator

passive | 3.5"

11,53 €13,95 € 10+ Auf Lager

Wir versenden nach
Jetzt bestellt, heute versendet
Fünf Jahre Garantie
45 Tage Widerrufsrecht

Kundenbewertung:

Vergleichen

Angebot anfordern

Haben Sie eine Frage zu diesem Produkt?

Unser Mitarbeiter hilft Ihnen gerne, das richtige Produkt zu finden

Produktbeschreibung

Dayton Audio's DMA90-PR 3-1/2" aluminum cone passive radiator allows you to tune small enclosures lower than possible using conventional ports. Matching the DMA series of drivers drivers perfectly, this passive radiator is perfect for use in ultra-small designs like smart speakers, sound bars, and portable Bluetooth speakers.

Highlights

Perfect match for the Dayton Audio DMA series drivers
Allows tuning small enclosures lower than using conventional ports
Rear mounted threaded post allows easy mass adjustment for custom tuning
DIY friendly, oversized mounting flange makes installation simple

Product details

Dayton Audio DMA90-PR 3-1/2" DMA Series Passive Radiator

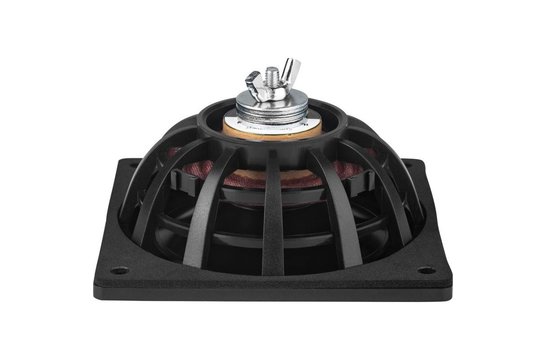

The DMA90-PR 3-1/2" passive radiator from Dayton Audio is the perfect option for achieving low tuning frequencies from the smallest enclosure designs. This incredibly small passive radiator has all the features you would expect lager units including adjustable mass, aluminum cone, and rubber surround. Visually identical to Dayton Audio's full-range DMA series drivers, the DMA90-PR can also be used with any small driver that requires a low tuning frequency. The threaded rod and included wing nut on the back of the cone makes it easy to add mass to tune the radiator as needed for your projects. Whether you are building a smart speaker, sound bar, or portable Bluetooth speaker, the Dayton Audio DMA90-PR introduces a new range of possibilities.

Specifications: • Fs: 38.0 Hz • Vas: 0.082 ft³ (2.32 liters) • Qms: 5.01 • Cms: 1.10 mm/N • Mms: 15.9 g • Rms: 0.76 kg/s • Sd: 38.5 cm² • Xmech: 8 mm • Dimensions: Overall diameter: 3.54" x 3.54", Cutout diameter: 3.29", Depth: 1.85".

Tip: As a general rule, the passive radiator(s) should have at least double the displacement of air (Vd) as the active woofer(s)/subwoofer(s) in the system.
To calculate Vd: Sd x Xmax = Vd

Eigenschaften

Artikelnummer:: DMA90-PR
Tieftöner-Serie: DMA series
Tieftönertyp: Passiver radiator
Resonanzfrequenz (Fs): 38 Hz
Mechanische Güte (Qms): 5.01
Bewegliche Masse (Mms): 15.9 g
Nachgiebigkeit der Aufhängung (Cms): 1.10 mm/N
Membranfläche (Sd): 38.5 cm²
Äquivalentvolumen (Vas): 0.082 ft³ (2.32 liters)
Maximale Auslenkung (Xmax): 8 mm
Driver's Mechanical Losses (Rms): 0.76 kg/s
Cone / Diaphragm Material: Aluminum
Korb- / Rahmenmaterial: Polymer
Außendurchmesser: 3.54" x 3.54"
Gesamttiefe: 1.85"
Ausschnittdurchmesser: 3.29"
Bolt Circle Diameter: 4.25"
# Befestigungsbohrungen: 4

Bewertungen

1 reviews

Produkt bewerten

5 von 5

Ideal zum Bau von kleinen Lautsprechern, bei denen ein Bassreflexrohr zu lang wäre. Ich benutze 4 stk davon mit einem 10cm tieftöner in 4l Volumen erstaunlich was da an Bass rauskommt. Über die Gewichte kann die Abstimmung leicht vorgenommen werden

Durch Axel L. on 18 November 2020
