      DMA90-8 Breitbandlautsprecher

      DMA90-8 Breitbandlautsprecher

      €21,45

      Dayton Audio DMA90-8 Breitbandlautsprecher

      3 reviews
      5 von 5
      3 reviews
      5 Sterne
      100%
      4 Sterne
      0%
      3 Sterne
      0%
      2 Sterne
      0%
      1 Stern
      0%
      Alle Bewertungen anzeigen
      17,73 €21,45 € 2 Auf Lager10 erwartet auf 03-04-2024
      • -5% Bestelle 4 für nur € 20,38 je Stück

      Buy now, pay later

      • Wir versenden nach
      • Jetzt bestellt, morgen versandt
      • Fünf Jahre Garantie
      • 45 Tage Widerrufsrecht
      • Kundenbewertung:
      Angebot anfordern
      Haben Sie eine Frage zu diesem Produkt?

      Haben Sie eine Frage zu diesem Produkt?

      Unser Mitarbeiter hilft Ihnen gerne, das richtige Produkt zu finden

      Produktbeschreibung

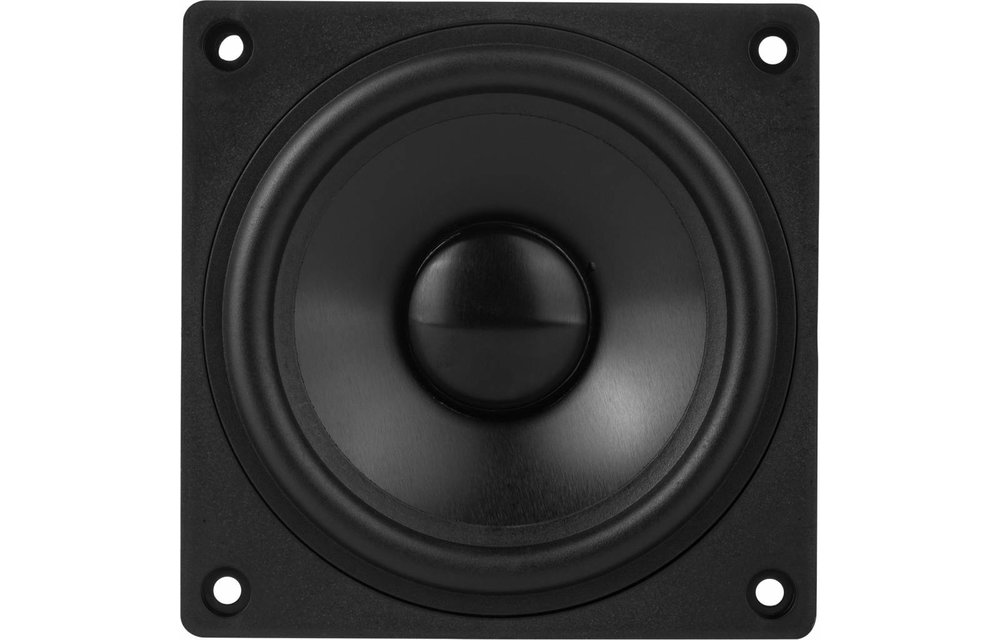

      Dayton Audio's DMA90-8 3-1/2" high performance full-range driver combines a rigid aluminum cone, powerful dual magnet neodymium motor, and a proprietary open frame to create a state of the art speaker that delivers low distortion, natural response, and amazing high frequency capability. Make the DMA90-8 the first choice for your next smart speaker, portable Bluetooth speaker, or even high output line array design.



      Highlights

      • Excellent high frequency response for true full-range applications
      • Dual neodymium motor to create a symmetrical magnetic field for superb control
      • Large copper cap lowers distortion while improving high frequency response
      • Vented aluminum voice coil former with exceptional heat dissipation for high power handling
      • Exclusive 8-spoke open frame design provides extensive venting and minimal reflection
      • DIY friendly, oversized mounting flange makes installation simple
      • Matching tunable passive radiators also available!



      Product details

      Dayton Audio DMA90-8 3-1/2" Dual Magnet Aluminum Cone Full-Range Driver 8 Ohm



      Providing high efficiency with low distortion, Dayton Audio's DMA90-8 3-1/2" aluminum cone full-range is an ideal driver for use in many of today's modern speaker designs. Whether you are designing a portable Bluetooth speaker, sound bar, compact desktop speaker, or even a high output line array the DMA90-8 is the perfect full-range for the job.

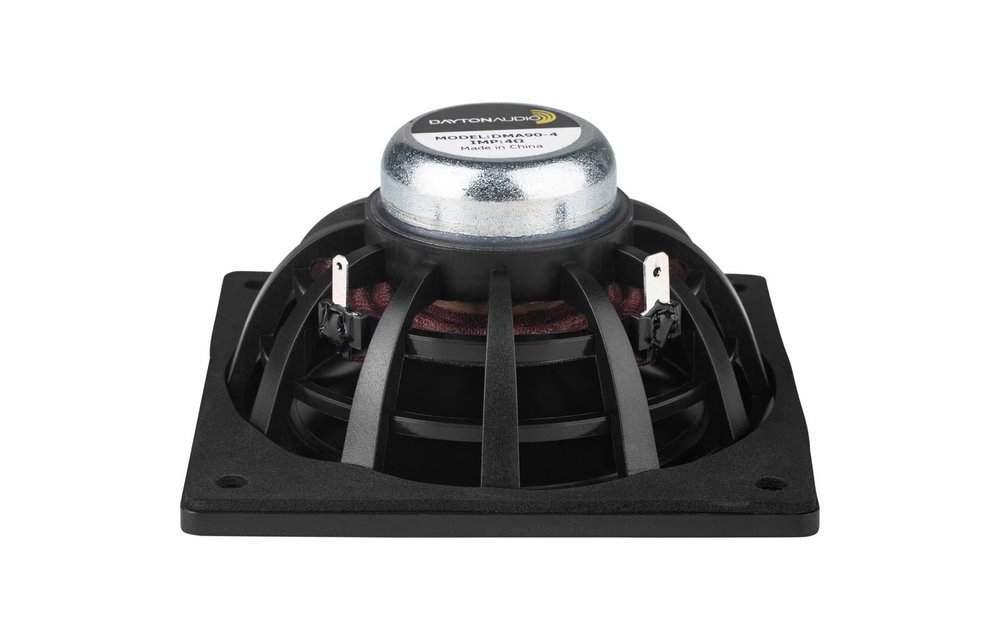

      Designed for the highest performance while delivering maximum value, the no compromise design of the DMA90-8 produces true full-range output capability with minimal distortion. The motor uses dual neodymium magnets creating a strong and symmetrical magnetic field providing high efficiency with excellent cone control. The magnet assembly also includes a large copper cap and sleeve to lower inductance and distortion resulting in improved high frequency response. The 2-layer 1" voice coil is wound on a vented aluminum former providing excellent heat dissipation for high power handling and low power compression. A rubber surround and large spider keeps the lightweight aluminum cone linear with superb mechanical damping. In addition, the aluminum dust cap is attached directly to the voice coil former to improve high frequency response with terrific off axis performance. Holding everything together is a proprietary 12-spoke frame with an extremely open design that has extensive venting under the spider and ample room for high excursion.

      Furthermore, Dayton Audio designed the frame for all the DMA Series with DIY speaker builders in mind. The oversized mounting flange means that no precision cutouts are necessary. To ensure an easy installation, the terminals are oriented in such a way that no odd cutouts or notches are needed for connector or wire clearance. Finally, the corners have a 1/8" radius, meaning that for flush mounting you can get a perfect fit using any standard 1/4" straight cut router bit.

      Mehr anzeigen

      Eigenschaften

      Artikelnummer:
      DMA90-8
      Tieftöner-Serie
      DMA series
      Tieftönertyp
      Full-range
      Nenndurchmesser
      3-1/2”
      Belastbarkeit (QMW)
      30 Watts
      Belastbarkeit (max)
      60 Watts
      Impedanz (Z)
      8 ohms
      Empfindlichkeit (SPL bei 1m / 2,83V)
      85.3 dB
      Frequenzgang
      90 to 20,000 Hz
      Schwingspulendurchmesser
      1"
      Gleichstromwiderstand (Re)
      7.3 ohms
      Schwingspuleninduktion (Le)
      0.54 mH
      Resonanzfrequenz (Fs)
      94.2 Hz
      Mechanische Güte (Qms)
      2.65
      Elektrische Güte (Qes)
      0.73
      Gesamtgüte (Qts)
      0.57
      Bewegliche Masse (Mms)
      3.7g
      Nachgiebigkeit der Aufhängung (Cms)
      0.77 mm/N
      Membranfläche (Sd)
      38.5 cm²
      Kraftfaktor (BL)
      4.7 Tm
      Äquivalentvolumen (Vas)
      0.05 ft.³
      Maximale Auslenkung (Xmax)
      2.5 mm
      Cone / Diaphragm Material
      Aluminum
      Sicke-Material
      Rubber
      Schwingspulendrahtmaterial
      Copper
      Schwingspulenformmaterial
      Aluminum
      Korb- / Rahmenmaterial
      Polymer
      Magnetmaterial
      Neodymium
      Außendurchmesser
      3.54" x 3.54"
      Gesamttiefe
      1.63"
      Ausschnittdurchmesser
      3.28"
      # Befestigungsbohrungen
      4
      Geschlossenes Volumen
      0.04ft.³
      Geschlossenes F3
      140 Hz
      Bassreflex Volumen
      0.10 ft.³
      Bassreflex F3
      68 Hz
