      Productomschrijving

      Highlights

      • Fully self contained audio amplifier solution
      • Configurable for stereo or mono output
      • Rugged construction
      • Thermal protection
      • Over current protection
      • Sound optimized soft clipping
      • Suitable for CE approved designs



      Product details

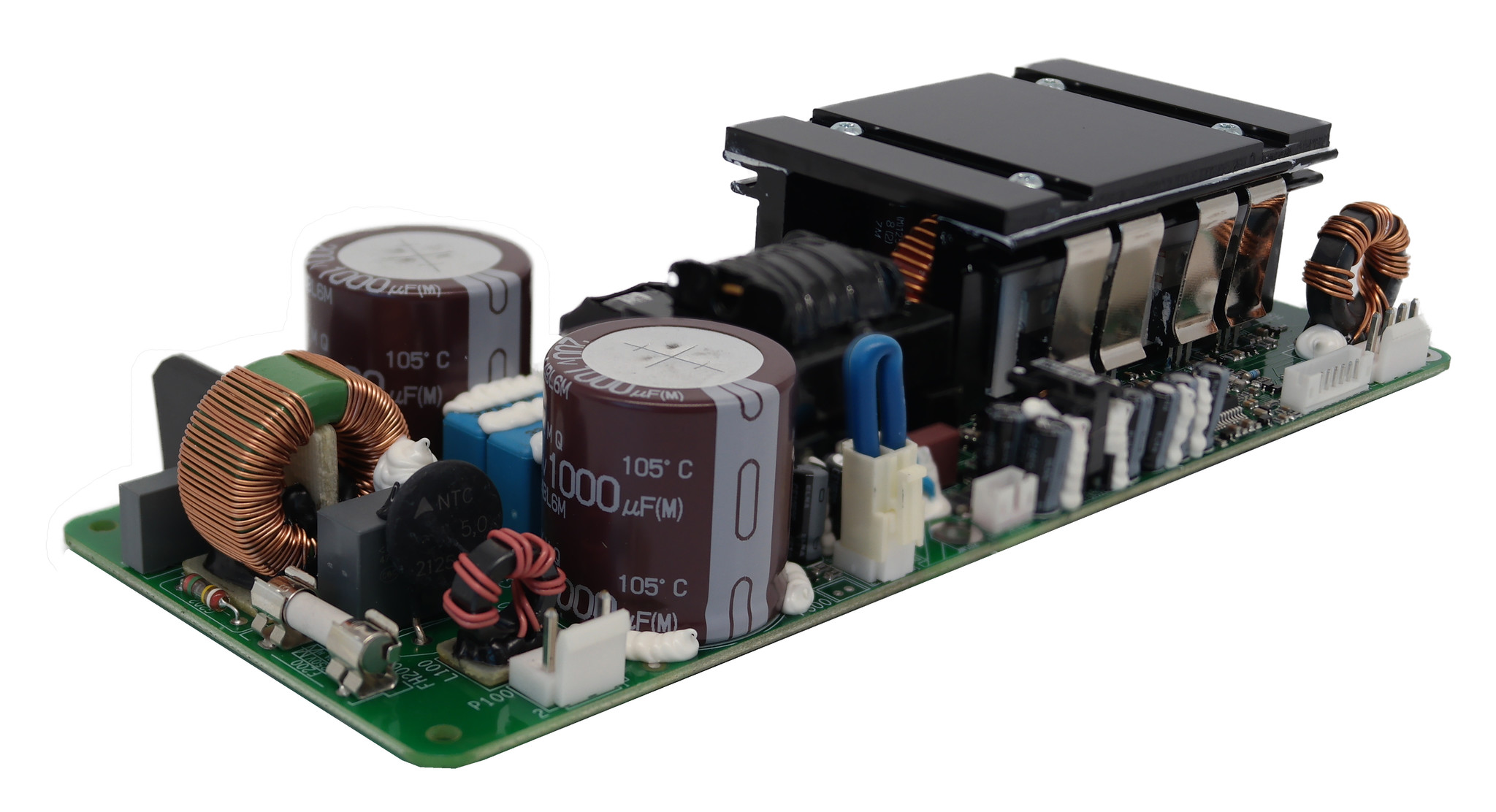

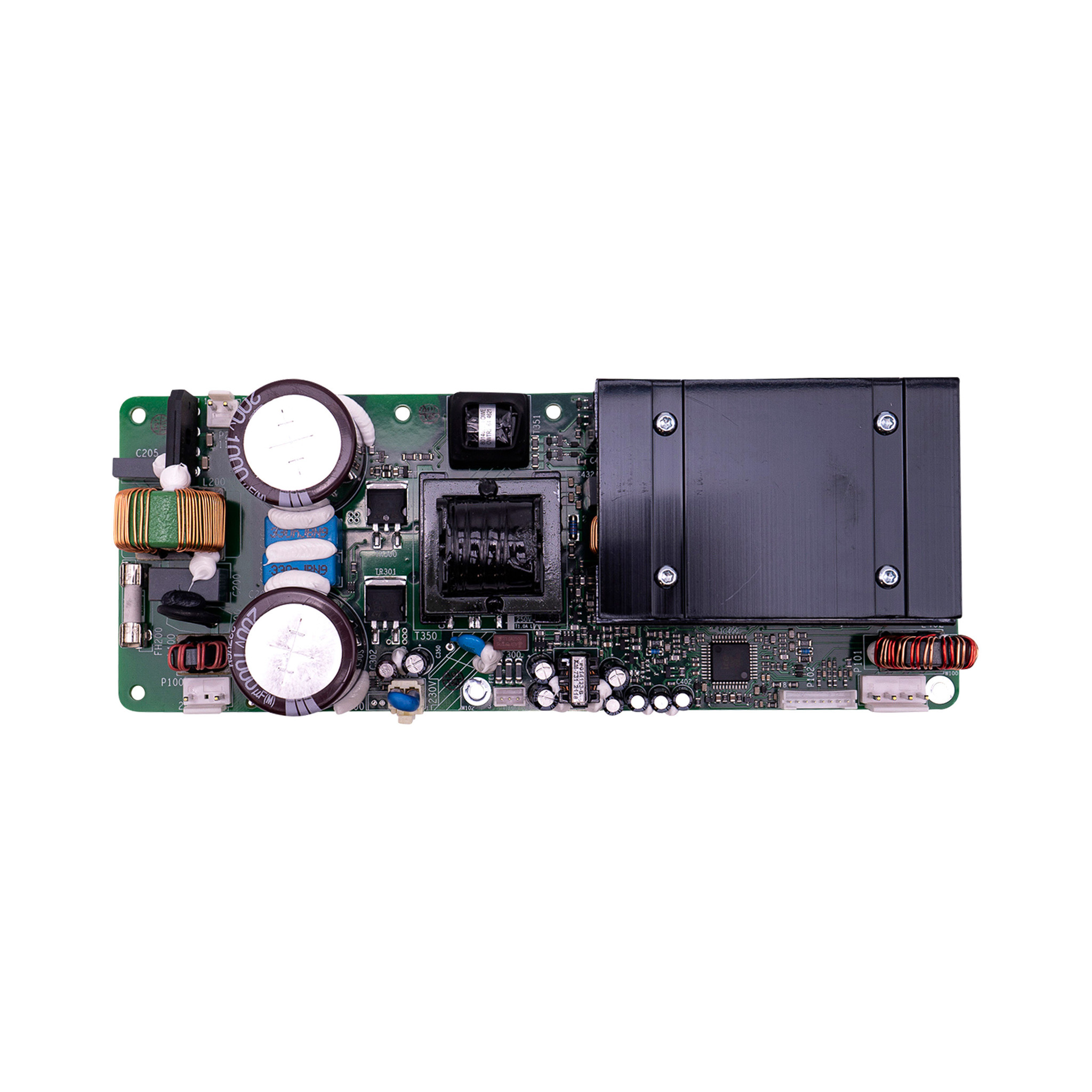

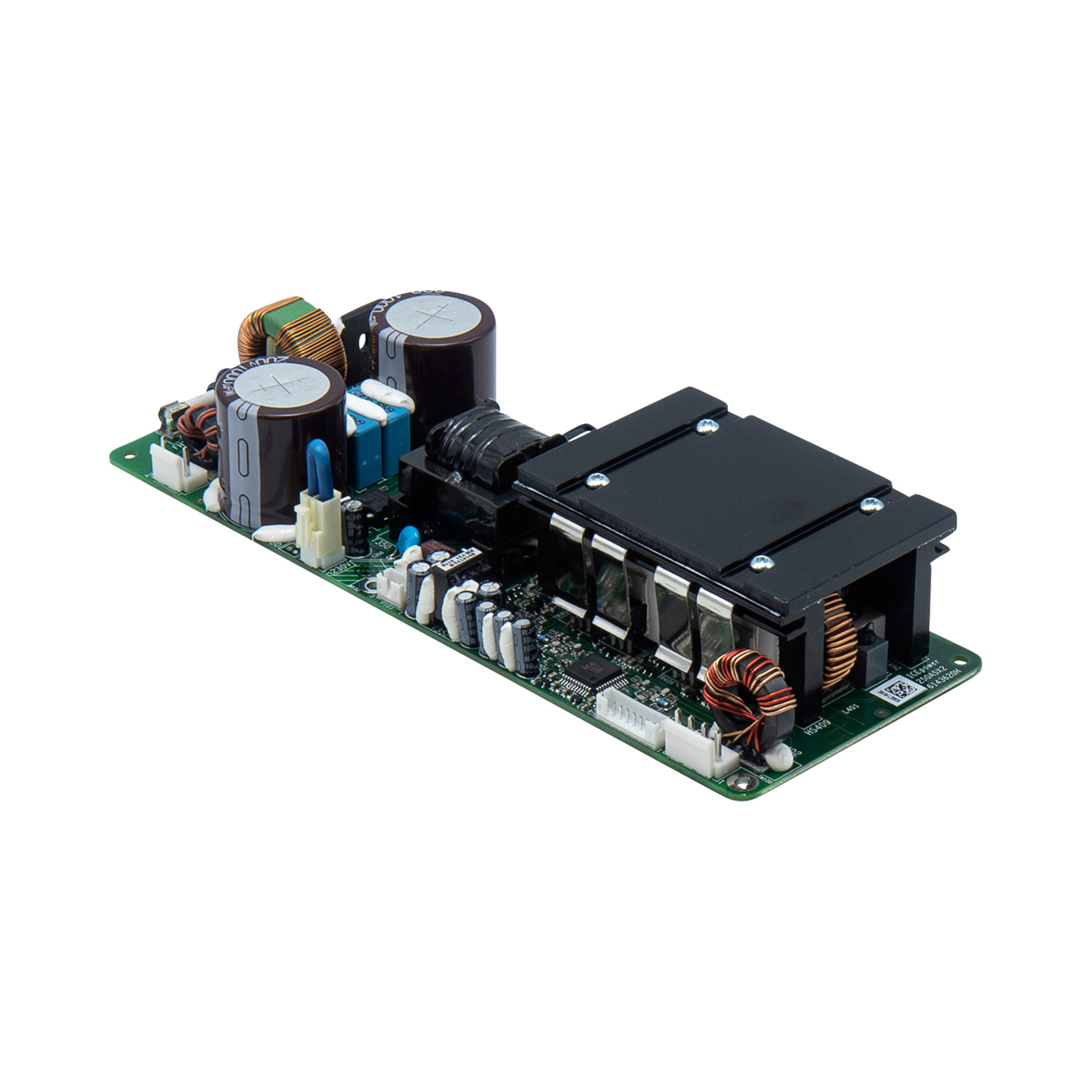

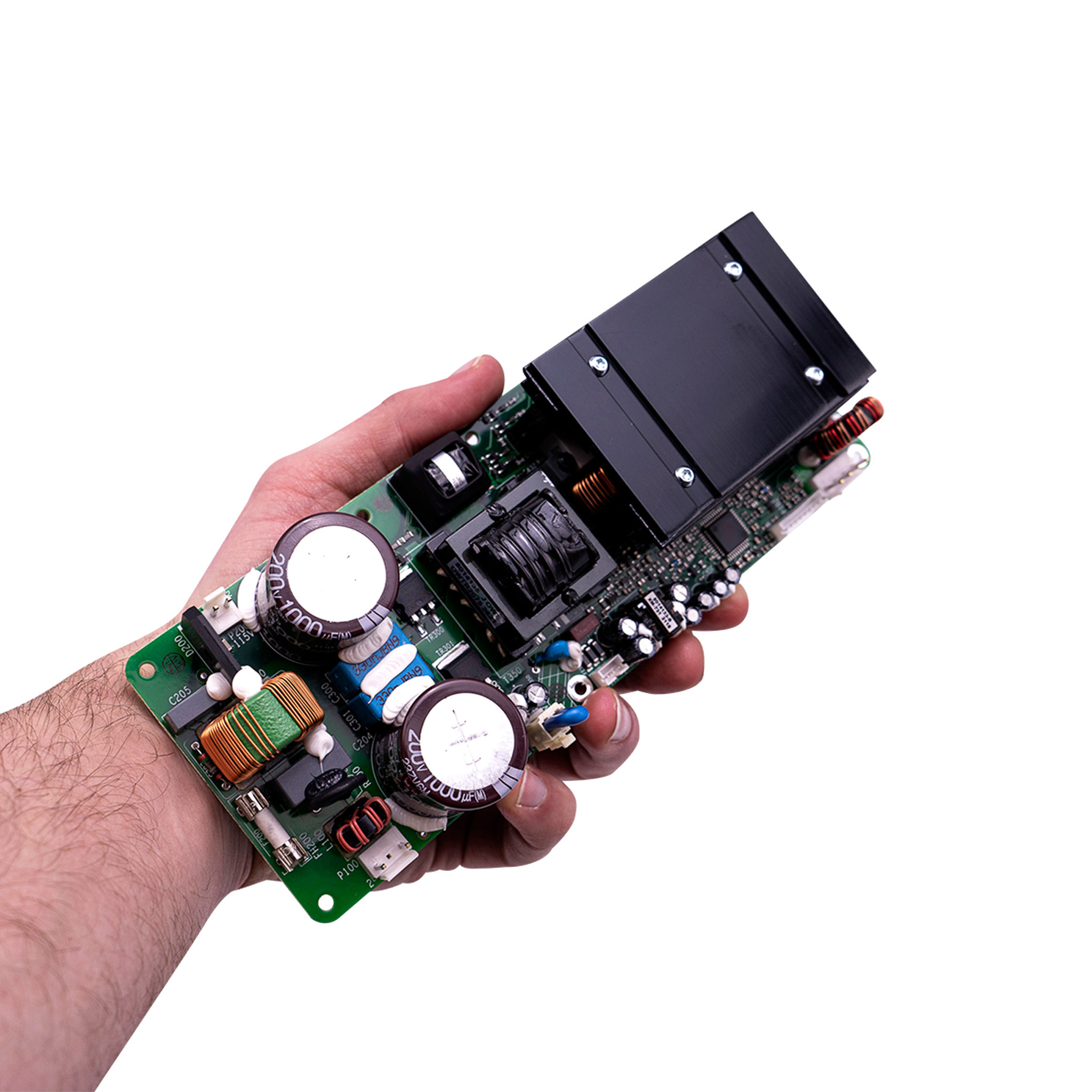

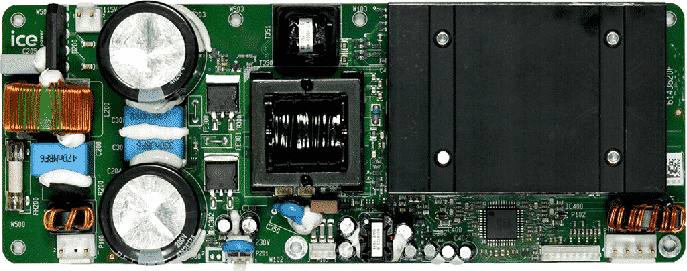

      ICEpower 250ASX2 2 x 125 W Amplifier Module with Integrated Power Supply



      The 250ASX2 is a fully integrated, intelligent amplifier module designed particularly for consumer and professional audio applications. This amplifier module has an integrated high efficient resonant power supply. It is an excellent choice from the amplifier modules category as it offers audiophile quality, is very powerful but also compact and has a nice feature set.



      The 250ASX2 can be configured to either stereo or mono output. With both channels driven it is up to providing 230 watts into 4Ω on both channels. In bridged configuration it outputs up to 500 watts into 8Ω! The ±24 VDC auxiliary supply for powering external circuitry, elimination of heat sinks and EMI shields allow for easy implementation in your project. This module is EMC and safety approved. It is protected against short-circuit, overload and over-heating and includes on-board fuses and EMI filtering to provide a CE and FCC pre-approved design.



      Do you like the 250ASX2, but looking for something smaller? Check out the 125ASX2 for the 2x 125 watt version. The even smaller 50ASX2 is available in two variants. The 50ASX2(SE) is the stereo single ended version. For the single channel BTL version, check out the 50ASX2(BTL). Did you know this is the very module that is used in combination with a DSP front-end in the miniDSP PWR-ICE250 plate amplifier?

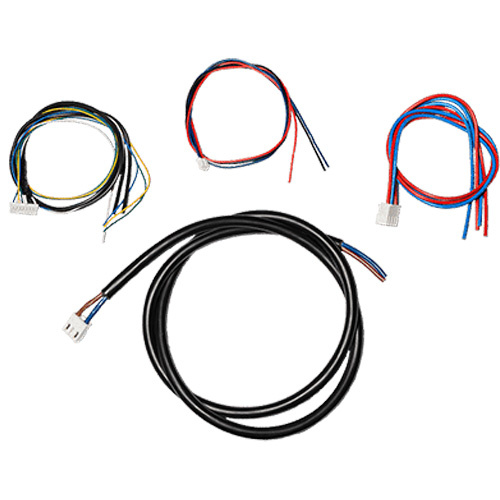

      Cable Set

      The included cable set allows acces to all features of the 250ASX2. The kit contains cables with all the right connectors on one end. The other ends are left unterminated so you can terminate the wires with the connections of your choice.



      What’s In The Box?

      • 1 x 250ASX2 Amplifier Module with Integrated Power Supply
      • Cable set:

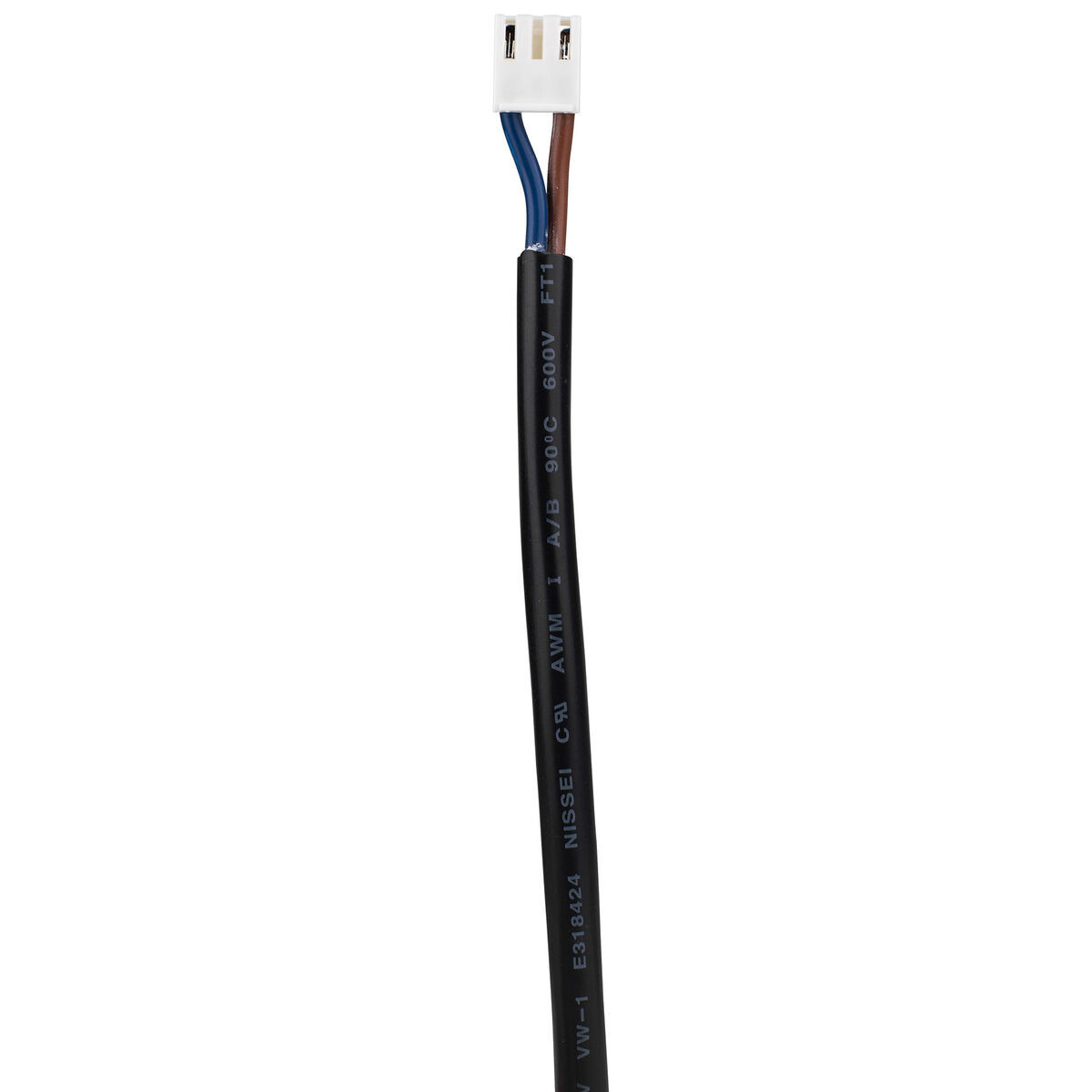

        • 1 x (K) Mains without Earth
        • 1 x (R) Supply ASX2series AUX

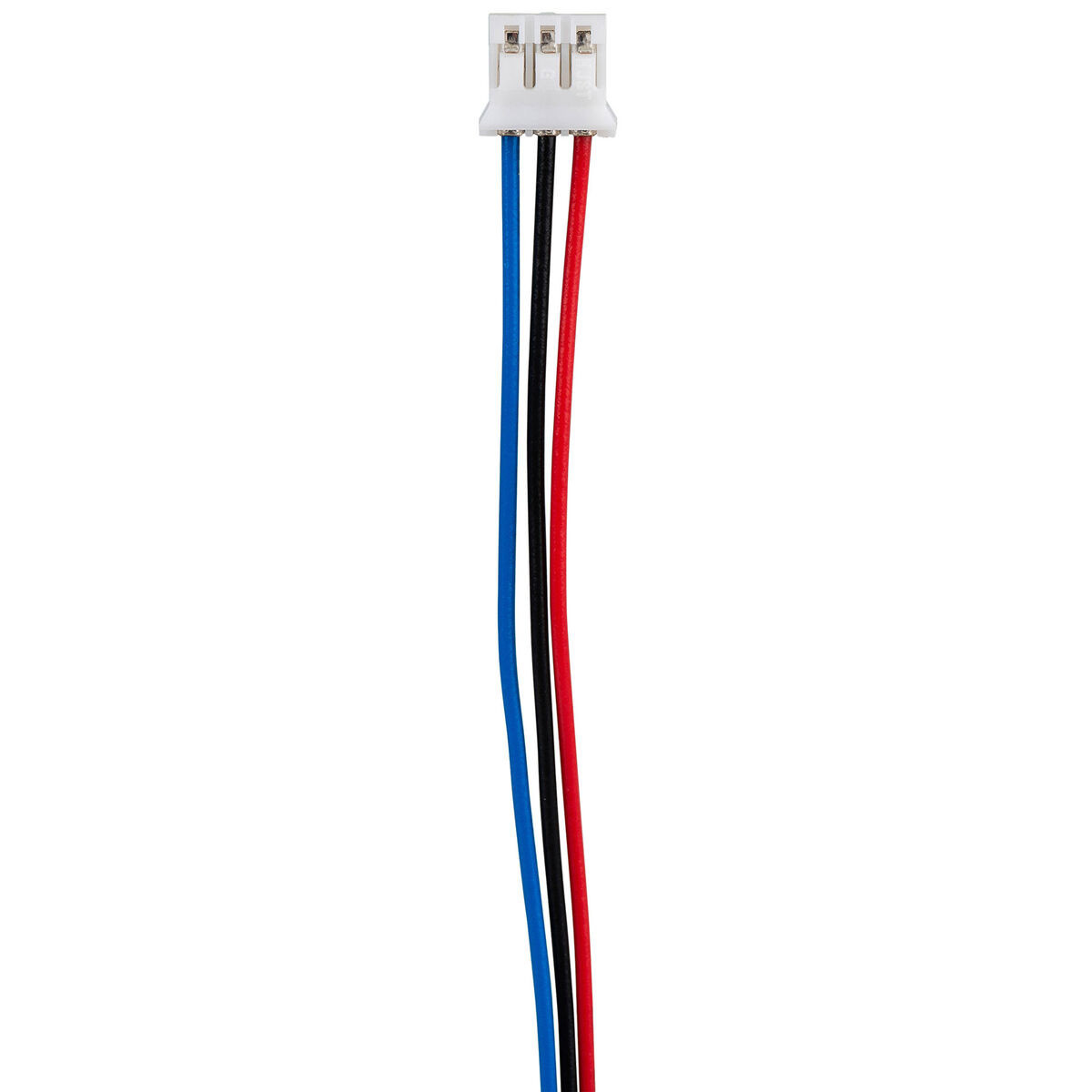

        • 1 x (A) Signal
        • 1 x (T) Speaker

      Specificaties

      Artikelnummer
      250ASX2
      Nominaal vermogen
      250 watts at 4 ohms
      500 watts at 8 ohms
      Minimale belasting
      3 Ohm
      Efficiëntie
      81%
      Vervorming
      0.002 % THD+N
      Versterkingsfactor
      27.8 dB
      Ingangsimpedantie
      8 kOhm
      Amplifier Classification
      Class D
      Uitgangskanalen
      2
      Voedingsvereisten
      85-264 VAC
      Stroomlimiet
      20 A
      Afmetingen (L x B x H)
      210 x 80 x 35
      Diameter bevestigingsgaten
      3.5 mm
