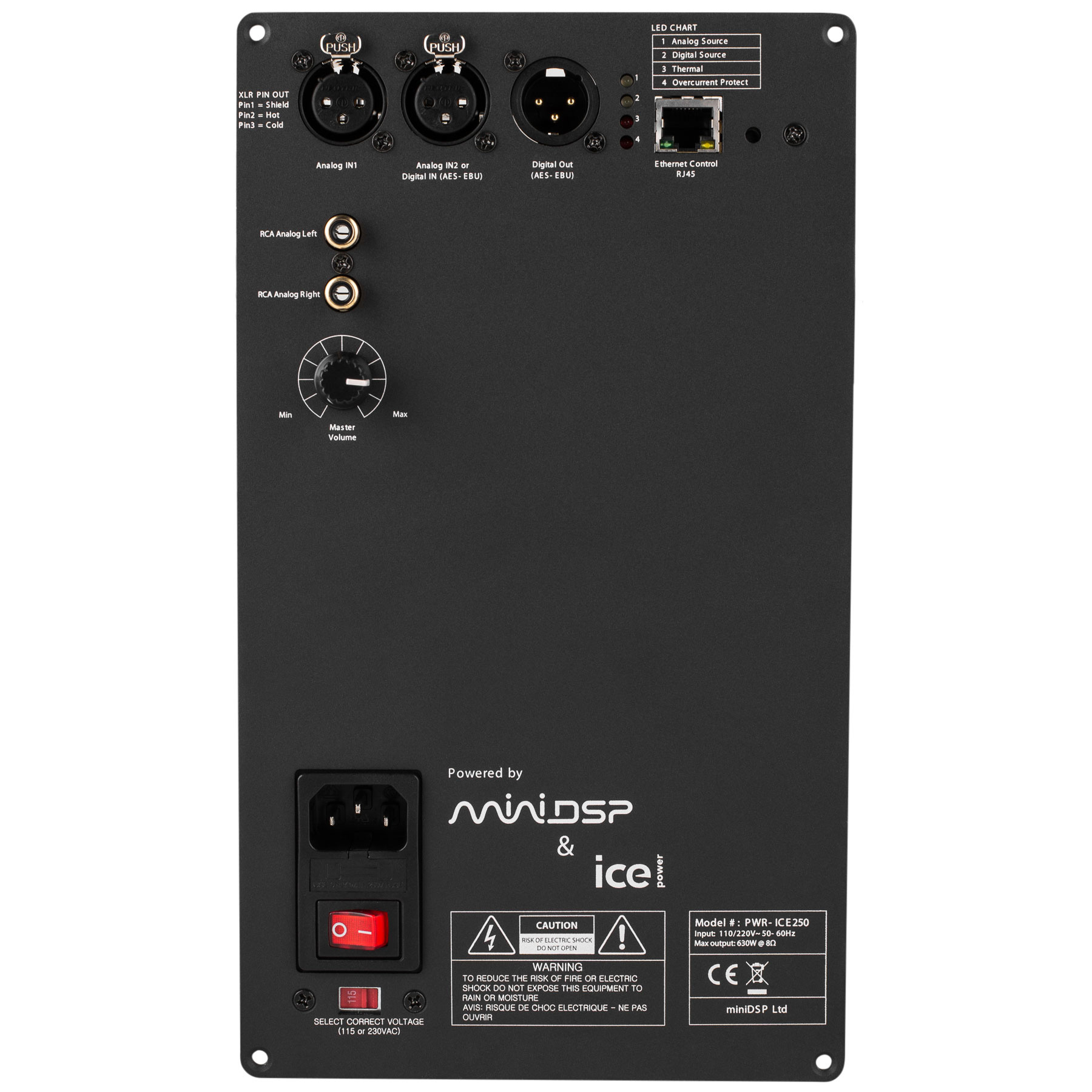

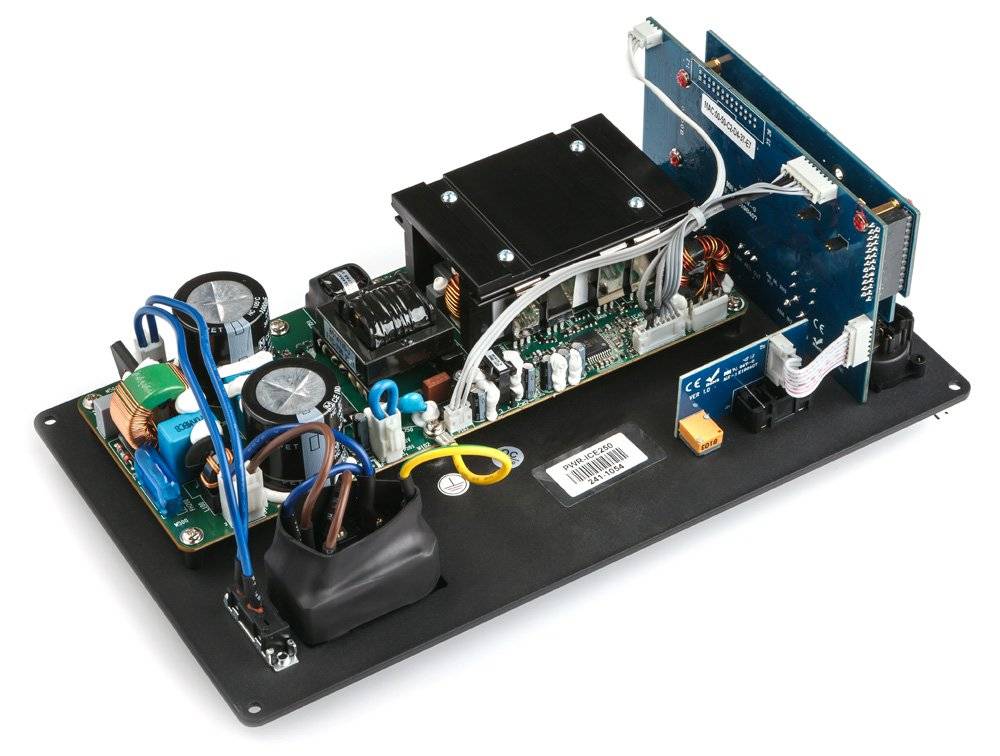

    miniDSP PWR-ICE250 2x250 Watt DSP ICEpower Plate Amplifier

    € 409,88€ 495,95 2 Op voorraad: levertijd 1 werkdag
    • Verzending altijd verzekerd en met track & trace
    • Voor 16u besteld, vandaag verstuurd*
    • Gratis verzending vanaf €99
    • In-house technische support

    Productomschrijving

    2x250W @ 4Ω or 1 x 500W @ 8Ω DSP plate amplifier, Powered by ICEpower® 250ASX2 module, Ethernet control, FIR + IIR filter



    Highlights

    • DSP Powered plate amplifier with FIR + IIR filters
    • Powered by ICEpower® technology for 2x250W @ 4Ω or 1 x 500W @ 8Ω
    • Windows & Mac compatible, IP control over Ethernet/Wifi
    • Analog & Digital input
    • Multi-unit control via Ethernet
    • Perfect fit for 2way active speakers or Subwoofer plate amplifier



    Product details

    PWR-ICE250 2 x 250 Watt DSP ICEpower Plate Amplifier

    Note: This product comes with a coupon (€9,50) for one free miniDSP plugin download.

    Introducing the PWR-ICE250, a DSP powered plate amplifier module for active 2 way loudspeakers or mono subwoofers. Result of the collaborative effort of two innovative technology companies, the PWR-ICE250 core features include:

    • On the processing side is miniDSP's innovative software & firmware allowing a Plug & Play real time control of the onboard DSP over Ethernet/Wifi networks. Using our Zero Conf technology, multiple modules are automatically discovered and controlled from a single User interface in real time. The platform is supported under Mac and Windows environment.The onboard Digital Signal Processors (DSP) provide real time all the processing a speaker designers will expect to excel at his crossover design task. These include FIR + IIR filters, Parametric Equalizers (PEQ), Level, crossovers, comp/limiter, delay and more. The Graphical User Interface (GUI) platform is supported on both Mac and Windows environment.
    • On the power amplifier side, the ICEpower® 250ASX2 modules are complete AC plug-to-speaker amplification audio solutions offering flexible two-channel or bridgeable speaker drive. Their compact size, audiophile audio quality and high power output make them perfect for high-performing audio products. The amplifier is rated for up to 2x250W @ 4Ω or 1 x 500W @ 8Ω

    As for audio connectivity, the PWR-ICE250 is fitted with both analog balanced (XLR) & unbalanced inputs (RCA) to provide maximum compatibility. A digital input (AES-EBU/SPDIF) saves on the A-D conversion for maximum performance while a Digital output (AES-EBU/SPDIF) allows multiple plate amplifiers to be linked to each other.

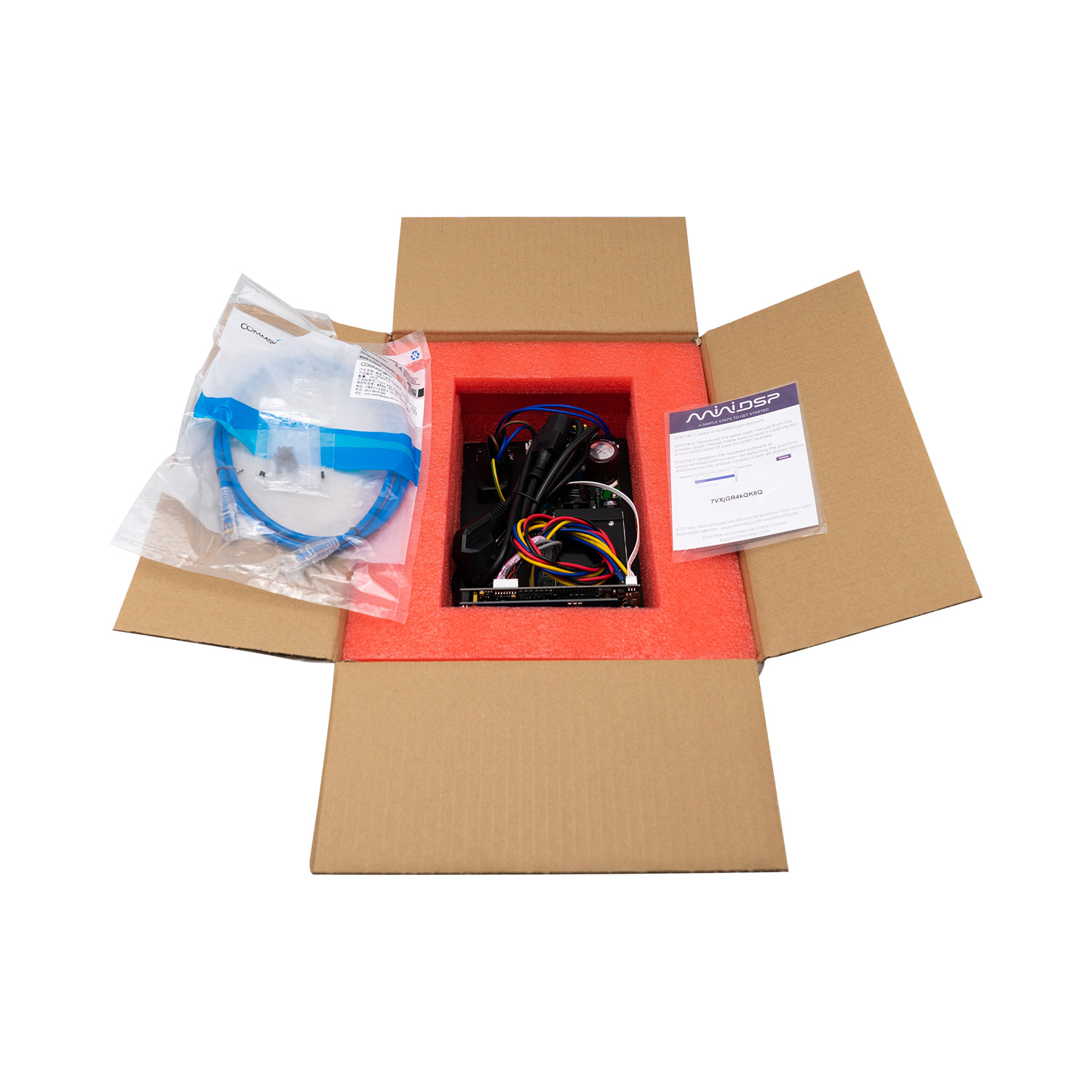

    What's in the box?

    • 1 x PWR-ICE250 amplifier module
    • 1 x CAT5 patch cable
    • 1 x IEC power cord
    • 4 x black wood screws for mounting
    • 1 x Speaker wire harness to connect amplifier to speaker (60cm long)
    • 1 x Coupon code for miniDSP plugin download



    System Diagram



    Mechanical Specifications



    Specificaties

    Artikelnummer
    PWR-ICE250
    Nominaal vermogen
    2 x 230 watts at 4 ohms
    Vermogen gebrugd
    1 x 500 watts at 8 ohms
    Minimale belasting
    3 ohms
    Signaal-ruisverhouding (SNR)
    -
    Vervorming
    0.008 % THD+N (100 Hz at 1 watt)
    Vervorming gebrugd
    0.004 % THD+N (100 Hz at 1 watt)
    Versterkerklasse
    Class D
    Versterkertopologie
    ICEpower
    Efficiëntie
    76.3 % at full power
    Frequentierespons
    20 - 20,000 Hz
    Ingangsimpedantie

    10k ohms (unbalanced)
    47k ohms (balanced)

    Ingangsgevoeligheid

    1/2 Vrms (unbalanced)
    2/8 Vrms (unbalanced)

    Inschakelgevoeligheid
    -
    DSP
    check
    DAC
    check
    Maximale sample rate
    96 kHz
    Uitgangskanalen
    2
    Analoog in / uit
    1/-
    S/PDIF in / uit
    -/-
    AES/EBU in / uit
    1/1
    Coaxial in / uit
    -/-
    XLR in / uit
    2/1
    Jack in / uit
    -/-
    USB-Verbinding
    -
    Netwerkverbinding
    check
    Bluetooth
    -
    Subwoofer pre-out
    -
    Auto aan / uit
    -
    Afstandsbediening
    -
    App-bediening
    check
    EQ-correctie
    check
    EQ-profielen
    check
    Fasesturing
    check
    Instelbare kantelfrequentie
    check
    Presets
    check
    Besturingssoftware
    miniDSP plugin
    Windows/Mac compatible
    check/check
    Voedingsvereisten
    110 / 240 VAC
    Voedingsaansluiting
    IEC C14
    Standby stroomverbruik
    -
    Stroomlimiet
    30 A
    Onder-/overspanningsbeveiliging
    -
    Afmetingen (H x B x D)
    267.5 x 153 x 77 mm
    Uitsparingsafmetingen
    253 x 139 mm

    Reviews

    5 from 5Based on 1 reviews
    Schrijf een review
    5 van 5
    Great tool, easy to integrate, with comprehensive features. Possibility of full stereo 2CH operation or bridged mono mode, which is not common to similar competitor's modules (e.g. limitation to low/high 2way by design etc.)
    Door Viktor S. on 9 April 2020
