- Fully integrated audio power solution
- Stereo or mono output versions available
- Rugged construction
- Thermal protection
- Over current protection
- Sound optimized soft clipping
- Suitable for CE approved designs
ICEpower 50ASX2(SE) 2x50W Amplifier Module with integrated ICEpower

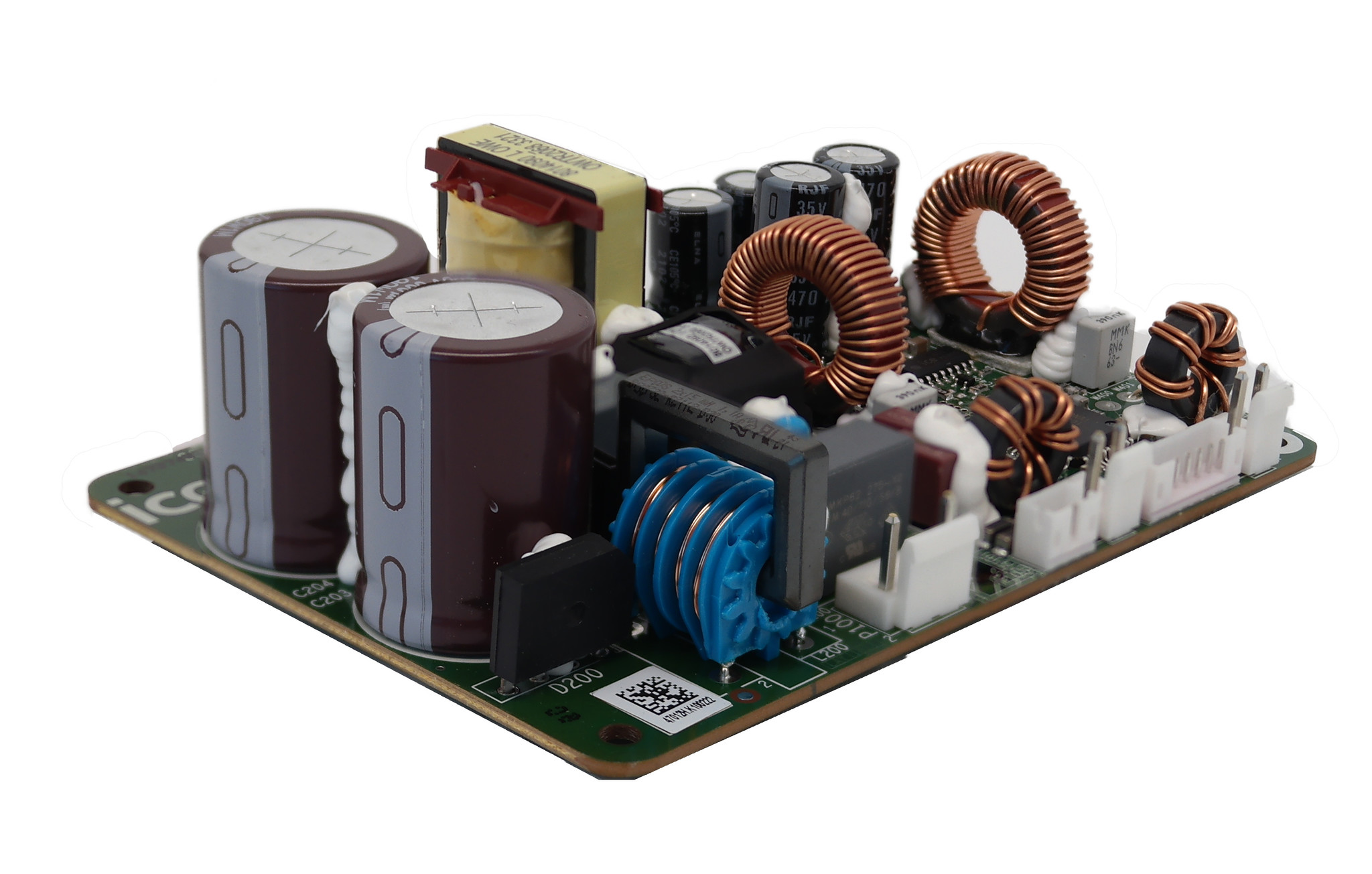

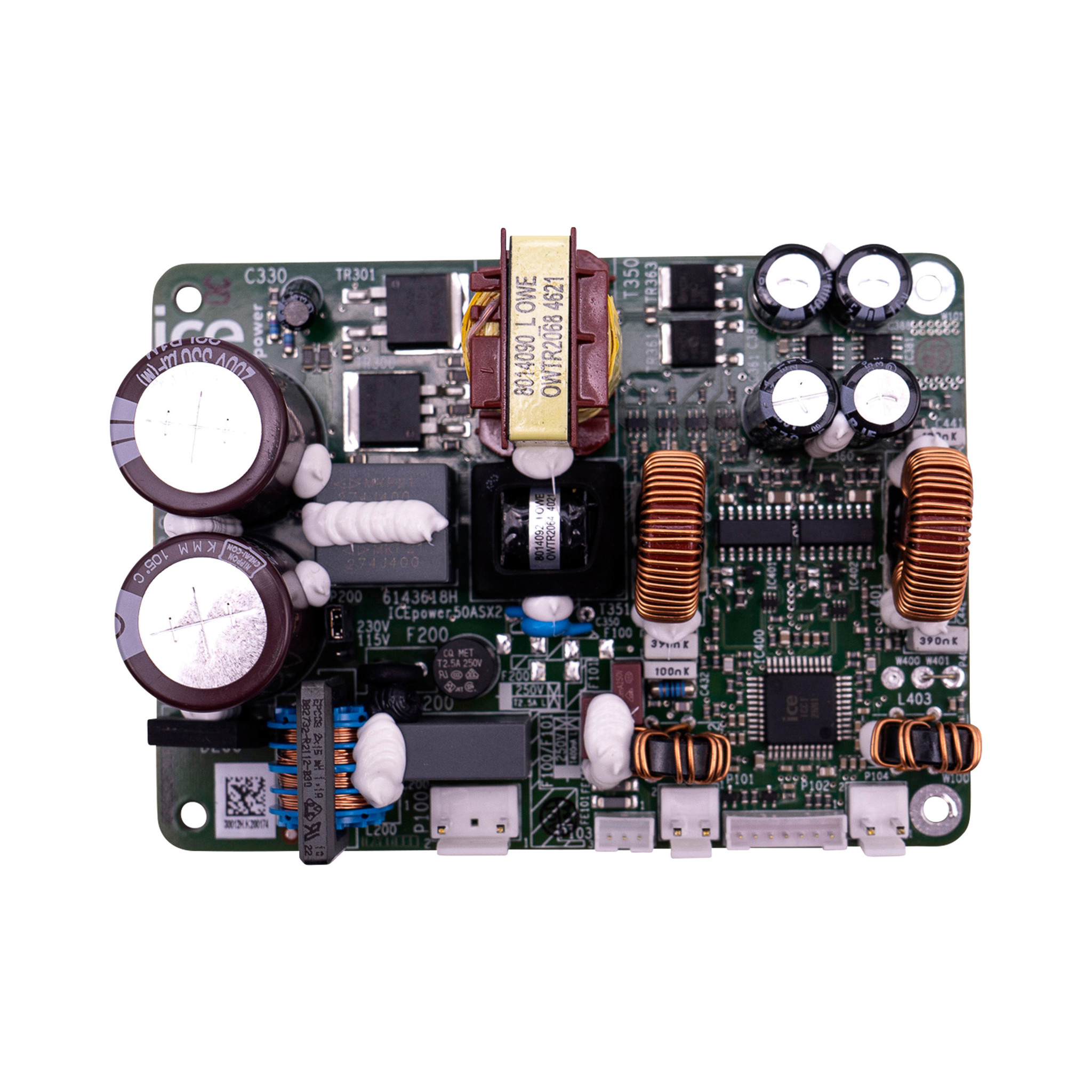

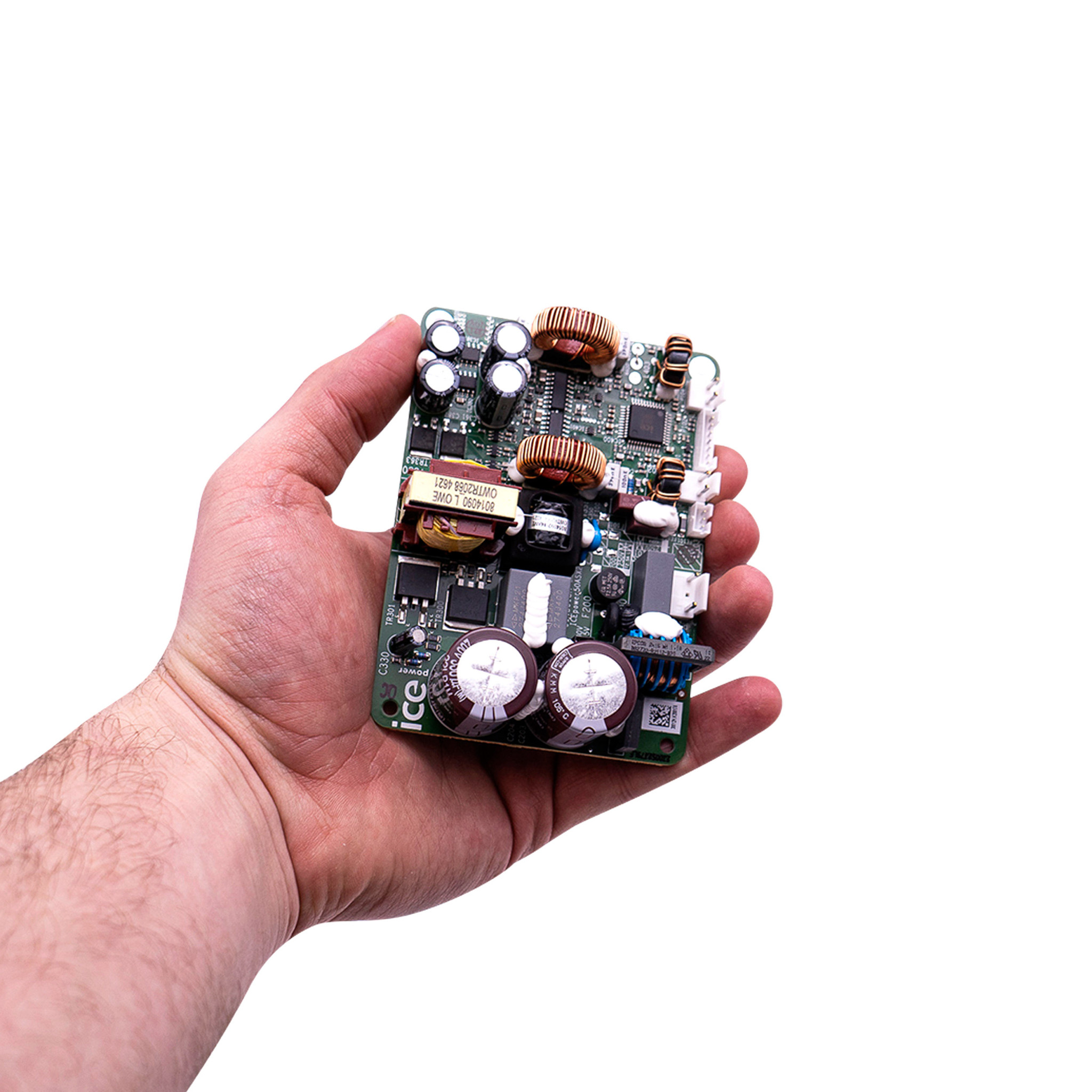

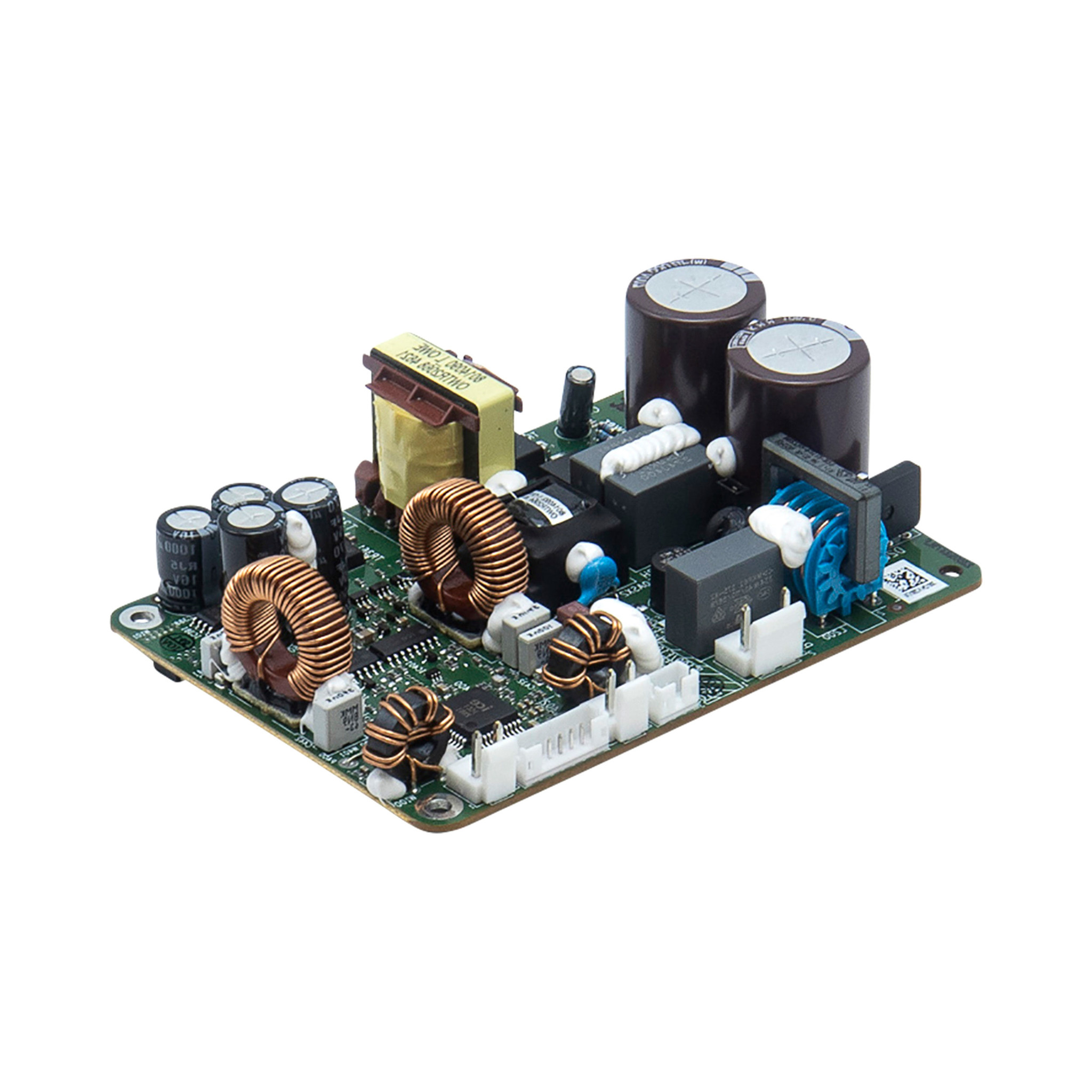

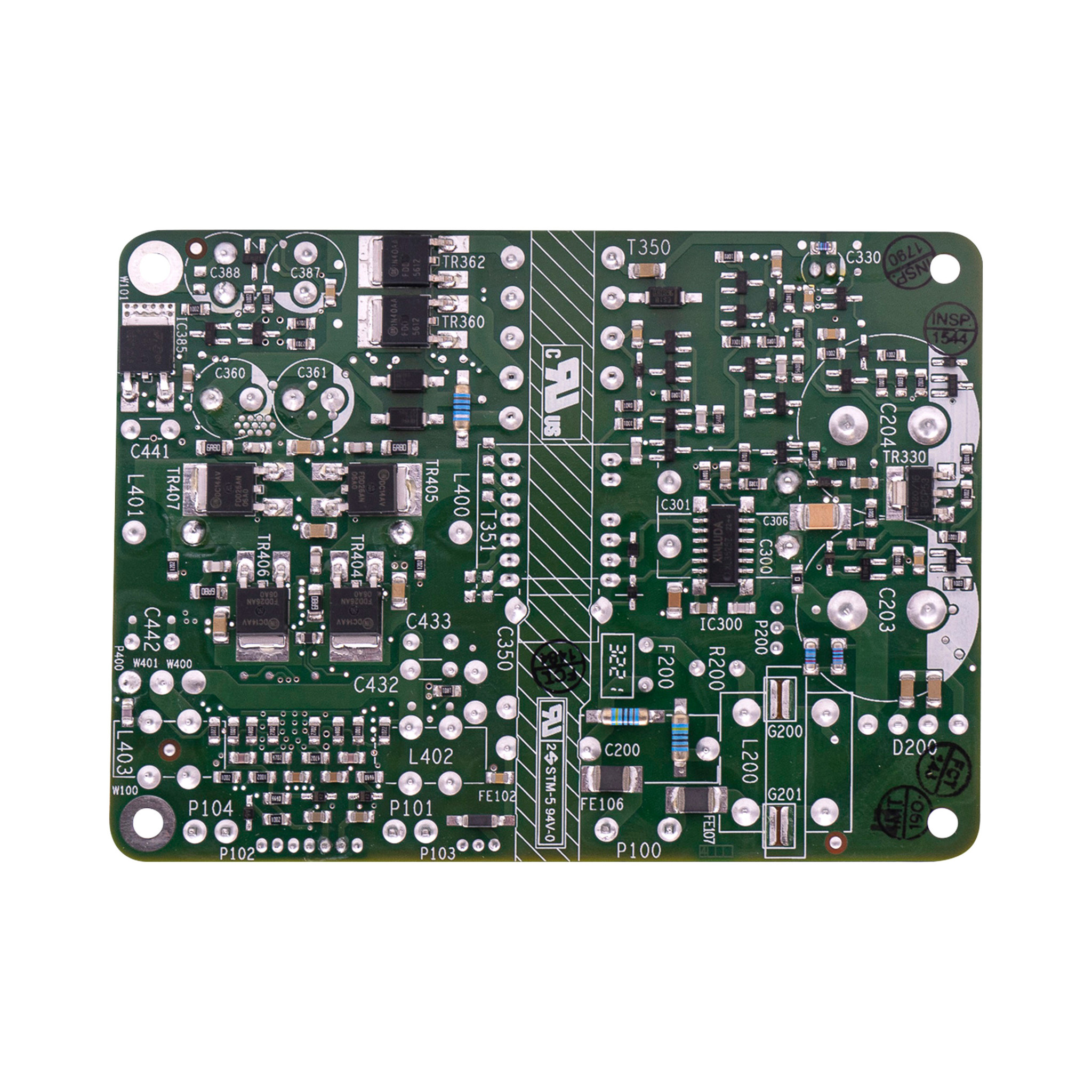

The 50ASX2 is a fully integrated, intelligent amplification solution designed particularly for consumer and professional audio applications. This ultra-compact amplifier module has an integrated high efficient resonant power supply. It is a great choice from the amplifier modules category as it offers excellent audio quality, is ultra-compact and has a nice set of features.
This module is EMC and safety approved. The auxiliary supply for powering external circuitry, elimination of heat sinks and EMI shields allow for fast implementation in your project. The 50ASX2 is protected against short-circuit, overload and over-heating and includes on-board fuses and EMI filtering to provide a CE and FCC pre-approved design.
The 50ASX2 is available in two variants with either stereo or mono output configuration. This SE (single ended) version is perfect for active 2-way speakers and stereo applications. For the single channel BTL version, check out the 50ASX2(BTL). For other members from the ASX-series check out the more powerful 125ASX2 and 250ASX2.

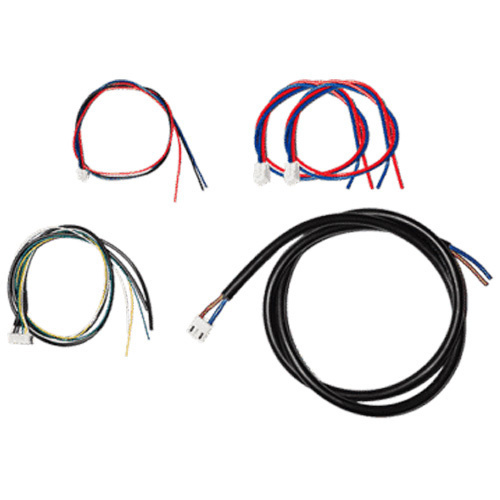

The included cable set allows acces to all features of the 50ASX2. The kit contains cables with all the right connectors on one end. The other ends are left unterminated so you can terminate the wires with the connections of your choice.
What’s In The Box?
- 1 x 50ASX2(SE) Amplifier Module with integrated ICEpower Supply
- Cable set:
- 1 x (K) Mains without Earth
- 1 x (R) Supply ASX2series AUX
- 1 x (S) Signal
- 2 x (F) 2pole Universal Speaker
