      ICEpower 200AS2 versterkermodule with Integrated Power supply

      € 132,19€ 159,95 Niet op voorraad: neem contact met ons op voor de actuele levertijd

      Volume voordeel Geniet van deze geweldige kortingsdeals
      • -5% Bestel 4 voor slechts €151,95 per stuk
      • Verzending altijd verzekerd en met track & trace
      • Voor 16u besteld, vandaag verstuurd
      • Gratis verzending vanaf €99
      • In-house technische support
      Heeft u vragen over dit product?

      Heeft u vragen over dit product?

      Onze klantenservice helpt u graag verder!

      Productomschrijving

      The 200AS2 is a dual-channel, Class D amplifier with fully integrated switch mode power supply. Although designed for guitar, bass guitar and subwoofer amplification, this amplifier is suitable for many more applications.



      Highlights

      • Fully integrated module, no need for additional circuits
      • Minimum load of 3.5 Ω
      • Auto-on / Signal detect
      • Extended monitor and status interface
      • 8 +Vdc and 17 ±Vdc auxiliary outputs



      Product details

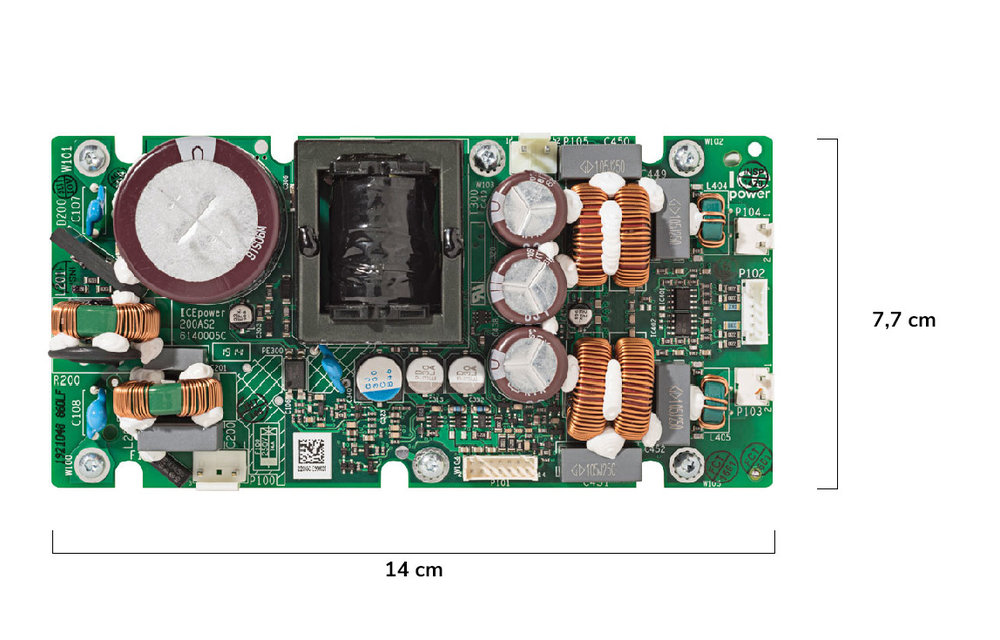

      ICEpower 200AS2 Amplifier Module with Integrated Power supply



      This 215 watt high-performance, reliable and self-contained amplifier module from the AS-series. The integrated power supply, ruggedness and easy-to-use control features make it a great competitor in amplifier module category for a wide range of applications.



      The AS-series from ICEpower offers excellent audio performance thanks to the patented modulation and control techniques. The capable integrated SMPS can continuously output up the 300 watts. The ruggedness is further improved with protection circuits, brand-name components and extensive test and burn-in during production.



      This module has an user friendly control interface, that features stand-by control, auxiliary power outputs and an various status control in- and outputs. Thinking that is too complicated? We haven’t mentioned the plug-n-play compatibility yet; Just connect the mains, signal and speakers and you are ready to play some music!



      Check out the 200AS1 for the single channel version, 100AS2 for the 100 watt version or the 1200AS2 for the most powerful module in the AS-series.

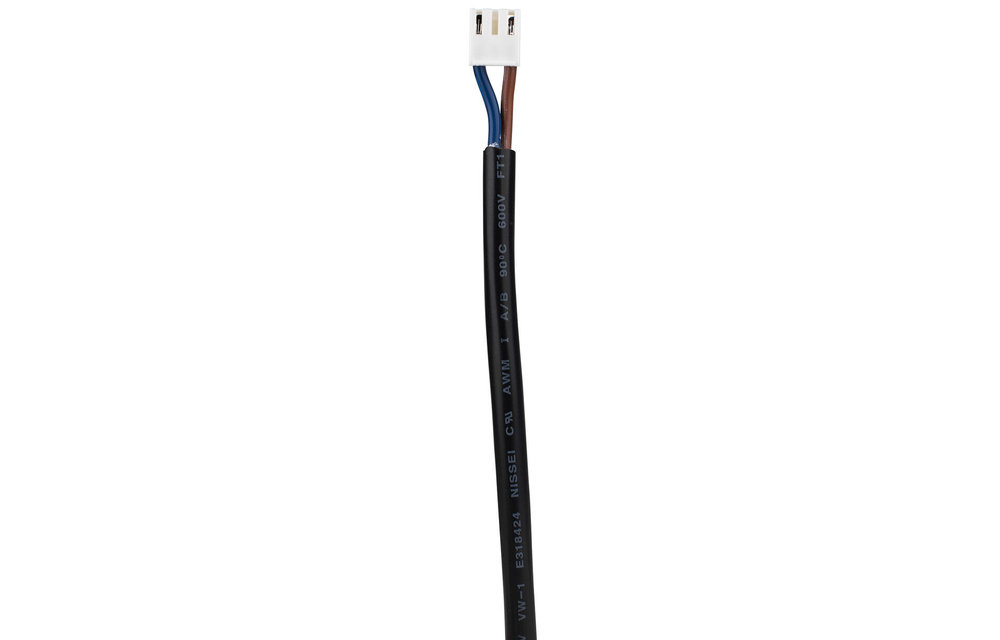

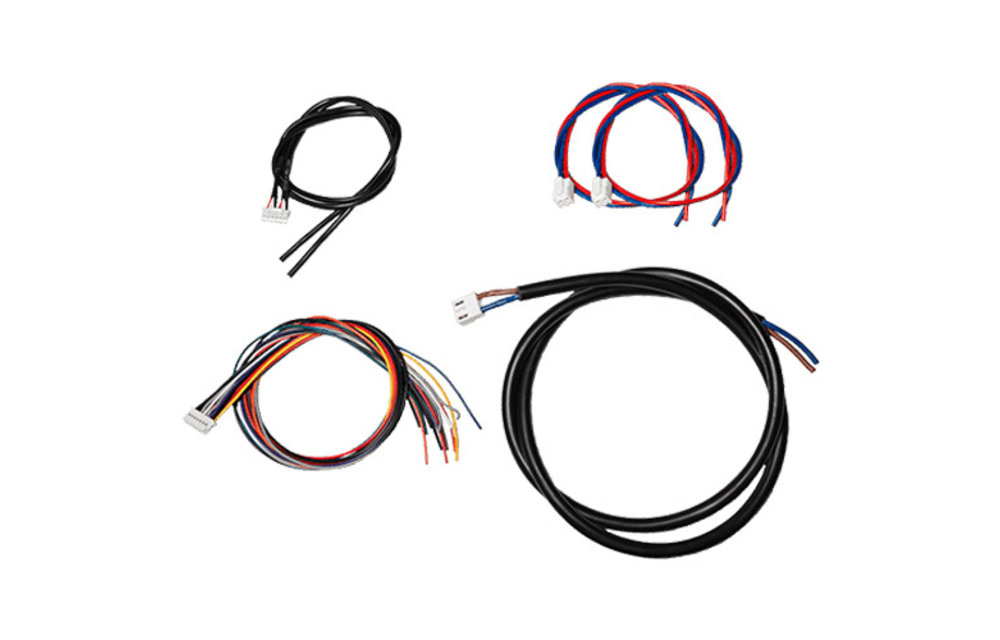

      Cable set

      The included cable set gives access to all the functions of the 200AS2 module. The leads are left unterminated so that it is possible to terminate the wires with the connections of your choice.



      What’s In The Box?

      • 1 x 200AS2 amplifier module with integrated SMPS
      • Cable set:
        • 1 x (NA) Audio input 2 channel
        • 1 x (K) Mains without Earth
        • 2 x (F) 2pole Universal Speaker
        • 1 x (NC) Basic control/features

      Specificaties

      Artikelnummer
      200AS2
      Nominaal vermogen
      215 watts at 4 ohms
      Minimale belasting
      3.5 Ohm
      Efficiëntie
      70%
      Vervorming
      0.004 % THD+N
      Versterkingsfactor
      24 dB
      Ingangsgevoeligheid
      2.5 Vp
      Ingangsimpedantie
      3.0 kOhm
      Amplifier Classification
      Class D
      Uitgangskanalen
      2
      Voedingsvereisten
      100-240 VAC
      Stroomlimiet
      13 A
      Afmetingen (L x B x H)
      158 x 77 x 36.5 mm
      Diameter bevestigingsgaten
      3.5 mm

      Toon meer

      Reviews

      5 from 5Based on 2 reviews
      Schrijf een review
      5 van 5
      Can you confirm Auto start, automatic on? I reed all data sheet and didn't found any reference to this function!
      Door Bruce on 8 April 2022
      5 van 5

      Easy plug and play amp module with integrated power supply. Haven't try class D for so many years and the sound is really good. But it's more demanding on source, I found my DAC has some noise output when connecting to it...

      Door YS on 23 Maart 2022
