    ICEpower 1200AS2 Amplifier Module with Integrated Universal Mains Power Supply

    € 330,54€ 399,95 >10 Op voorraad: levertijd 1 werkdag
    Volume voordeel Geniet van deze geweldige kortingsdeals
    • -5% Bestel 4 voor slechts €379,95 per stuk
    • Verzending altijd verzekerd en met track & trace
    • Voor 16u besteld, vandaag verstuurd
    • Gratis verzending vanaf €99
    • In-house technische support
    Heeft u vragen over dit product?

    Heeft u vragen over dit product?

    Onze klantenservice helpt u graag verder!

    Productomschrijving

    Highlights

    • Fully integrated, two-channel amplifier and power supply
    • Minimum load impedance at 2.7 Ohm
    • Comprehensive monitoring and protection
    • Real-time voltage and current monitor outputs
    • Audio signal and logic triggers
    • Auxiliary power supply output
    • Standby-mode
    • Universal mains with active Power Factor Correction
    • Simple but flexible mechanical mounting



    Product details

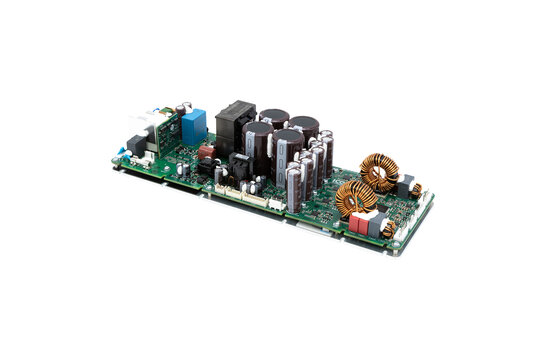

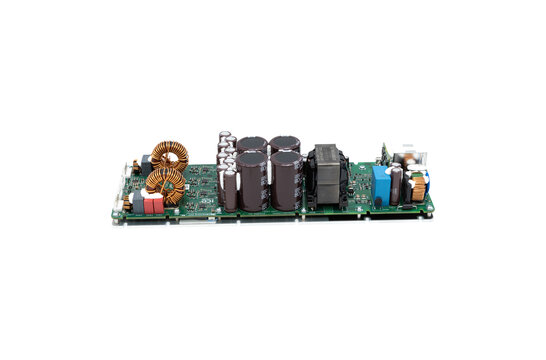

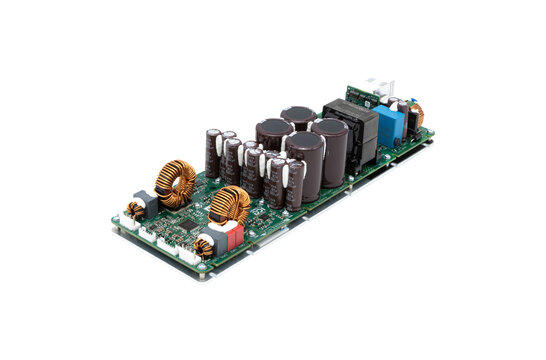

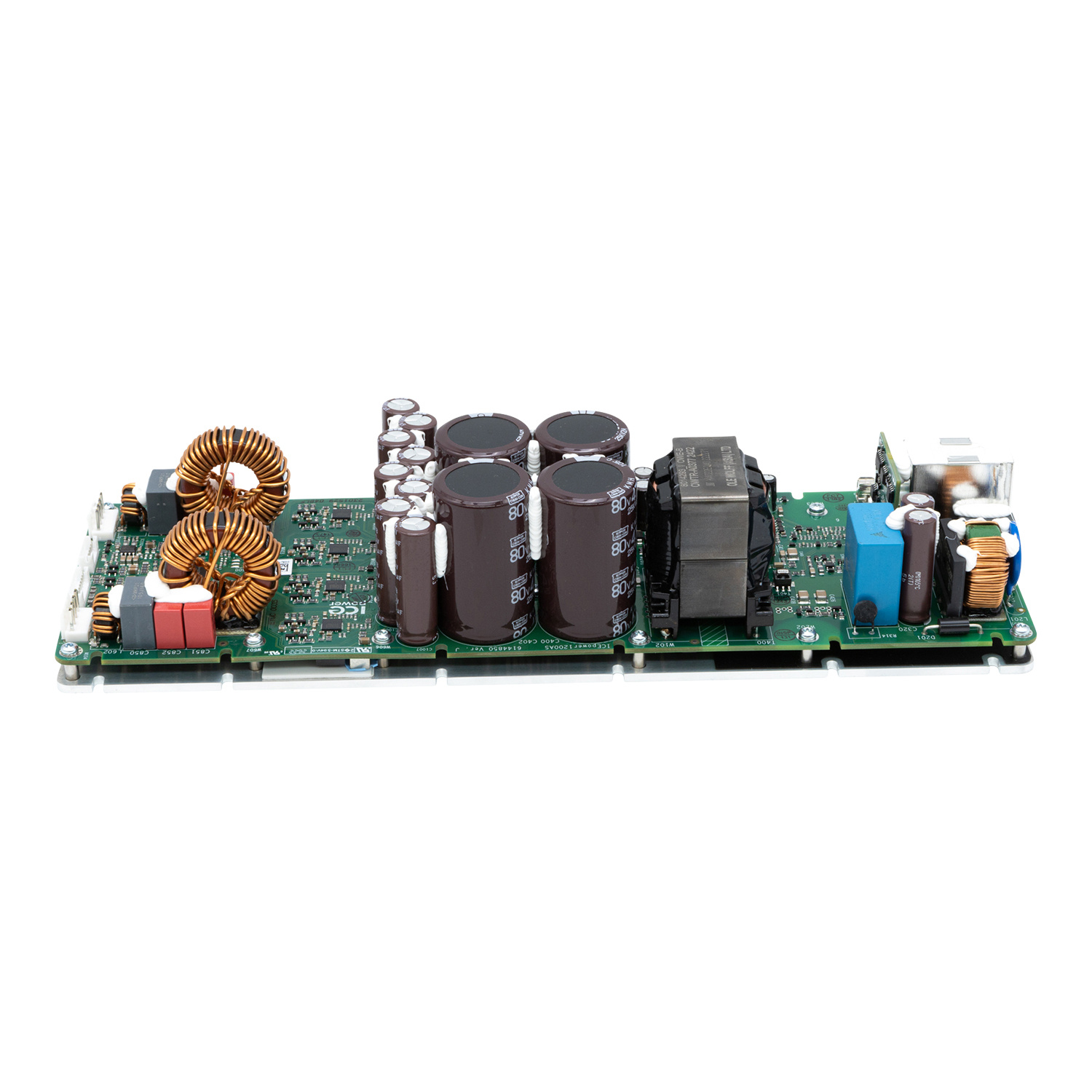

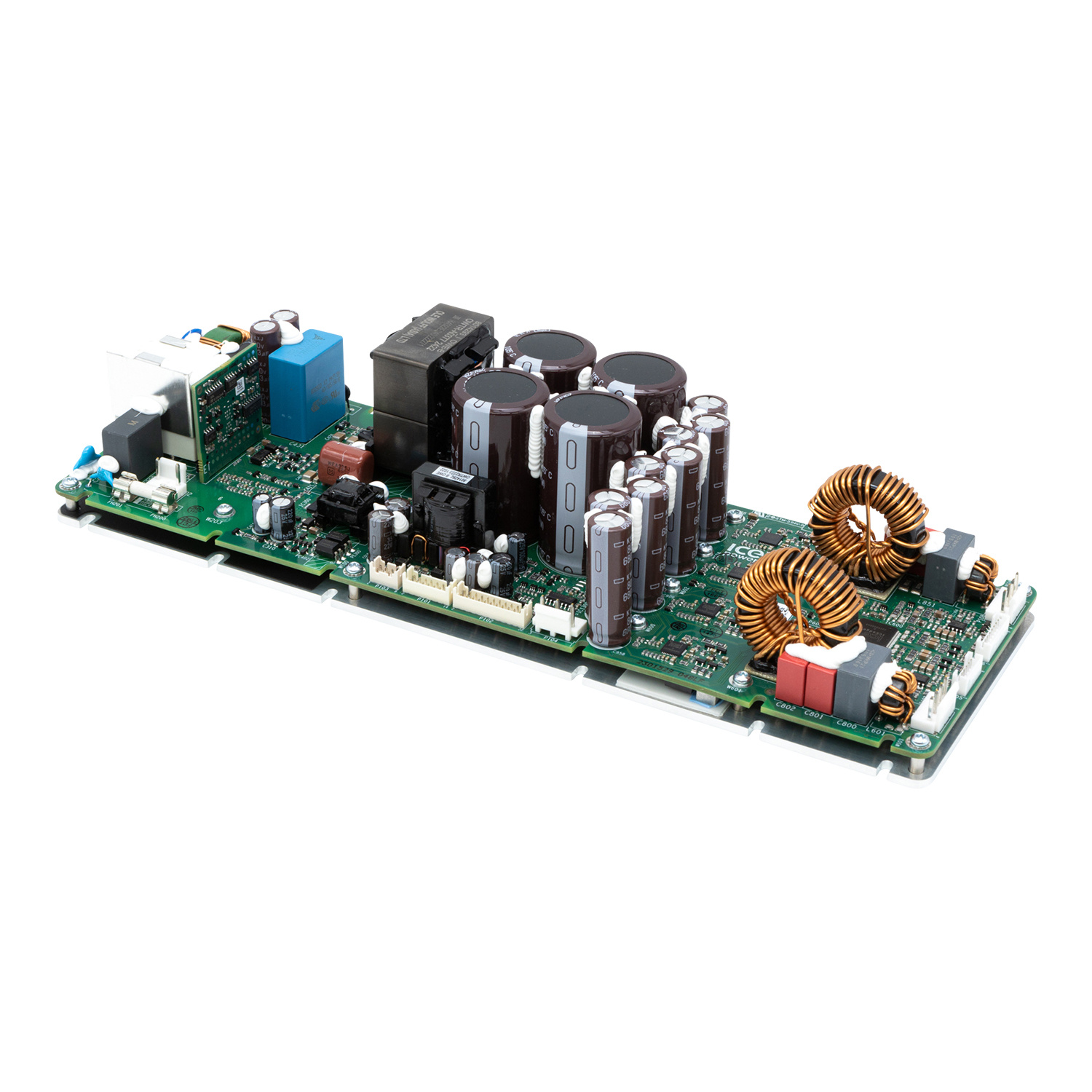

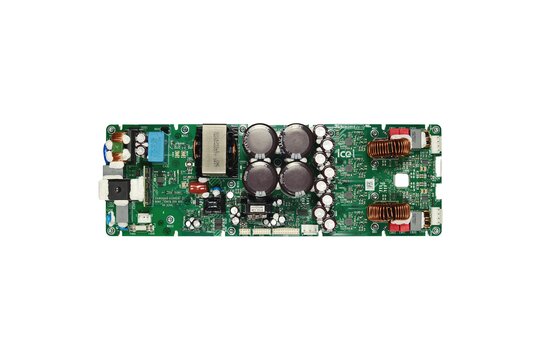

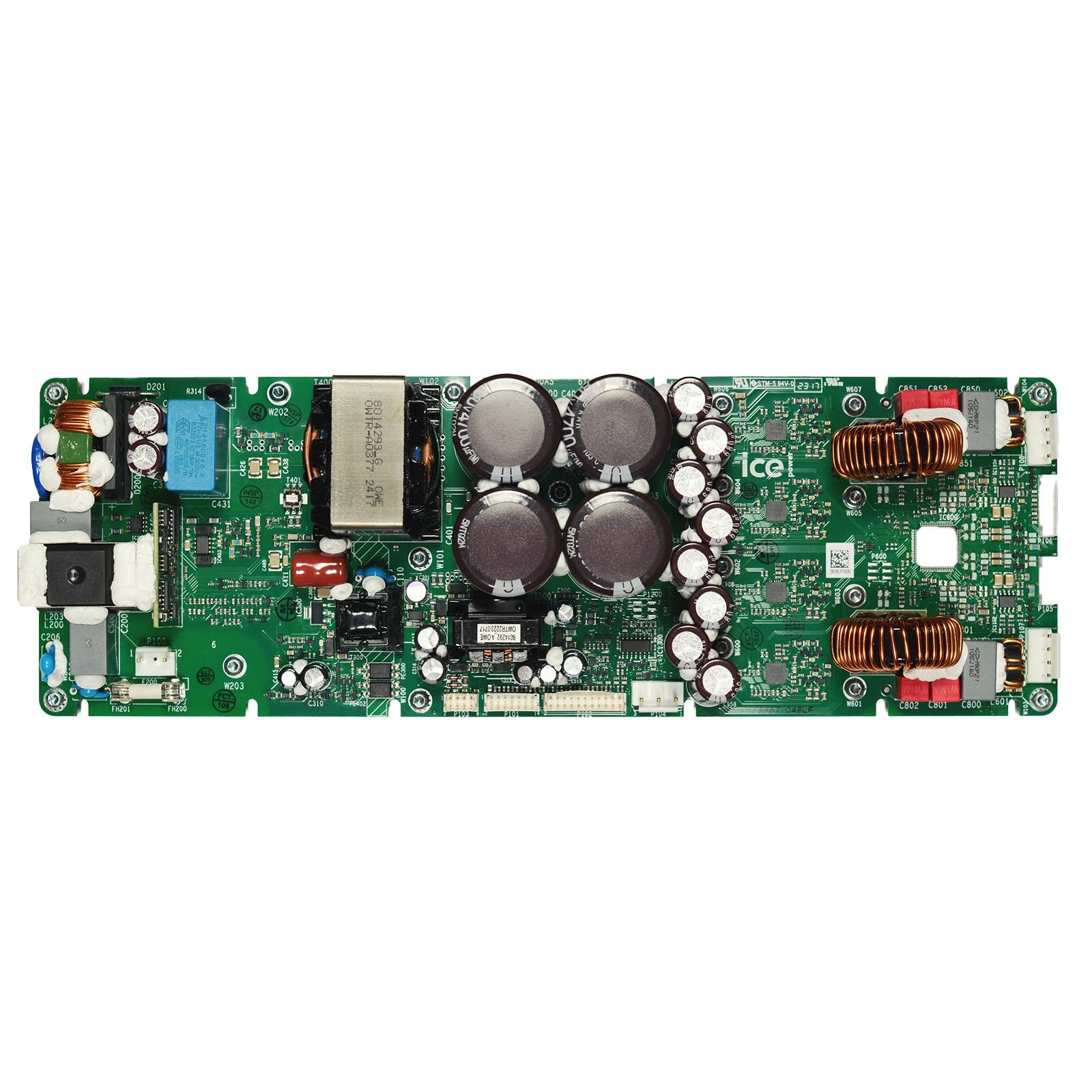

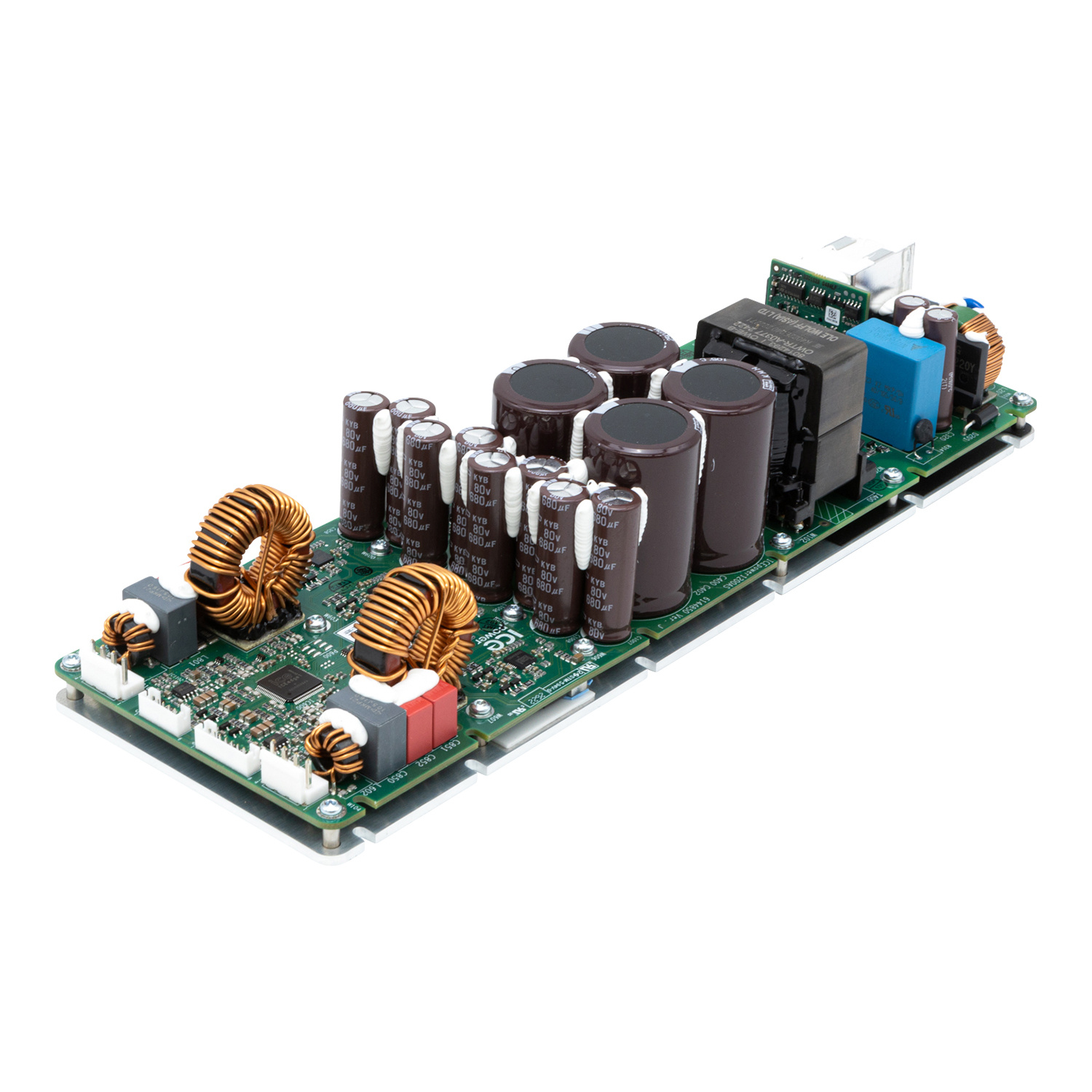

    ICEpower 1200AS2 Amplifier Module with Integrated Universal Mains Power Supply



    The ICEpower 1200AS2 combines two high-performance 1200 watt ICEedge based class D amplifier channels with an integrated mains power supply. Besides being the most powerful integrated solution, this is also the most convenient solution for two channels of extreme audio power and performance in the amplifier module category.



    The DC hanger bus is suitable for powering the 400A2 amplifier modules. Perfect for professional subwoofers, 2-way and 2.1 speakers as well as high-end consumer products such as subwoofers or monoblock power amplifiers.



    The ICEpower 1200AS family uses an universal mains ErP and Energy Star compliant power supply and provides comprehensive protection and monitoring functions. All accessible through an easy-to-use control interface. Additionally, dedicated monitor outputs for speaker connector output voltage and current enable real-time protection system of the loudspeaker. The integrated aluminum base plate on the 1200AS acts as both cooling and mechanical interface. This enables easy mechanical integration and extra cooling can be added. This ICEpower 1200AS2 is a two-channel module. Check out the ICEpower 1200AS1 for a single-channel module.

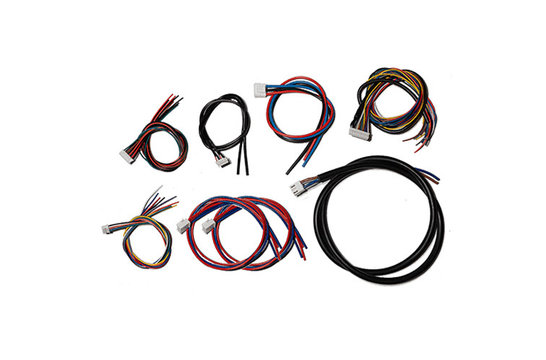

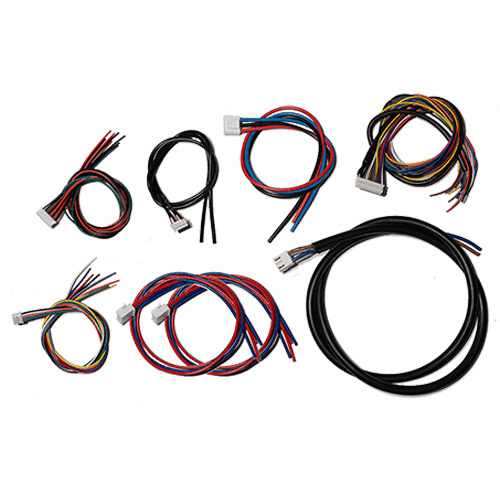

    Cable set

    The included cable set gives access to all the functions of the 1200AS2 module. The leads are left unterminated so that it is possible to terminate the wires with the connections of your choice.



    What’s In The Box?

    • 1 x 1200AS2 Amplifier Module with Integrated Universal Mains Power Supply
    • Cable set:
      • 1 x (K) Mains without Earth
      • 2 x (G) Speaker 1200AS
      • 1 x (NC) Basic control/features
      • 1 x (ND) Signal
      • 1 x (NE) Voltage and Current Monitor 2 channel
      • 1 X (NA) Audio input 2 channel
      • 1 x (NG) Hanger Rail Supply
      • 1 x (NH) Hanger Small Signal Supply

    Specificaties

    Artikelnummer
    1200AS2
    Nominaal vermogen
    1201 watts at 4 ohms
    600 watts at 8 ohms
    Minimale belasting
    2.7 Ohm
    Efficiëntie
    80%
    Vervorming
    0.005 % THD+N
    Versterkingsfactor
    25.8 dB
    Ingangsimpedantie
    38 kOhm
    Amplifier Classification
    Class D
    Uitgangskanalen
    2
    Stroomlimiet
    38 A
    Afmetingen (L x B x H)
    300 x 100 x 63 mm
    Diameter bevestigingsgaten
    3.5 mm
