The 100AS2 is a single-channel, Class D amplifier with fully integrated switch mode power supply. Although designed for guitar, bass guitar and subwoofer amplification, this amplifier is suitable for many more applications.
- Self-contained module, no need for additional circuits
- Minimum load of 3 Ω
- Wake-on signal
- Extended but user friendly control interface
- 8 +Vdc and 17 +/- Vdc auxiliary outputs

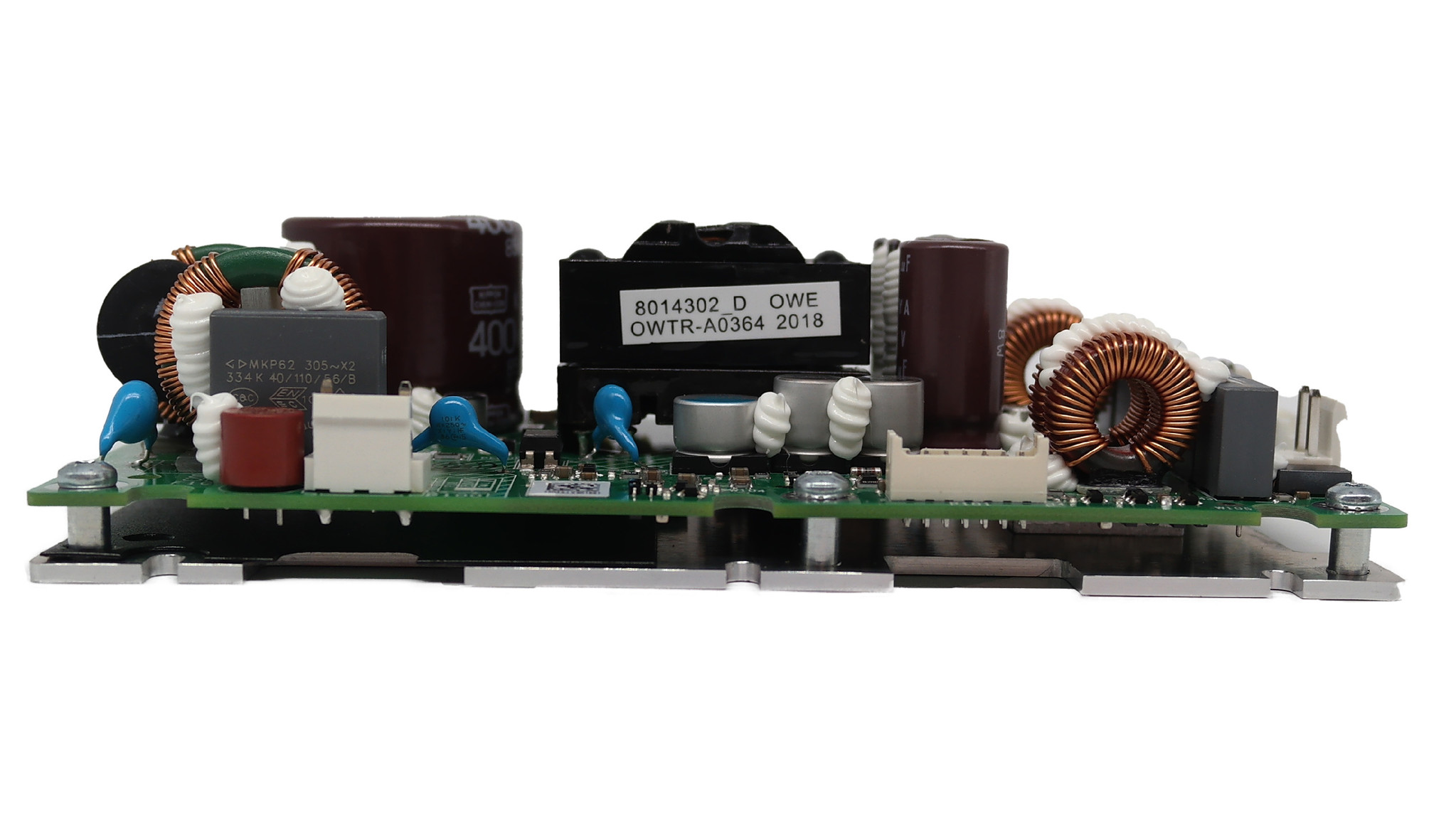

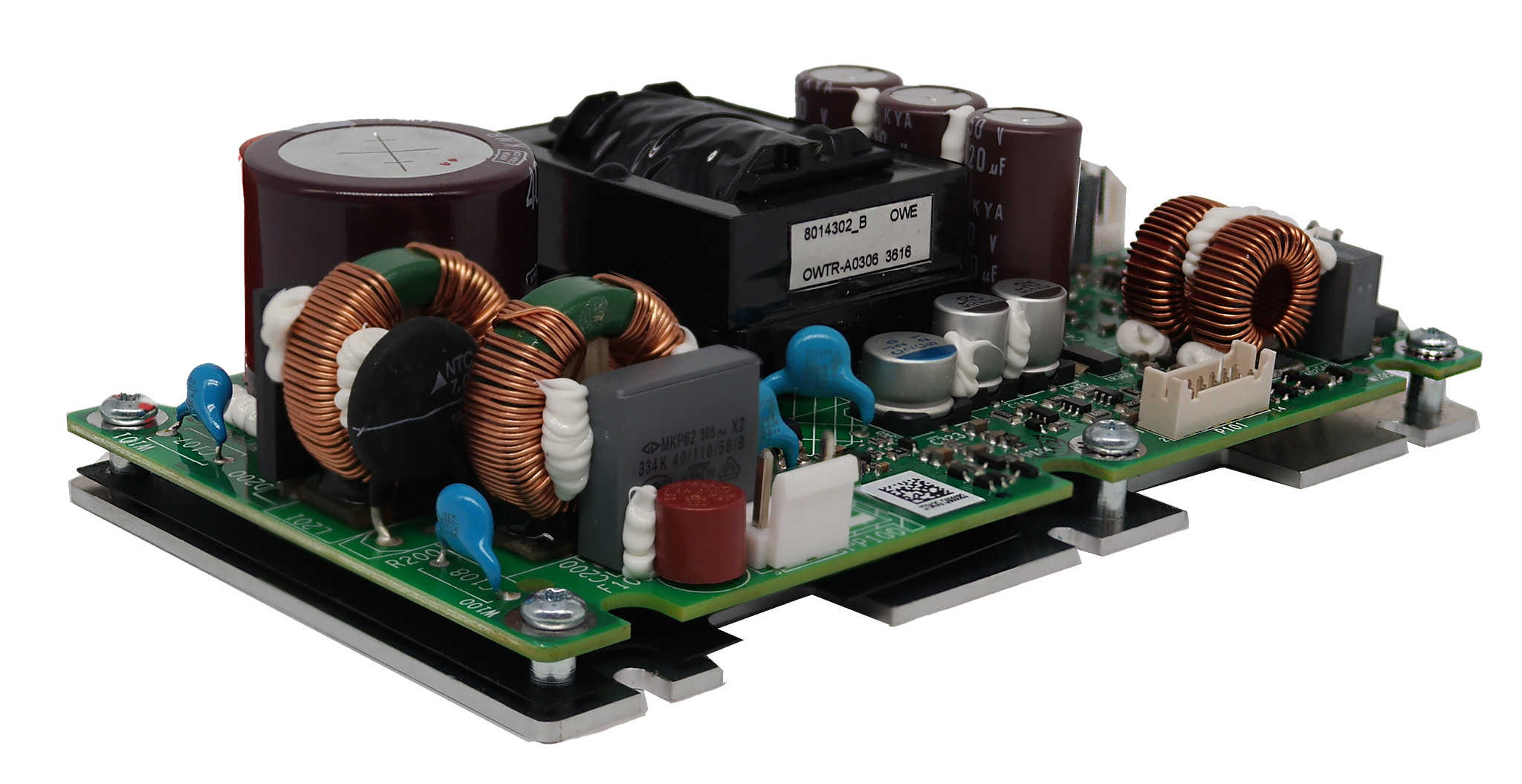

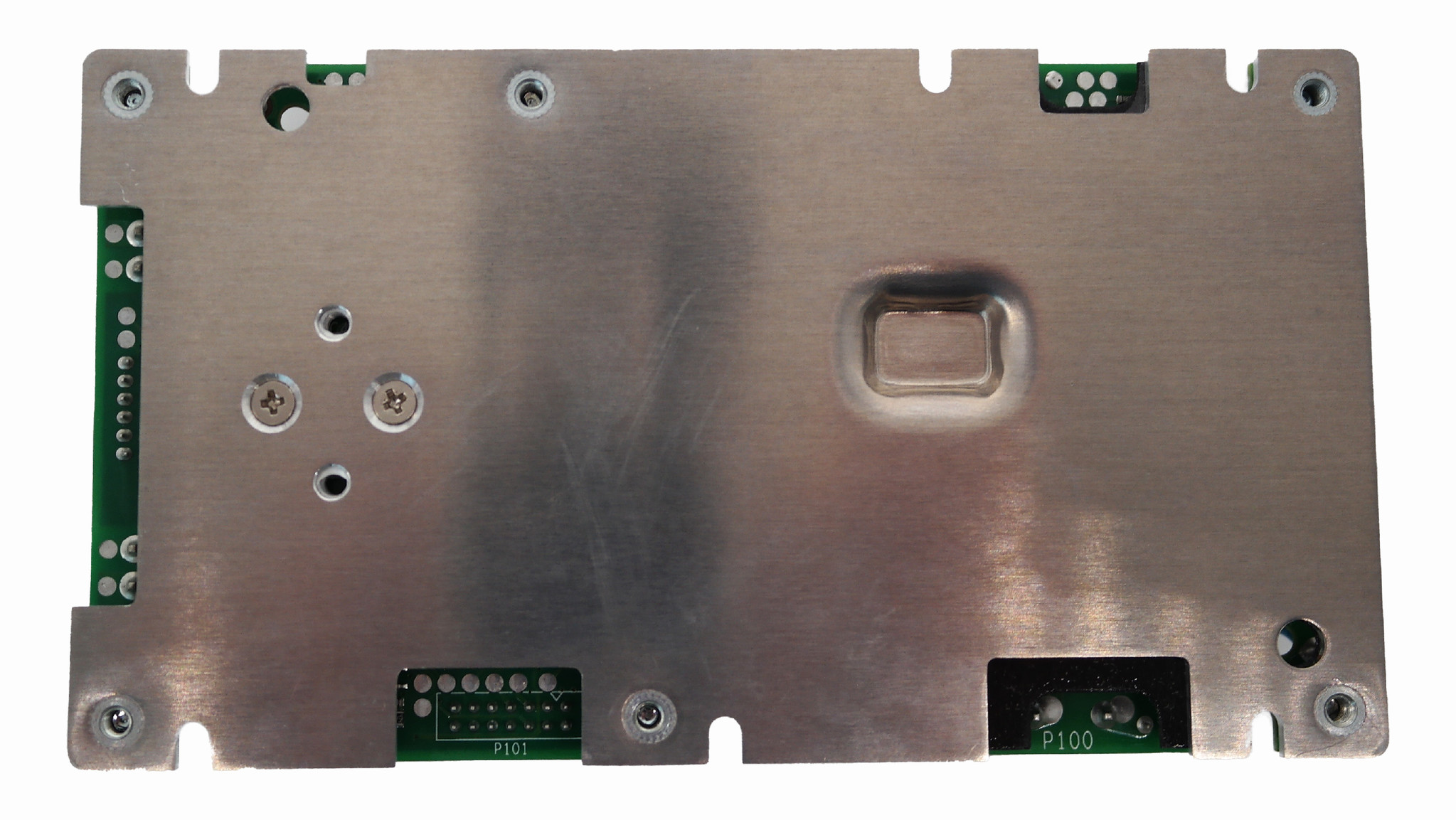

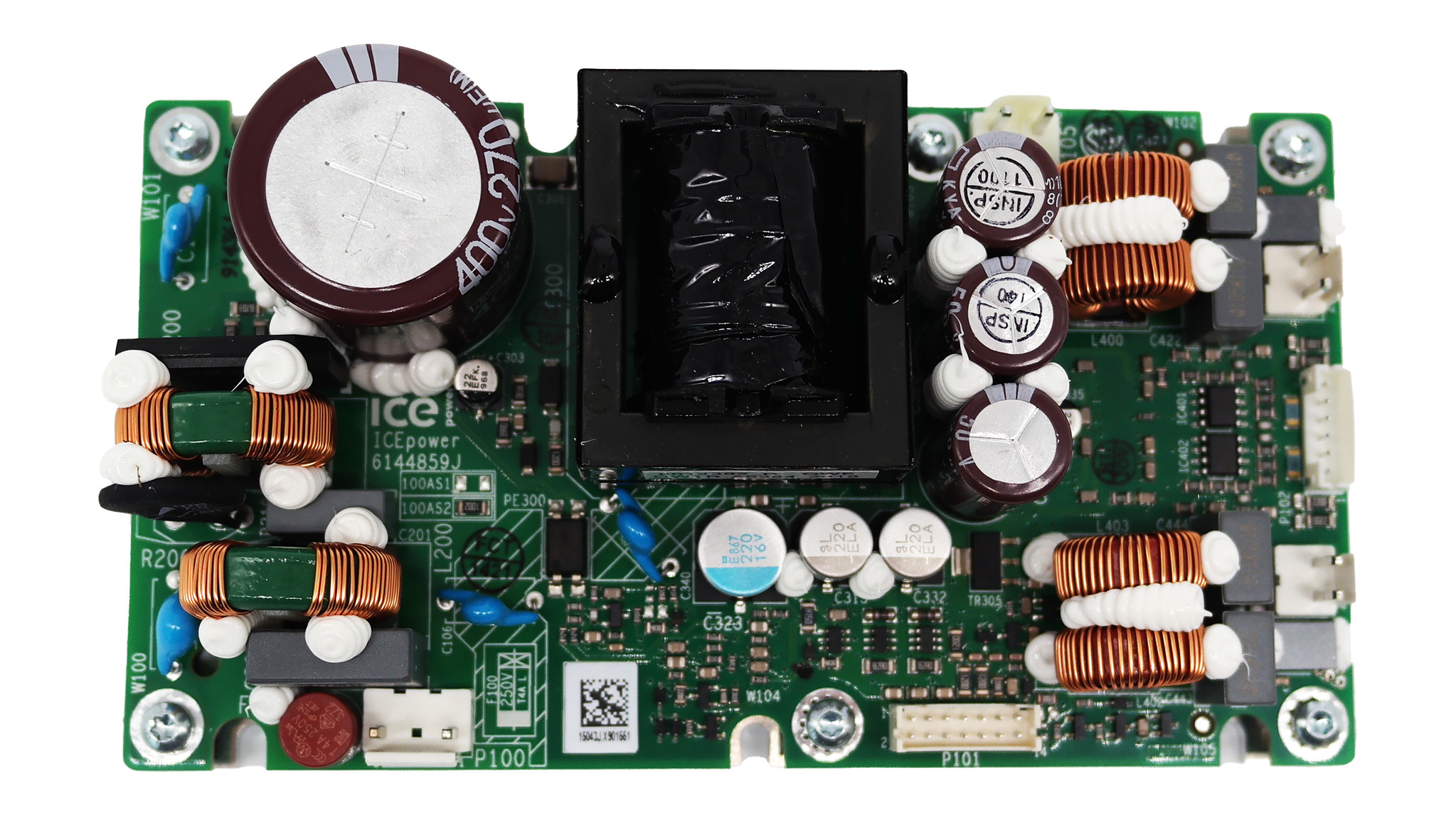

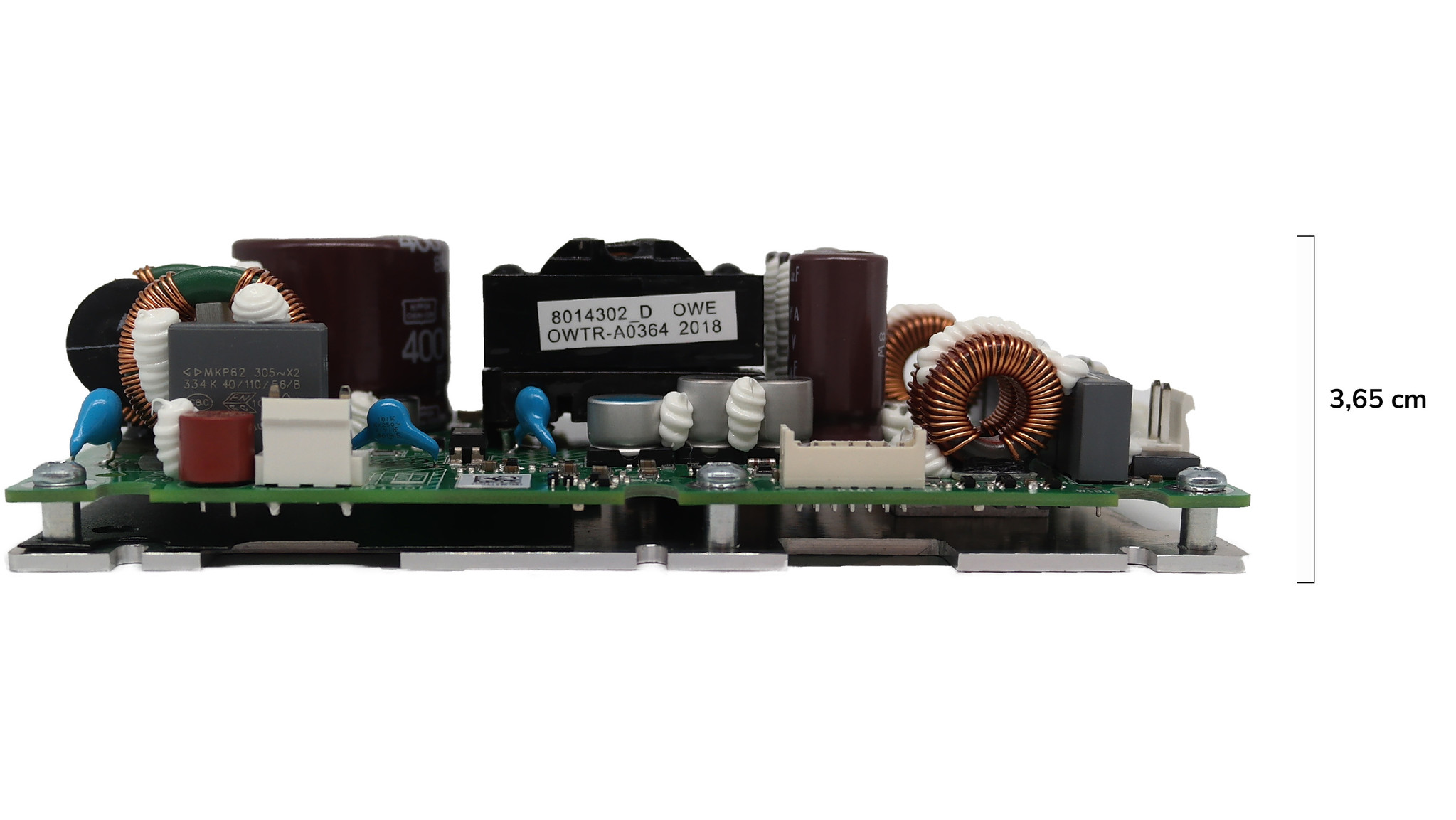

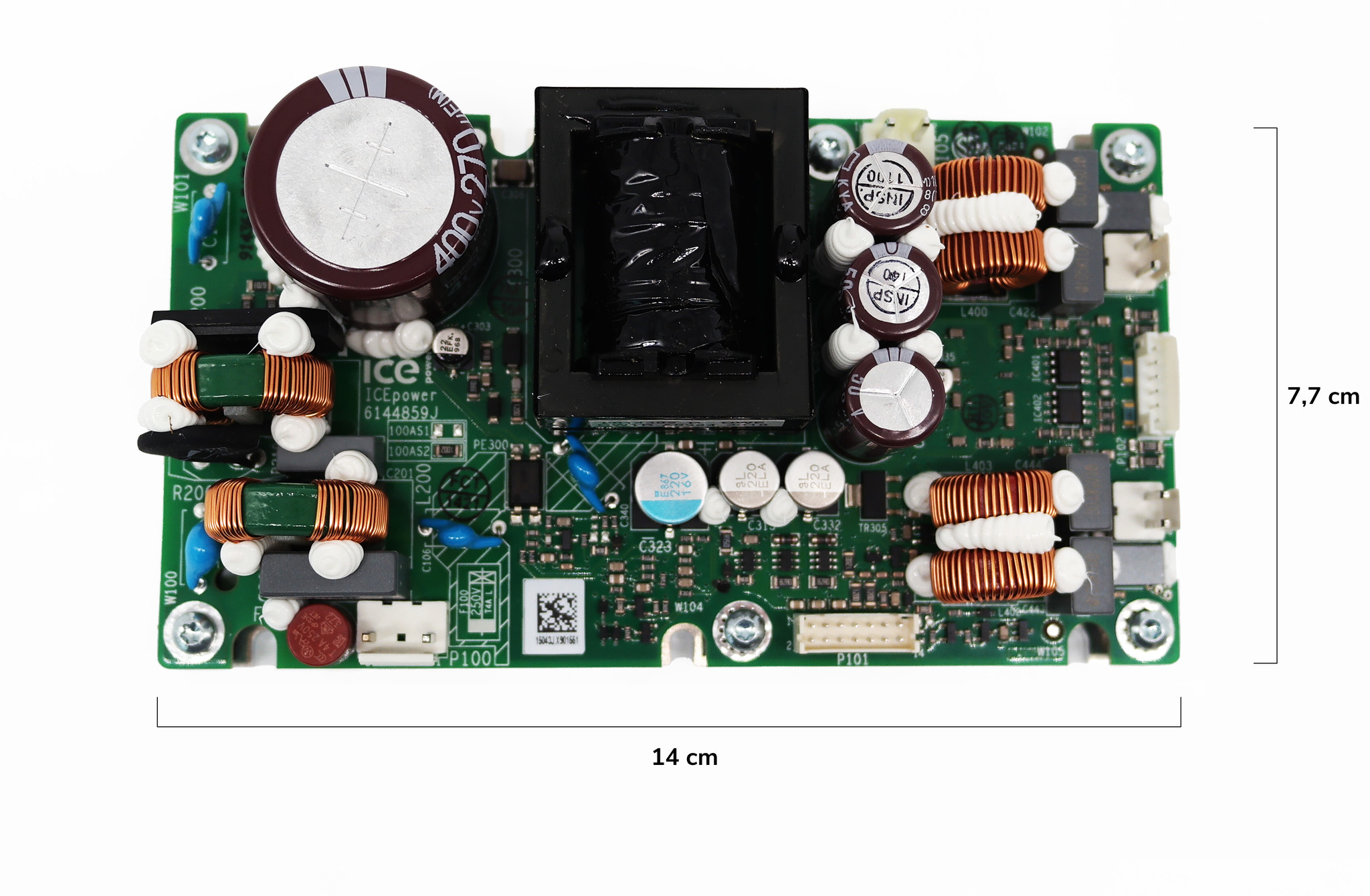

ICEpower 100AS2 Amplifier Module with Integrated Universal Mains Power Supply
This 100 watt high-performance, reliable and self-contained amplifier module is the smallest member of the AS-series from ICEpower. The integrated power supply, ruggedness and easy-to-use control features make it a excellent choice from amplifier module category for a wide range of applications.
The AS-series offers excellent audio performance thanks to the patented ICEpower modulation and control techniques. The integrated power supply is very capable and can supply up to 300-watts of continuous output. The capable supply, together with the protection circuits make even this smallest member not afraid of high continuous power demands. ICEpower strengthens the reliability further by using brand-name components and careful testing during production.
There is a user friendly control interface, that features stand-by control, Auto-on/ signal detect, auxiliary power outputs and a wide range of monitoring in- and outputs. Although none of this is required if you are looking for simple operation; just connect the mains, signal and speakers and you are ready to play some music!
Check out the 100AS1 for a mono version or the 1200AS2 for the most powerful member of the AS series. Looking for similar features, but a smaller footprint, check out the super compact ICEpower 50ASX2(SE).

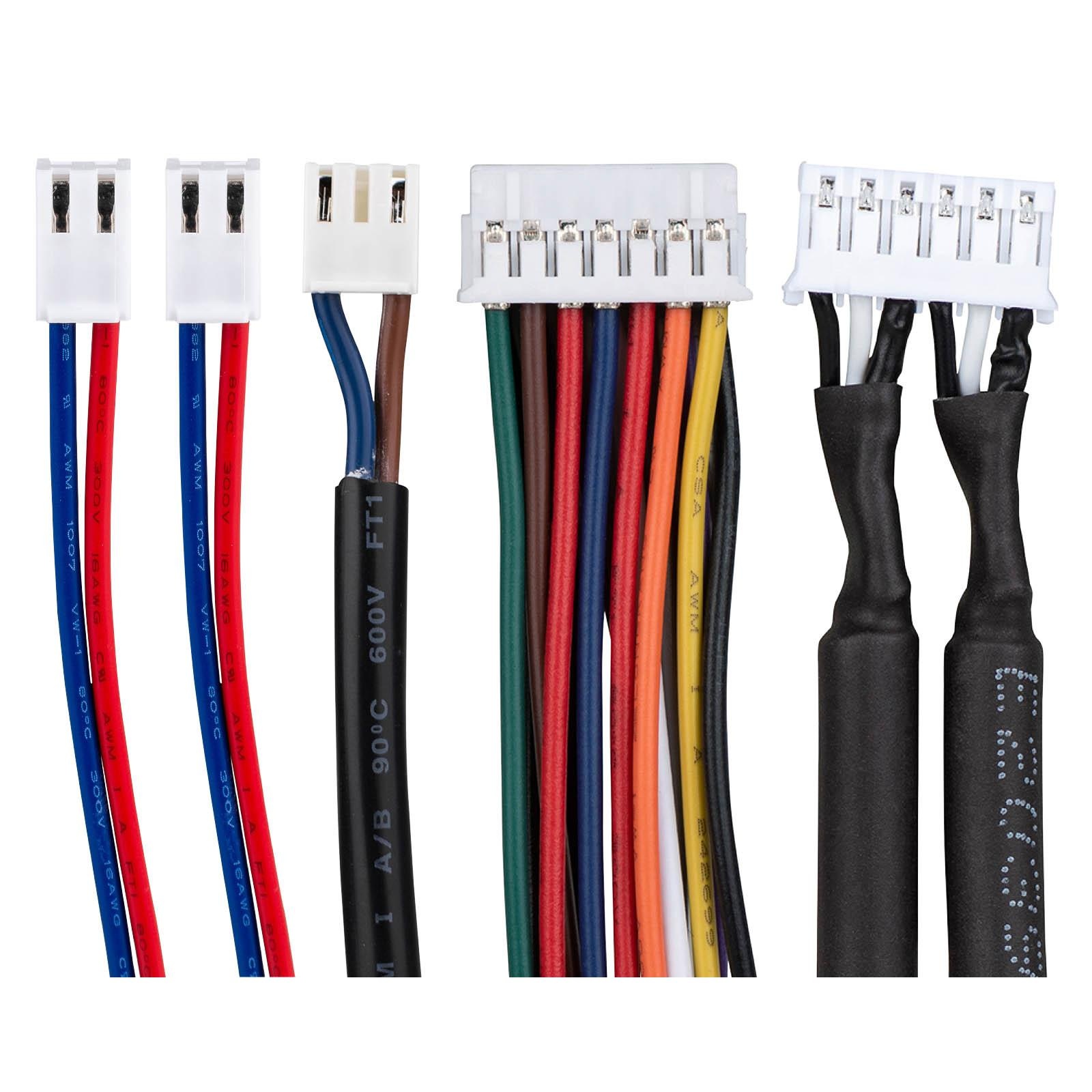

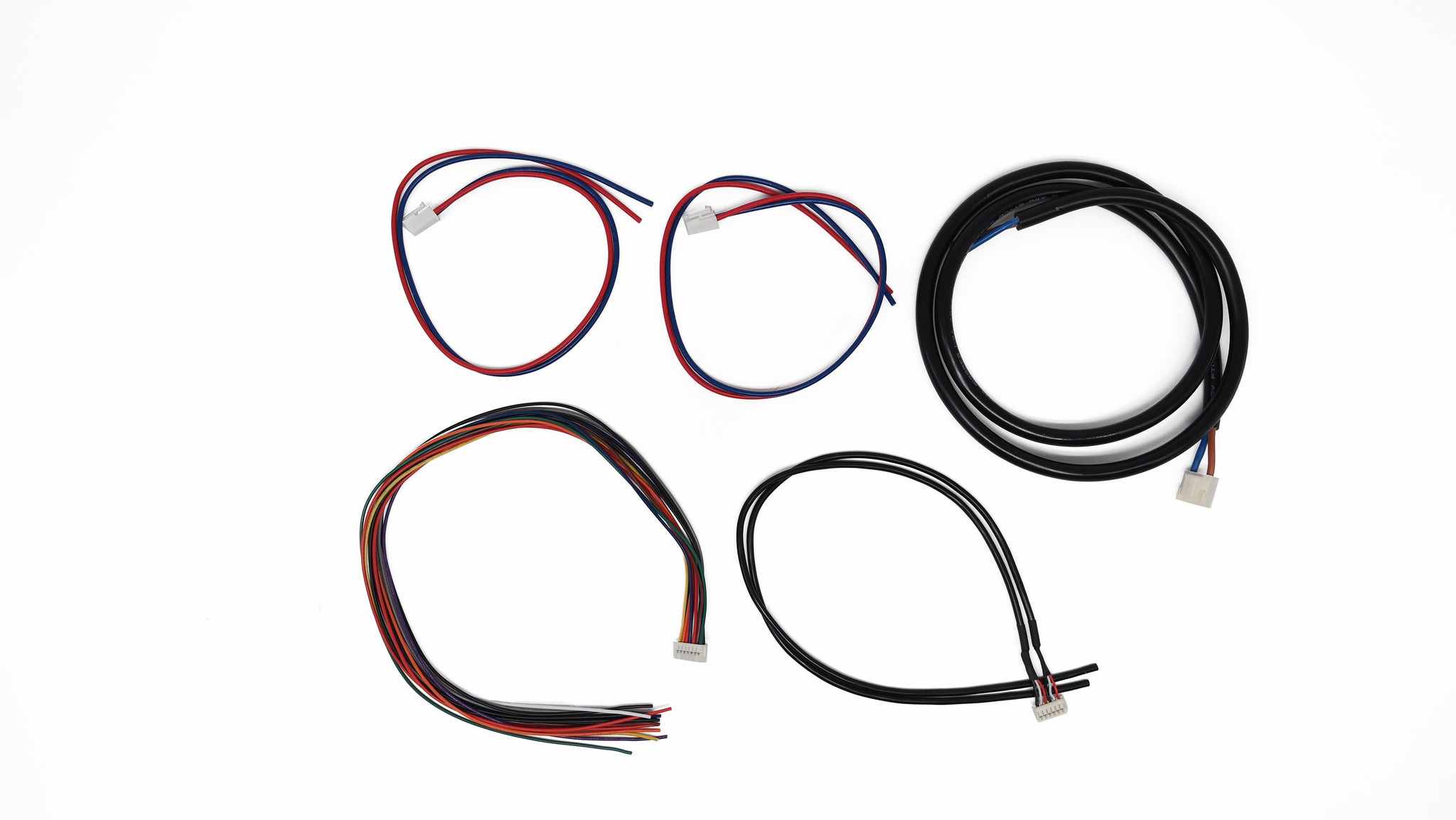

The included cable set gives access to all the functions of the 100AS2 module. The leads are left unterminated so that it is possible to terminate the wires with the connections of your choice.

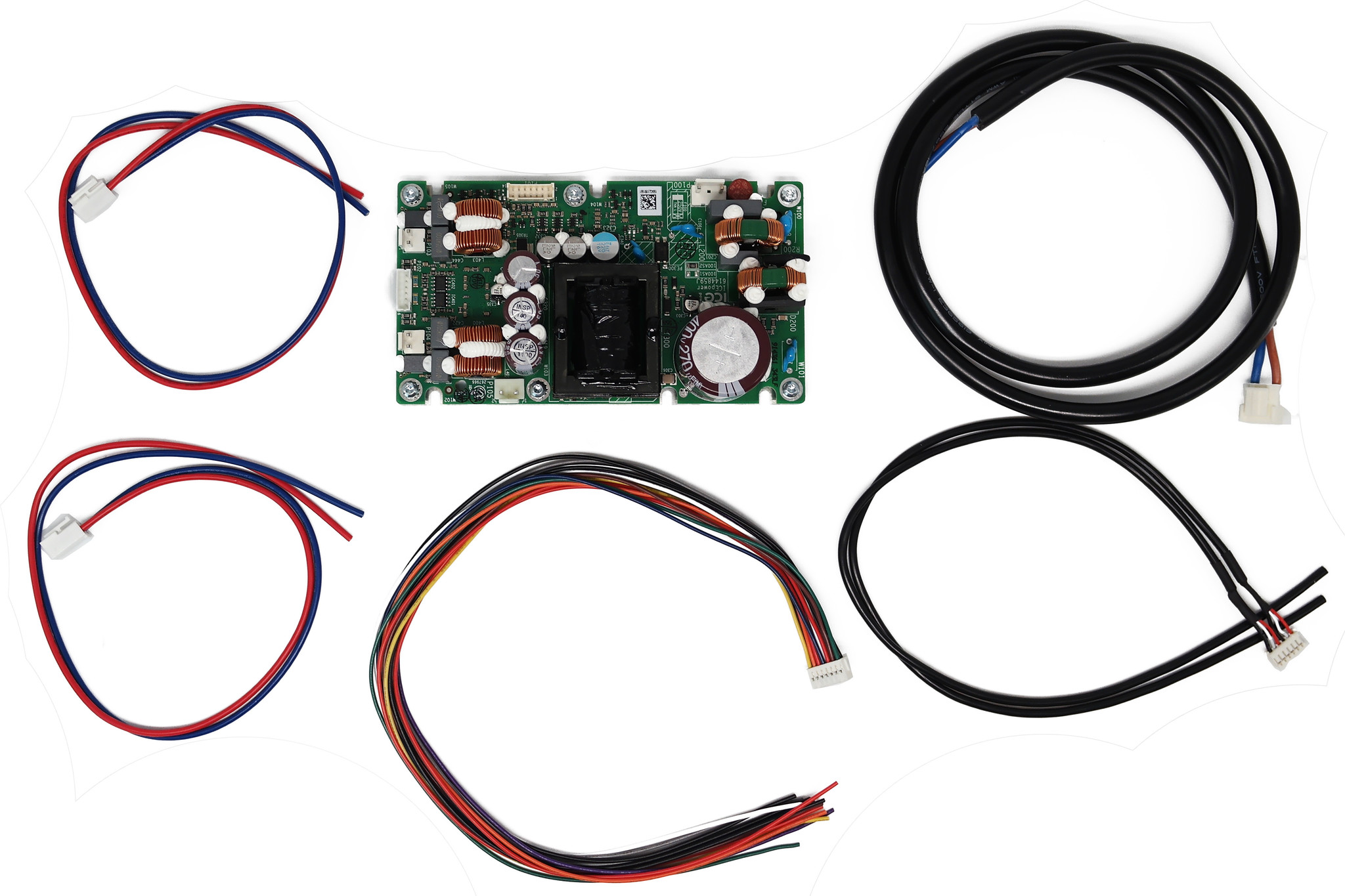

What’s In The Box?
- 1 x 100AS2 amplifier module with integrated SMPS
- Cable set:
- 1 x (NA) Audio input 2 channel
- 1 x (K) Mains without Earth
- 2 x (F) 2pole Universal Speaker
- 1 x (NC) Signal Sense & Trigger
