The 200AS1 is a single-channel, Class D amplifier with fully integrated switch mode power supply. Although designed for guitar, bass guitar and subwoofer amplification, this amplifier is suitable for many more applications.
- Fully integrated module, no need for additional circuits
- Minimum load of 2.7 Ω
- Extended monitor and status interface
- 8 +Vdc and 17 +/- Vdc auxiliary outputs

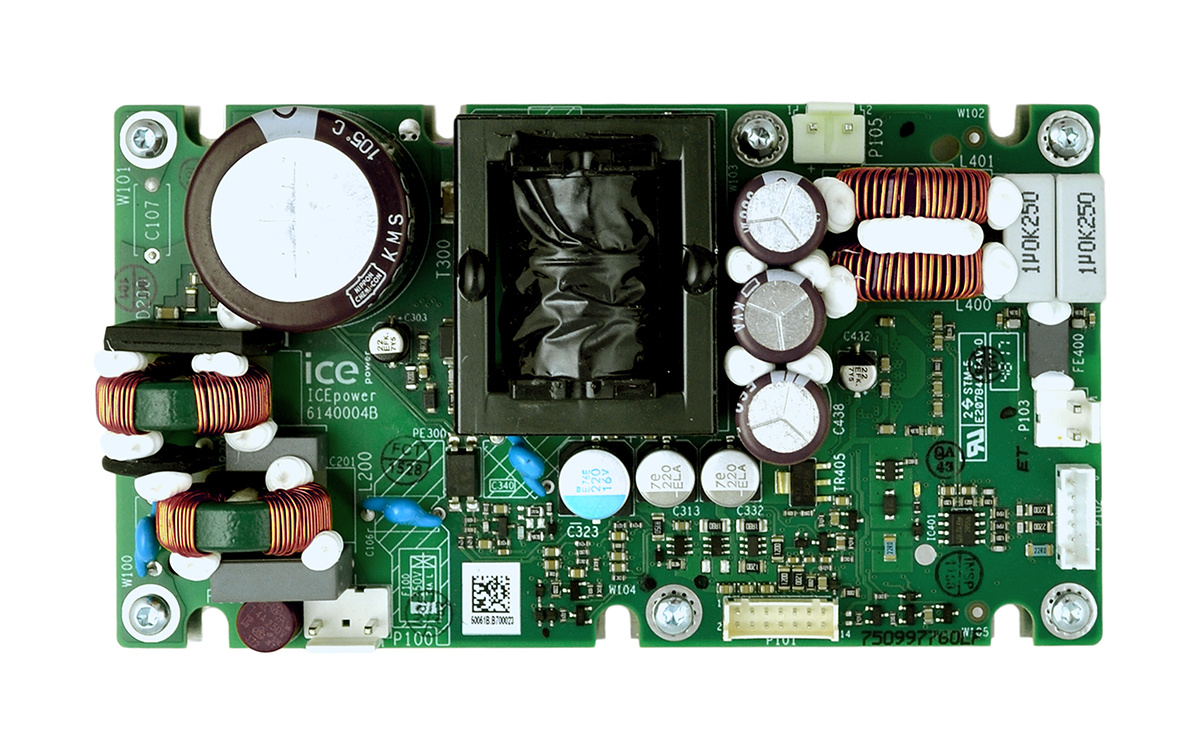

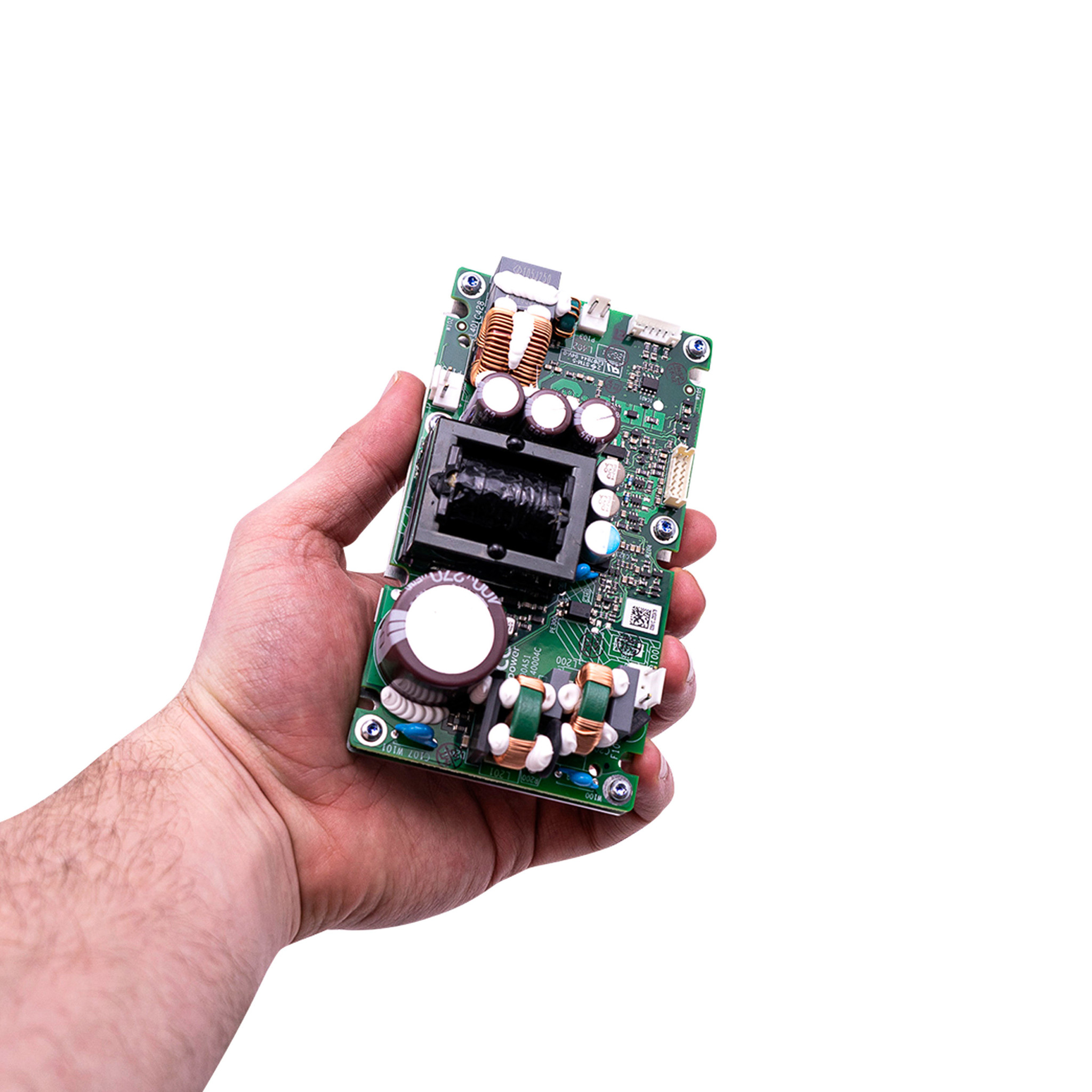

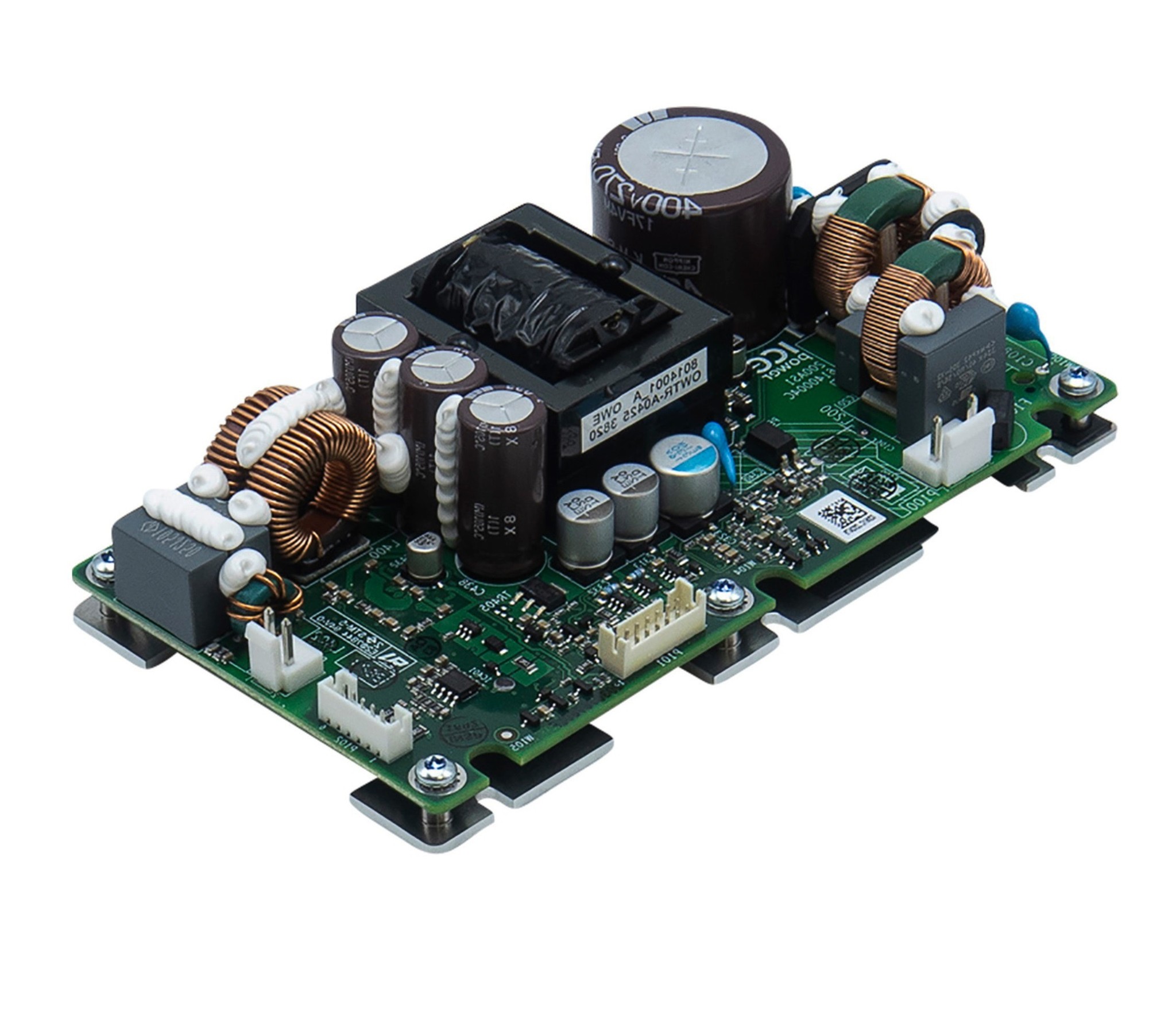

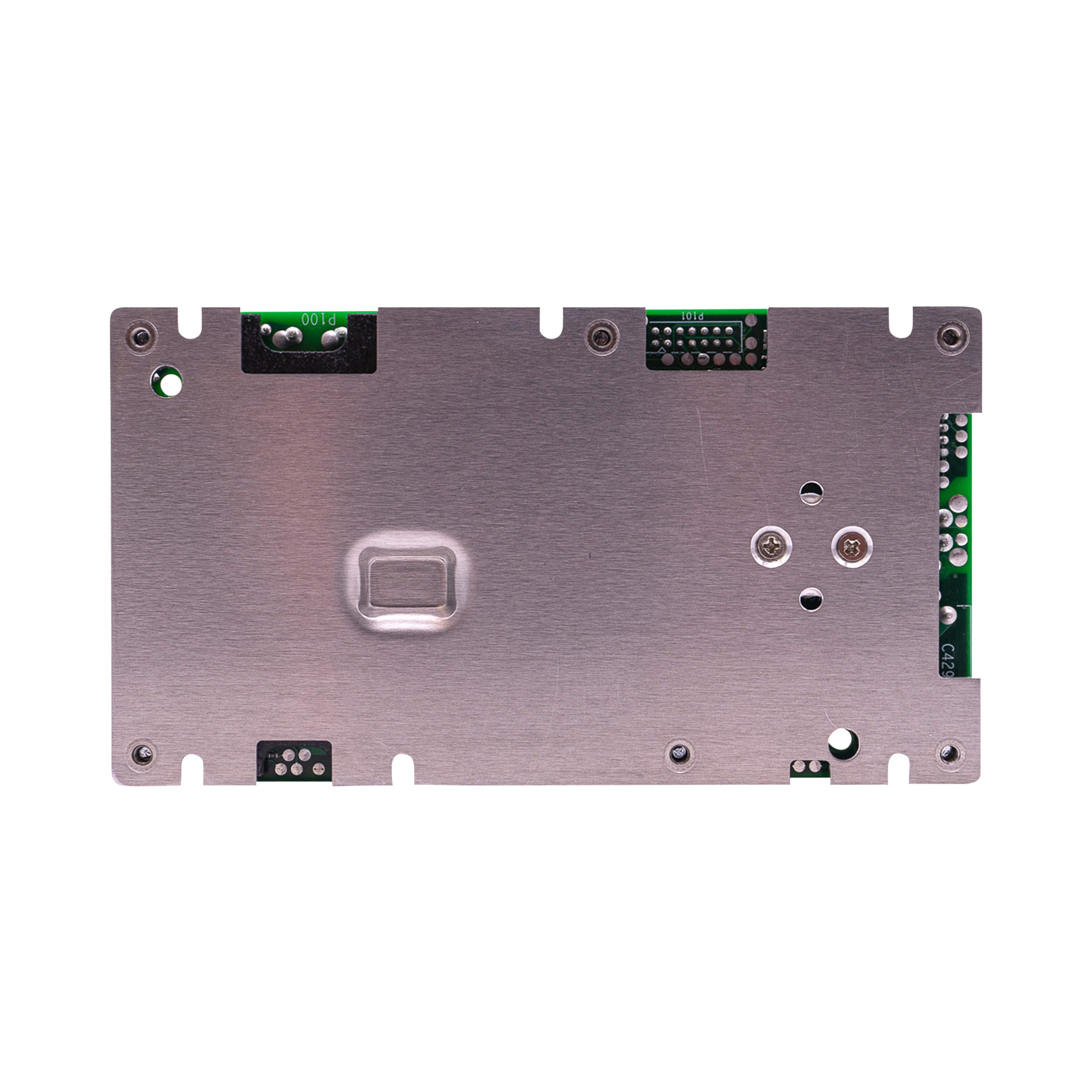

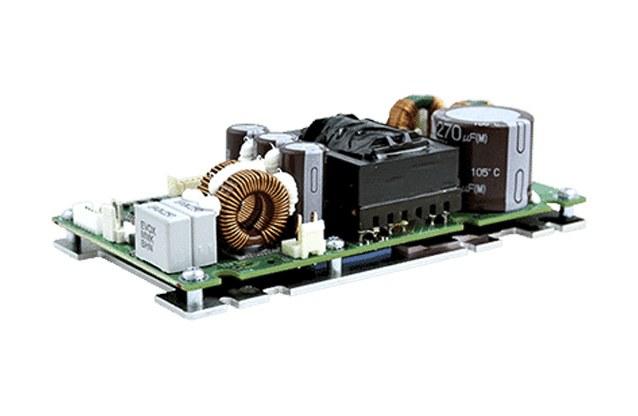

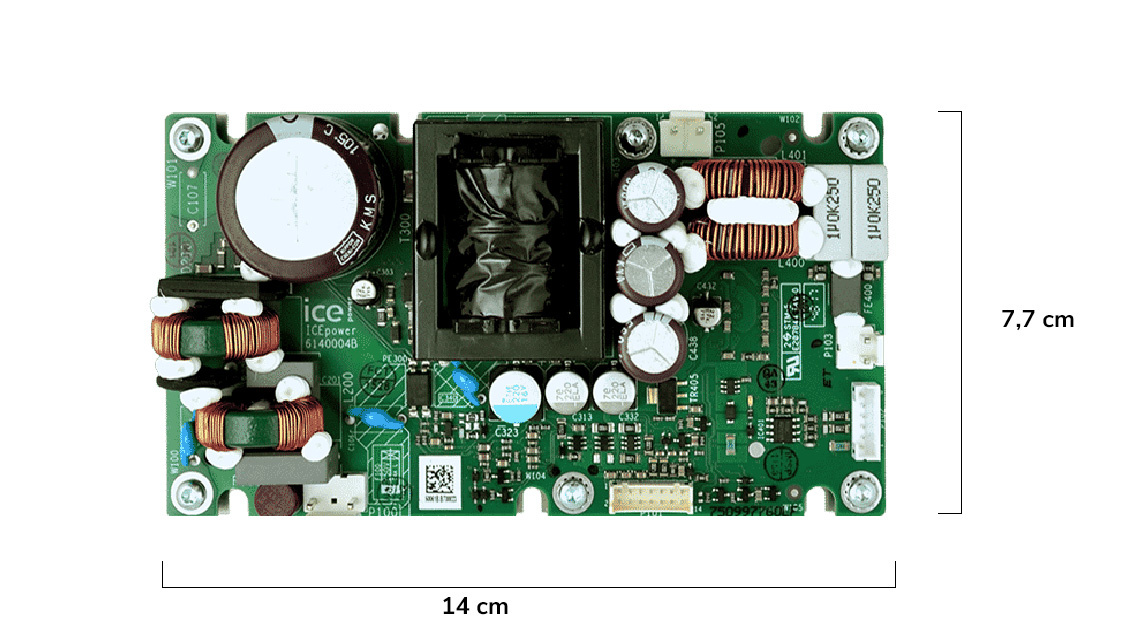

ICEpower 200AS1 Amplifier Module with Integrated Universal Mains Power Supply
This 200 watt high-performance, reliable and self-contained amplifier module from the AS-series. The integrated power supply, ruggedness and easy-to-use control features make it a great competitor from amplifier module category for a wide range of applications.
The AS-series from ICEpower offers excellent audio performance thanks to the patented modulation and control techniques. The capable integrated SMPS can continuously output up the 300 watts. The ruggedness is further improved with protection circuits, brand-name components and extensive test and burn-in during production.
This module has an user friendly control interface, that features stand-by control, auxiliary power outputs and an various status control in- and outputs. Thinking that is too complicated? We haven’t mentioned the plug-n-play compatibility yet; Just connect the mains, signal and speakers and you are ready to play some music!
Check out the 200AS2 for a stereo version or the 700AS1 for one of the more powerful member of the AS series. Don’t need this much power, but tight on space; check out the ultra-compact 50ASX(BTL).
What’s In The Box?
- 1 x 200AS1 amplifier module with integrated SMPS

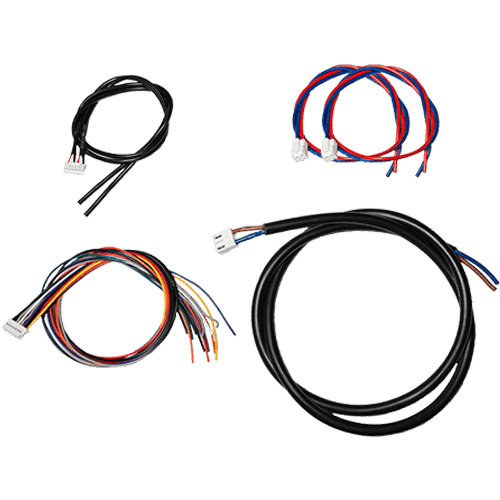

- Cable set
- 1 x (NA) Audio input 2 channel
- 1 x (K) Mains without Earth
- 1 x (F) 2pole Universal Speaker
- 1 x (NC) Signal Sence & Trigger
