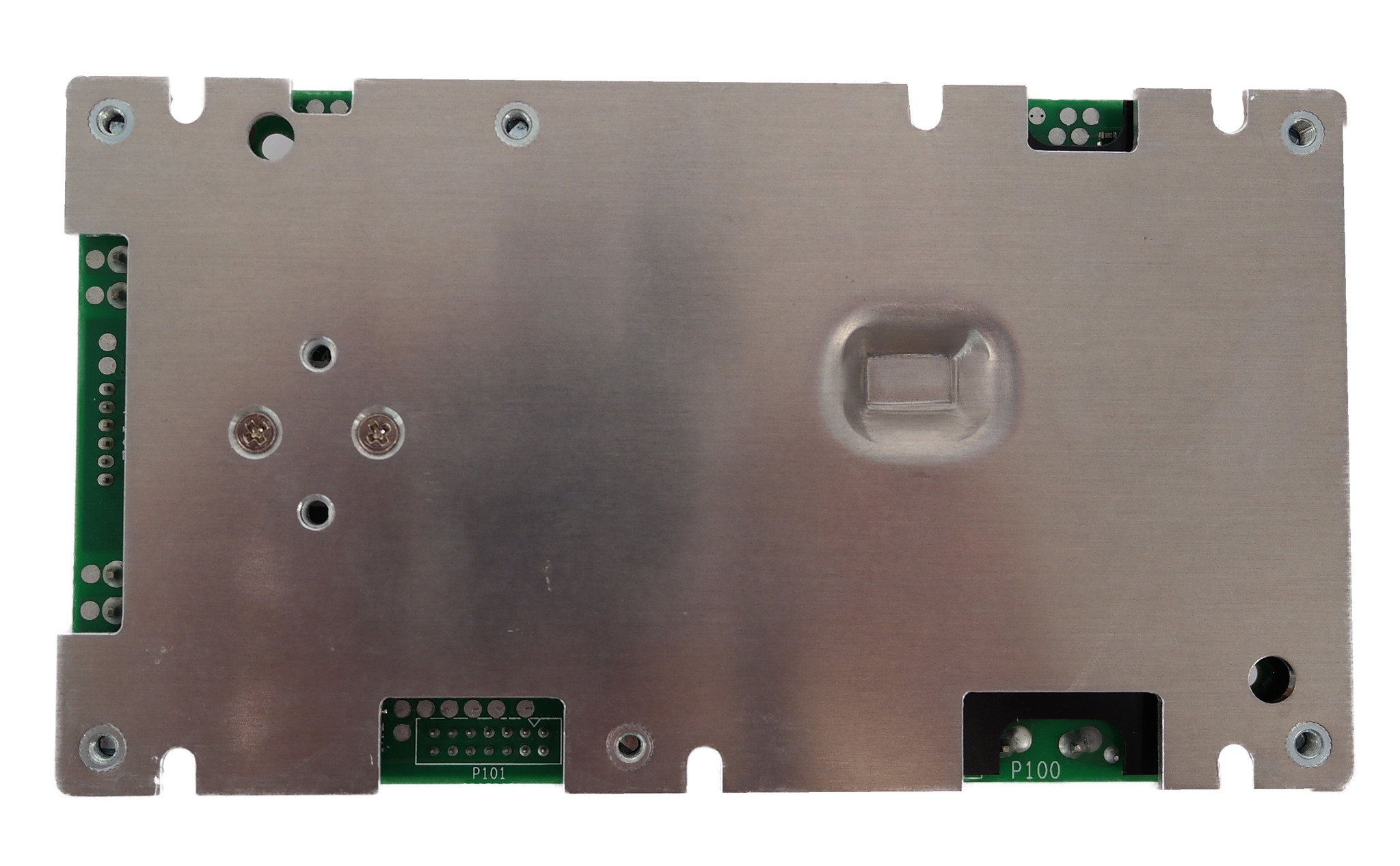

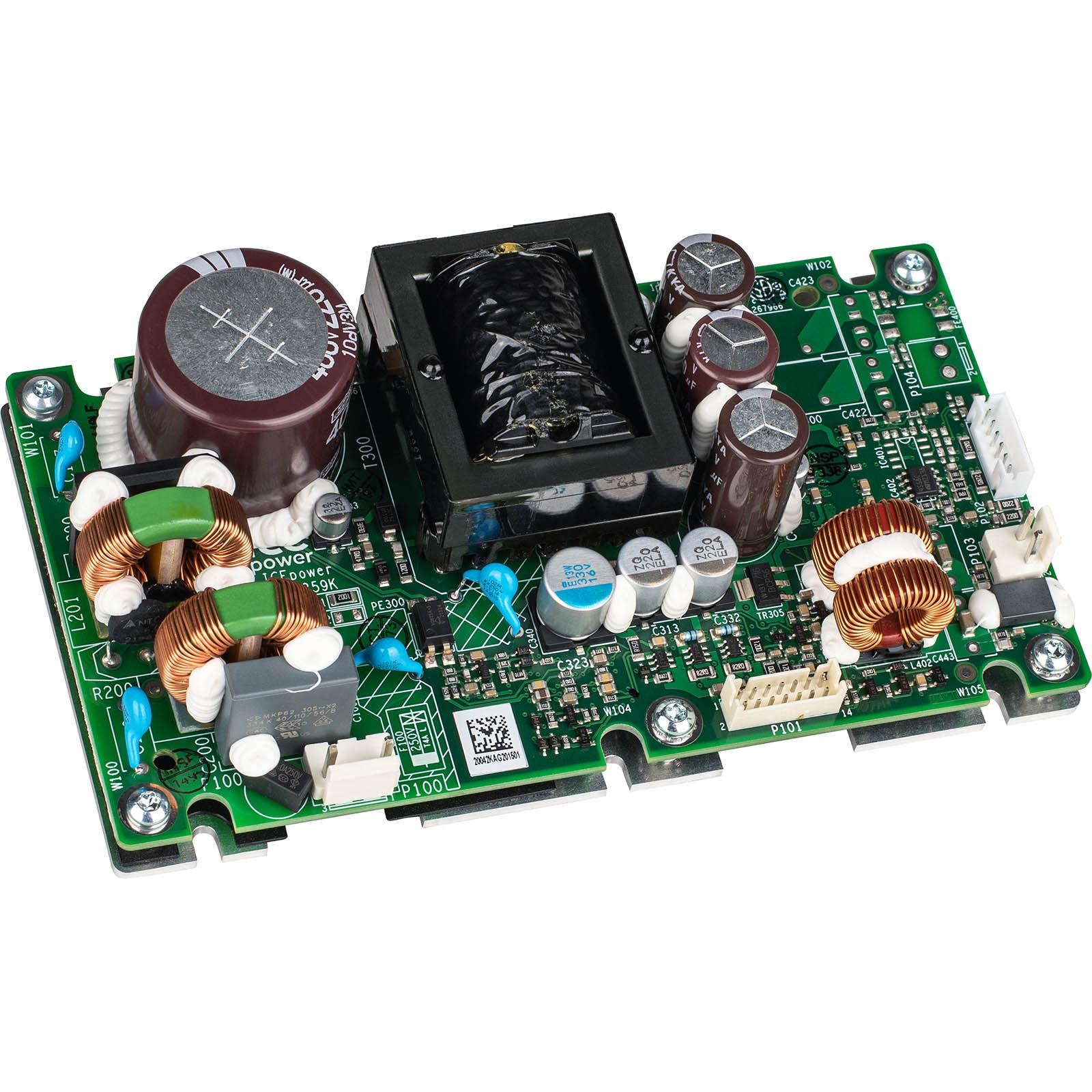

      ICEpower 100AS1 versterkermodule with Integrated Universal Mains Power Supply

      € 115,66€ 139,95 >10 Op voorraad: levertijd 1 werkdag
      Volume voordeel Geniet van deze geweldige kortingsdeals
      • -5% Bestel 4 voor slechts € 132,95 per stuk
      • Verzending altijd verzekerd en met track & trace
      • Voor 16u besteld, vandaag verstuurd
      • Gratis verzending vanaf € 99 (NL, BE)
      • In-house technische support
      Heeft u vragen over dit product?

      Heeft u vragen over dit product?

      Onze klantenservice helpt u graag verder!

      Productomschrijving

      The 100AS1 is a single-channel, Class D amplifier with fully integrated switch mode power supply. Although designed for guitar, bass guitar and subwoofer amplification, this amplifier is suitable for many more applications.



      Highlights

      • Self-contained module, no need for additional circuits
      • Minimum load of 3 Ω
      • Extended but user friendly control interface
      • 8 +Vdc and 17 ±Vdc auxiliary outputs



      Product details

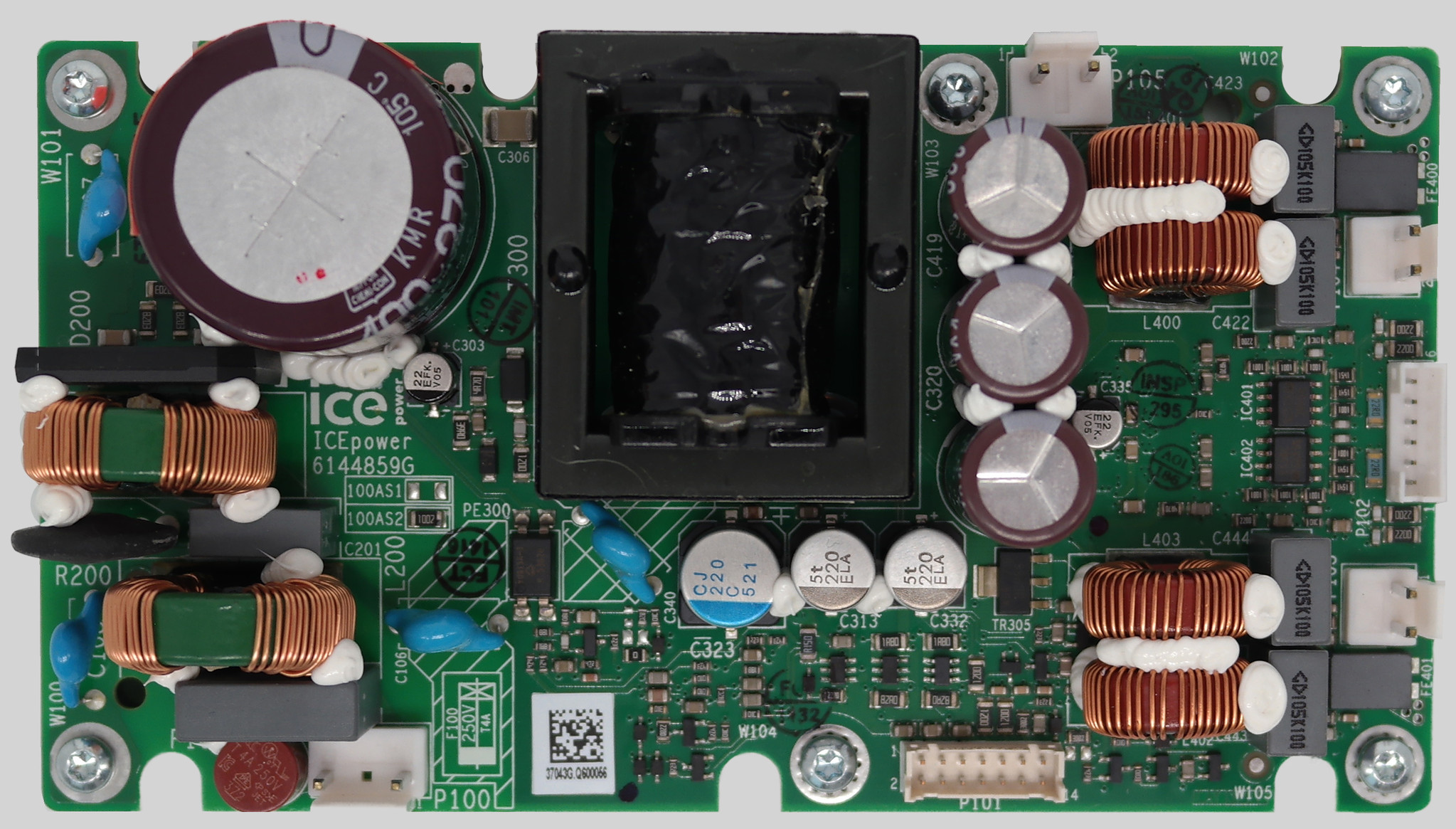

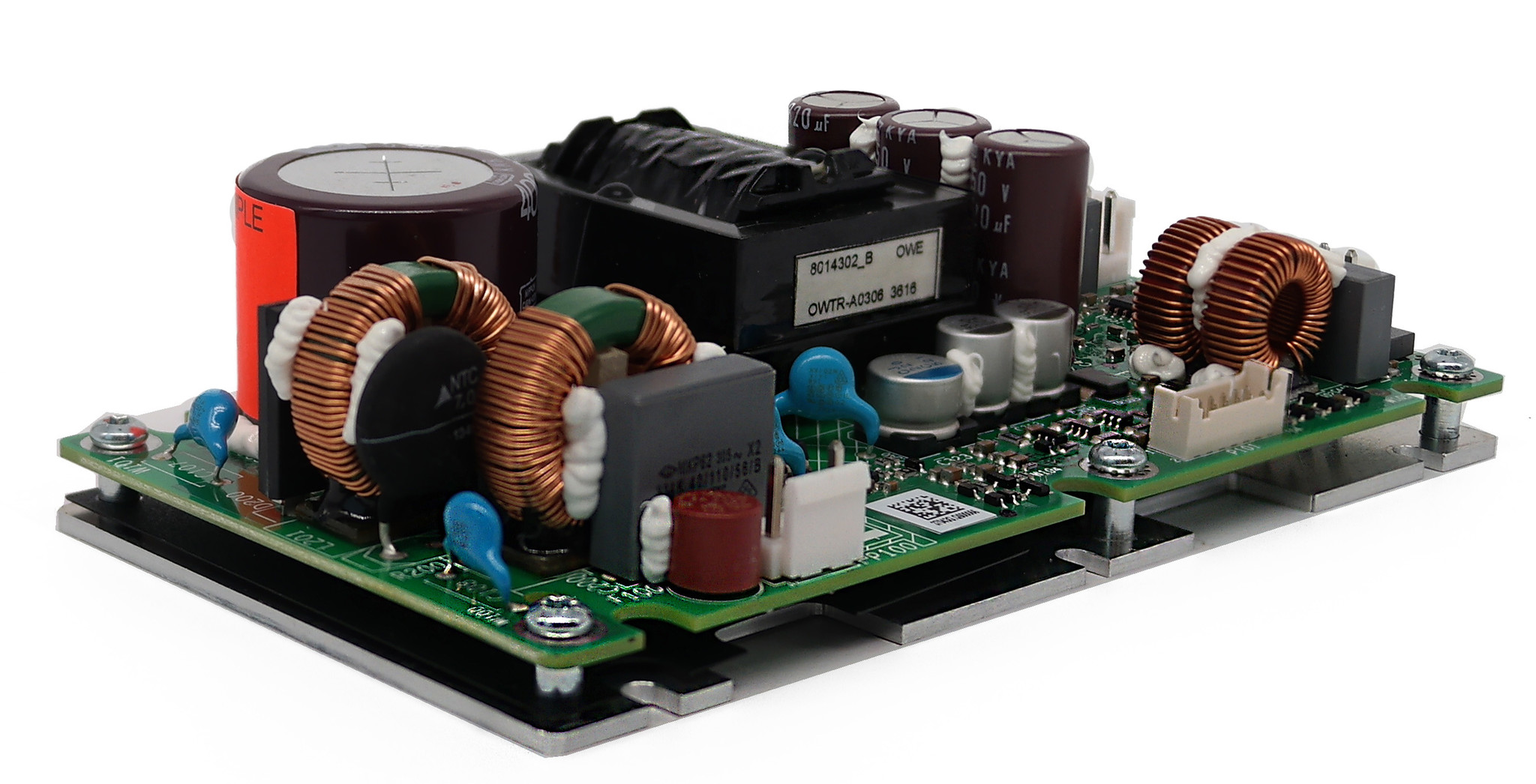

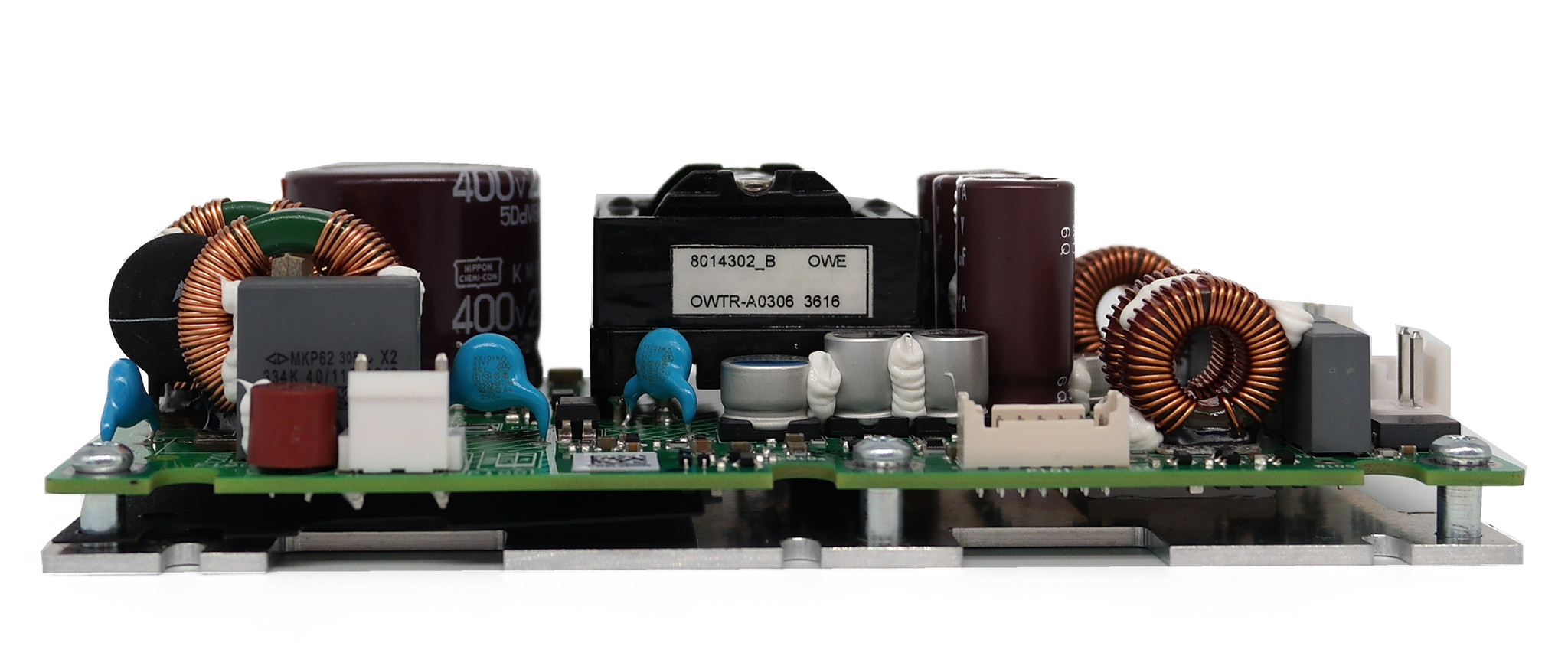

      ICEpower 100AS1 Amplifier Module with Integrated Universal Mains Power Supply



      This 100 watt high-performance, reliable and self-contained amplifier module is the smallest member of the AS-series from ICEpower. The integrated power supply, ruggedness and easy-to-use control features make it a excellent choice from amplifier module category for a wide range of applications.



      The AS-series offers excellent audio performance thanks to the patented ICEpower modulation and control techniques. The integrated power supply is very capable and can supply up to 300-watts of continuous output. The capable supply, together with the protection circuits make even this smallest member not afraid of high continuous power demands. ICEpower strengthens the reliability further by using brand-name components and careful testing during production.



      There is a user friendly control interface, that features stand-by control, auxiliary power outputs and a wide range of monitoring in- and outputs. Although none of this is required if you are looking for simple operation; just connect the mains, signal and speakers and you are ready to play some music!



      Check out the 100AS2 for a stereo version or the 1200AS1 for the most powerful member of the AS series. Looking for similar features, but a smaller footprint, check out the super compact ICEpower 50ASX2(BTL).



      Cable set

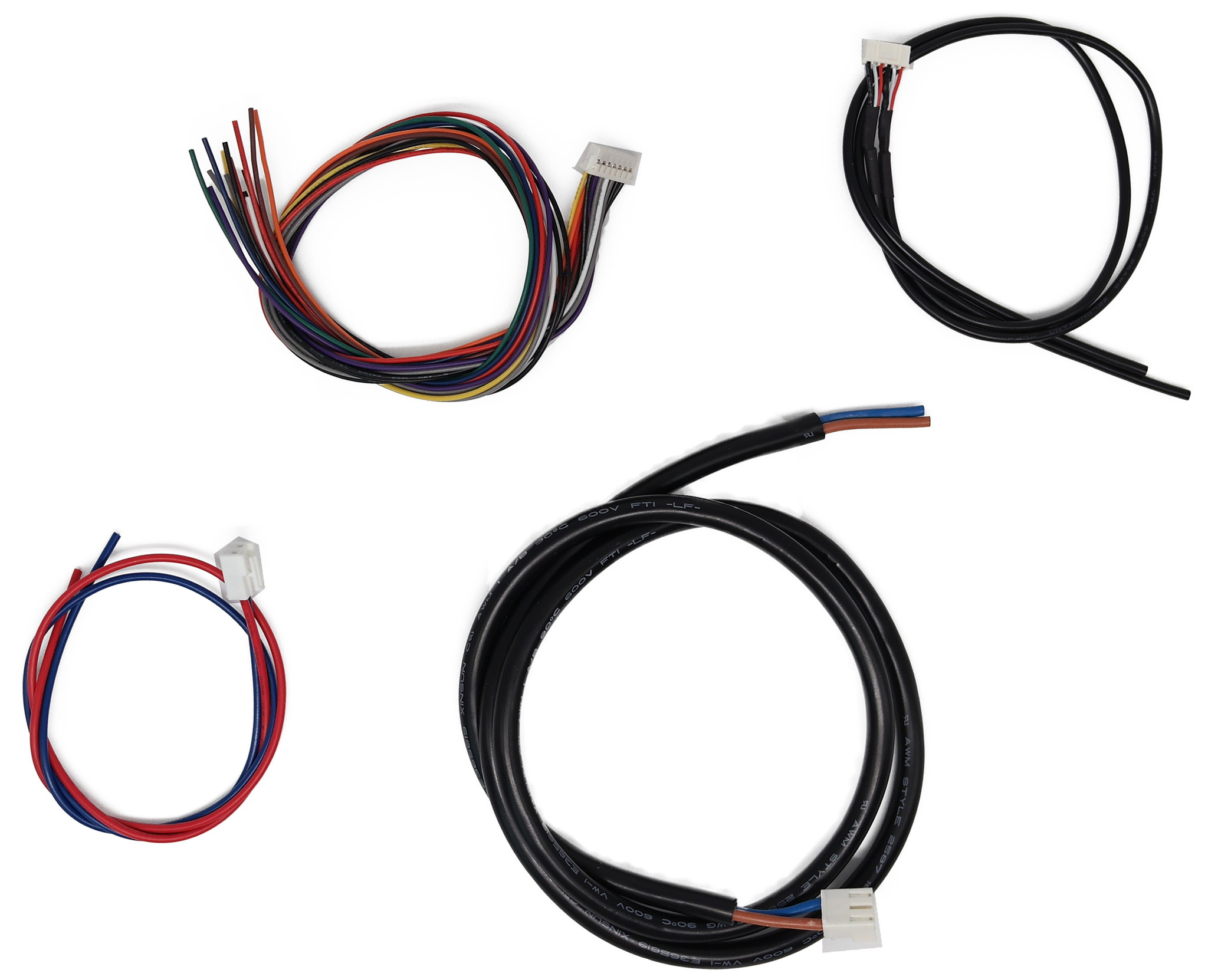

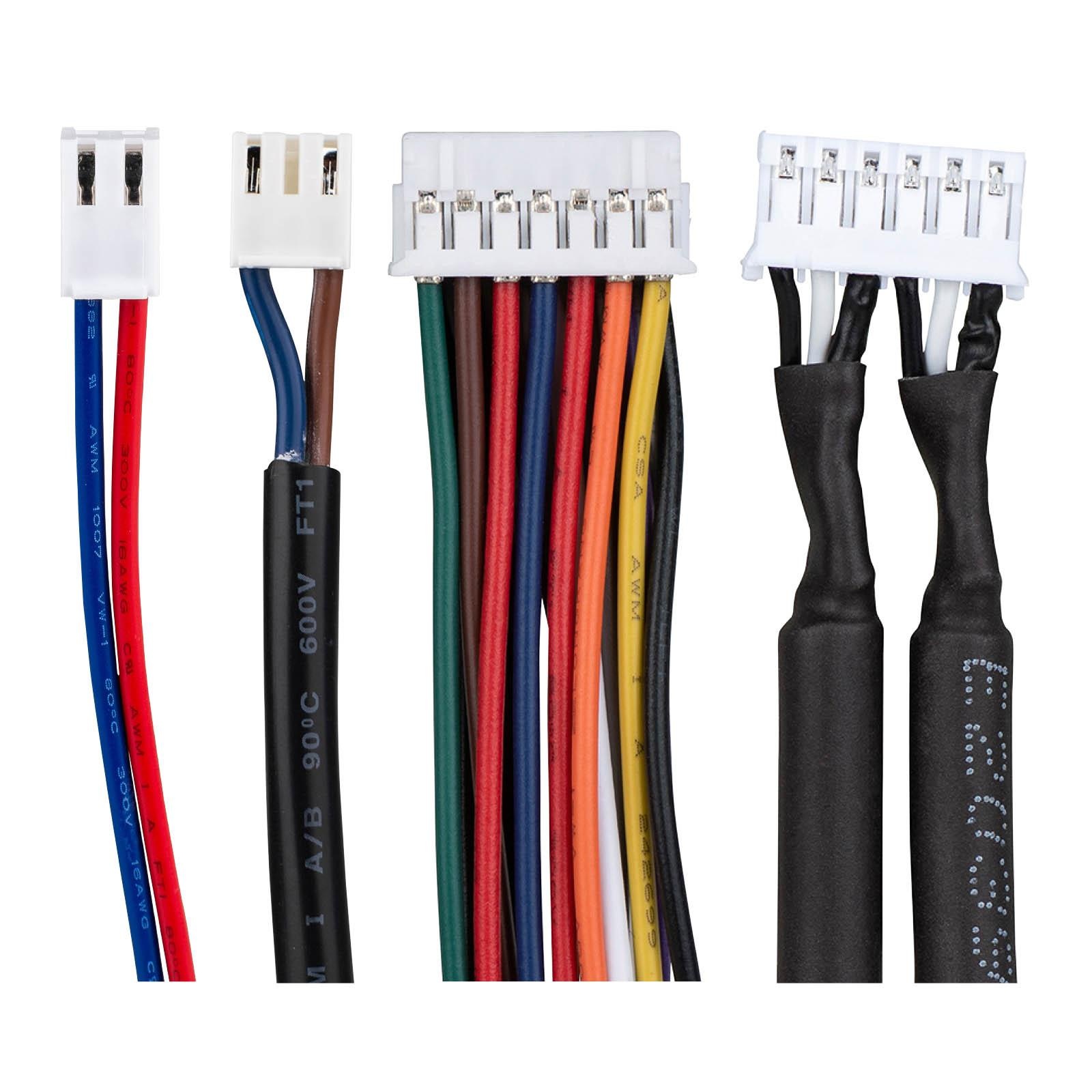

      The included cable set gives access to all the functions of the 100AS1 module. The leads are left unterminated so that it is possible to terminate the wires with the connections of your choice.

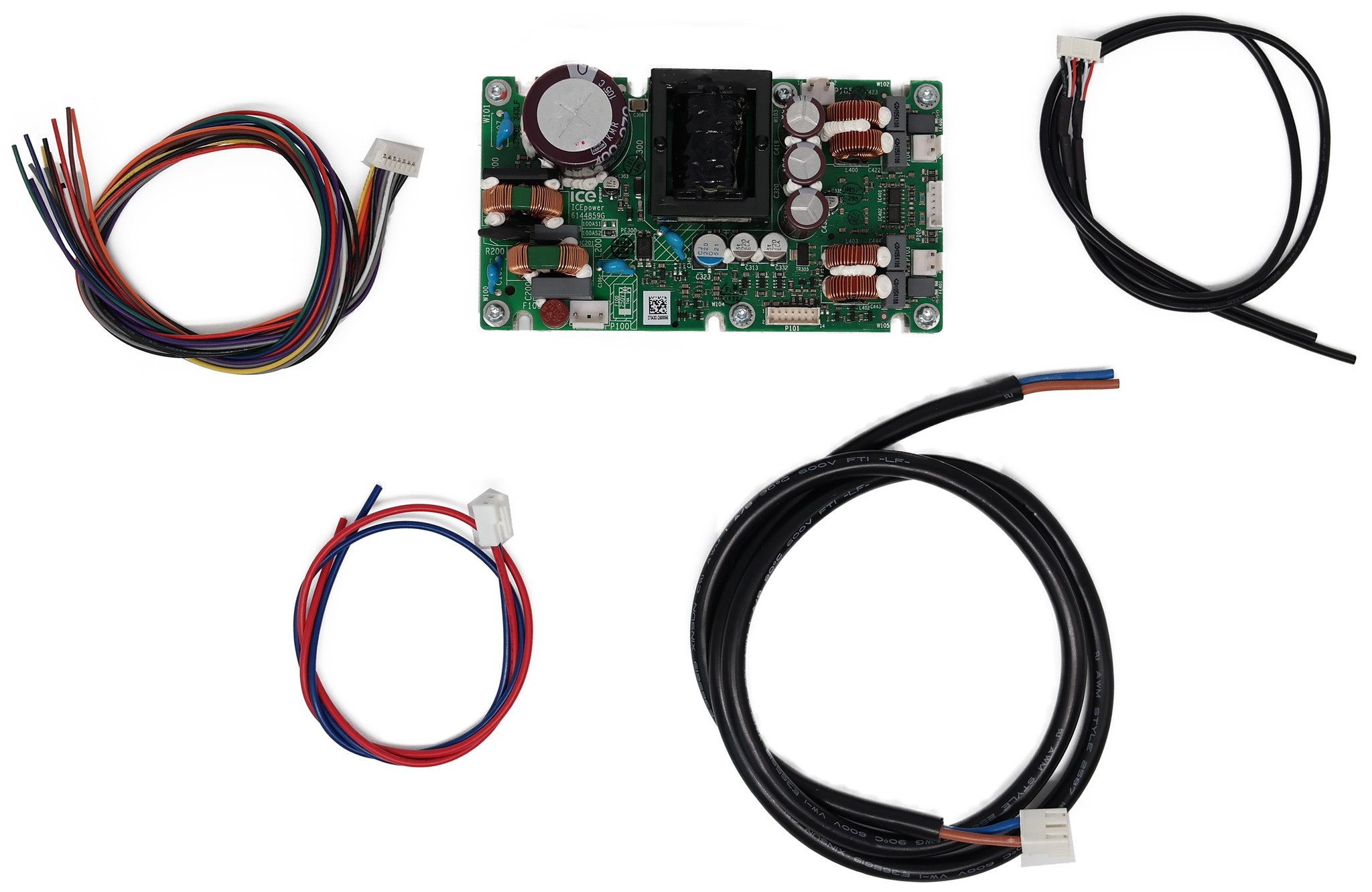

      What’s In The Box?

      • 1 x 100AS1 amplifier module with integrated SMPS
      • Cable set:
        • 1 x (NA) Audio input 2 channel
        • 1 x (K) Mains without Earth
        • 1 x (F) 2pole Universal Speaker
        • 1 x (NC) Signal Sense & Trigger

      Specificaties

      Artikelnummer
      100AS1
      Nominaal vermogen
      100 watts at 4 ohms
      50 watts at 8 ohms
      Minimale belasting
      3 Ohm
      Efficiëntie
      72%
      Vervorming
      0.006 % THD+N (1000 Hz at 100 watts)
      Frequentierespons
      3 - 50,000 Hz
      Versterkingsfactor
      21 dB
      Ingangsgevoeligheid
      2.7 Vp
      Ingangsimpedantie
      2.8 kOhm
      Amplifier Classification
      Class D
      Uitgangskanalen
      1
      Voedingsvereisten
      100 � 240 VAC
      Stroomlimiet
      12.5 A

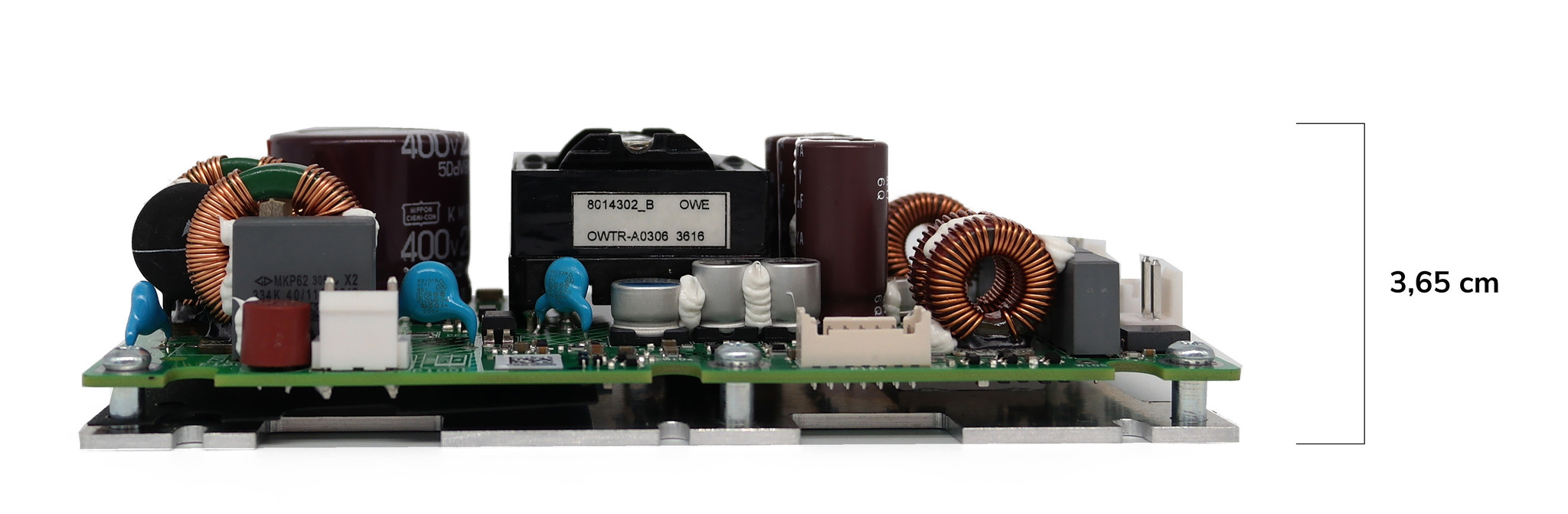

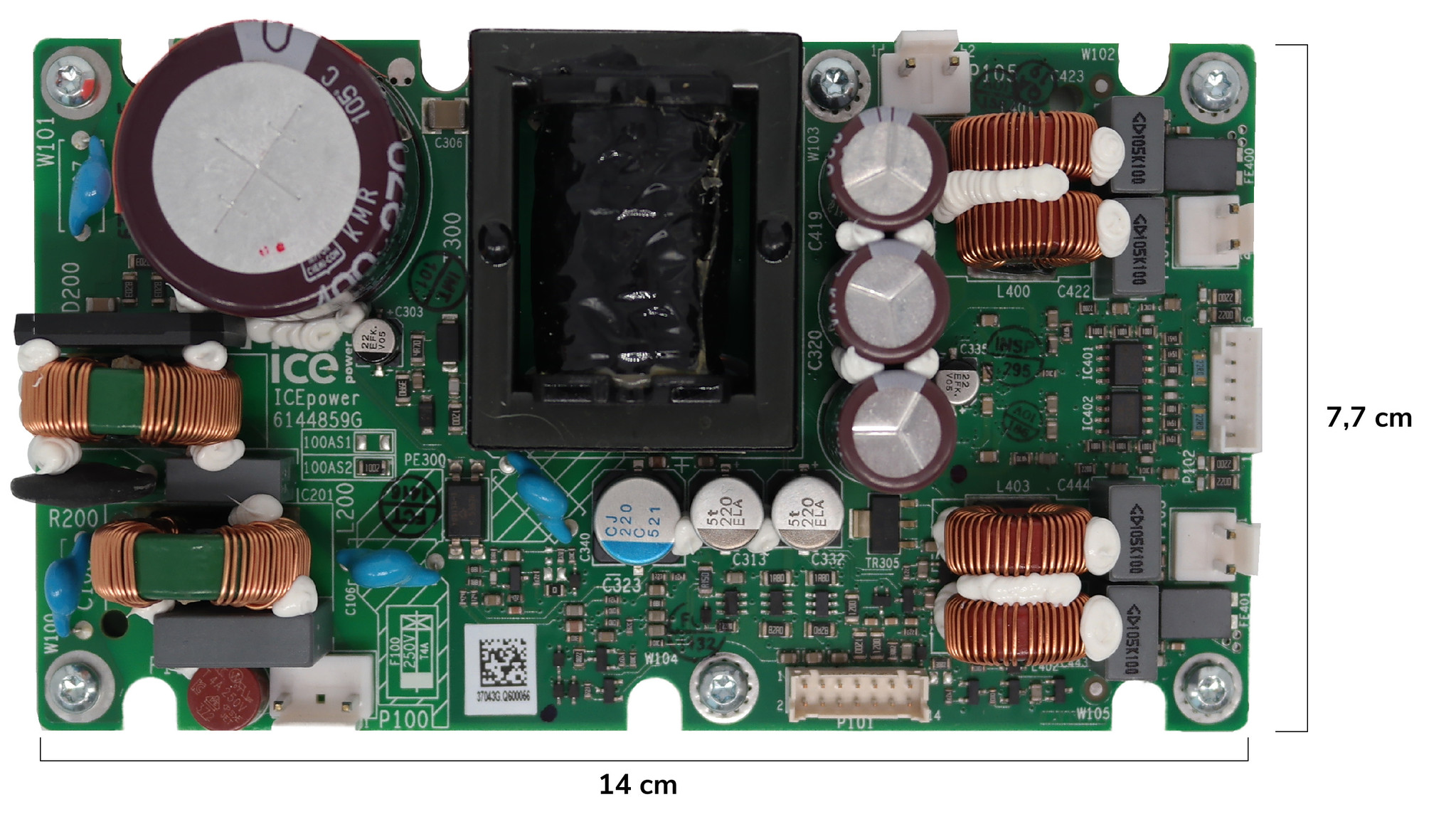

      Afmetingen (L x B x H)
      140 x 77 x 36.5 mm
      Afstand tussen bevestigingsgaten
      130 x 67
      Diameter bevestigingsgaten
      3.5 mm

      Toon meer
