      Hypex UcD700HG HxR 1x700W Universal Class D Amplifier Module

      € 140,45€ 169,95 4 In stock: delivery time 1-4 business days
      • 24h express shipping available
      • Low international shipping rates
      • Same day shipping
      • In-house technical support
      Do you have a question about this product?

      Do you have a question about this product?

      Our employee is happy to help you find the right product

      Product description

      The UcD700HG HxR amplifier module is an entry-level high-end class D amplifier, with HxR upgrade from Hypex. This amplifier is known for its high performance, reliability and ease of use. The UcD700HG HxR comes with the required UcD Signal Cable.



      Highlights

      • Flat, fully load-independent frequency
      • Low output impedance
      • Very low, frequency-independent THD
      • Ultra-low noise due to HxR regulators



      Product details

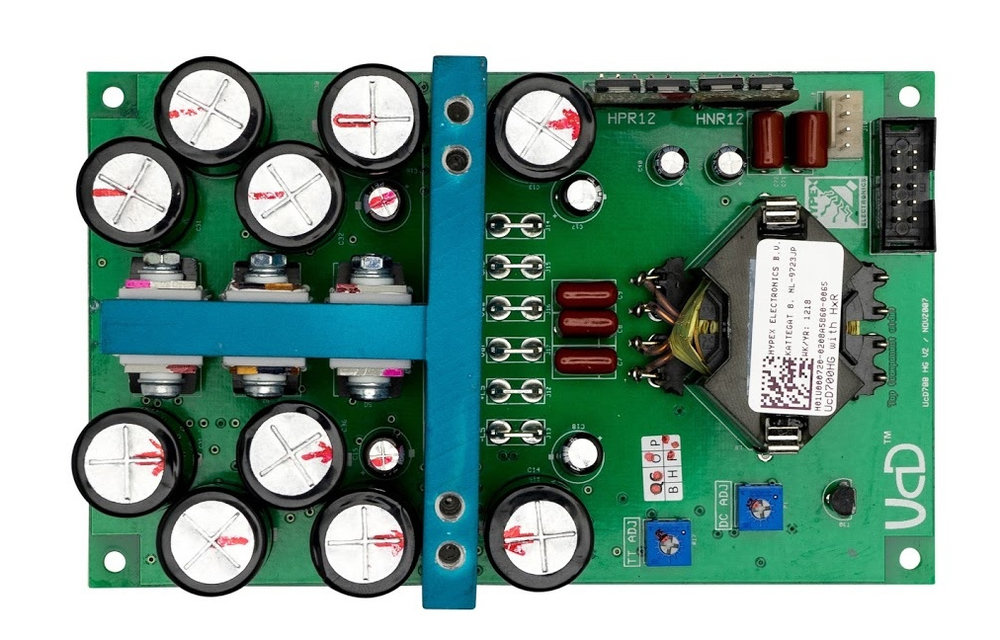

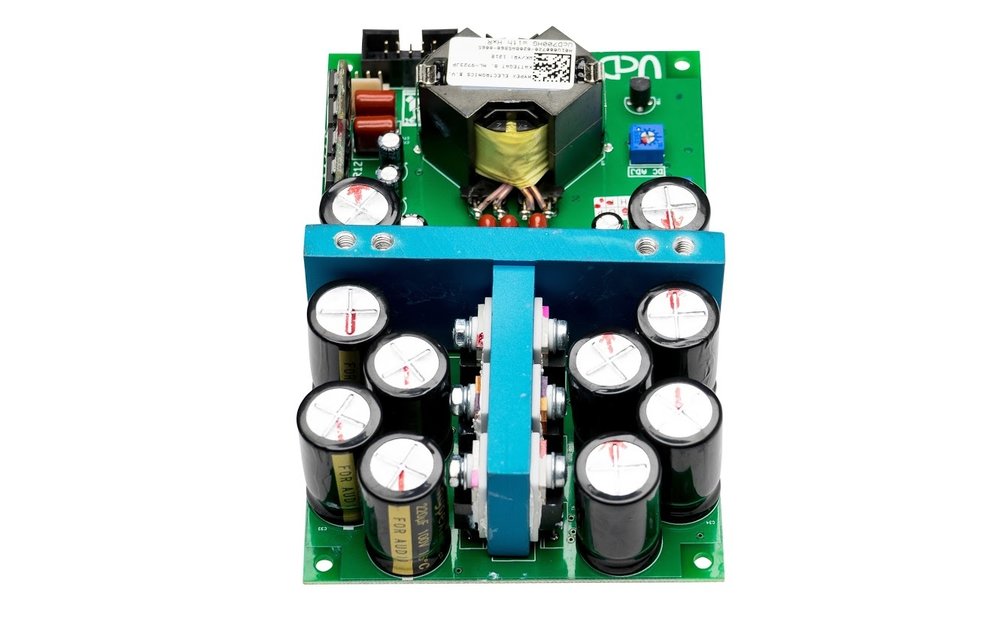

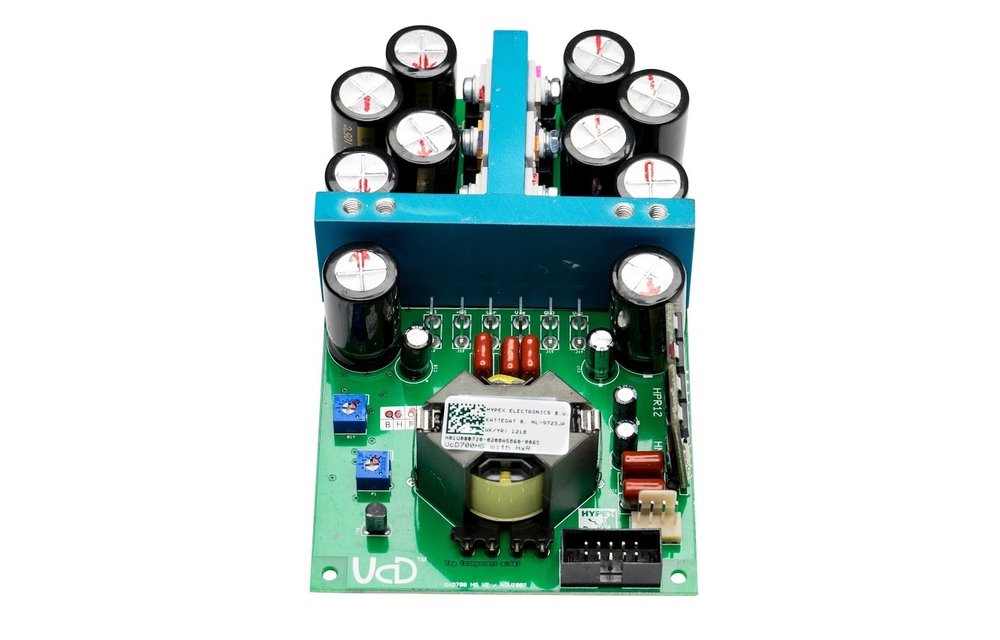

      Hypex UcD700HG HxR 1x700W Universal Class D Amplifier Module



      The UcD700HG HxR amplifier is intended for a wide range of audio applications, ranging from Public Address systems to ultrahigh-fidelity replay systems for studio and home use. Hypex distinguishes its amplifiers from other class D designs due to its unique circuit topology. This results in flat frequency response irrespective of load impedance, nearly frequency-independent distortion behaviour and very low radiated and conducted EMI.



      The Hypex UcD modules have established themselves as the new standard, both in terms of measured and subjective performance and therefore very suitable as amplifiers in professional audio as well in consumer purposes.



      Features

      • Pop-free start and stop control
      • Differential audio input
      • Overcurrent and over-voltage protection
      • No compromise components
      • LM4562 buffer OpAmp



      What’s In The Box

      • UcD700HG HxR amplifier module
      • Mounting set UcD

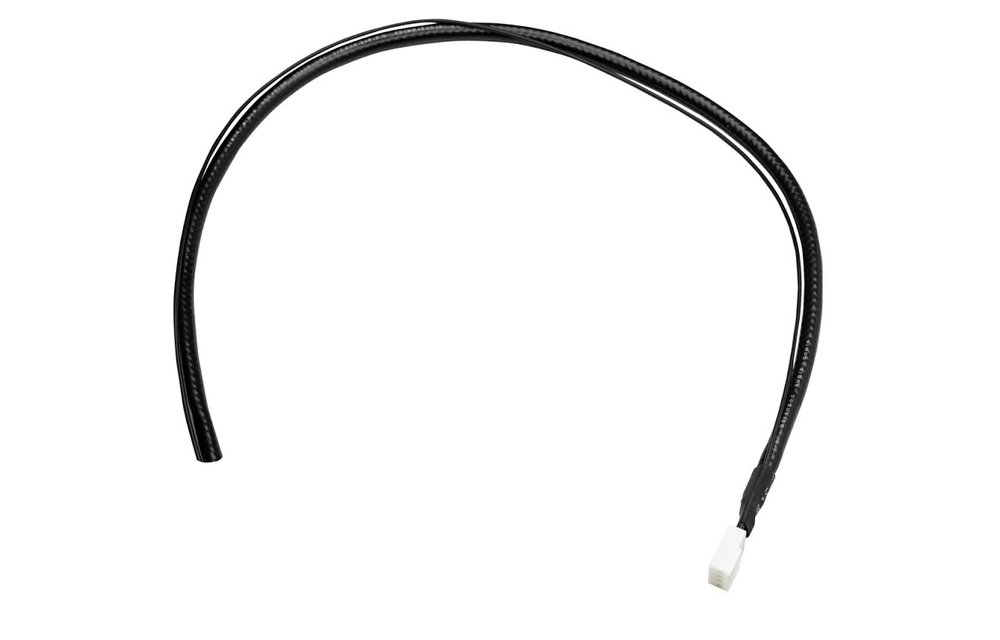

      • UcD Signal Cable
      • Manual



      The UcD amplifier module only needs the proper power supply to start with its efficient, ultra-clean power delivery. We recommend the SMPS1200A700 as a power supply for the UcD700HG HxR amplifier module. The DIY Monoblock Case is a perfect enclosure for the UcD700HG HxR and SMPS1200A700 power supply.

      Specifications

      Article number
      UcD700HG HxR
      Rated power output

      700 watts a 4 ohms
      360 watts at 8 ohms

      Minimum load
      1 ohm
      Efficiency
      92 %
      Signal-to-noise ratio (SNR)
      -
      Distortion
      0.02 % THD+N (20-20,000 Hz at 0.5 x rated power output)
      Frequency response
      10 - 50,000 Hz
      Gain
      26 dB
      Input sensitivity
      -
      Input impedance
      100k ohms
      Amplifier Classification
      Class D
      Circuit Topology
      UcD®
      Speaker output channels
      1
      Input connection type

      4 pin PCB connector
      10 pin PCB connector (through from power supply)

      Speaker output connection type
      Crimp/solder connection tabs
      DSP function
      -
      Bluetooth
      -
      EQ Adjustment
      -
      Power Requirements

      75 - 95 VDC (symmetric supply +/-)
      15 VDC (driver supply voltage)

      Power inlet connector
      Crimp/solder connection tabs
      Current limit
      28 A
      Under/over voltage protection
      Dimensions (L x W x H)
      130 x 80 x 40 mm
      Mounting hole spacing
      -
      Mounting hole diameter
      -

      Show more
