      Hypex UcD180HG HxR 1x180W Universal Class D versterkermodule

      € 82,60€ 99,95 10+ Op voorraad

      Buy now, pay later

      • Gratis verzonden (NL & BE)
      • Nu besteld, morgen bezorgd
      • In-house technische support
      • 45 dagen zorgeloos retourneren
      Zakelijke offerteaanvraag
      Heeft u vragen over dit product?

      Heeft u vragen over dit product?

      Onze klantenservice helpt u graag verder!

      Productomschrijving

      The UcD180HG HxR amplifier module is an entry level high-end class D amplifier, with HxR upgrade from Hypex. This amplifier is known for its high performance, reliability and ease of use. The UcD180HG hxR comes with the required UcD Signal Cable.



      Highlights

      • Flat, fully load-independent frequency
      • Low output impedance
      • Very low, frequency-independent THD
      • Ultra low noise due to HxR regulators



      Product details

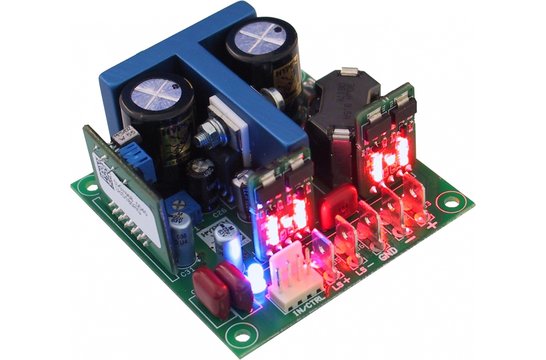

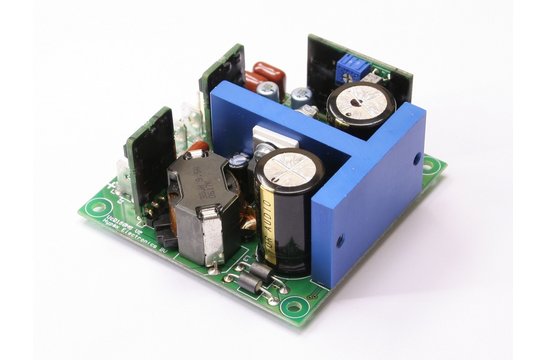

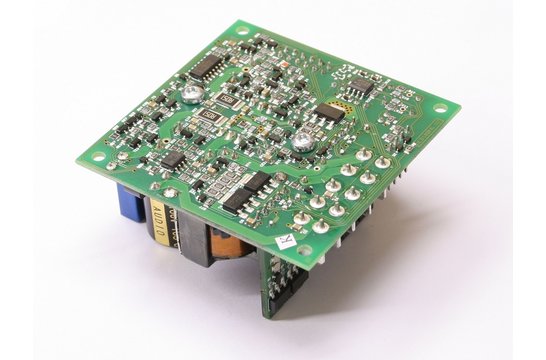

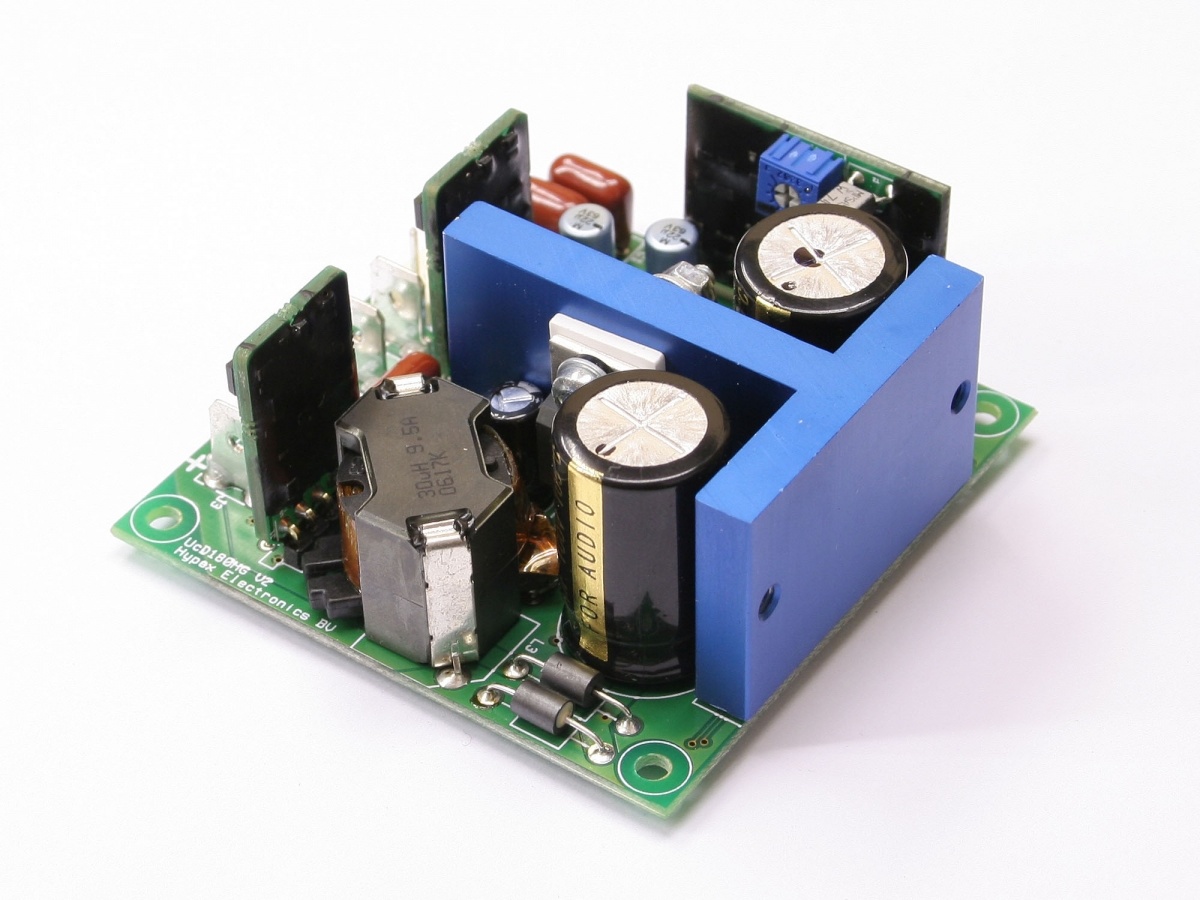

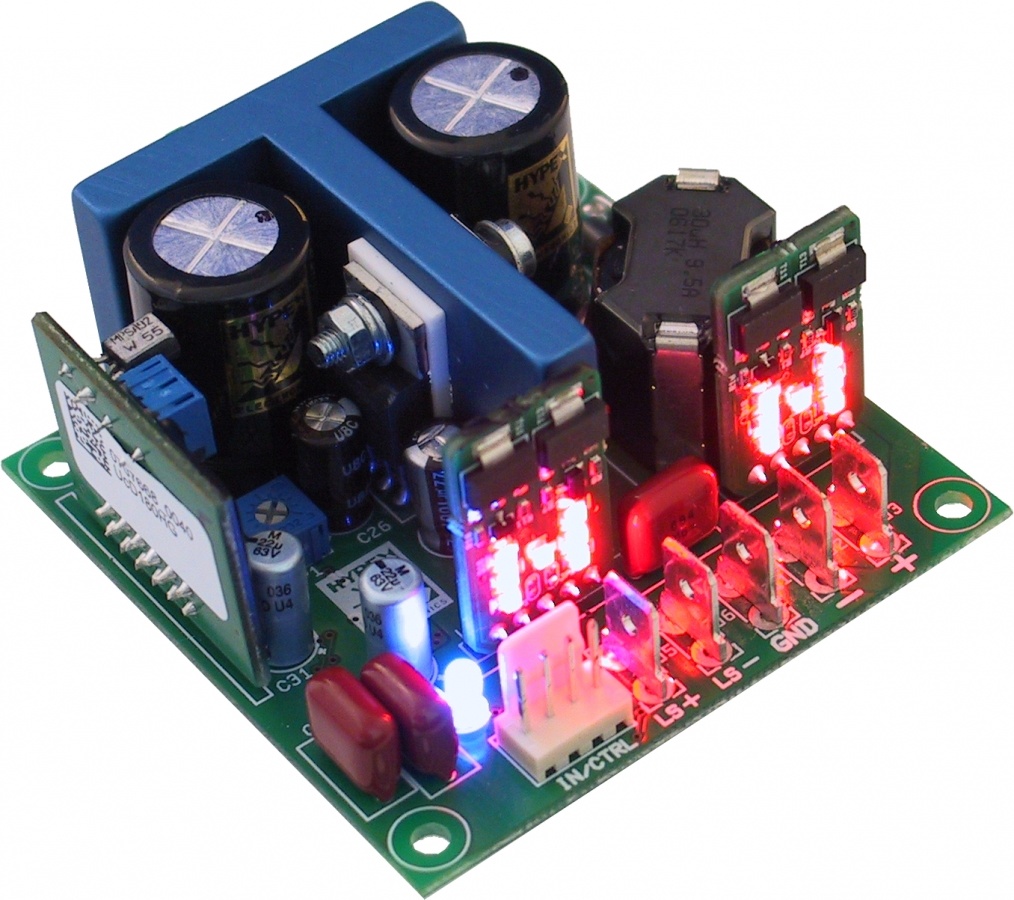

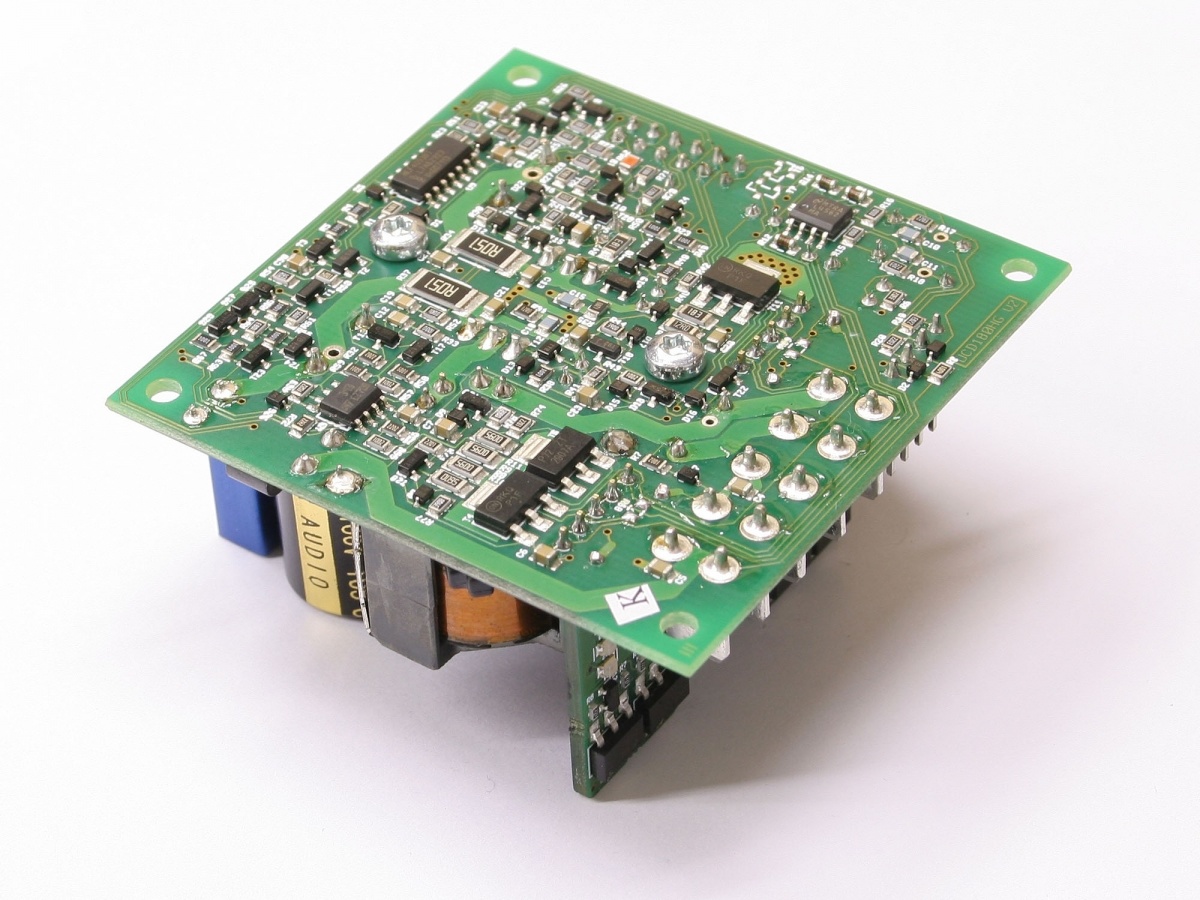

      Hypex UcD180HG HxR 1x180W Universal Class D Amplifier Module



      The UcD180HG HxR amplifier is intended for a wide range of audio applications, ranging from Public Address systems to ultrahigh-fidelity replay systems for studio and home use. Hypex distinguishes their amplifiers from other class D designs due a unique circuit topology. This results in flat frequency response irrespective of load impedance, nearly frequency-independent distortion behavior and very low radiated and conducted EMI.



      The Hypex UcD modules have established themselves as the new standard, both in terms of measured and subjective performance and therefore very suitable as amplifier in professional audio as well in consumer purposes.



      Features

      • Pop-free start and stop control
      • Differential audio input
      • Overcurrent and over voltage protection
      • No compromise components
      • LM4562 buffer OpAmp



      What’s In The Box

      • UcD180HG HxR amplifier module
      • Mounting set UcD

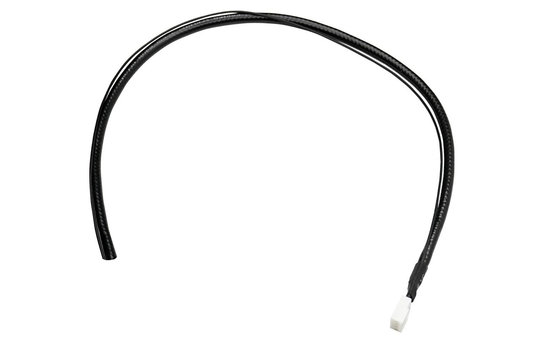

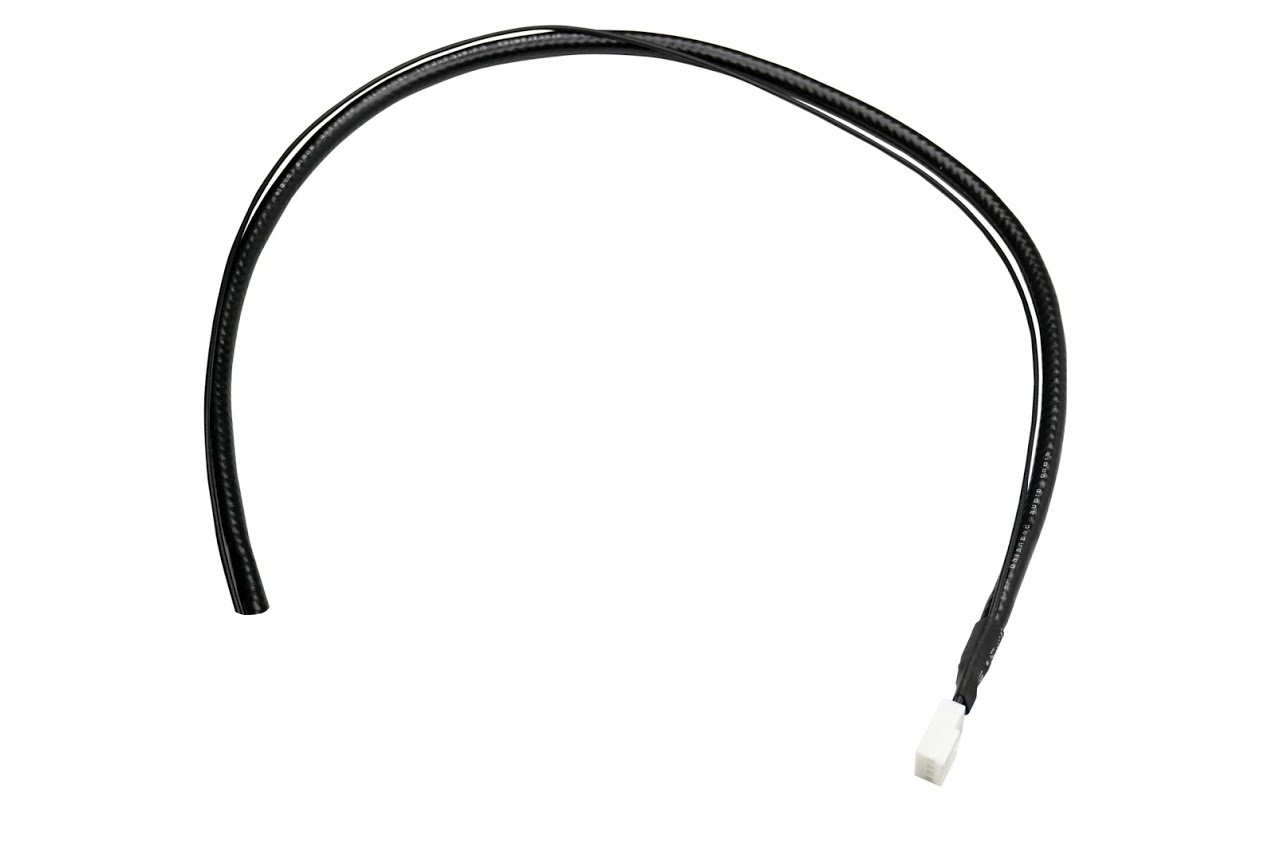

      • UcD Signal Cable
      • Manual

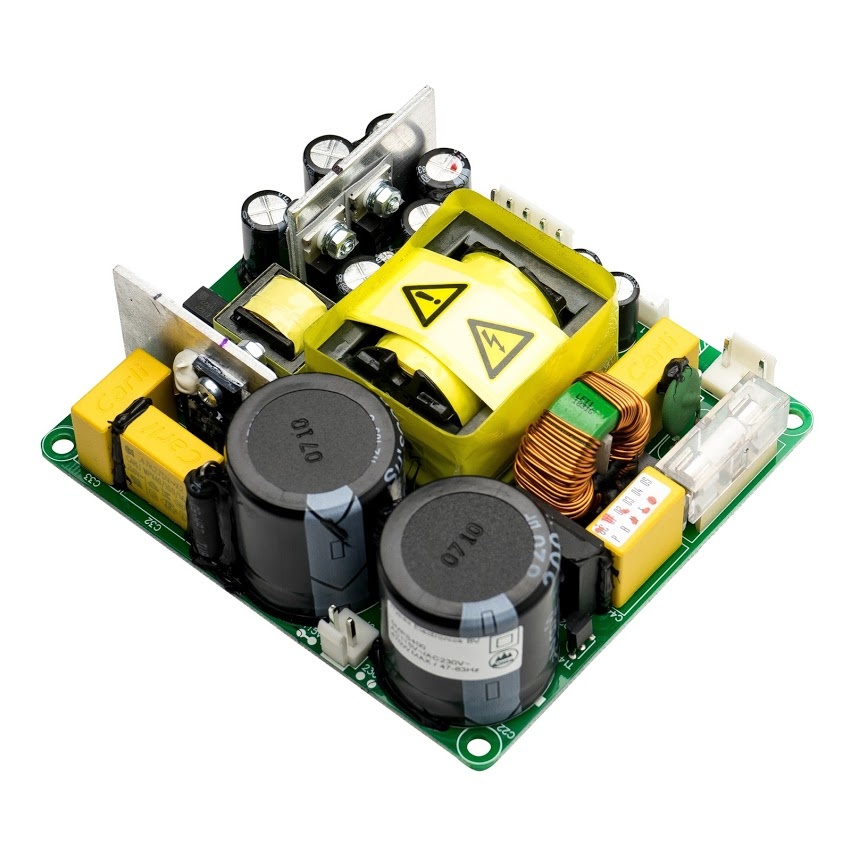

      The UcD amplifier modules only need the proper signal and power supply connections to start with their efficient, ultra clean power delivery. We recommend the SMPS400A180 as power supply for the UcD180HG HxR amplifier module.

      Toon meer

      Specificaties

      Artikelnummer
      UcD180HG HxR
      Nominaal vermogen

      180 watts at 4 ohms
      120 watts at 8 ohms

      Minimale belasting
      1 ohm
      Efficiëntie
      92 %
      Signaal-ruisverhouding (SNR)
      -
      Vervorming
      0.1 % THD+N (20-20,000 Hz at 0.5 x rated power output)
      Frequentierespons
      10 - 50,000 Hz
      Versterkingsfactor
      26 dB
      Ingangsgevoeligheid
      -
      Ingangsimpedantie
      100k ohms
      Amplifier Classification
      Class D
      Versterkertopologie
      UcD®
      Uitgangskanalen
      1
      Ingangsconnector
      4 pin PCB connector
      Uitgangsconnector
      Crimp/solder connection tabs
      DSP-functionaliteit
      -
      Bluetooth
      -
      EQ-correctie
      -
      Voedingsvereisten
      30 - 49 VDC (symmetric supply +/-)
      Voedingsconnector
      Crimp/solder connection tabs
      Stroomlimiet
      10 A
      Onder-/overspanningsbeveiliging
      Afmetingen (L x B x H)
      65 x 65 x 25 mm
      Afstand tussen bevestigingsgaten
      57.4 x 57.4 mm
      Diameter bevestigingsgaten
      -

      Toon meer

      Reviews

      5 from 5Based on 5 reviews
      Schrijf een review
      5 van 5
      great service. fast and secure. Perfect item. Works superbly
      Door Mario Z. on 14 September 2020
      5 van 5
      Verbetering in plaatsing van de muziek en nog strakker als de vervangende voorganger Hypex UcD180STD.
      Door Machiel S. on 30 Juli 2020
