    Hypex FA502 2 x 500 Watt FusionAmp

    € 649,95 4 Op voorraad: levertijd 1 werkdag
    The FA502 2x500 Watt FusionAmp is a DSP controlled two channel plate amplifier. It can be the basis of a two-way active speaker or an active subwoofer.... Toon meer
    • Verzending altijd verzekerd en met track & trace
    • Voor 16u besteld, vandaag verstuurd*
    • Gratis verzending vanaf €99
    • In-house technische support

    Productomschrijving

    The FA502 2x500 Watt FusionAmp is a DSP controlled two channel plate amplifier. It can be the basis of a two-way active speaker or an active subwoofer.



    Highlights

    • Ncore based amplifier technology
    • DSP controlled
    • All-in-one Hypex Solution
    • Neutral and transparent reproduction
    • Wide range of analog and digital inputs



    Product details

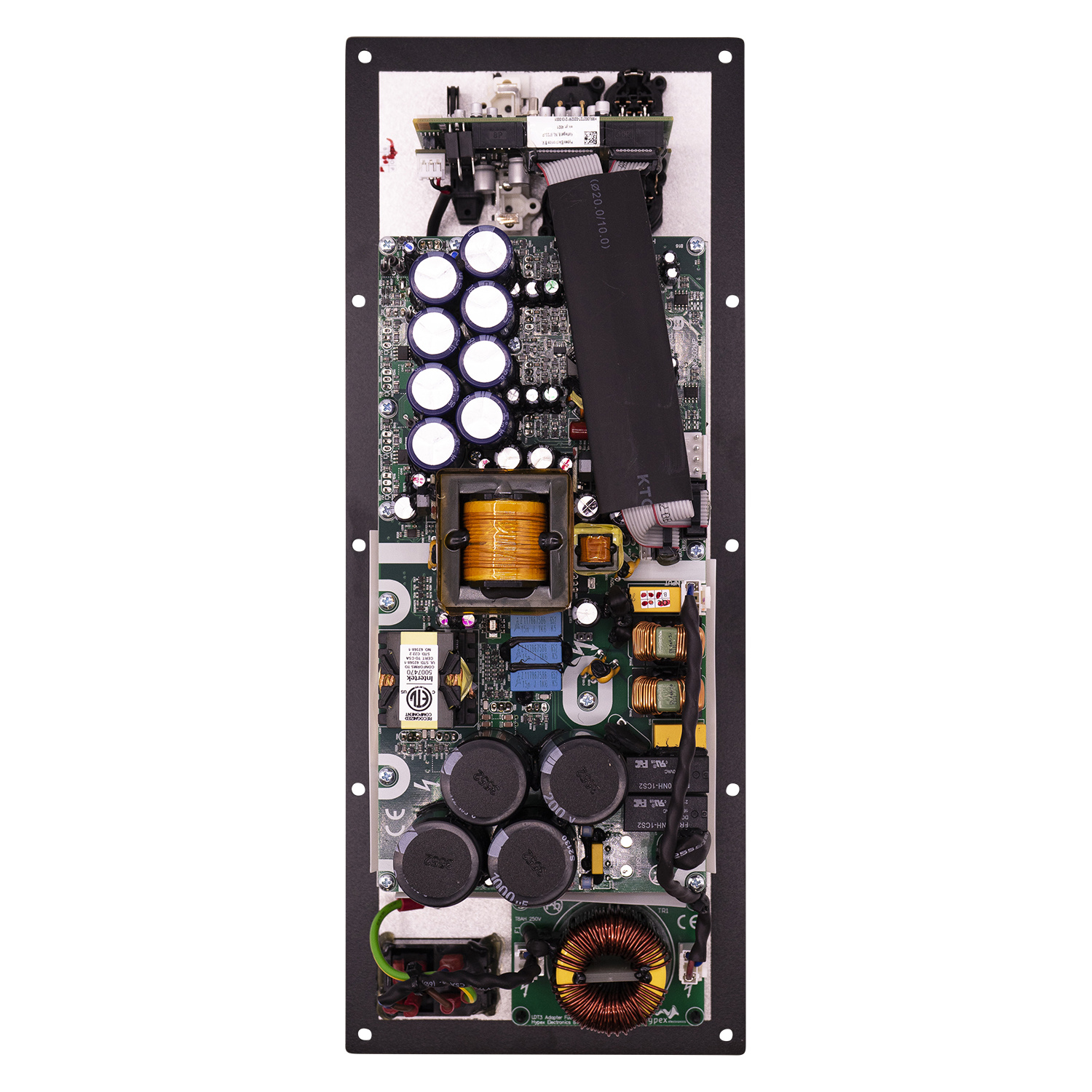

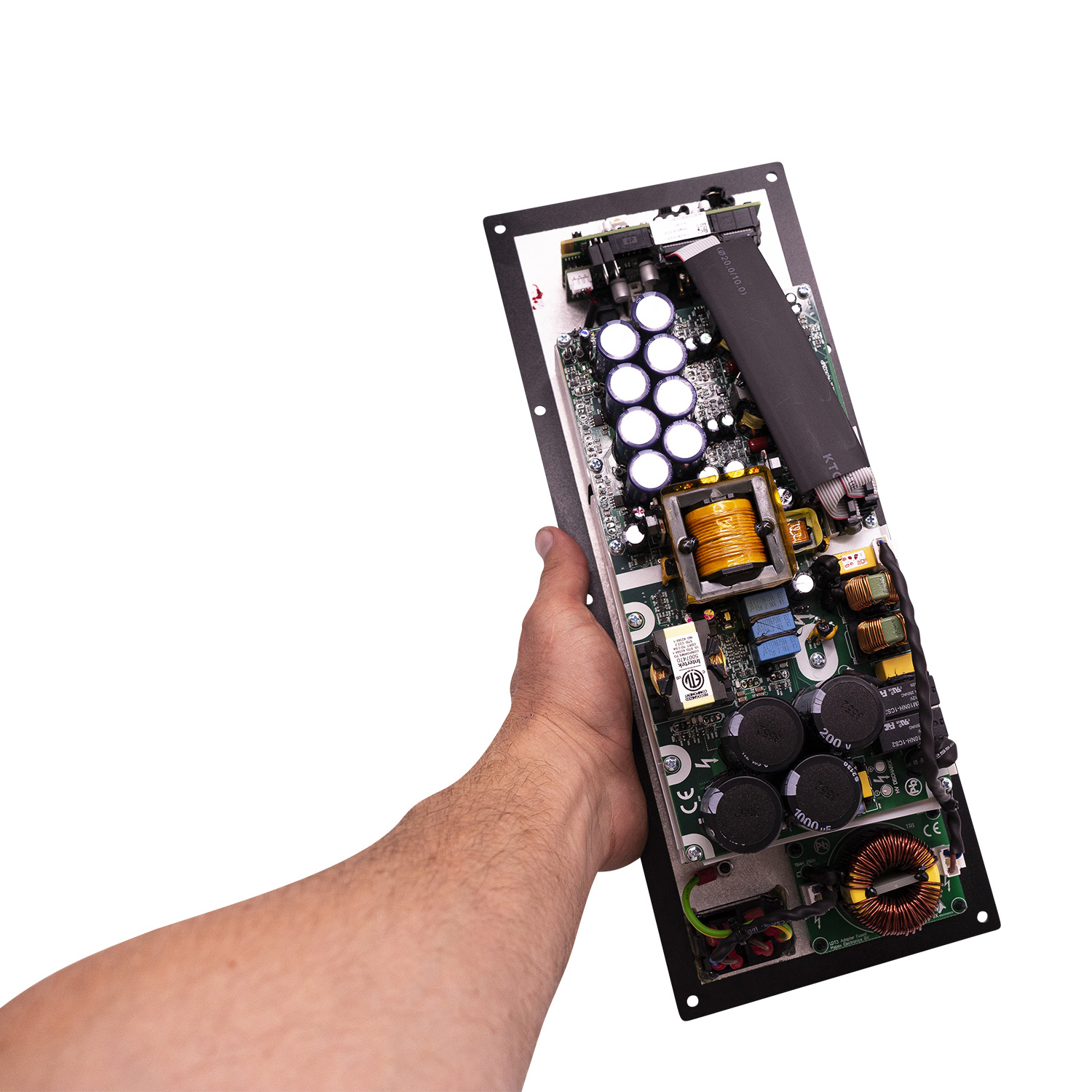

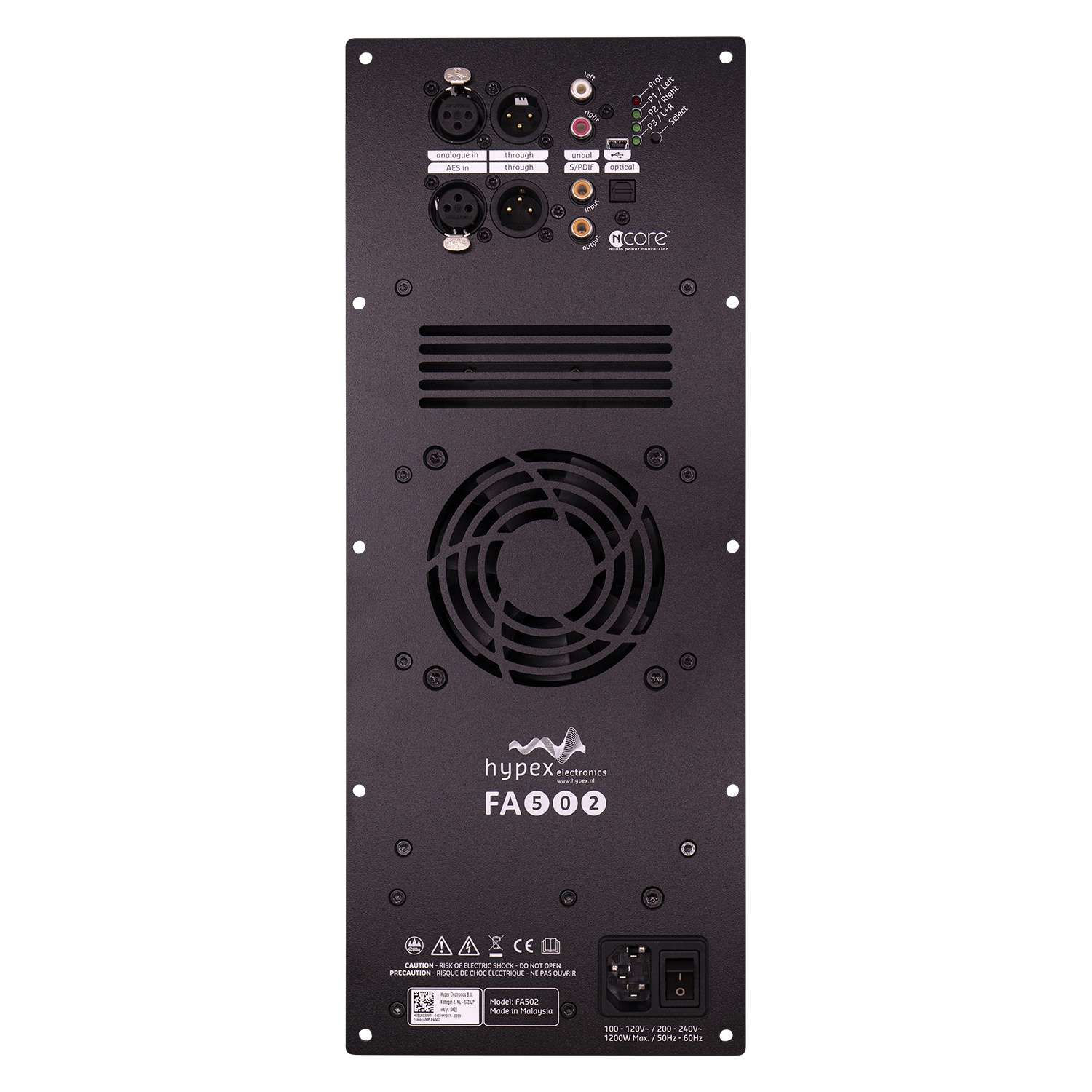

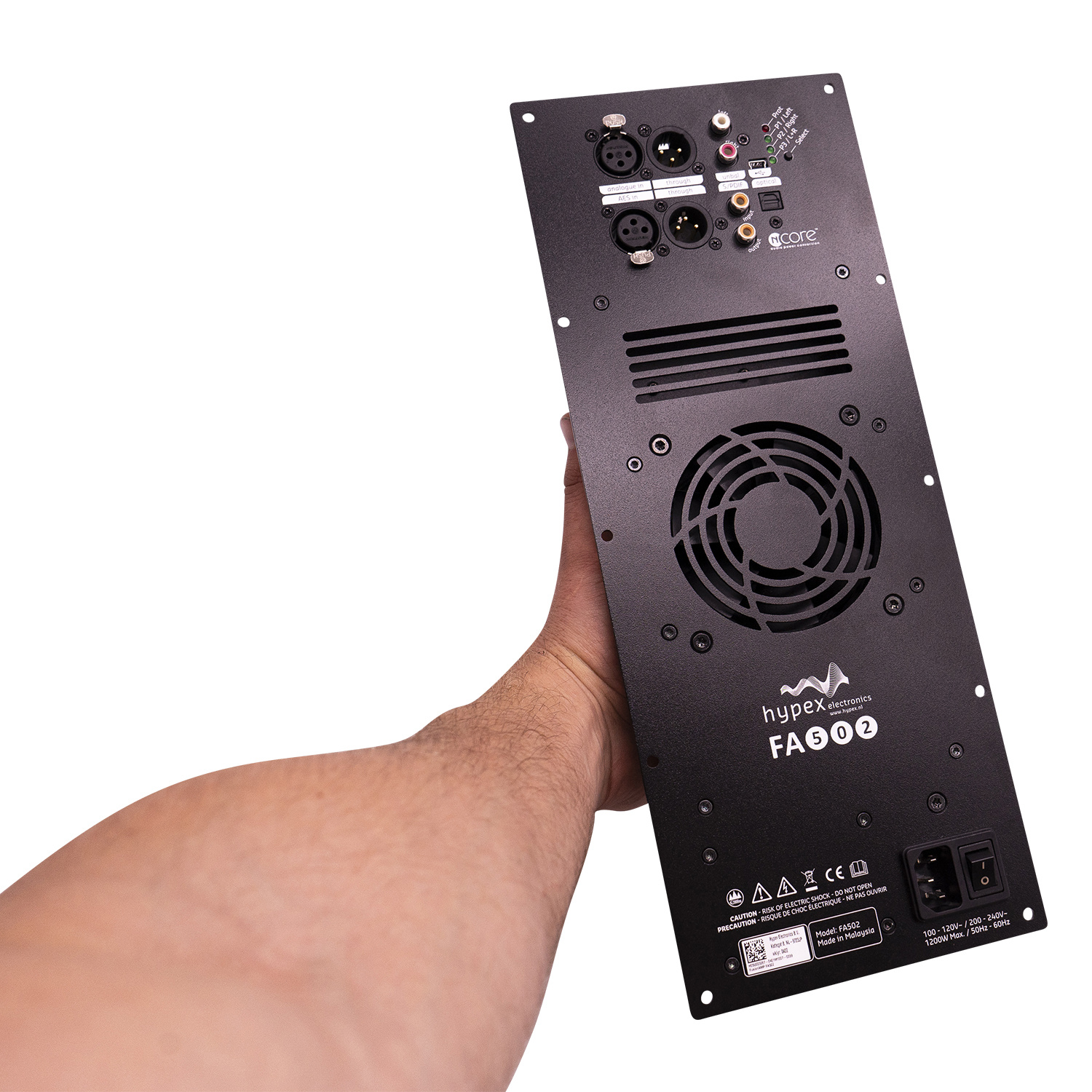

    Hypex FA502 2x500 Watt FusionAmp



    Due to the combination of SMPS, DSP and Ncore based amplifiers packed in this plate amplifier, FusionAmp is one of the best amplification solutions available for active speaker designs. The integrated DSP provides great audio processing functionality. Thanks to the Ncore technology distortion (THD and IMD) over the full audio and power range is negligible. Distortion at listening levels (1W) is unmeasurable.



    The FA502 has two 500 watt Ncore amplifiers which can also be bridged to form one powerful 1000 watt amplifier. A variety of input options ensure compatibility with most source equipment. Hypex provides their HFD (Hypex Filter Design) software to design and configure filters for the FusionAmp. You can easily add functionality to the FusionAmp with the Fusion Remote Kit for remote controllability. Due to thermal regulation these FusionAmp's are not airtight.



    To protect your valuable drivers, the DSP does not contain a filter out of the box. A filter needs to be configured and uploaded using Hypex Filter design (HFD) software before the FusionAmp will produce an output signal. You can download the HFD software here.



    Features

    • 15 biquads per amplifier
    • Three selectable presets for filters
    • Source selection
    • Signal detect
    • Auto shutdown
    • BTL capable
    • Clip protect
    • Thermal protect
    • Filter protection

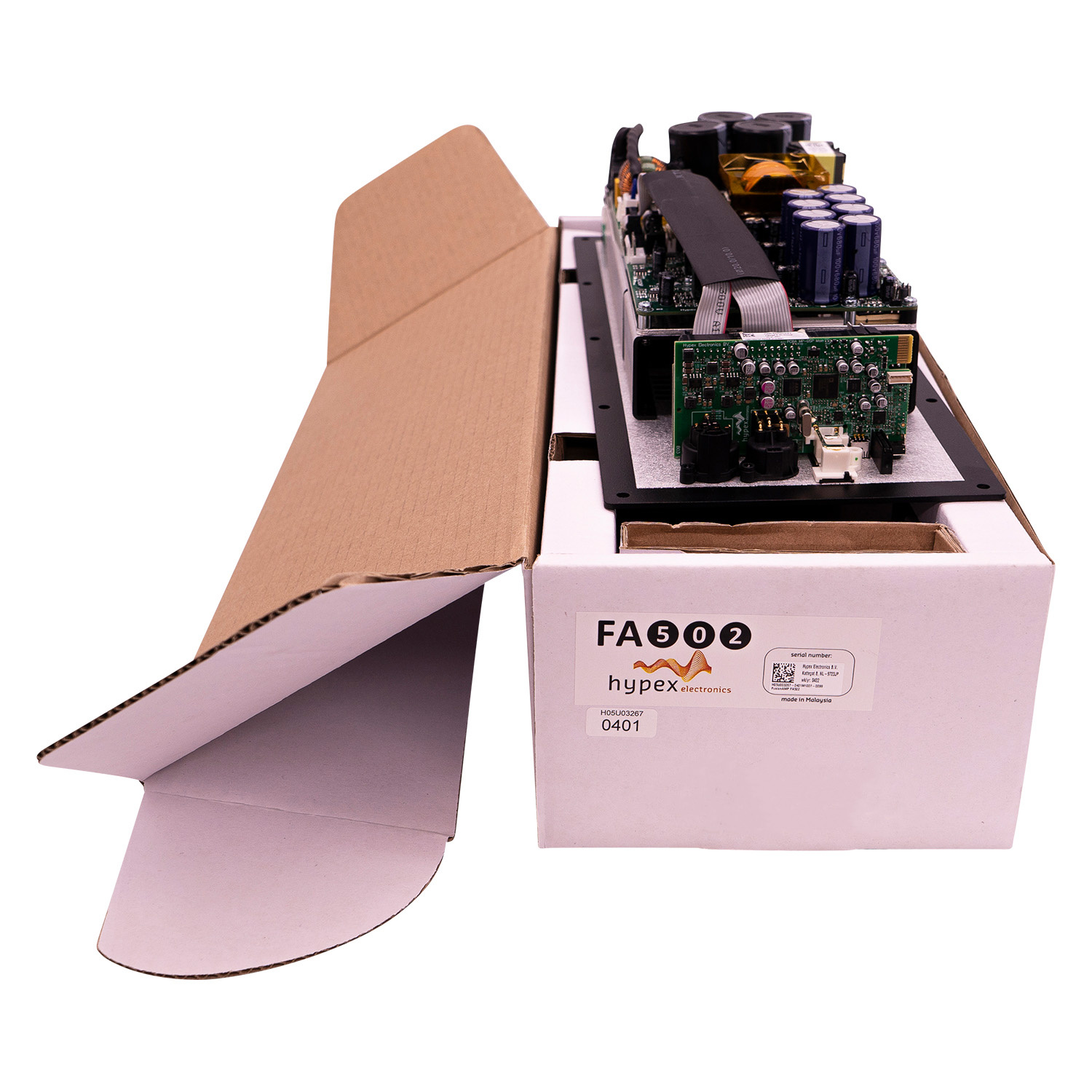

    What’s in the box?

    • FA502 FusioAmp
    • A printed copy of the user guide
    • Speaker connection cables
    • EU (or UK) C13 Power cable

    Specificaties

    Artikelnummer
    FA502
    Rated power output
    <p>2 x 500 watts at 4 ohms<br />2 x 350 watts at 8 ohms<br />2 x 450 watts at 2 ohms</p>
    Bridged rated power output (RMS)
    <p>1 x 1000 watts at 4 ohms<br />1 x 1200 watts at 8 ohms</p>
    Minimum load
    2 ohms
    Signal-to-noise ratio (SNR)
    124 dB
    Distortion
    0.0018 % THD+N (10-20,000 Hz at 0.5 x rated power output)
    Distortion bridged
    -
    Amplifier classification
    Class D
    Circuit topology
    Ncore®
    Efficiency
    92 % at full power
    Frequency response
    10 - 50,000 Hz
    Input impedance
    <p>54k ohms (unbalanced RCA) <br/> 44k ohms (balanced XLR DM) <br/> 2.2m ohms (balanced XLR CM) </p>
    Input sensitivity
    2.35 Vrms for rated power output
    Auto turn-on sensitivity
    -
    DSP
    check
    DAC
    check
    Maximum sampling rate
    <p>192 kHz <br/> 96 kHz (optical) </p>
    Speaker output channels
    2
    Analog in/out
    1/1
    S/PDIF in/out
    2/1
    AES/EBU in/out
    1/1
    Coaxial in/out
    1/1
    RCA in/out
    1/ -
    XLR in/out
    2/2
    Jack in/out
    - / -
    USB connection
    check configure port only
    Network connection
    -
    Bluetooth
    -
    Subwoofer pre-out
    -
    Auto on/off
    check
    Remote control
    check (sold separately)
    App control
    -
    Equalizer (EQ) adjustment
    check
    Equalizer (EQ) profiles
    check
    Phase control
    check
    Crossover frequency adjustment
    check
    Presets
    check
    Control software
    Hypex Filter Design
    Windows/Mac compatible
    check/ -
    Power requirements
    200-240 VAC ±10%
    Power inlet connector
    IEC C14
    Standby power consumption
    -
    Current limit
    27 A
    Under/over voltage protection
    check
    Dimensions (H x W x D)
    380 x 150 x 90 mm
    Cutout dimensions
    356 x 126
