      Hypex FA123 FusionAmp Plaatversterker

      € 413,18€ 499,95 8 Op voorraad: levertijd 1 werkdag
      • Voor 16u besteld, vandaag verstuurd
      • Gratis verzending vanaf € 99 (NL & BE)
      • In-house technische support
      • 45 dagen zorgeloos retourneren
      Heeft u vragen over dit product?

      Heeft u vragen over dit product?

      Onze klantenservice helpt u graag verder!

      Productomschrijving

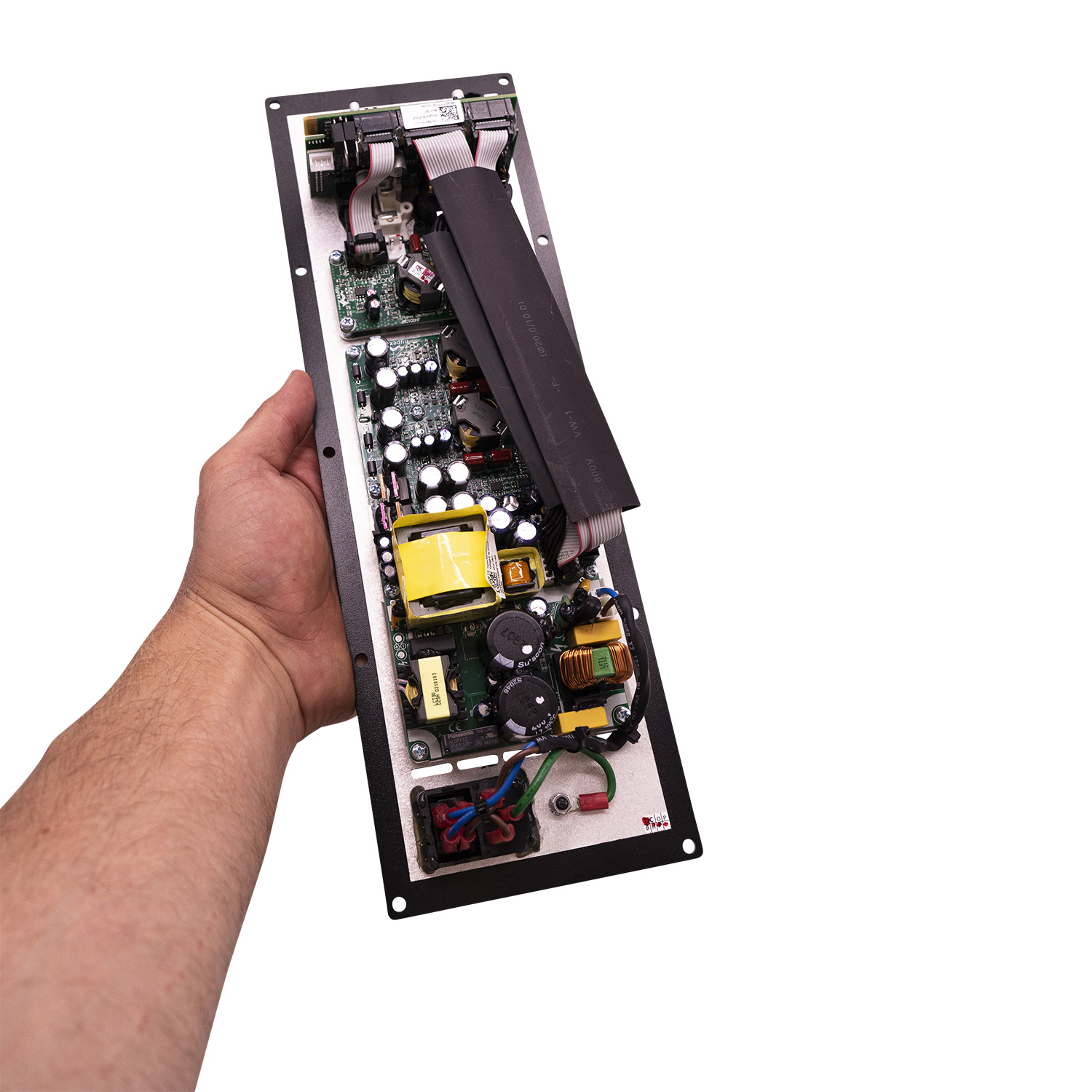

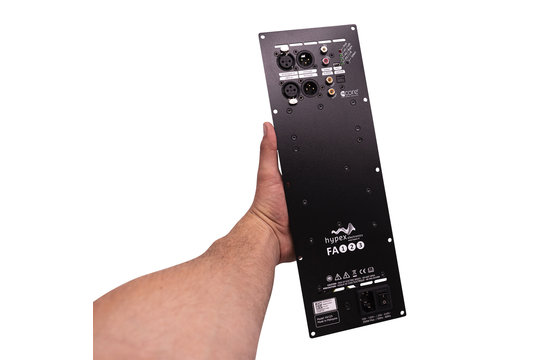

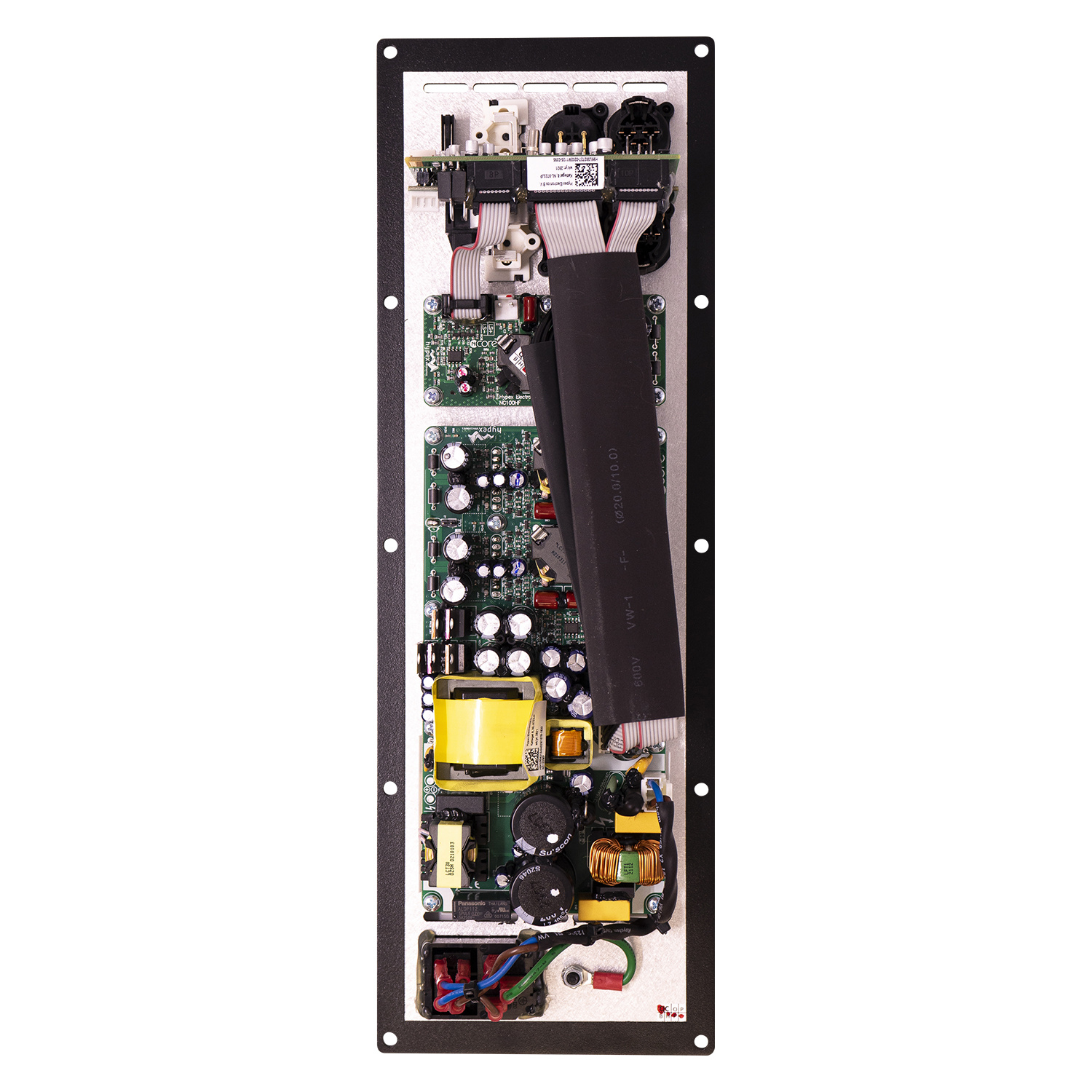

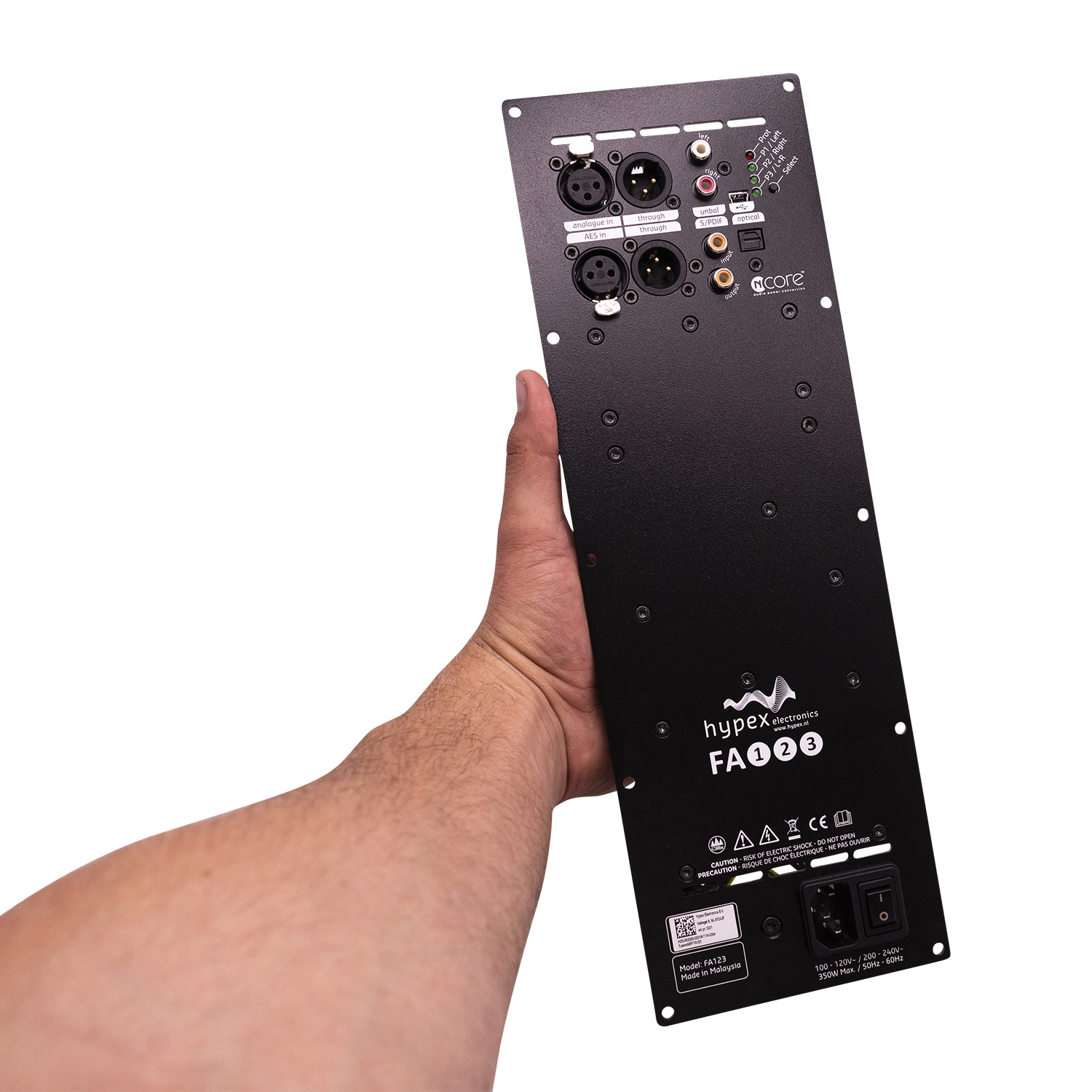

      The FA123 2x125 + 100 Watt FusionAmp is a DSP controlled three channel plate amplifier. It can be the basis of a powerful active two- or three-way speaker.



      Highlights

      • Ncore based amplifier technology
      • DSP controlled
      • All-in-one Hypex Solution
      • Neutral and transparent reproduction



      Product details

      Hypex FA123 2x125 +100 Watt FusionAmp



      Due the combination of SMPS, DSP and Ncore based amplifiers packed in this plate amplifier, FusionAmp is one of the best amplification solutions available for active speaker designs. The integrated DSP provides great audio processing functionality. Thanks to the Ncore technology distortion (THD and IMD) over the full audio and power range is negligible. Distortion at listening levels (1W) is unmeasurable.



      The FA123 has two 125 watt Ncore amplifiers which can also be bridged to form one powerful 250 watt amplifier. The third channel is 100 watt Ncore tweeter channel. A variety of input options ensure compatibility with most source equipment. Hypex provides their HFD (Hypex Filter Design) software to design and configure filters for the FusionAmp. You can easily add functionality to the FusionAmp with the Fusion Remote Kit for remote controllability. Due to thermal regulation these FusionAmp's are not airtight.



      To protect your valuable drivers, the DSP does not contain a filter out of the box. A filter needs to be configured and uploaded using Hypex Filter design (HFD) software before the FusionAmp will produce an output signal. You can download the HFD software here.



      Features

      • 15 biquads per amplifier
      • Three selectable presets for filters
      • Source selection
      • Signal detect
      • Auto shutdown
      • BTL capable
      • Clip protect
      • Thermal protect
      • Filter protection

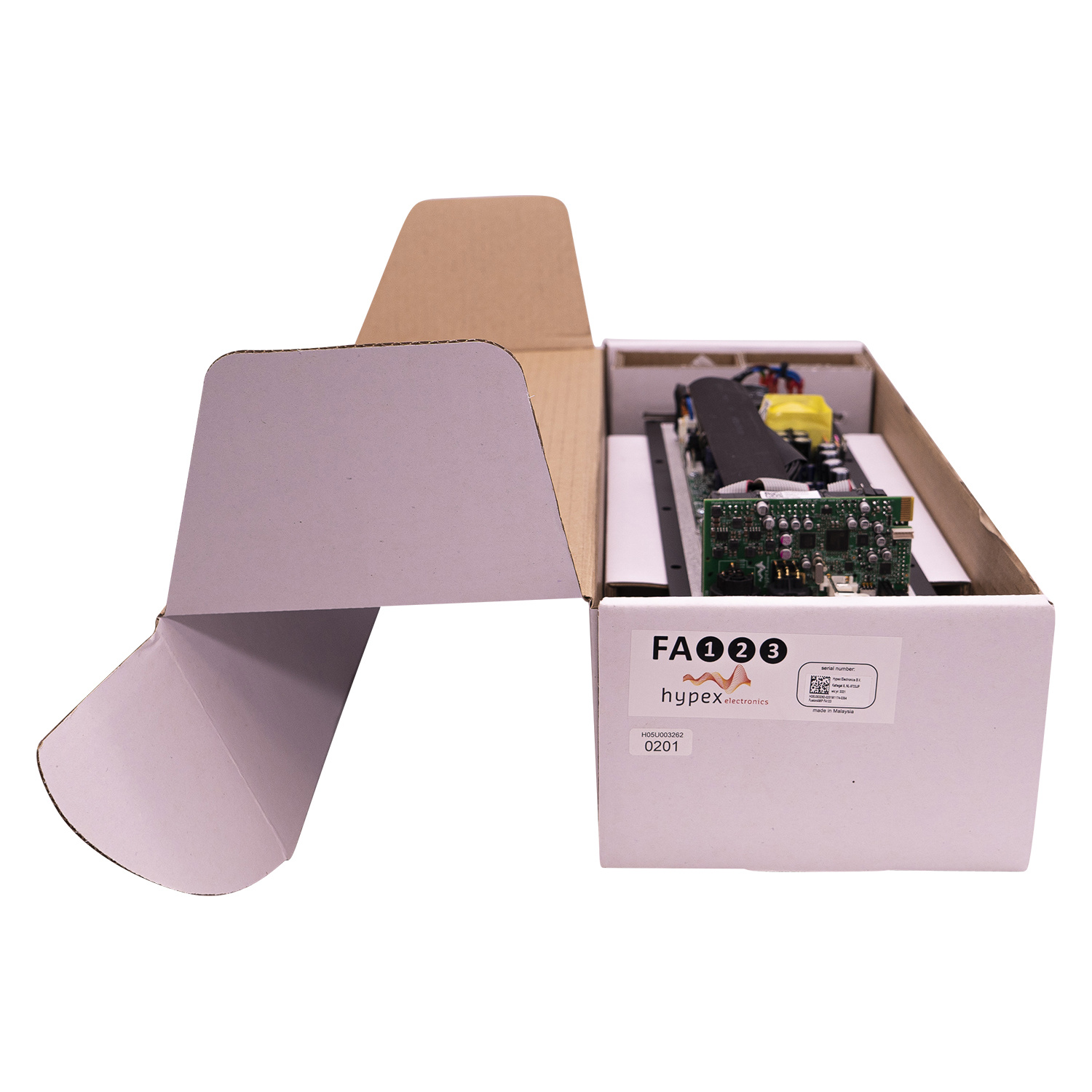

      What’s in the box?

      • FA123 FusioAmp
      • A printed copy of the user guide
      • Speaker connection cables
      • EU (or UK) C13 Power cable



      Curious about designing an active speaker with DSP using Hypex Fusion amplifiers? – Check out our blog post with a “step by step” guide!

      Specificaties

      Artikelnummer
      FA123
      Nominaal vermogen

      2 x 125 watts + 1 x 100 watts at 4 ohms
      2 x 75 watts + 1 x 100 watts at 4 ohms at 8 ohms
      2 x 115 watts at 2 ohms + 1 x 100 watts at 4 ohms

      Vermogen gebrugd

      1 x 200 watts at 4 ohms
      1 x 250 watts at 8 ohms

      Minimale belasting
      2 ohms (4 ohms for tweeter channel)
      Signaal-ruisverhouding (SNR)
      118 dB
      Vervorming
      0.0015 % THD+N (10-20,000 Hz at 0.5 x rated power output)
      Vervorming gebrugd
      -
      Versterkerklasse
      Class D
      Versterkertopologie
      Ncore®
      Efficiëntie
      92 % at full power
      Frequentierespons
      10 - 50,000 Hz
      Ingangsimpedantie

      54k ohms (unbalanced RCA)
      44k ohms (balanced XLR DM)
      2.2m ohms (balanced XLR CM)

      Ingangsgevoeligheid
      1.17 Vrms for rated power output
      Inschakelgevoeligheid
      -
      DSP
      DAC
      Maximale sample rate

      192 kHz
      96 kHz (optical)

      Uitgangskanalen
      3
      Analoog in / uit
      1/1
      S/PDIF in / uit
      2/1
      AES/EBU in / uit
      1/1
      Coaxial in / uit
      1/1
      RCA in / uit
      1/ -
      XLR in / uit
      2/2
      Jack in / uit
      - / -
      USB-Verbinding
      configure port only
      Netwerkverbinding
      -
      Bluetooth
      -
      Subwoofer pre-out
      -
      Auto aan / uit
      Afstandsbediening
      (sold separately)
      App-bediening
      -
      EQ-correctie
      EQ-profielen
      Fasesturing
      Instelbare kantelfrequentie
      Presets
      Besturingssoftware
      Hypex Filter Design
      Windows/Mac compatible
      / -
      Voedingsvereisten
      200-240 VAC ±10%
      Voedingsaansluiting
      IEC C14
      Standby stroomverbruik
      -
      Stroomlimiet
      12.5 A
      Onder-/overspanningsbeveiliging
      Afmetingen (H x B x D)
      360 x 120 x 55 mm
      Uitsparingsafmetingen
      336 x 96 mm

      Toon meer

      Reviews

      5 from 5Based on 3 reviews
      Schrijf een review
      5 van 5
      Ok, I expected something good and an improvement, but the way these have improved the sound from my speakers surpasses all expectations. The low distortion characteristic and clean/transparet sound is simply phenomenal. Too bad you can't get this product in a non-plate version, because that is how I am forced to use these, but there is a way aroin that too. Communication between pc and plate and plates among themselves was a bit quicky on some occasions, but only when laptop conncected.
      Door Woodhouse on 11 Februari 2021
      5 van 5
      Good
      Door alfio g. on 31 Oktober 2020
