      ICEpower 125ASX2 2 x 125 W versterkermodule with Integrated Power Supply

      € 181,78€ 219,95 10+ Op voorraad
      • -5% Bestelling 4 voor slechts € 208,95 per stuk

      Buy now, pay later

      • Gratis verzonden (NL & BE)
      • Nu besteld, morgen bezorgd
      • In-house technische support
      • 45 dagen zorgeloos retourneren
      Zakelijke offerteaanvraag
      Heeft u vragen over dit product?

      Heeft u vragen over dit product?

      Onze klantenservice helpt u graag verder!



      • Fully self contained audio amplifier solution
      • Configurable for stereo or mono output
      • Rugged construction
      • Thermal protection
      • Over current protection
      • Sound optimized soft clipping
      • Suitable for CE approved designs


      Product details

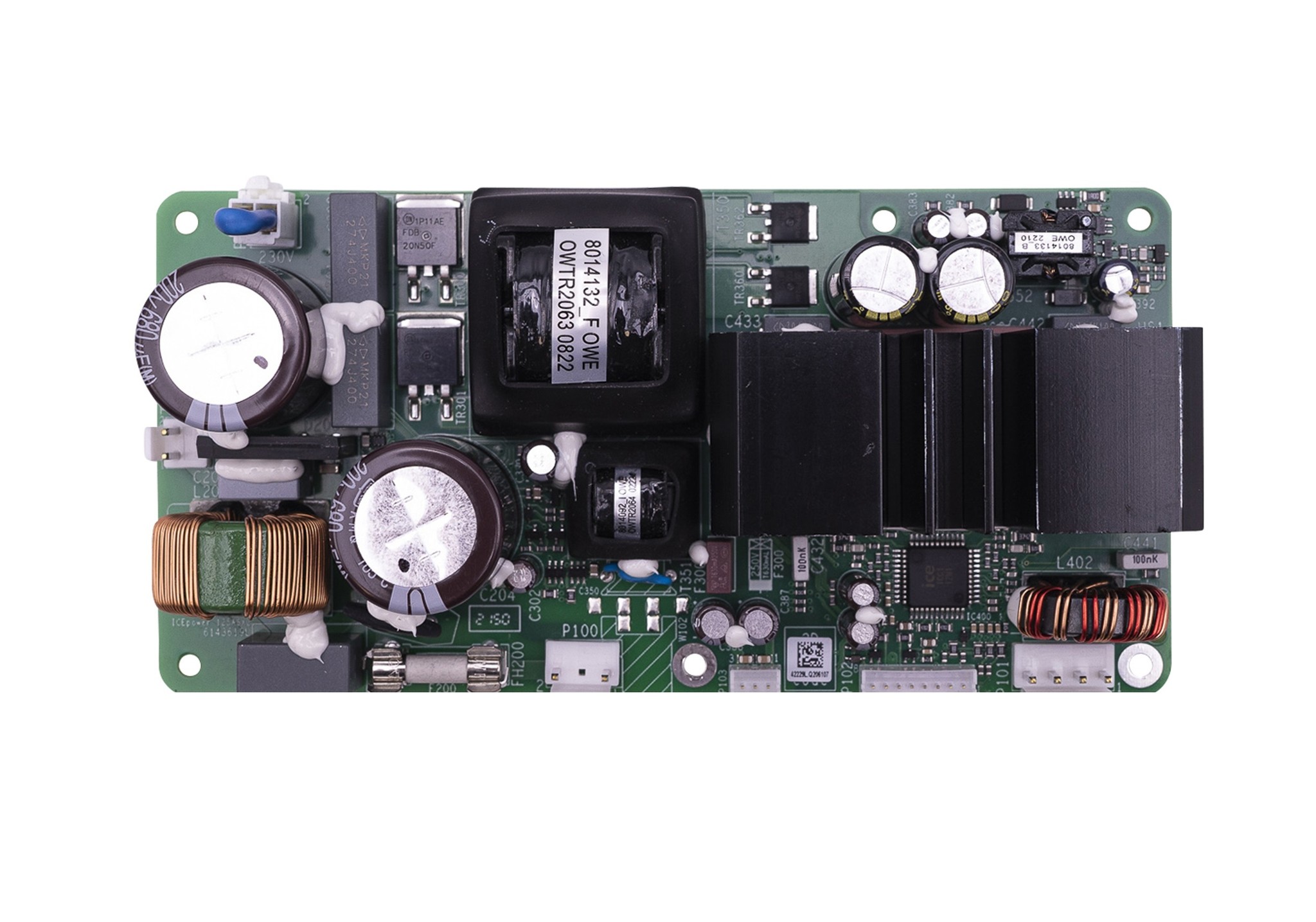

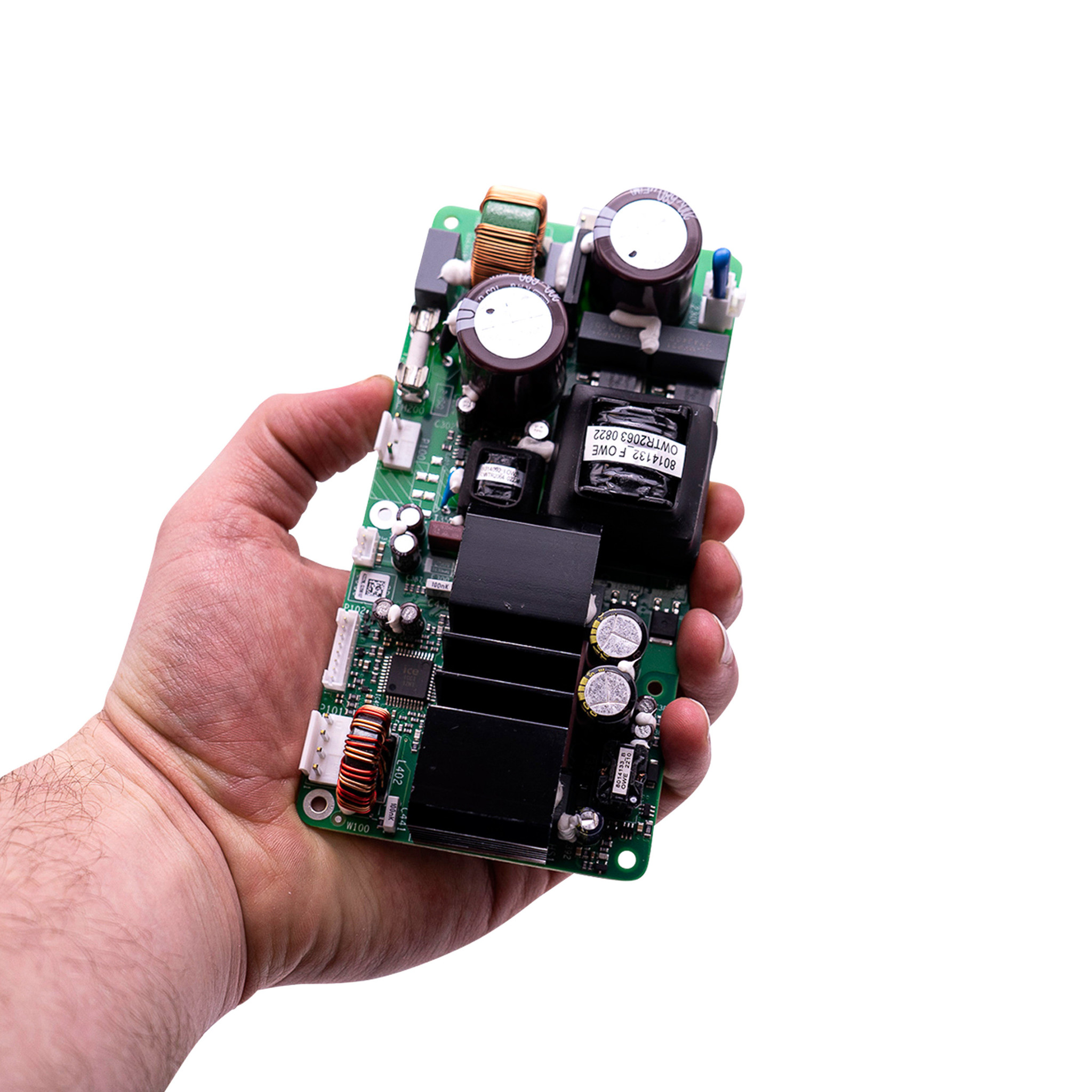

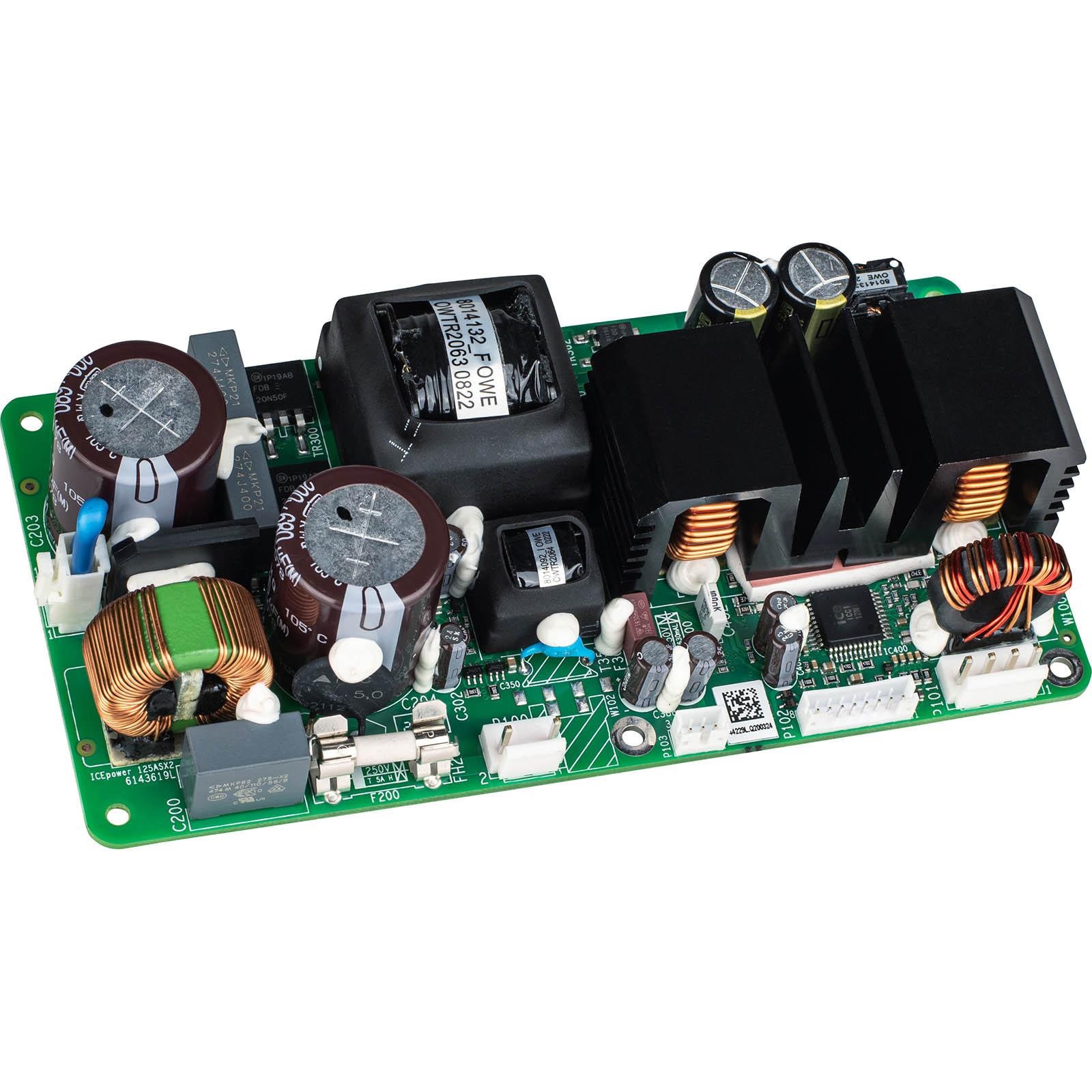

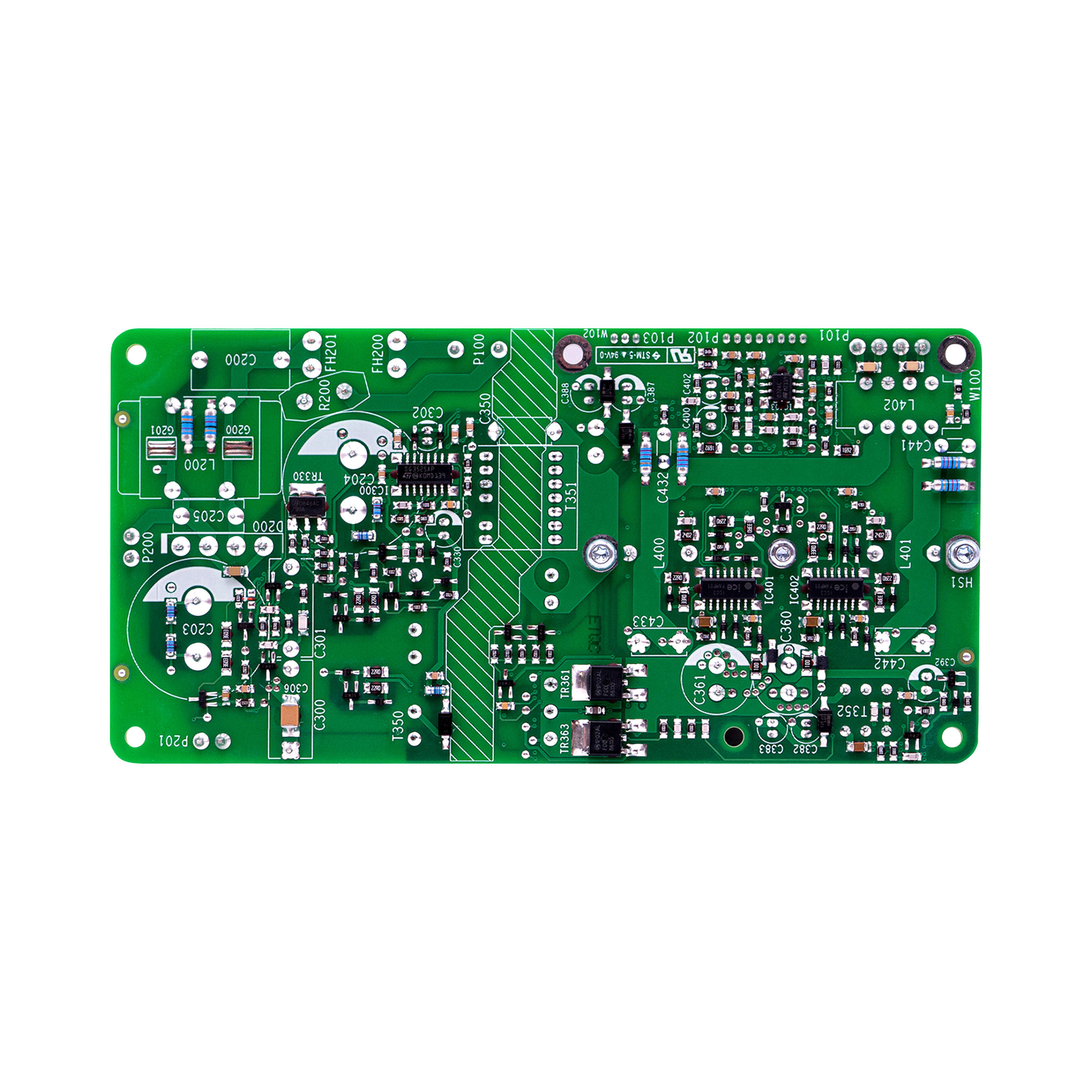

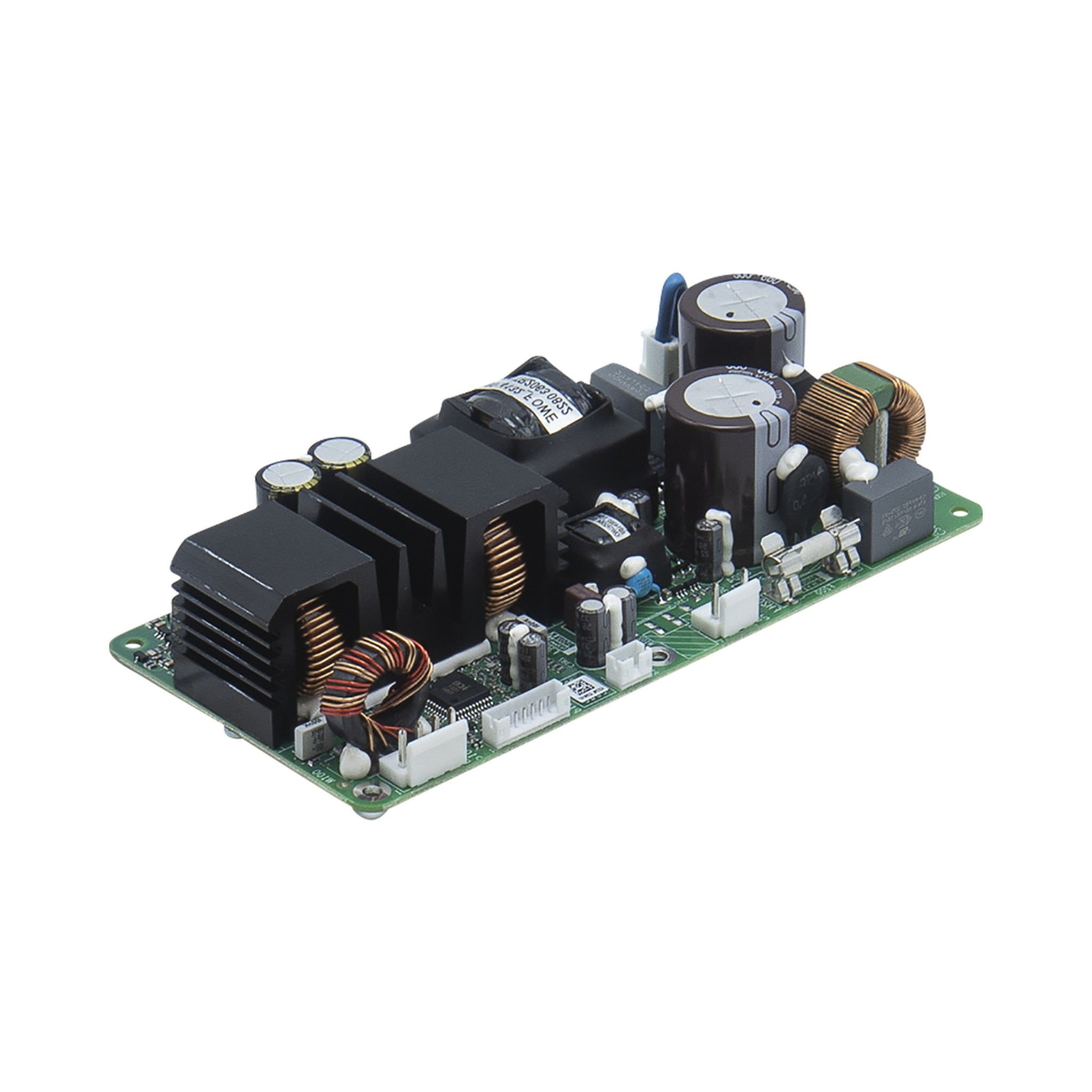

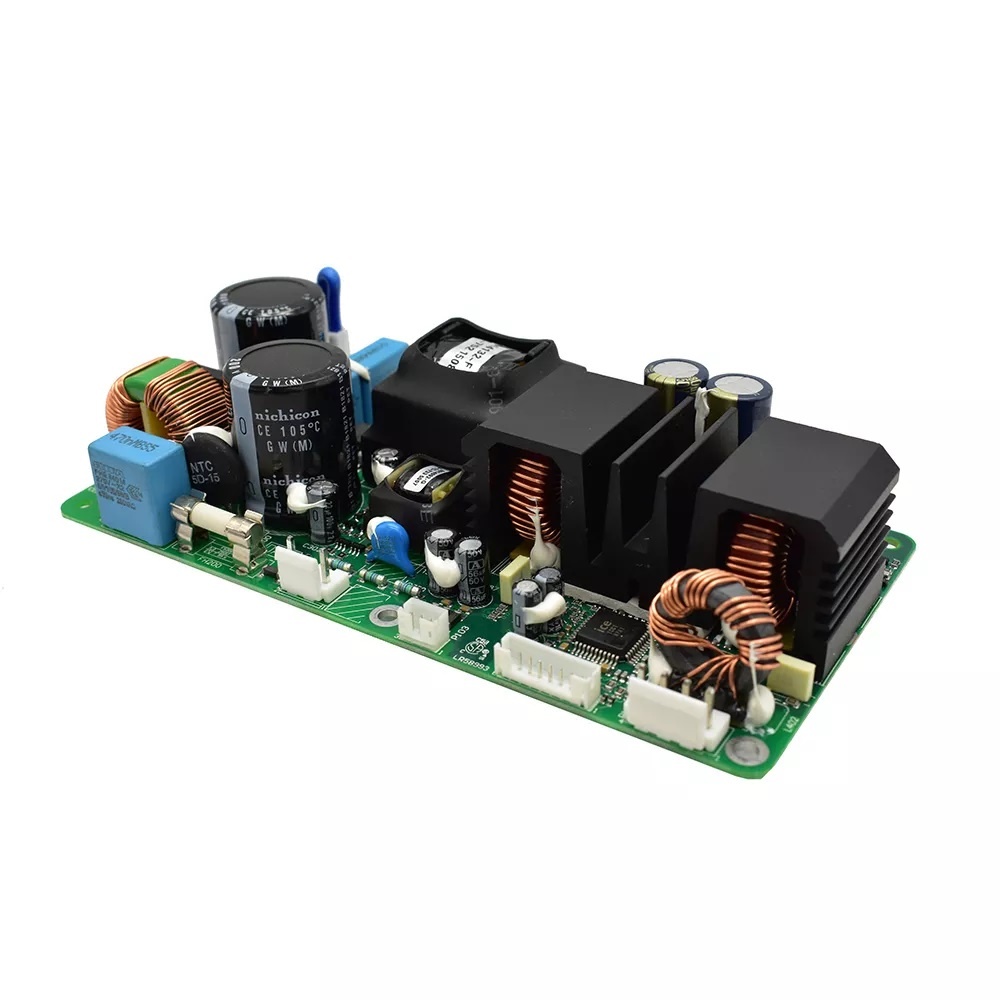

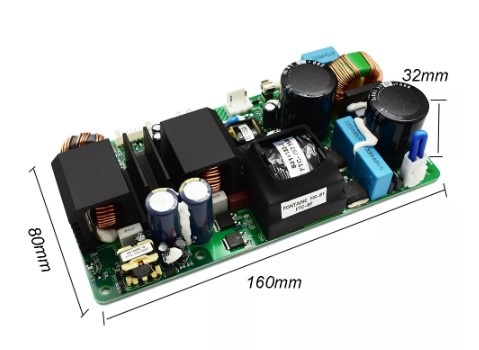

      ICEpower 125ASX2 2 x 125 W Amplifier Module with Integrated Power Supply


      The 125ASX2 is a fully integrated, intelligent amplification solution designed particularly for consumer and professional audio applications. This compact amplifier module has an integrated high efficient resonant power supply. It stands out in the amplifier modules category as it offers audiophile quality, is very powerful but also compact and has a nice feature set.


      The 125ASX2 can be configured to either stereo or mono output. In bridged configuration it outputs up to 450 watts into 4Ω! The auxiliary supply for powering external circuitry, elimination of heat sinks and EMI shields allow for easy implementation in your project. This module is EMC and safety approved. It is protected against short-circuit, overload and over-heating and includes on-board fuses and EMI filtering to provide a CE and FCC pre-approved design.


      Do you like the 125ASX2, but are you in need for more power? Check out the 250ASX2 for the 2x 250 watt version. The smaller 50ASX2 is available in two variants. The 50ASX2(SE) is the stereo single ended version. For the single-channel BTL version, check out the 50ASX2(BTL). Did you know this is the very module that is used in combination with a DSP front-end in the miniDSP PWR-ICE125 plate amplifier?

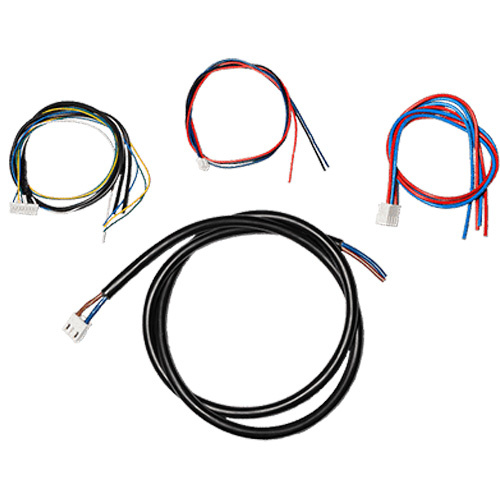

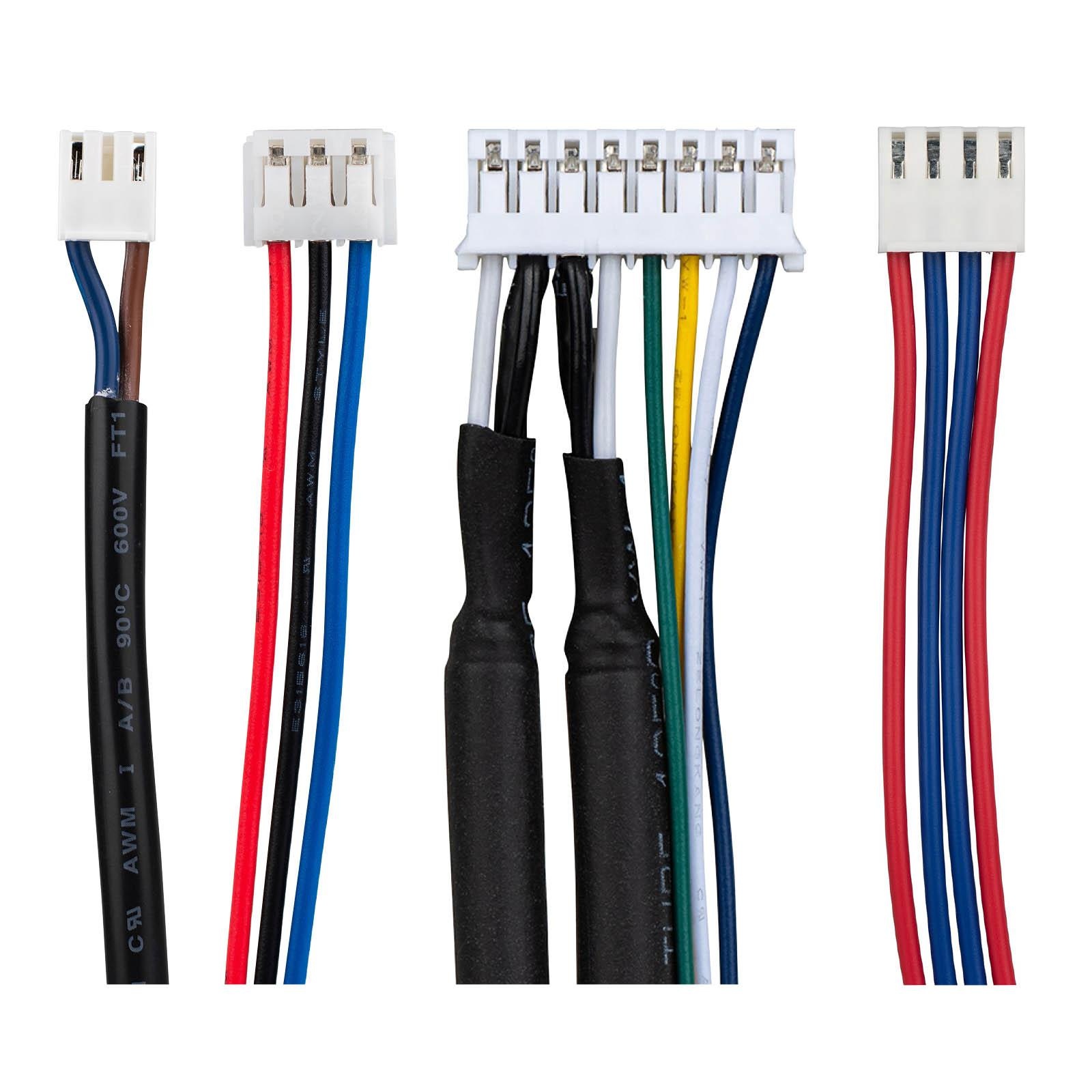

      Cable Set

      The included cable set allows access to all features of the 125ASX2. The kit contains cables with all the right connectors on one end. The other ends are left unterminated so you can terminate the wires with the connections of your choice.


      What’s In The Box?

      • 1 x 125ASX2 Amplifier Module with Integrated Power Supply
      • Cable set:
        • 1 x (K) Mains without Earth
        • 1 x (R) Supply ASX2series AUX
        • 1 x (A) Signal
        • 1 x (T) Speaker

      Toon meer


      Nominaal vermogen
      125 watts at 4 ohms
      150 watts at 8 ohms
      Minimale belasting
      3 Ohm
      0.003 % THD+N
      24.3 dB
      8 kOhm
      Amplifier Classification
      Class D
      85-264 VAC
      20 A
      Afmetingen (L x B x H)
      160 x 80 x 32.6
      Diameter bevestigingsgaten
      3.5 mm

      Toon meer
