    ICEpower 400A2 | Amplifier Module

    € 123,93€ 149,95 >10 Op voorraad: levertijd 1 werkdag
    Volume voordeel Geniet van deze geweldige kortingsdeals
    • -5% Bestel 4 voor slechts €142,45 per stuk
    • Verzending altijd verzekerd en met track & trace
    • Voor 16u besteld, vandaag verstuurd
    • Gratis verzending vanaf €99
    • In-house technische support
    Heeft u vragen over dit product?

    Heeft u vragen over dit product?

    Onze klantenservice helpt u graag verder!

    Productomschrijving

    Highlights

    • 2x 400 watt SE amplifier or a single channel 800 watt BTL amplifier
    • Designed for flexible mounting
    • Thermal, over-current and over- and under- voltage rail protection
    • Clip detect signals for both channels
    • Real time voltage monitor output for both channels
    • Suitable for 1U products
    • Fully differential audio inputs



    Product details

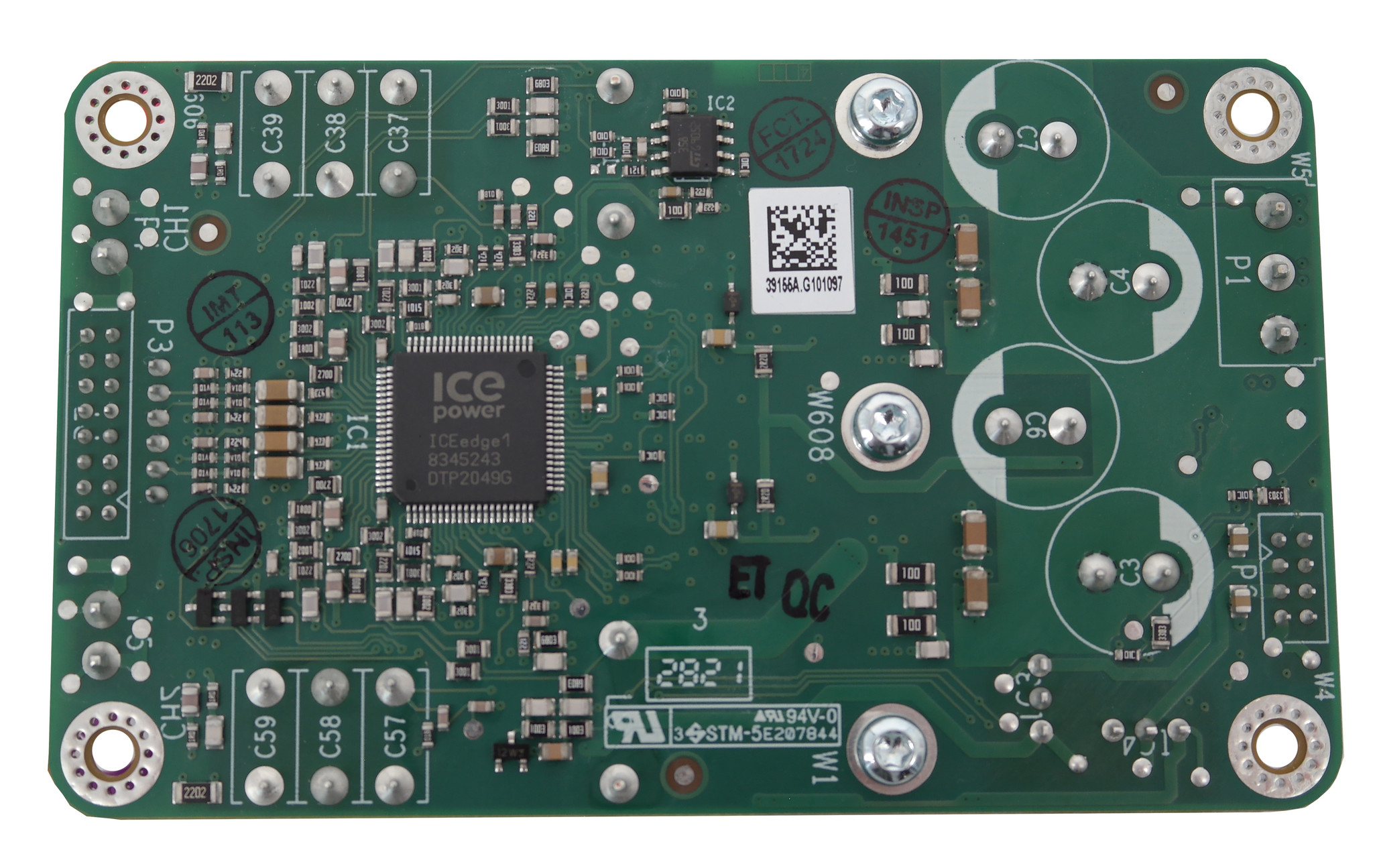

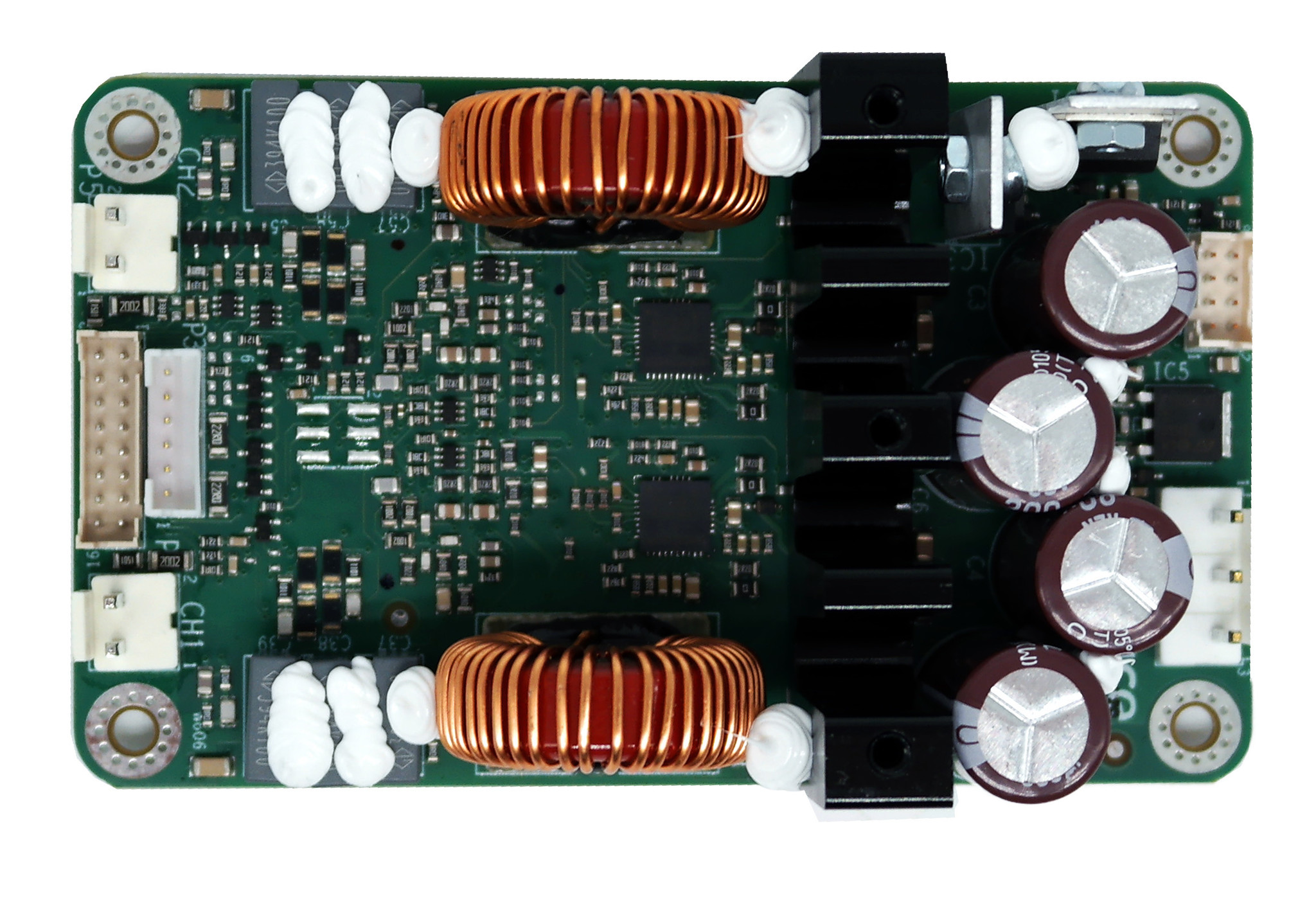

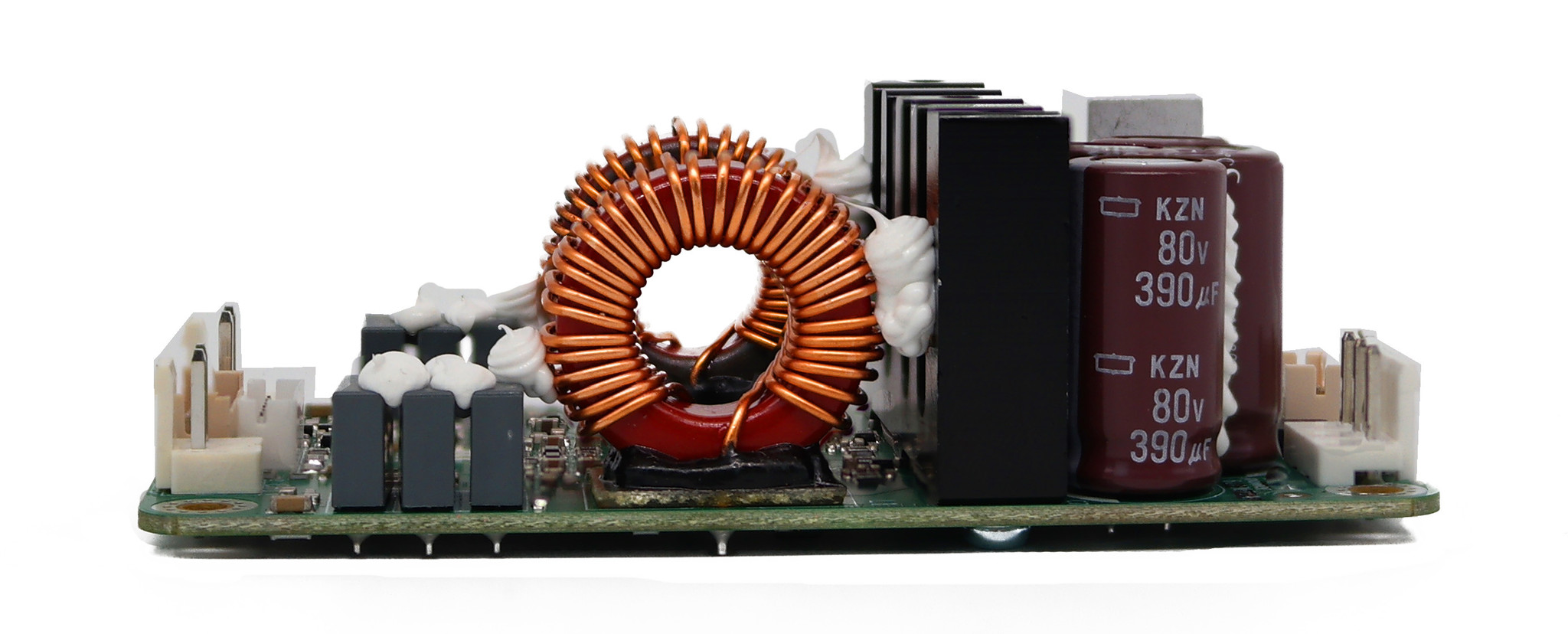

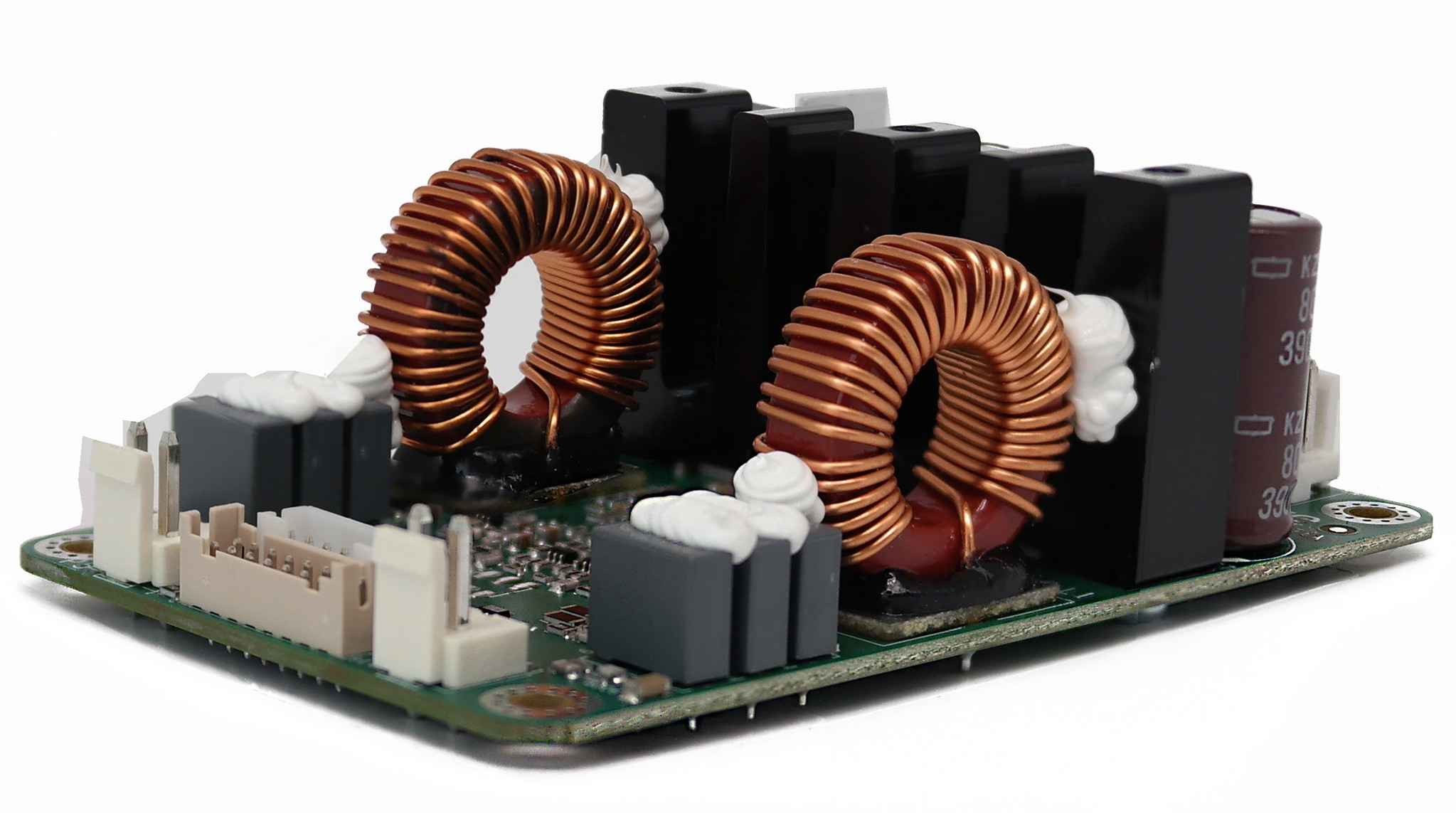

    ICEpower 400A2 Amplifier Module



    The 400A2 two channel amplifier module, capable of high output power with outstanding sound quality from a small footprint. It is the most powerful hanger module from the ICEpower AS-series in our amplifier module category. The 400A2 incorporates the latest in state of the art, custom and patended ICEedge Chipset technology. This allows for high voltage gain and superior sound quality with an ultra-low noise floor, of typical 34 µV for a signal-to-noise ratio of 121.5 dB. This efficient audio power amplifier intended for driving two 4Ω loudspeakers or one 8Ω speaker in BTL-mode. It is specifically designed to to work well with the 1500S-69V power supply module.



    This amplifier module provides extended protection and monitoring functions with an easy-to-use control interface. Additionally, dedicated monitor outputs for loudspeaker connector output voltage enables real time protection system of the loudspeaker. The 400A2 is designed for high output power, making it ideal for applications requiring sustained output power and high output voltage not only for home hi-fi, but also for demanding studio monitor and high performance amplifier for PRO audio speakers as well. The integrated aluminum heatsink can easily be extended to external heatsink for improved long term output power.



    The similar sized 300A2 offers less output power, but works from the DC hanger bus of the 1200AS1 or 1200AS2

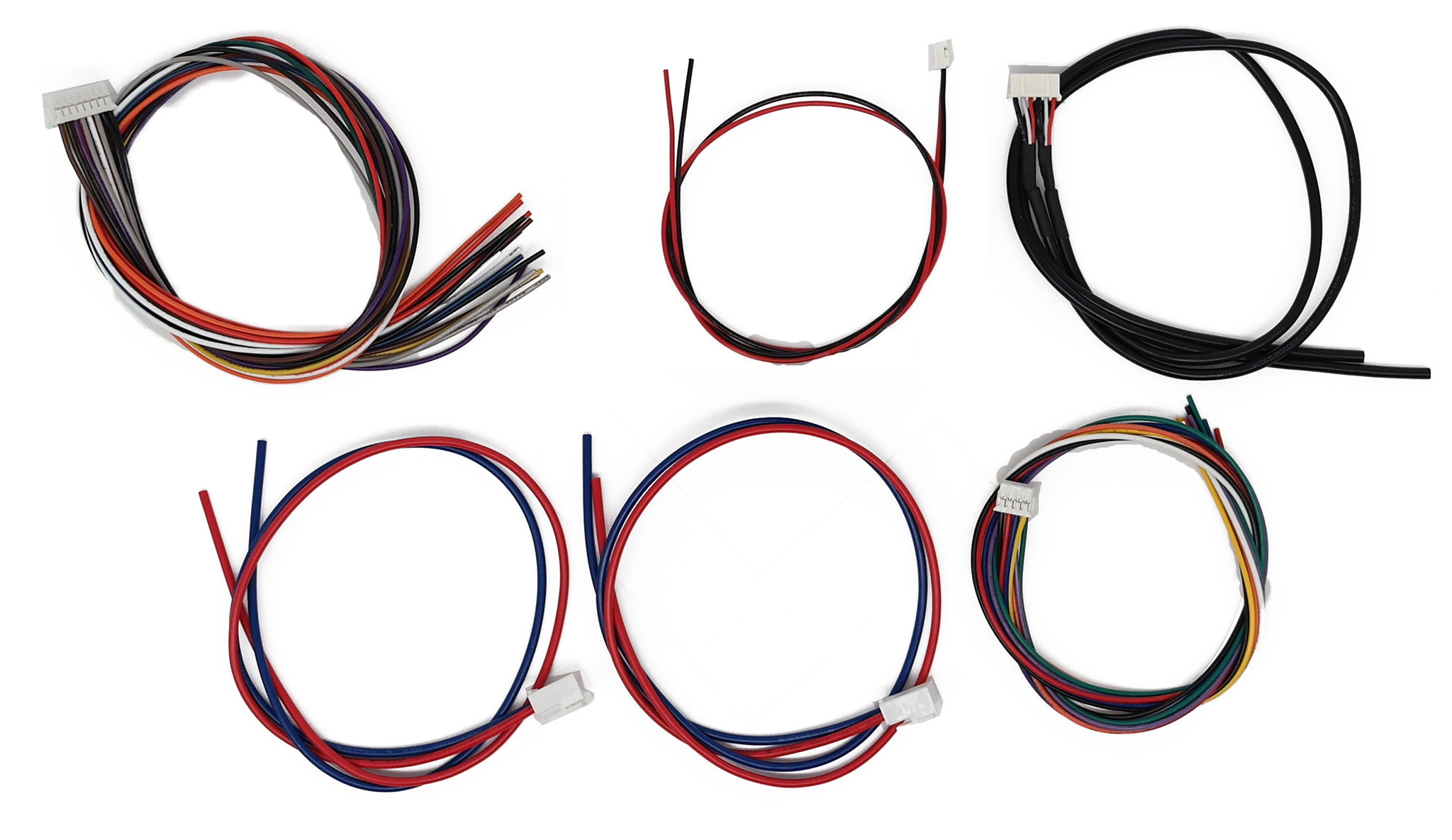

    Cable set

    The included cable set gives acces to all the features of the 400A2 module. The kit contains cables with all the right connectors on one end. The other ends are left unterminated so you can terminate the wires with the connections of your choice.

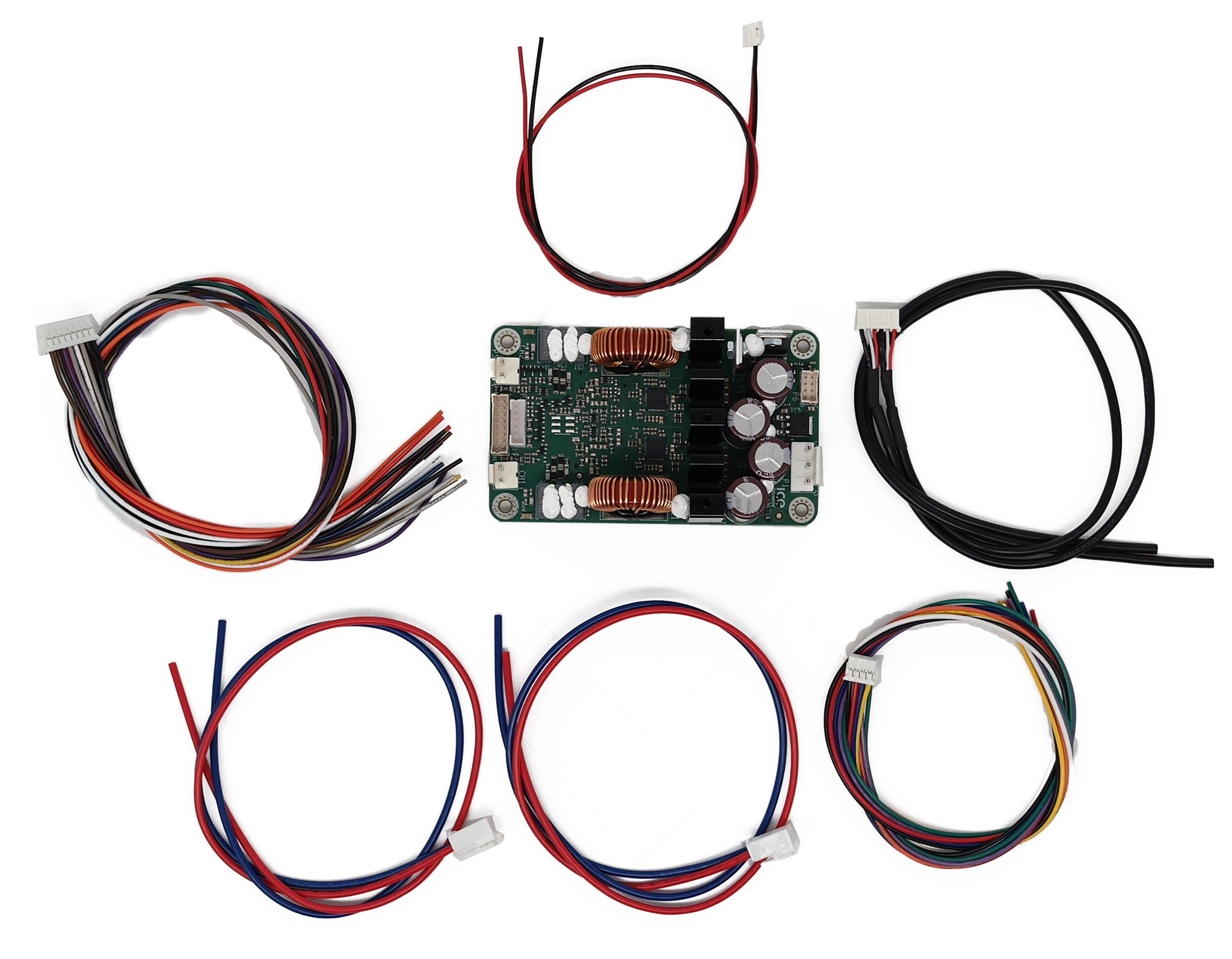

    What’s In The Box?

    • 1 x 400A2 amplifier module
    • Cable set:
      • 1 x (NA) Audio input 2 channel
      • 1 x (NH) Hanger Small Signal Supply
      • 2 x (F) 2pole Universal Speaker
      • 1 x (NK) Basic+ control/features (16 pins)
      • 1 x (NG) Hanger Rail Supply

    Specificaties

    Artikelnummer
    400A2
    Nominaal vermogen
    400 watts at SE, 4 ohms
    800 watts at BTL 8 ohms
    Minimale belasting
    3.5 Ohm
    Efficiëntie
    > 90%
    Vervorming
    0.003 % THD+N
    Versterkingsfactor
    29.4 dB
    Ingangsimpedantie
    38 kOhm
    Amplifier Classification
    Class D
    Uitgangskanalen
    2
    Stroomlimiet
    20 A

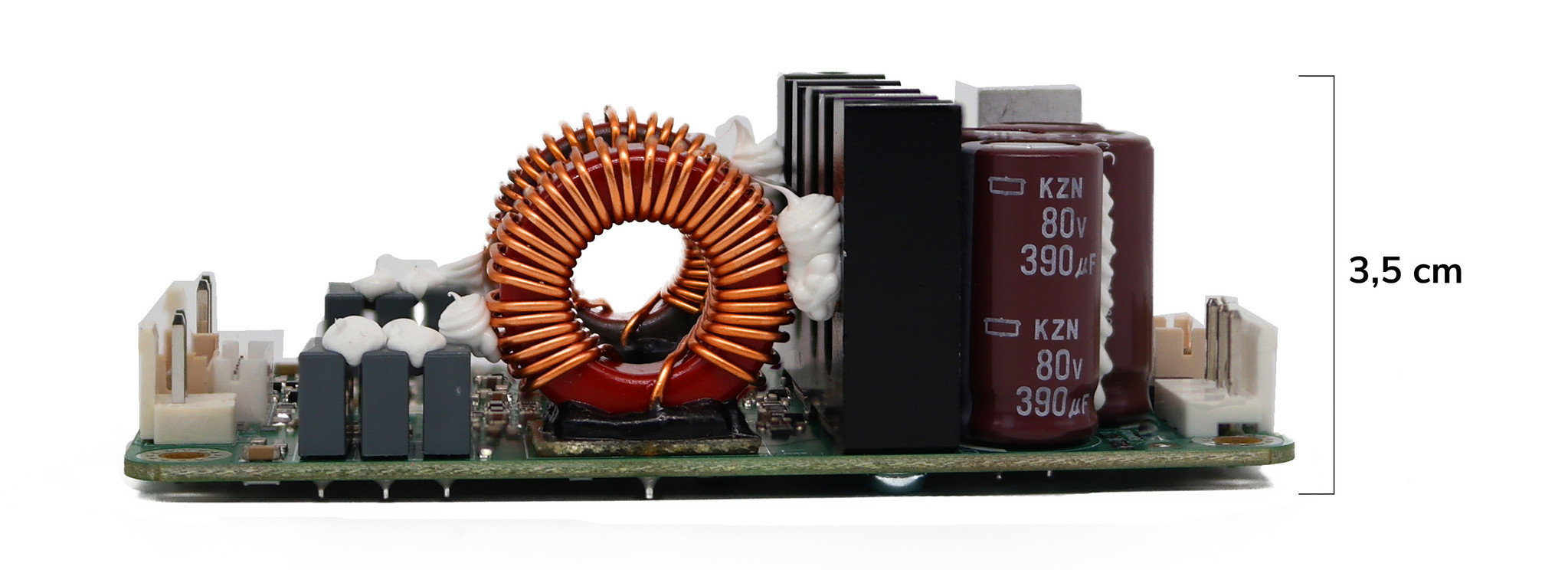

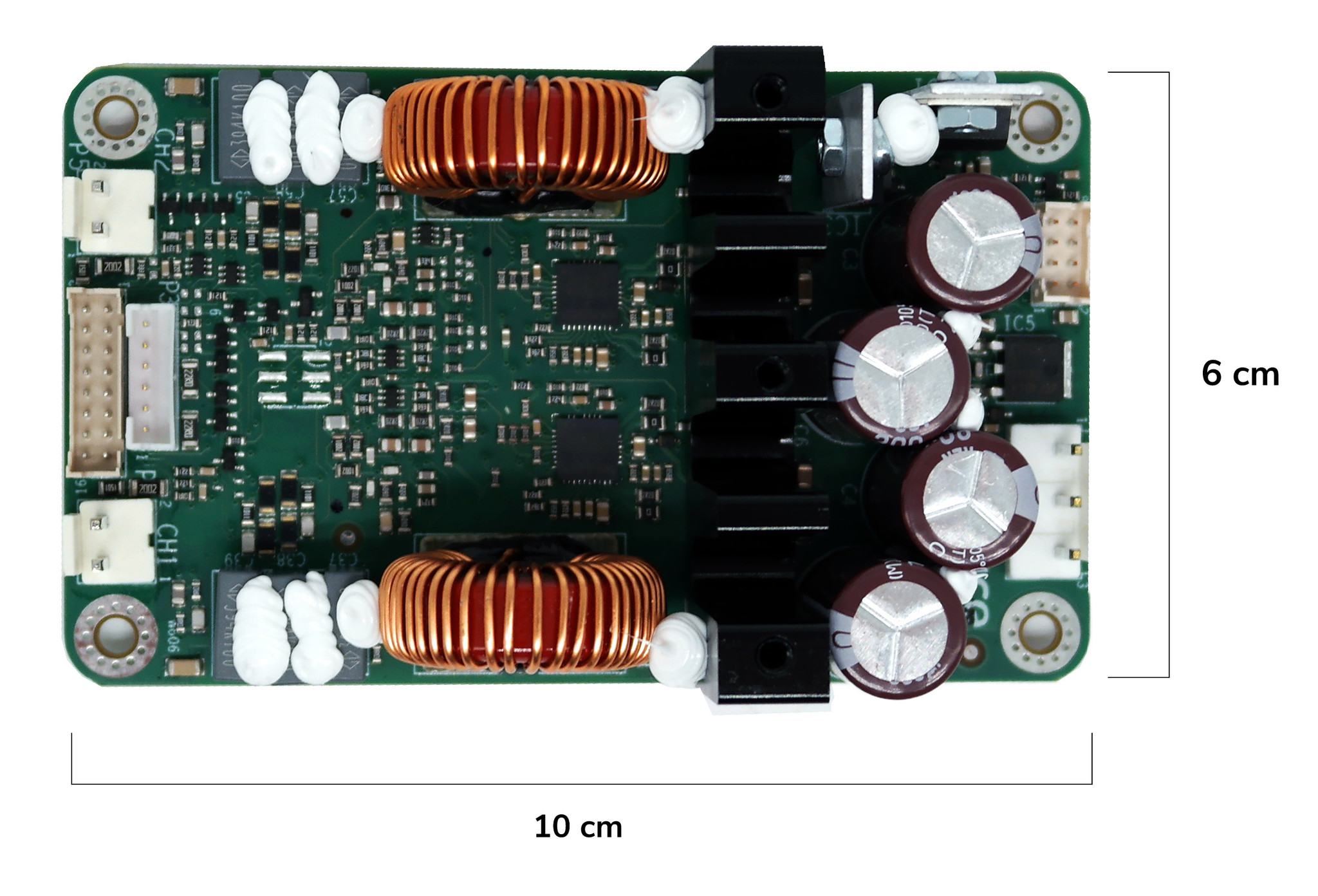

    Afmetingen (L x B x H)
    100 � 60 � 35 mm
    Diameter bevestigingsgaten
    3.5 mm
