      ICEpower 1200AS1 versterkermodule met Integrated Universal voeding

      € 289,21€ 349,95 10 Op voorraad
      • -5% Bestelling 4 voor slechts € 332,45 per stuk

      Buy now, pay later

      • Gratis verzonden (NL & BE)
      • Voor 16u besteld, vandaag verstuurd
      • In-house technische support
      • 45 dagen zorgeloos retourneren
      Zakelijke offerteaanvraag
      Heeft u vragen over dit product?

      Heeft u vragen over dit product?

      Onze klantenservice helpt u graag verder!

      Productomschrijving

      Highlights

      • Fully integrated, one channel amplifier and power supply
      • Minimum load impedance at 2.7 Ohm
      • Comprehensive monitoring and protection
      • Real-time voltage and current monitor outputs
      • Audio signal and logic triggers
      • Auxiliary power supply output
      • Standby-mode
      • Universal mains with active Power Factor Correction
      • Simple but flexible mechanical mounting



      Product details

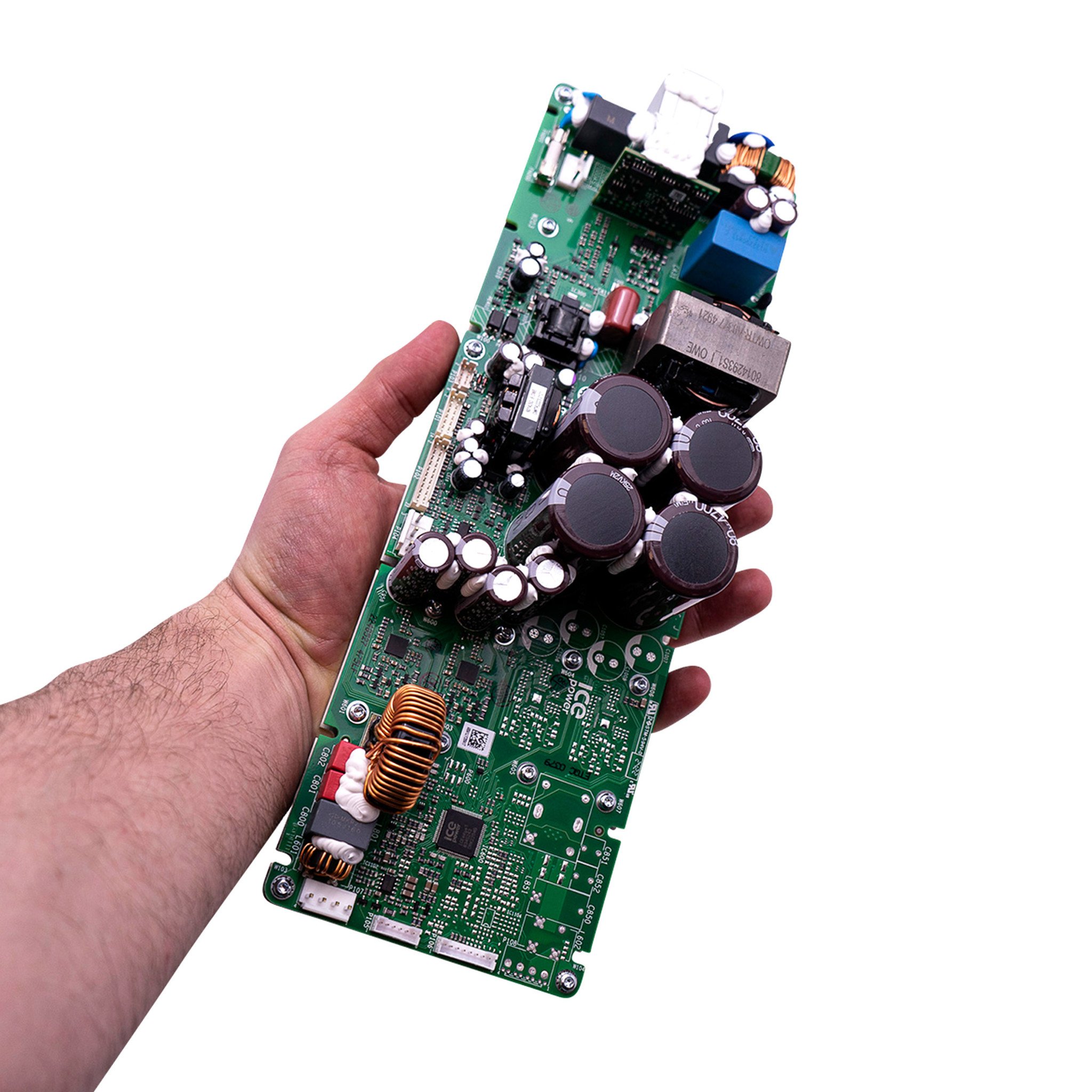

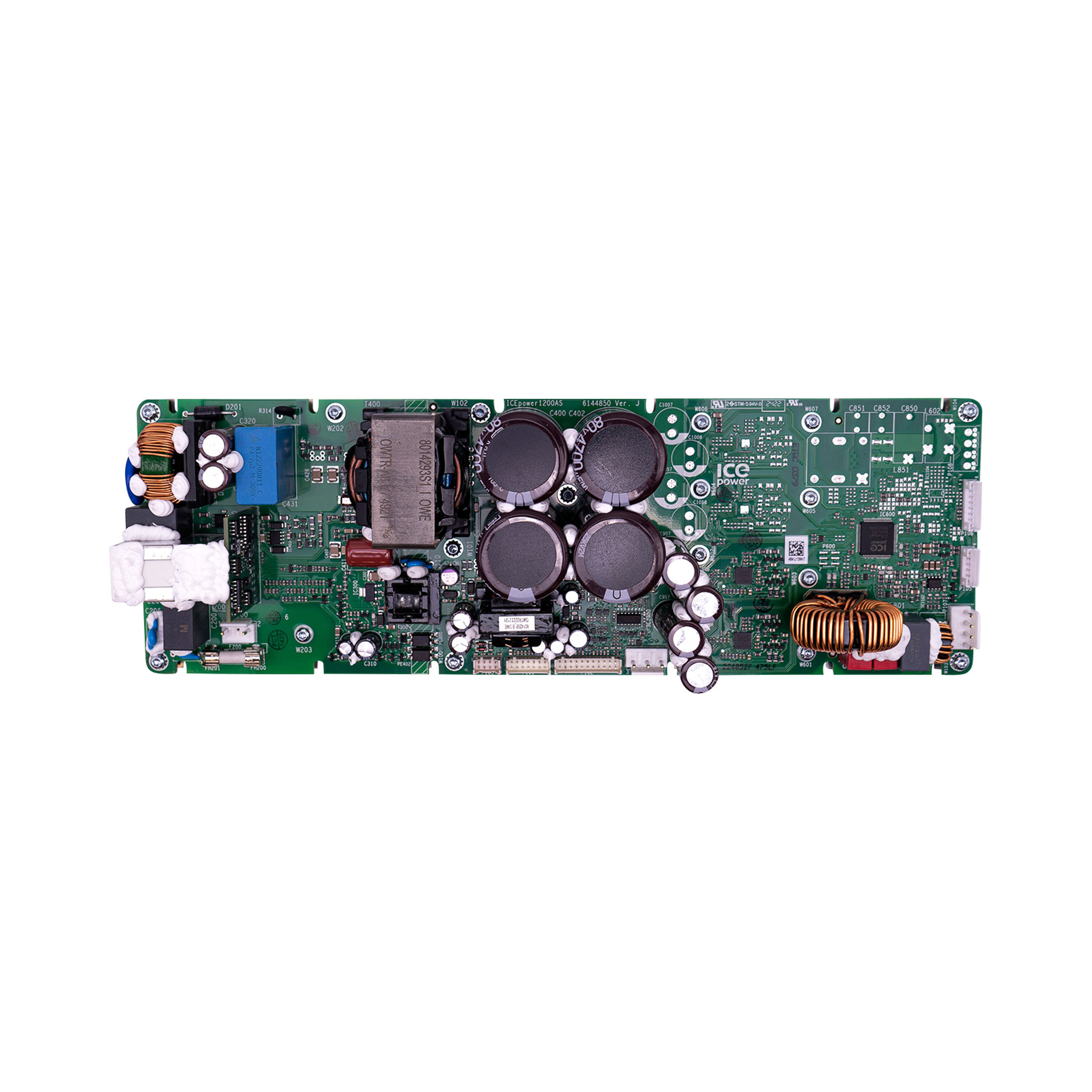

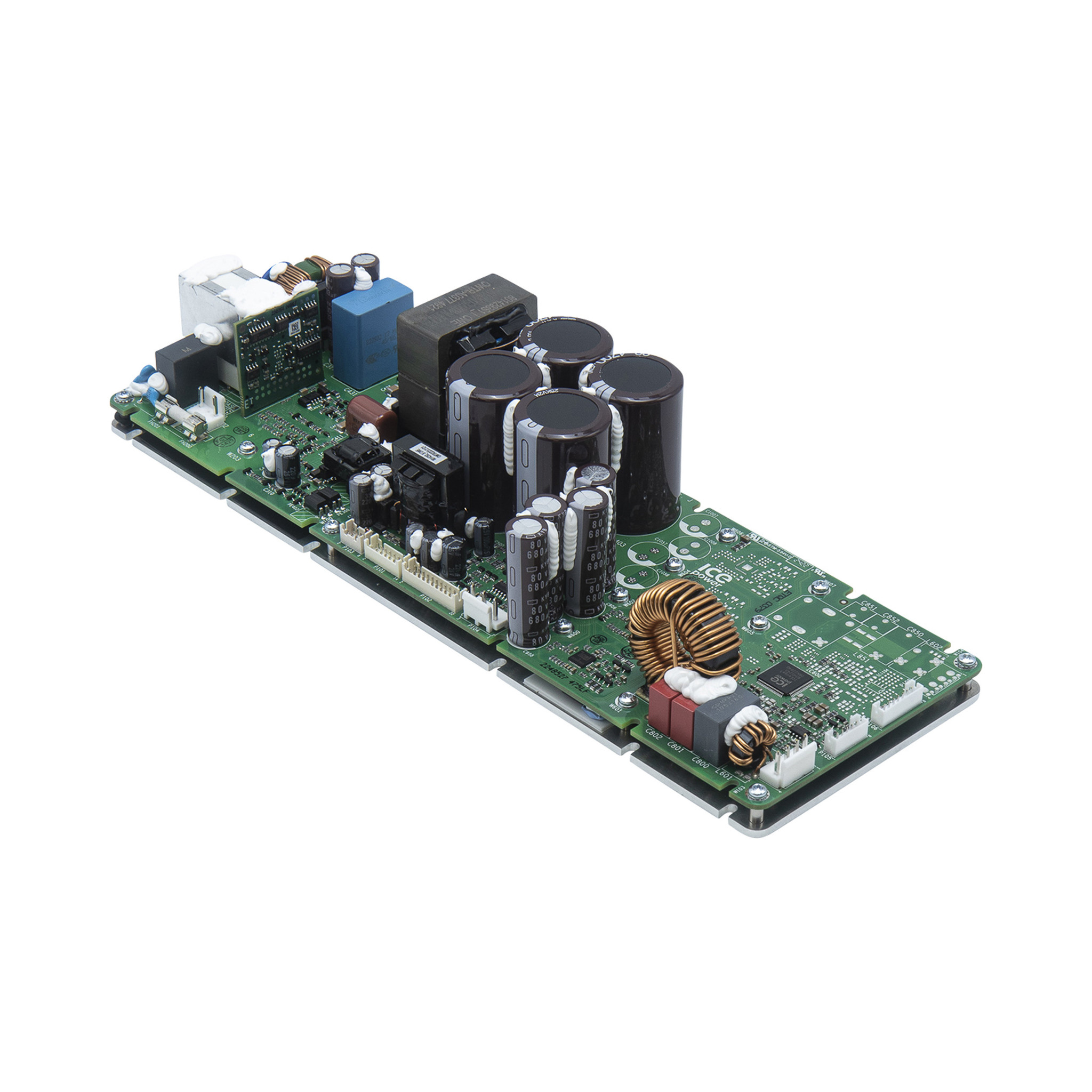

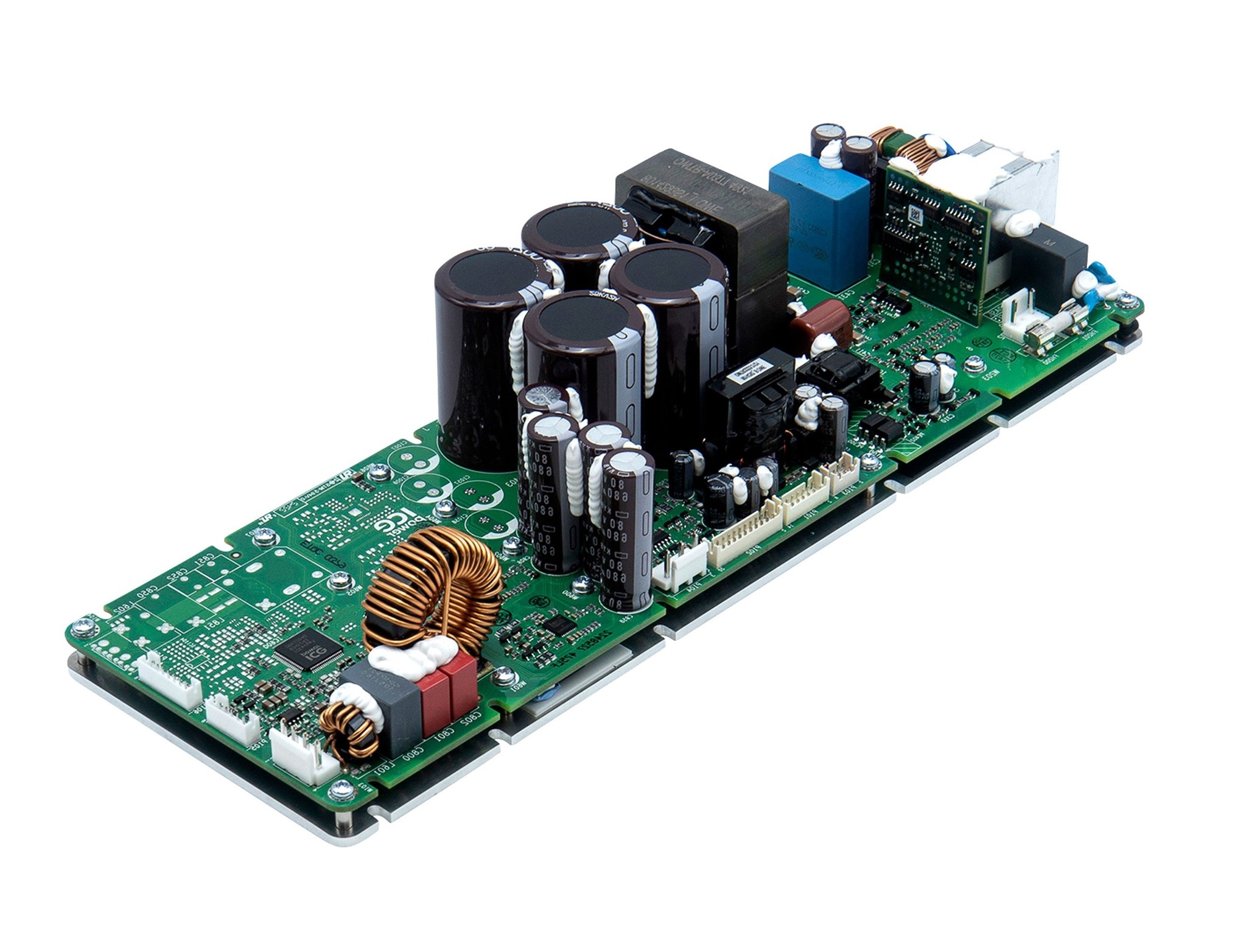

      ICEpower 1200AS1 Amplifier Module with Integrated Universal Mains Power Supply



      The ICEpower 1200AS1 combines a high-performance 1200 watt ICEedge based class D amplifier with an integrated mains power supply. Besides being the most powerful integrated solution, this is also the most convenient solution for extreme audio power and performance from all amplifier modules available at SoundImports.



      The DC hanger bus is suitable for powering the 400A2 amplifier modules. Perfect for professional subwoofers, 2-way and 2.1 speakers as well as high-end consumer products such as subwoofers or monoblock power amplifiers.



      The ICEpower 1200AS family uses an universal mains ErP and Energy Star compliant power supply and provides comprehensive protection and monitoring functions. All accessible through an easy-to-use control interface. Additionally, dedicated monitor outputs for speaker connector output voltage and current enable real-time protection system of the loudspeaker. The integrated aluminum base plate on the 1200AS acts as both cooling and mechanical interface. This enables easy mechanical integration and extra cooling can be added. This ICEpower 1200AS1 is a one-channel module. Check out the ICEpower 1200AS2 for a two-channel module.

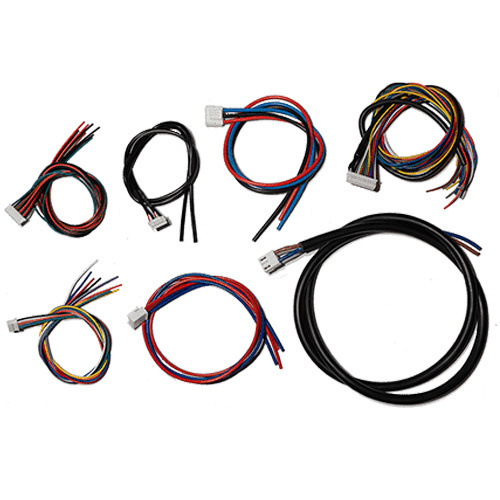

      Cable set

      The included cable set gives access to all the functions of the 1200AS1 module. The leads are left unterminated so that it is possible to terminate the wires with the connections of your choice.



      What’s In The Box?

      • 1 x 1200AS1 Amplifier Module with Integrated Universal Mains Power Supply
      • Cable set:
        • 1 x (K) Mains without Earth
        • 1 x (G) Speaker 1200AS
        • 1 x (NC) Basic control/features
        • 1 x (ND) Signal
        • 1 x (NE) Voltage and Current Monitor 2 channel
        • 1 X (NA) Audio input 2 channel
        • 1 x (NG) Hanger Rail Supply
        • 1 x (NH) Hanger Small Signal Supply

      Toon meer

      Specificaties

      Artikelnummer
      1200AS1
      Nominaal vermogen
      1200 watts at 4 ohms
      600 watts at 8 ohms
      Minimale belasting
      2.7 Ohm
      Efficiëntie
      80%
      Vervorming
      0.005 % THD+N
      Versterkingsfactor
      25.8 dB
      Ingangsimpedantie
      38 kOhm
      Amplifier Classification
      Class D
      Uitgangskanalen
      1
      Stroomlimiet
      38 A
      Afmetingen (L x B x H)
      300 x 100 x 63 mm
      Diameter bevestigingsgaten
      3.5 mm

      Toon meer

      Reviews

      5 from 5Based on 1 reviews
      Schrijf een review
      5 van 5
      satisfactory service, the goods are very good as expected. for the next order please write the destination address in full, thank you
      Door Khusnul Rofiq on 24 November 2022
      1200AS1 versterkermodule met Integrated Universal voeding
