    Sure Electronics AA-AB34181 6x100W TDA7498 Class-D Amplifier Board

    € 92,45 9 Op voorraad: levertijd 1 werkdag
    This amplifier board uses three Class-D TDA7498s to generate up to 100W x 6-channels, making it the perfect 5.1 amplifier solution.... Toon meer
    Volume voordeel Geniet van deze geweldige kortingsdeals
    • -5% Bestel 4 voor slechts €87,83 per stuk
    • Verzending altijd verzekerd en met track & trace
    • Voor 16u besteld, vandaag verstuurd*
    • Gratis verzending vanaf €99
    • In-house technische support

    Productomschrijving

    This amplifier board uses three Class-D TDA7498s to generate up to 100W x 6-channels, making it the perfect 5.1 amplifier solution.



    Highlights

    • 6 x 100W Class-D amplifier
    • Small footprint for space limited applications
    • Perfect amplifier board for DIY 5.1 amplification
    • Built-in cooling fan and over-temp protection circuit
    • 14 to 39 VDC power supply required



    Product details

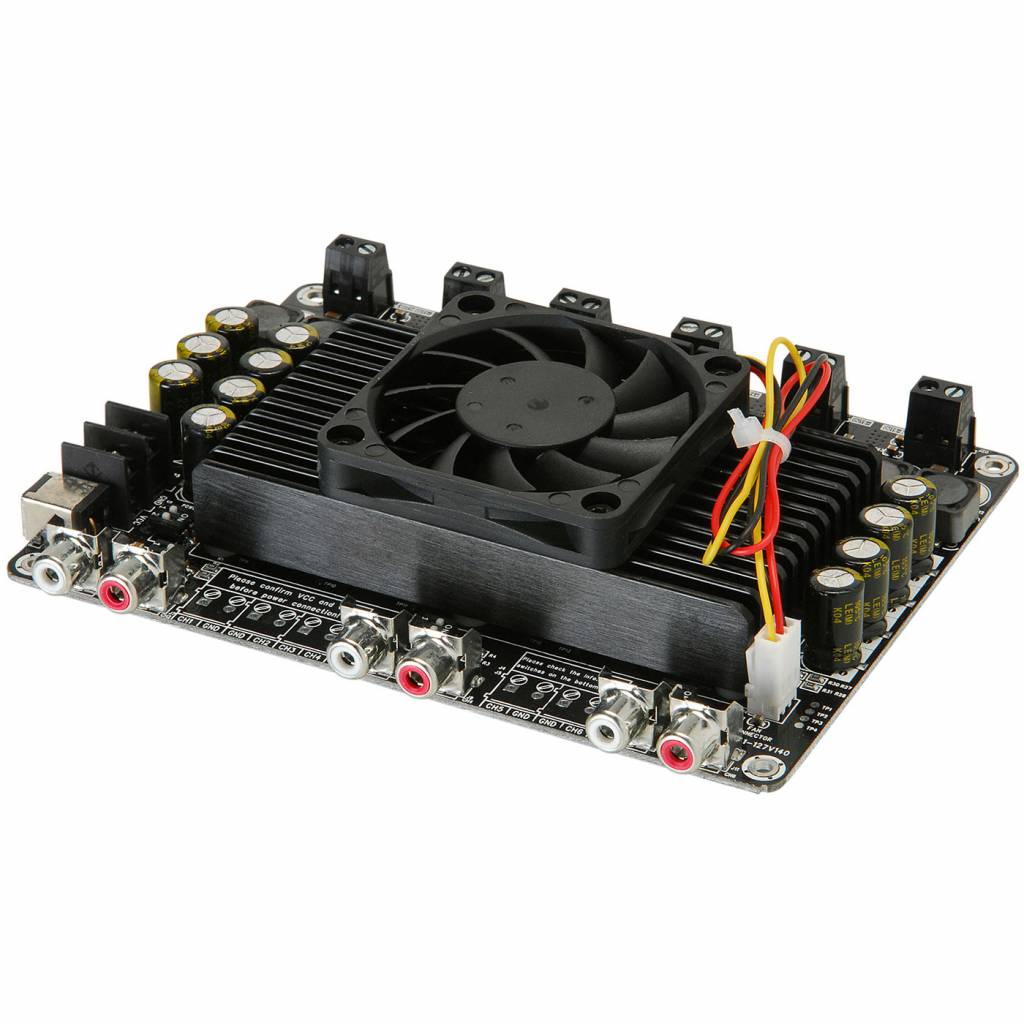

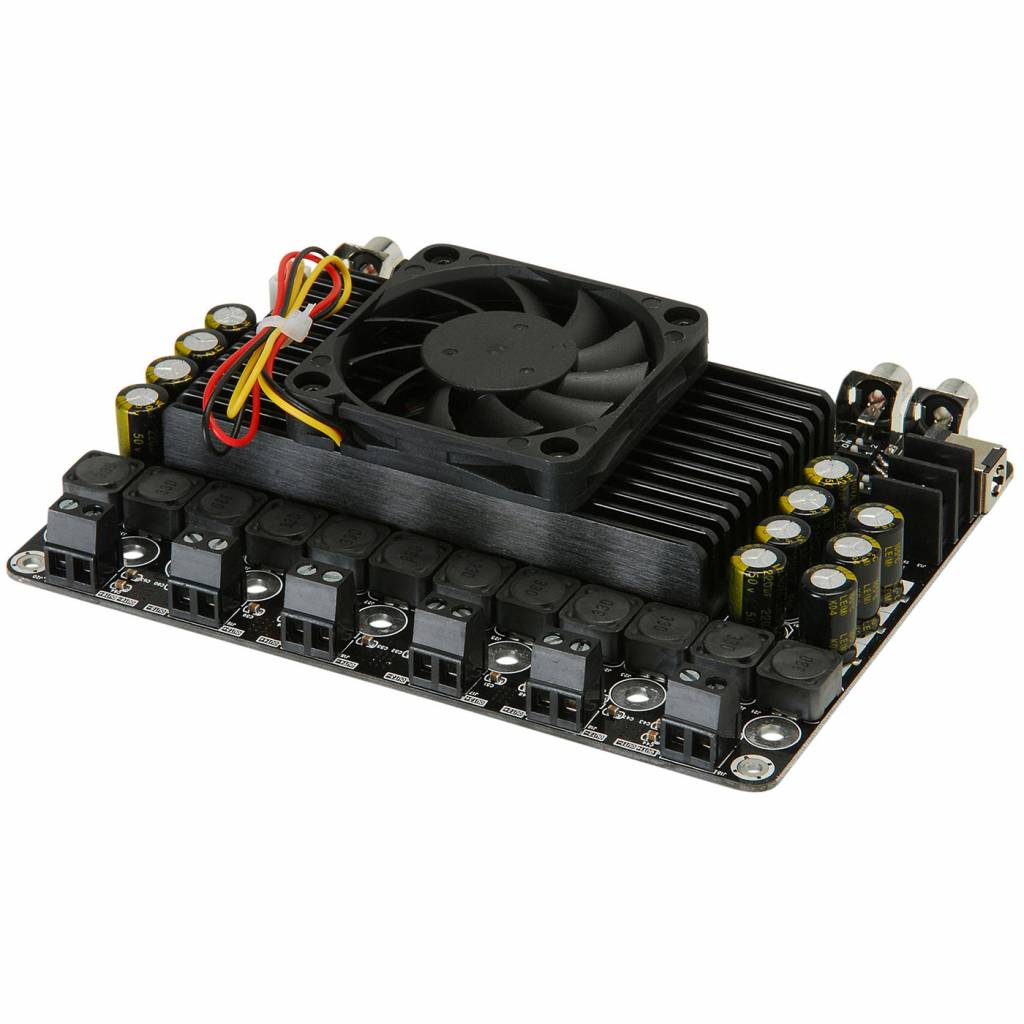

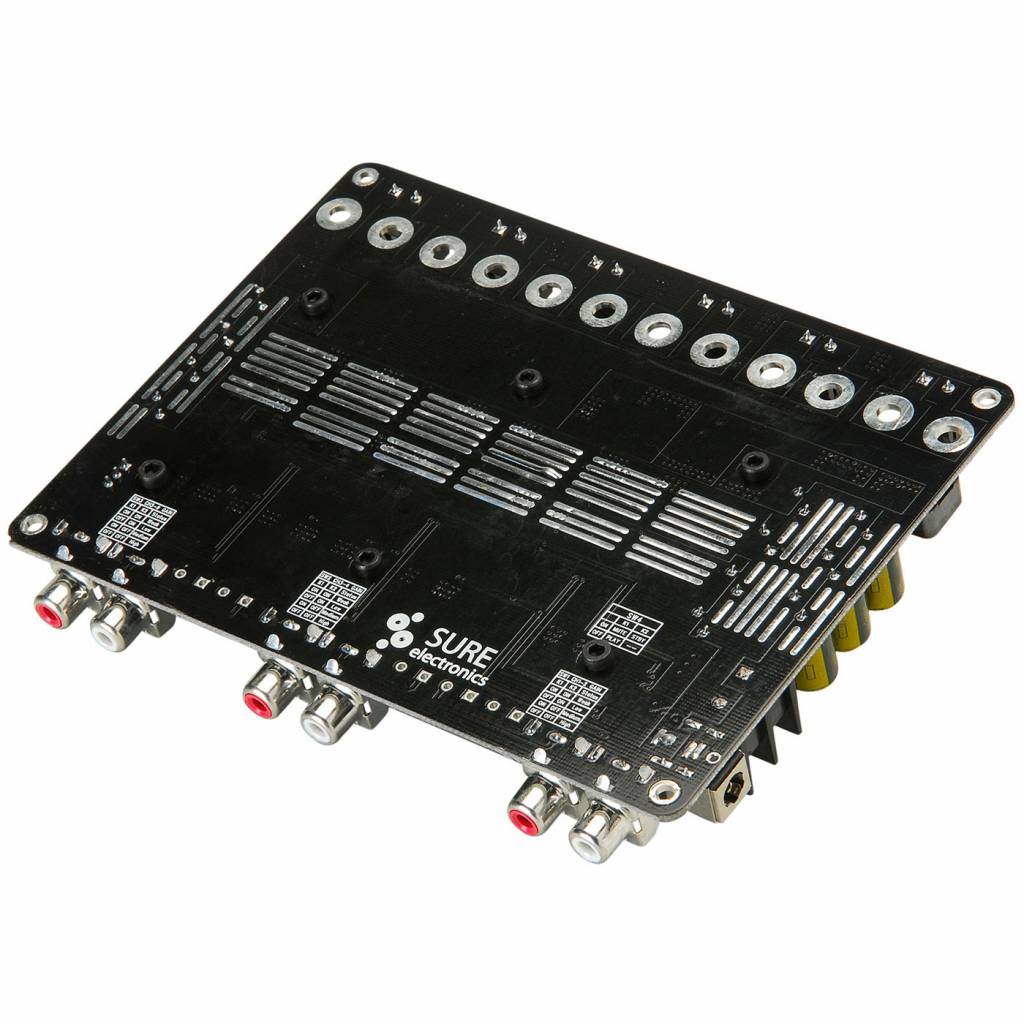

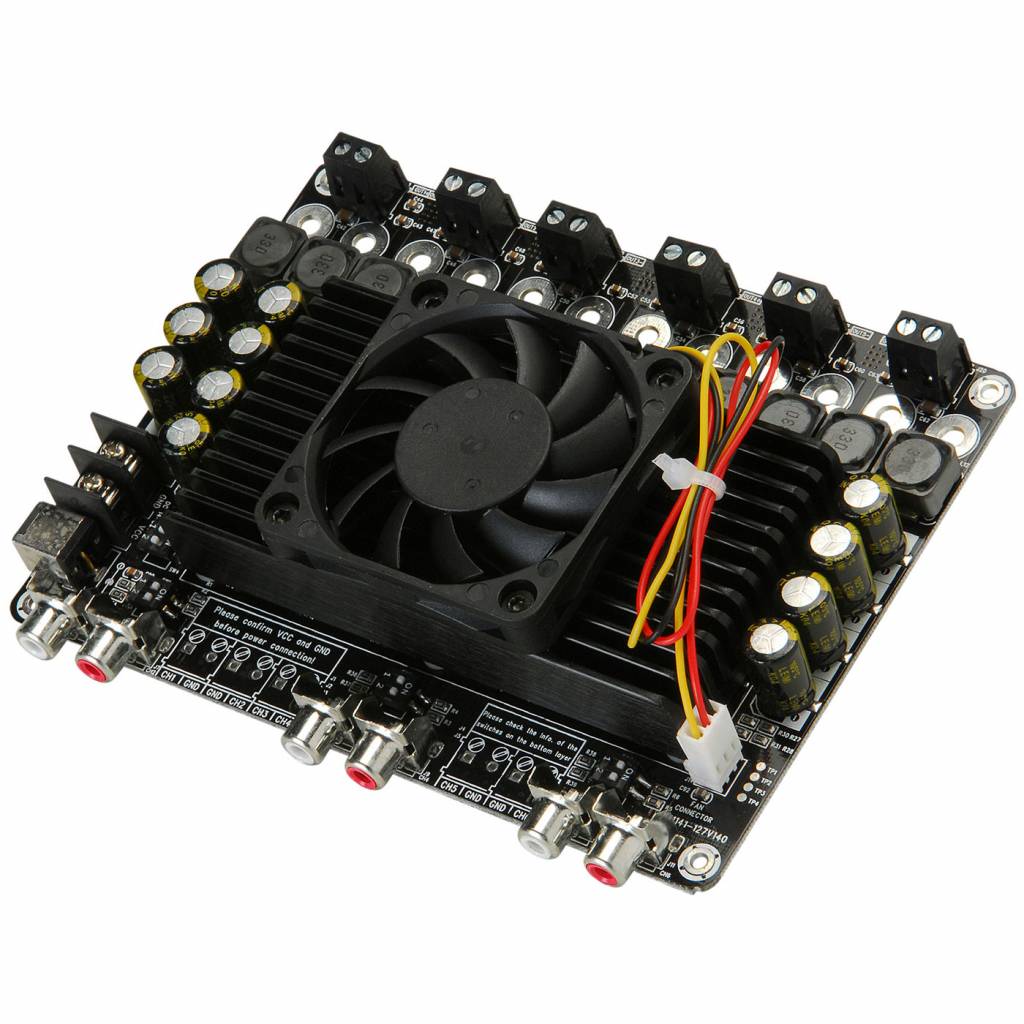

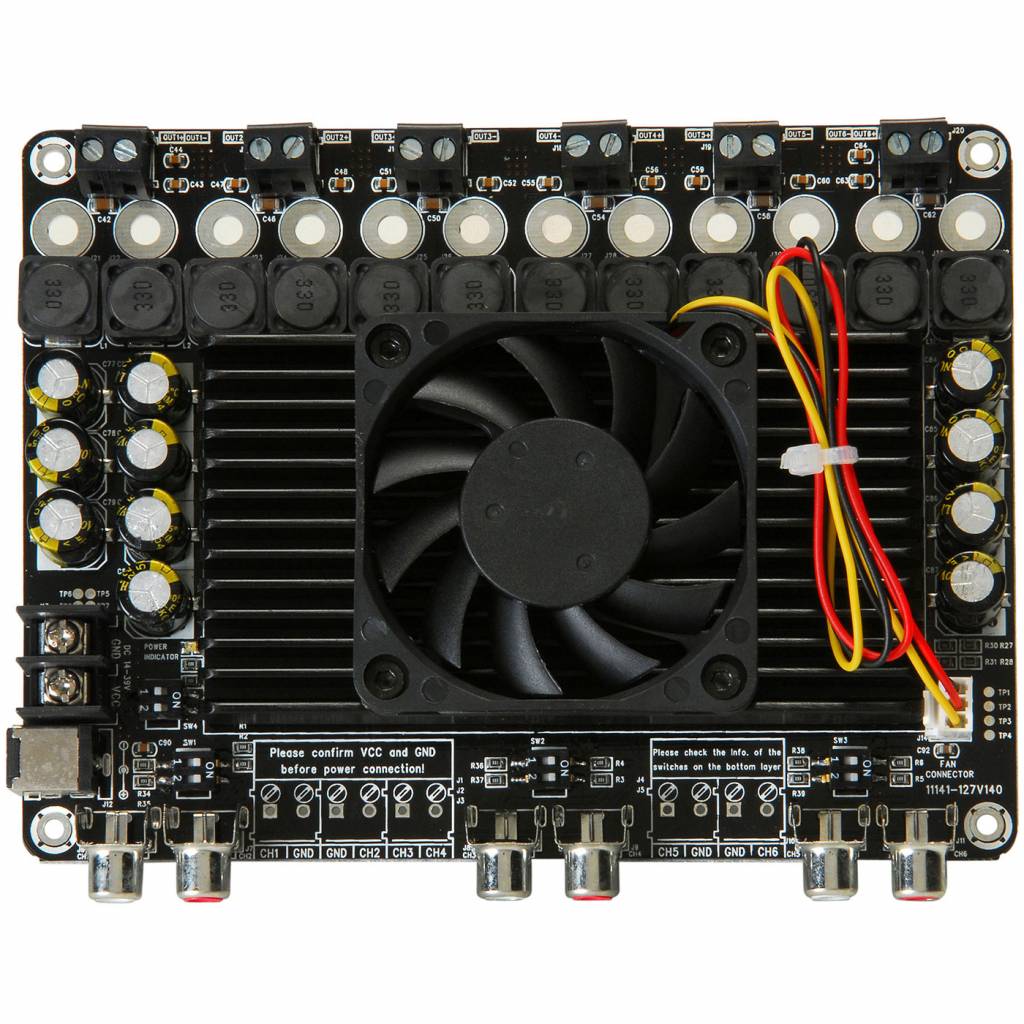

    Sure Electronics AA-AB34181 6x100W TDA7498 Class-D Amplifier Board

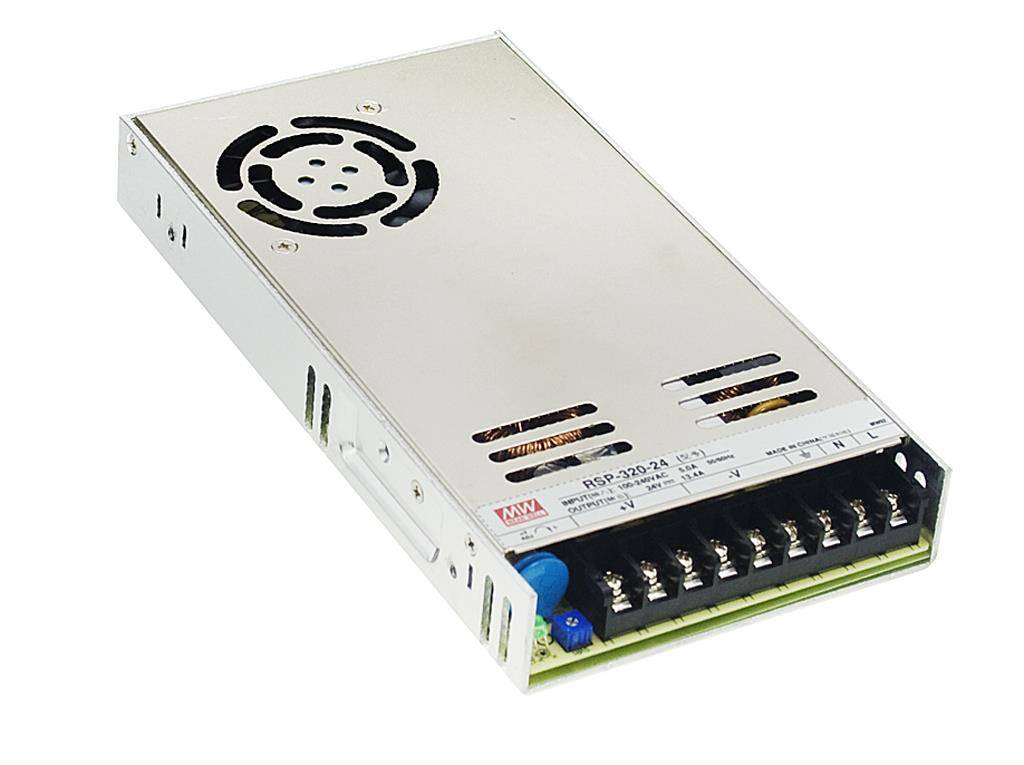

    Tip:  Take a look at the table in this blogpost to see which power supply to choose for this product.



    Build your own high-power 5.1 amplifier with this 6-channel amplifier board. Three Class-D TDA7498s are used for extreme efficiency. The small 3.6" wide by 4.8" long footprint allows this amplifier board to be used in many applications were size constraints limit the use of conventional amplifiers. Additionally, separate inputs and outputs make this amplifier board perfect for tri-amplifier use. Just add a 14 to 39 VDC power supply, signal source, and speakers!



    A low noise cooling fan is mounted atop the robust heatsink to maximize heat dissipation. Thermal, over/under voltage, and current protection circuits are also included to extend the longevity of the amplifier board. Four fixed gain settings are available to allow for volume control at the source, and dual stereo RCA line-level inputs are pre-attached. Mounting holes are provided as is a 2.1 mm x 5.5 mm power jack for quick connection. Screw-down phoenix-type terminals are included for quick speaker wire connection.



    Features:
    • Three Class-D TDA7498 amplifier ICs
    • Heatsink with attached fan
    • Pre-drilled mounting holes
    • Over-temperature, over/under voltage, and over current protection circuits
    • Phoenix-type speaker terminals
    • Six line-level RCA inputs

    Specificaties

    Artikelnummer
    AA-AB34181
    Rated power output
    6 x 100 watts at 6 ohms
    Minimum load
    6 ohms
    Efficiency
    90 - 95 %
    Signal-to-noise ratio (SNR)
    94.4 dB
    Distortion
    <p>0.053 % THD at 1 kHz, 6 ohms, 1 watt<br />0.0938 % THD at 1 kHz, 6 ohms, 10 watts</p>
    Frequency response
    20 - 20,000 Hz
    Gain
    25.6 - 37.6 dB (switchable)
    Input sensitivity
    1.271 V
    Input impedance
    33k ohms
    Amplifier Classification
    Class D
    Circuit Topology
    STMicroelectronics TDA7498
    Speaker output channels
    6
    Input connection type
    <p>RCA<br />PCB solder connection</p>
    Speaker output connection type
    <p>Screw terminals<br />PCB solder connection</p>
    DSP function
    -
    Bluetooth
    -
    EQ Adjustment
    -
    Power Requirements
    14 - 36 VDC
    Power inlet connector
    <p>DC jack (5.5 mm)<br />screw terminals</p>
    Current limit
    18.1 A
    Under/over voltage protection
    -
    Dimensions (L x W x H)
    152.4 x 101.6 x 38.9 mm
    Mounting hole spacing
    -
    Mounting hole diameter
    3.8 mm

    Reviews

    4 from 5Based on 2 reviews
    Schrijf een review
    5 van 5
    Hervorragend - ganz leichtes ,absolut
    tolerables Rauschen , zur Verbes-serung Stützelkos (20000 myF) in der Stromversorgung und zusätzliches LC Siebglied an den Ausgängen . In den
    Stromzuleitungen auf hohe Quer-schnitte achten !
    Door Kurt-Michael N. on 22 Maart 2021
    3 van 5
    -
    Door H.R.J. G. on 30 Oktober 2017
