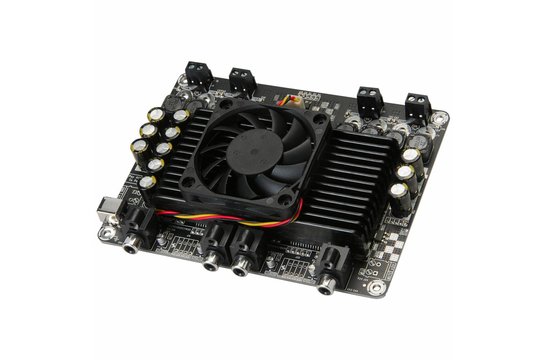

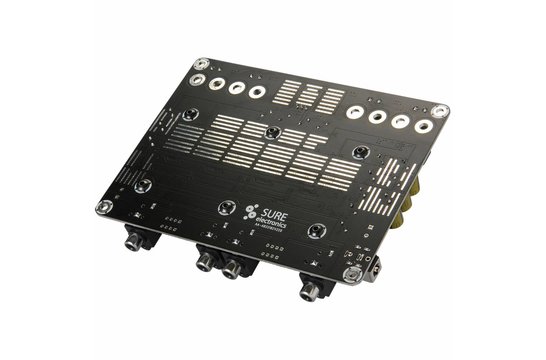

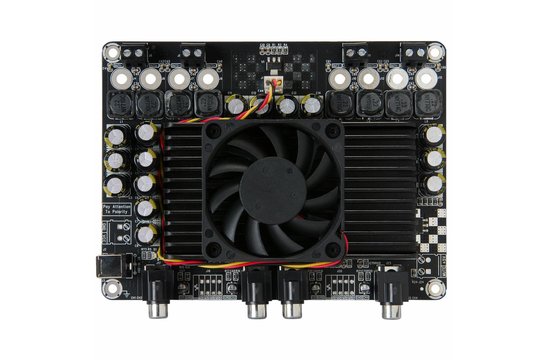

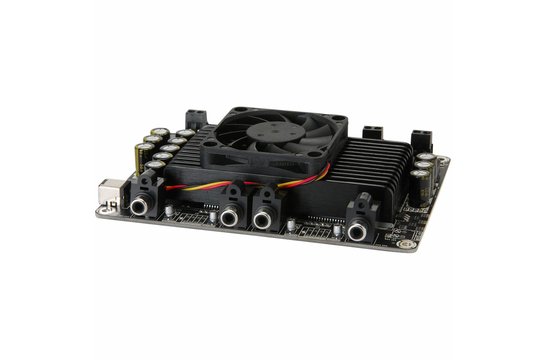

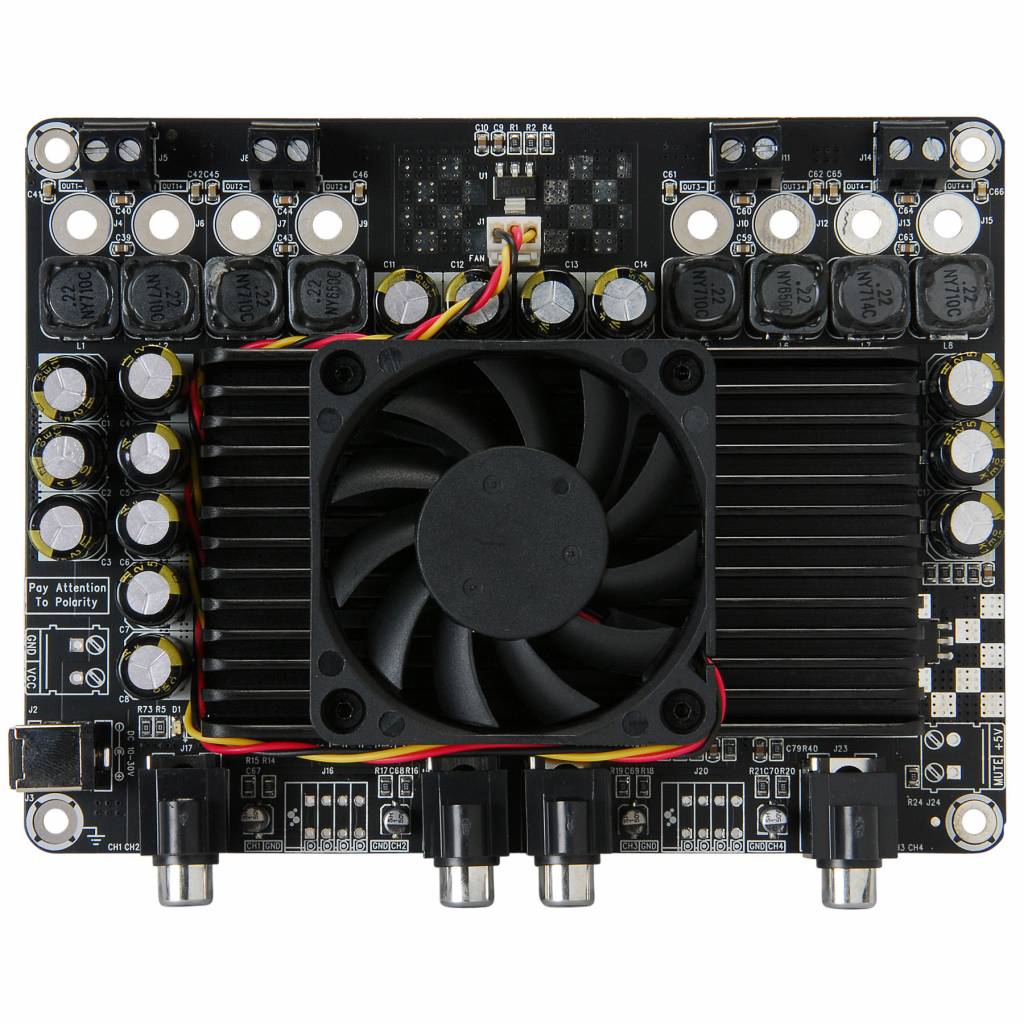

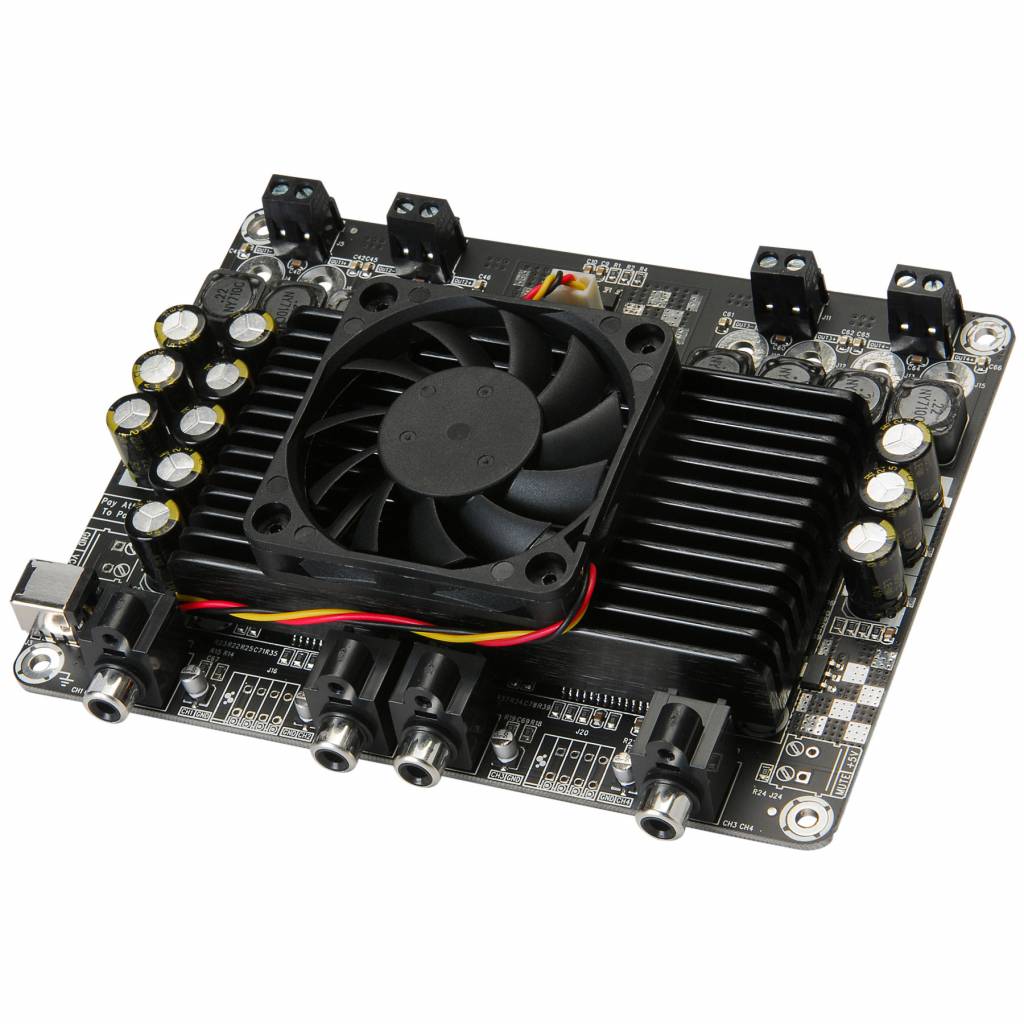

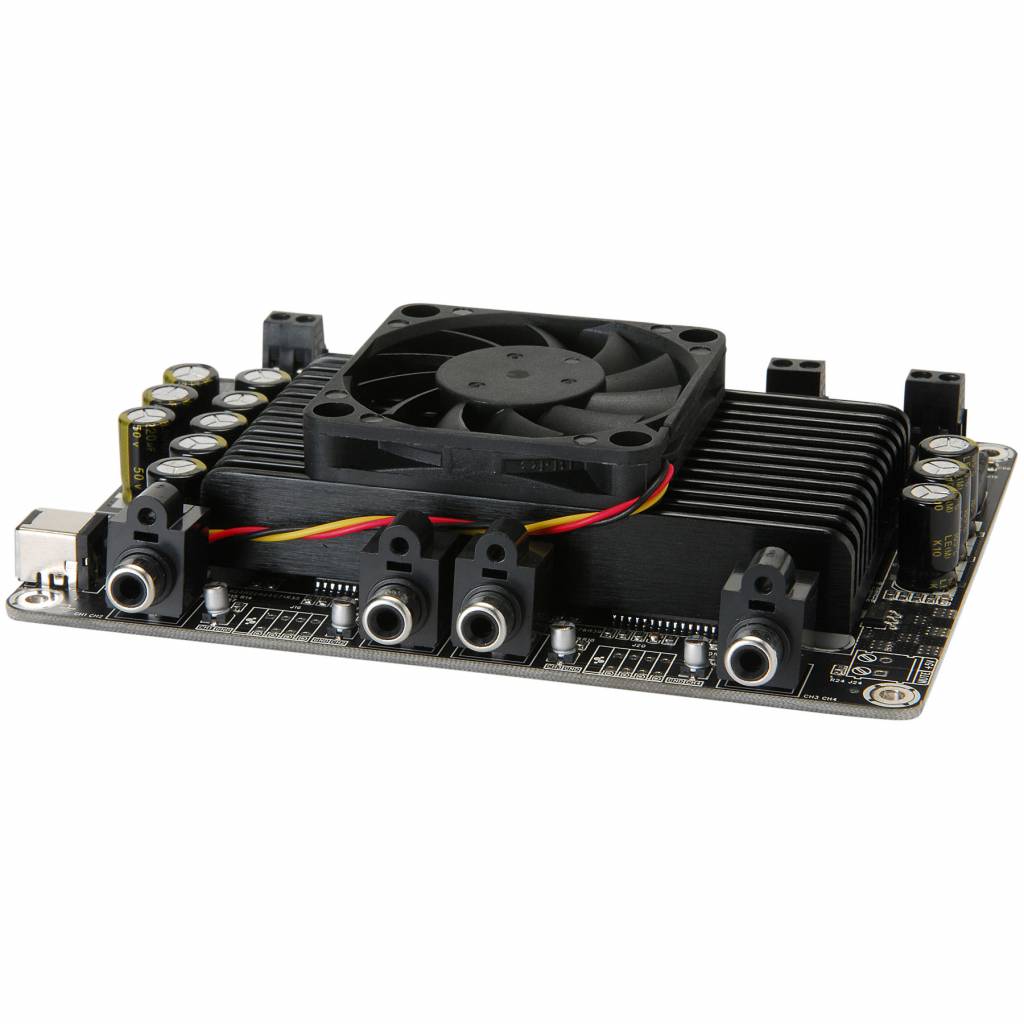

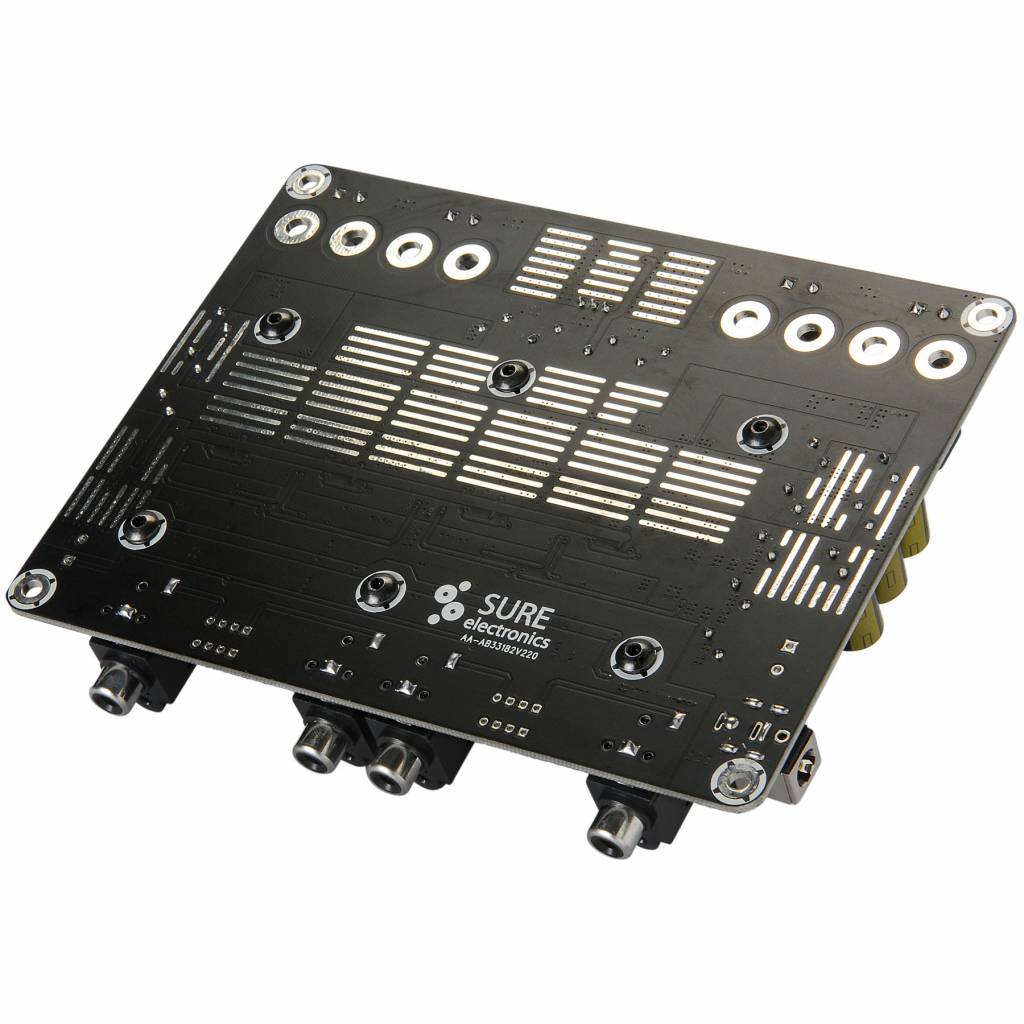

    Sure Electronics AA-AB33182 4x100W at 4 Ohm Class D Audio Amplifier Board STA508 (TK2050)

    € 69,95 >10 Op voorraad: levertijd 1 werkdag
    This Class-D audio amplifier board simplifies the creation of exceptional sounding custom multi-channel systems. It has perfect class-T architecture and is integrated with a high performance STA508 chip supporting dual channel audio amplification.... Toon meer
    Volume voordeel Geniet van deze geweldige kortingsdeals
    • -5% Bestel 4 voor slechts €66,45 per stuk
    • Verzending altijd verzekerd en met track & trace
    • Voor 16u besteld, vandaag verstuurd*
    • Gratis verzending vanaf €99
    • In-house technische support

    Productomschrijving

    This Class-D audio amplifier board simplifies the creation of exceptional sounding custom multi-channel systems. It has perfect class-T architecture and is integrated with a high performance STA508 chip supporting dual channel audio amplification.



    Highlights

    • Audiophile quality sound using class-T architecture
    • Four channels -- each up to 100W
    • Pre-assembled, pre-tested
    • Ample heat sink with cooling fan
    • Up to 90% efficiency



    Product details

    Sure Electronics AA-AB33182 4x100W at 4 Ohm Class D Audio Amplifier Board STA508 (TK2050)

    Tip:  Take a look at the table in this blogpost to see which power supply to choose for this product.



    This class-D board uses class-T architecture, with integrated STA508 chip supporting dual channel audio amplification, to create exceptional sounding custom multi-channel systems. Compatible with power supplies ranging from 10V to 30V DC, it can be used in many audio applications. The amplifier has four channels with the same power of up to 100 watts each, resulting in outstanding sound quality and versatility. You can employ any number of channels you like, and leave the others unused.



    This amplifier is exceptionally well designed, with a lot of power reserve, high fidelity, low distortion, good S/N ratio, high sensitivity, and full protection with heatsink and fan. These ideal characteristics make this amplifier a candidate to become the basic building block of your future high fidelity system, or it can become the element that will upgrade an existing system.

    Specificaties

    Artikelnummer
    AA-AB33182
    Rated power output
    4 x 100 watts at 4 ohms
    Minimum load
    4 ohms
    Efficiency
    92 %
    Signal-to-noise ratio (SNR)
    90 dB
    Distortion
    <p>0.03 % THD at 1 kHz, 4 ohms, 1 watt<br />0.09 % THD at 1 kHz, 4 ohms, 10 watts</p>
    Frequency response
    20 - 20,000 Hz
    Gain
    32 dB
    Input sensitivity
    520 mV
    Input impedance
    10k ohms
    Amplifier Classification
    Class D
    Circuit Topology
    STMicroelectronics STA508
    Speaker output channels
    4
    Input connection type
    <p>RCA<br />PCB solder connection</p>
    Speaker output connection type
    <p>Screw terminals<br />PCB solder connection</p>
    DSP function
    -
    Bluetooth
    -
    EQ Adjustment
    -
    Power Requirements
    15 - 27 VDC
    Power inlet connector
    <p>DC jack (5.5/2.5 mm)<br />screw terminals</p>
    Current limit
    16.1 A
    Under/over voltage protection
    -
    Dimensions (L x W x H)
    152.4 x 114.3 x 33 mm
    Mounting hole spacing
    -
    Mounting hole diameter
    3.8 mm
