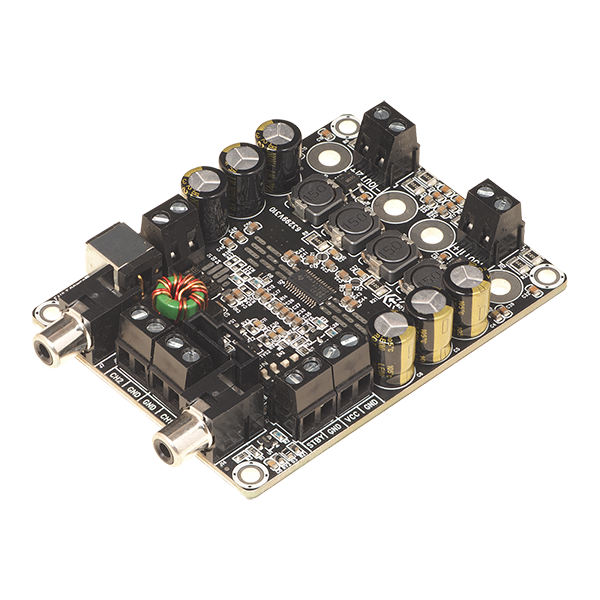

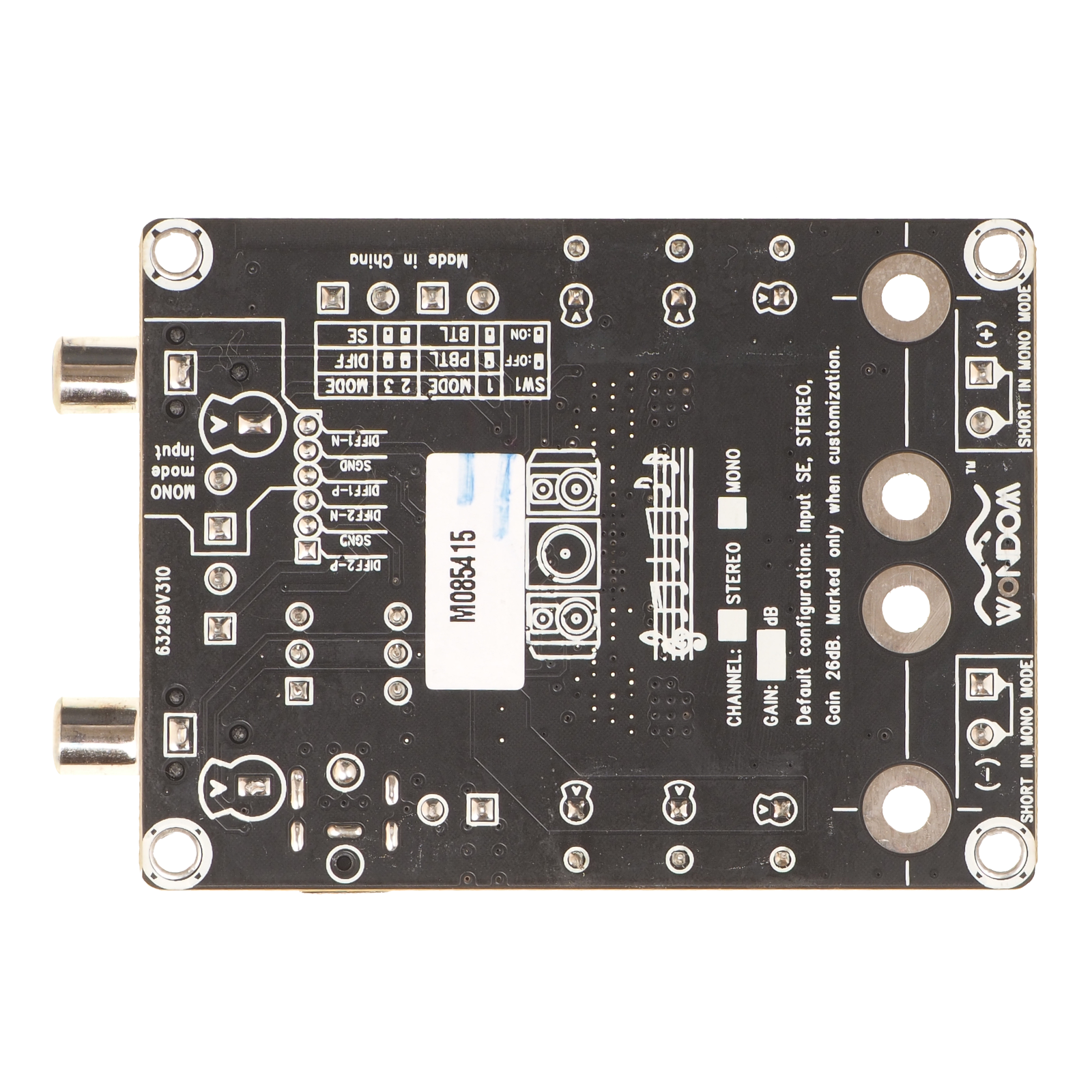

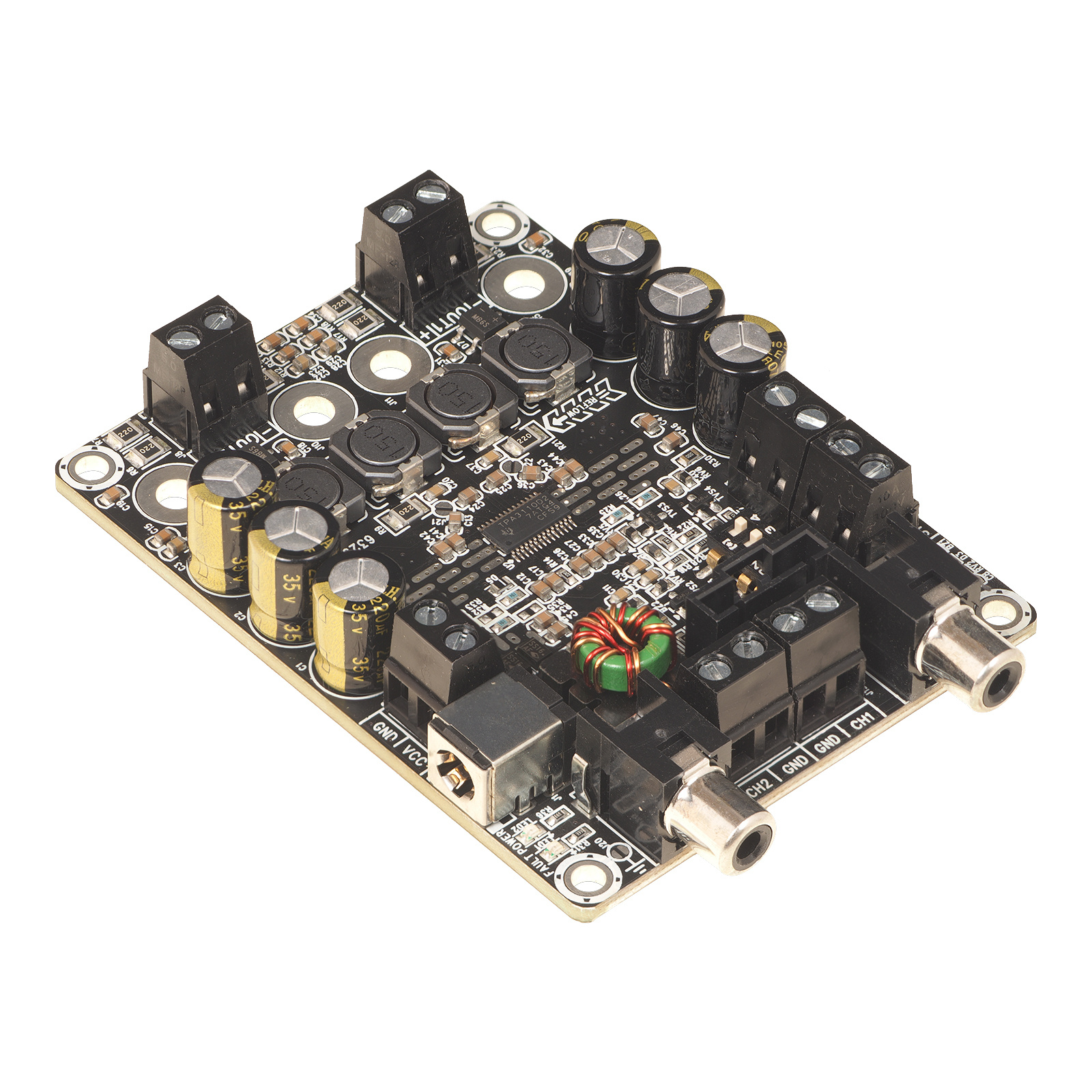

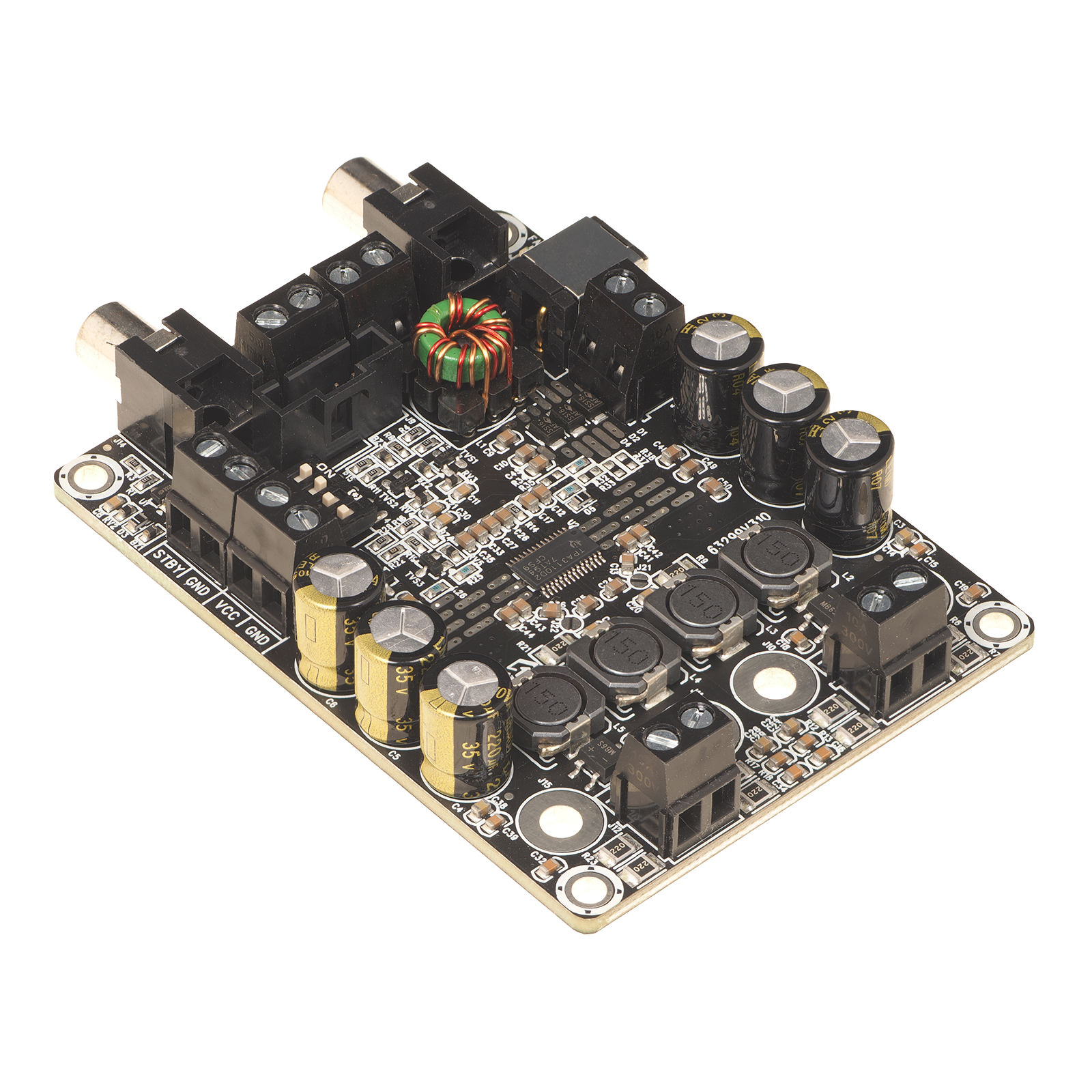

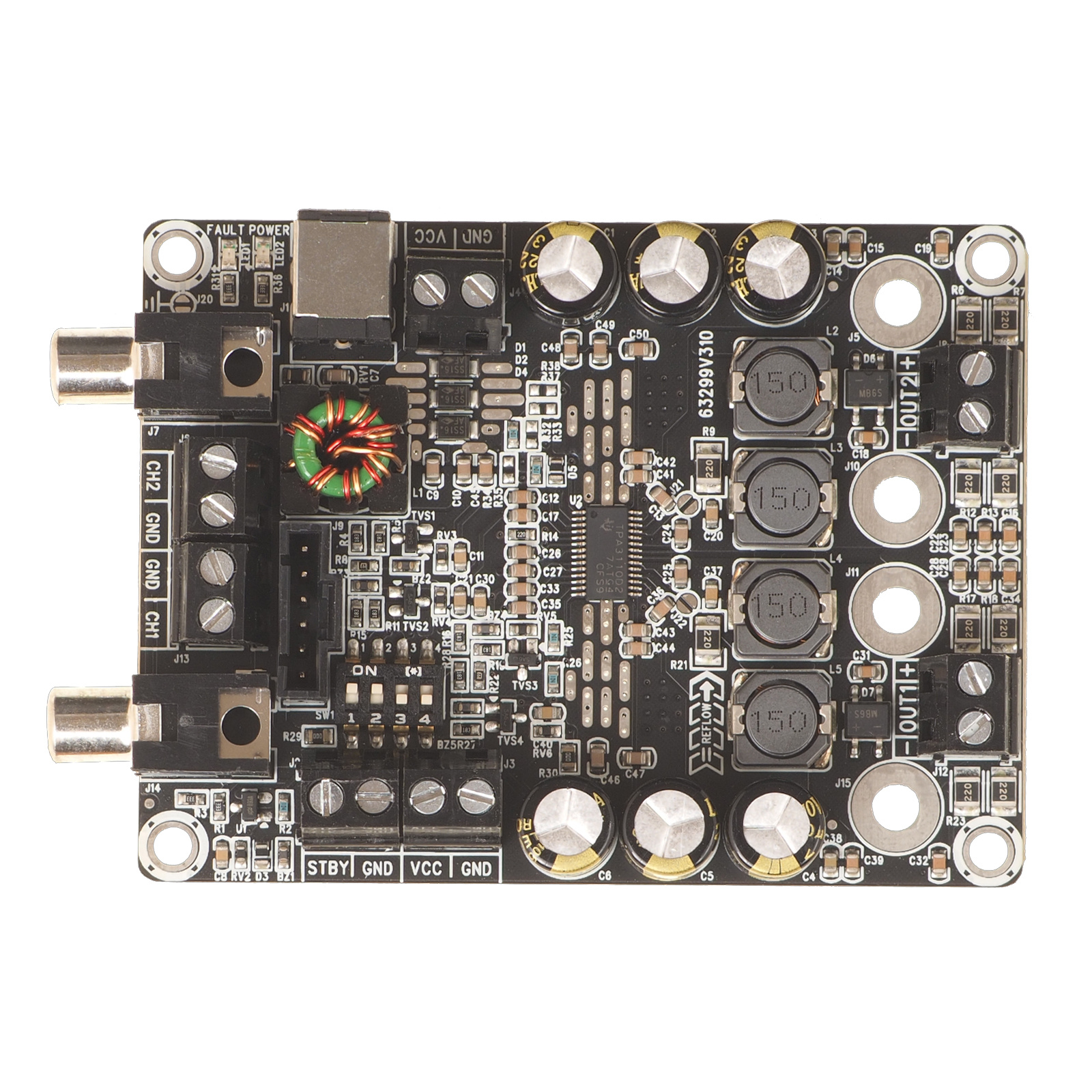

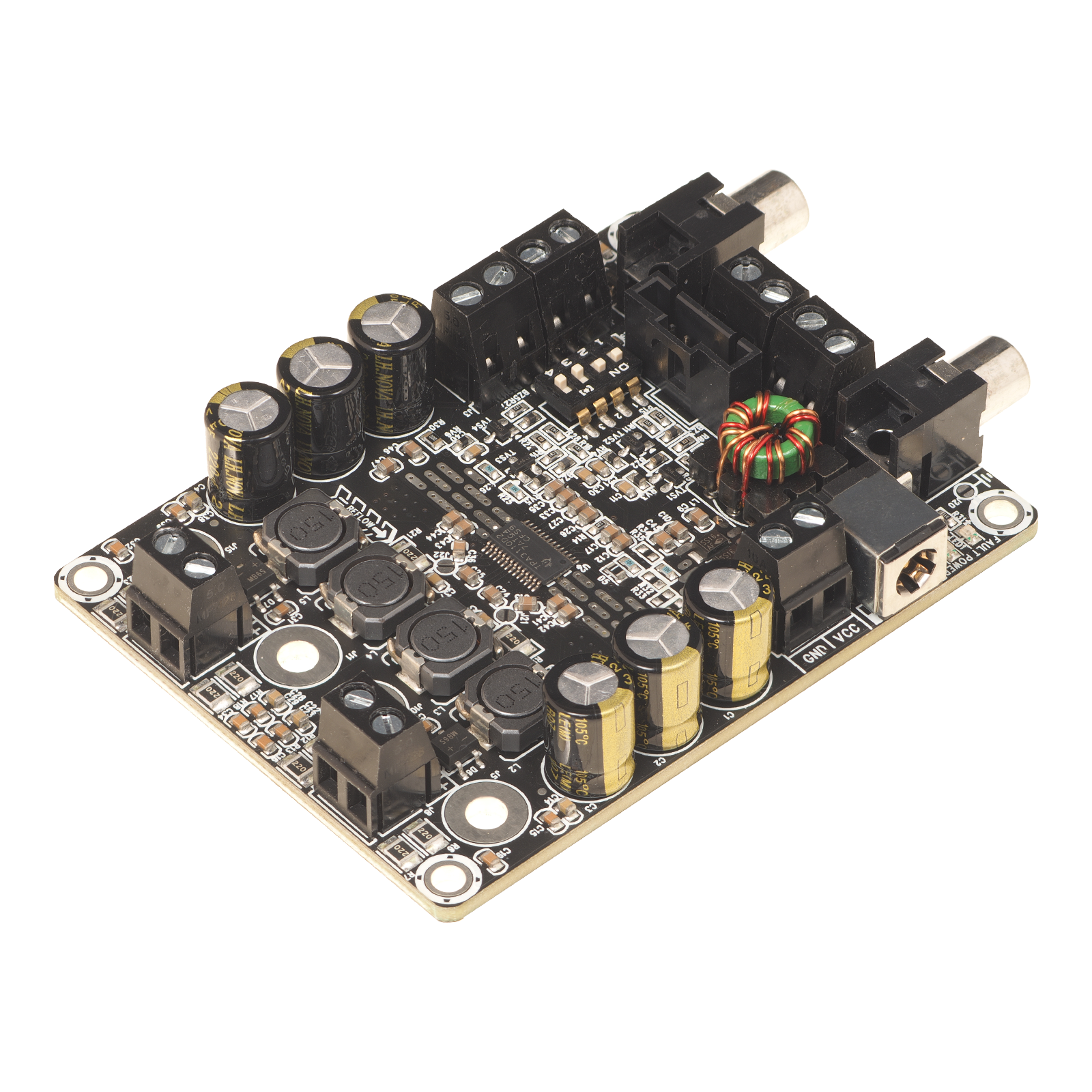

    Sure Electronics AA-AB32996 2x15W 8 Ohm TPA3110 Class D Audio Amplifier Board

    € 23,45 >10 Op voorraad: levertijd 1 werkdag
    This 2 x 15W Class D dual channel amplifier board employs a Tripath-style Texas Instruments TPA3110 chip to deliver excellent sound quality for budget-friendly price.... Toon meer
    Volume voordeel Geniet van deze geweldige kortingsdeals
    • -5% Bestel 4 voor slechts €22,28 per stuk
    • Verzending altijd verzekerd en met track & trace
    • Voor 16u besteld, vandaag verstuurd*
    • Gratis verzending vanaf €99
    • In-house technische support

    Productomschrijving

    This 2 x 15W Class D dual channel amplifier board employs a Tripath-style Texas Instruments TPA3110 chip to deliver excellent sound quality for budget-friendly price.



    Highlights

    • Pre-assembled, pre-tested
    • Superb sound quality
    • Perfect Class-D architecture
    • Two channels—each up to 15W
    • Up to 88% efficiency
    • Does not require a heat sink for most applications



    Product details

    Sure Electronics AA-AB32996 2x15W 8 Ohm TPA3110 Class-D Audio Amplifier Board

    Tip:  Take a look at the table in this blogpost to see which power supply to choose for this product.



    Each channel of this Class D dual channel amplifier board is rated at 15 watts, delivered with state-of-the-art sound quality. The TPA3110's efficiency eliminates the need for an external heat sink when playing music under average listening conditions. With its high efficiency, it is especially suitable for outdoor venues where power supply is always in consideration. Requires a DC power supply ranging from 10 to 16V (available separately).



    Connections:

    Specificaties

    Artikelnummer
    AA-AB32996
    Rated power output
    2 x 15 watts at 8 ohms
    Minimum load
    4.8 ohms
    Efficiency
    87.2 %
    Signal-to-noise ratio (SNR)
    94.4 dB
    Distortion
    <p>0.0257 % THD at 1 kHz, 8 ohms, 1 watt</br>0.36 % THD at 1 kHz, 8 ohms, 10 watts</p>
    Frequency response
    20 - 20,000 Hz
    Gain
    25 dB
    Input sensitivity
    0.59 V
    Input impedance
    22k ohms
    Amplifier Classification
    Class D
    Circuit Topology
    Texas Instruments TPA3110
    Speaker output channels
    2
    Input connection type
    <p>RCA</br>PCB solder connection</p>
    Speaker output connection type
    <p>Screw terminal</br> PCB solder connection</p>
    DSP function
    -
    Bluetooth
    -
    EQ Adjustment
    -
    Power Requirements
    10 - 24 VDC
    Power inlet connector
    <p>2.6 mm DC jack </br> PCB solder connection</p>
    Current limit
    2.2 A
    Under/over voltage protection
    -
    Dimensions (L x W x H)
    91 x 69 x 17 mm
    Mounting hole spacing
    84 x 61 mm
    Mounting hole diameter
    3.5 mm
