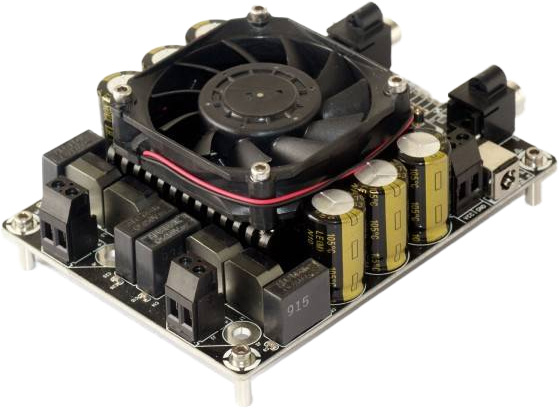

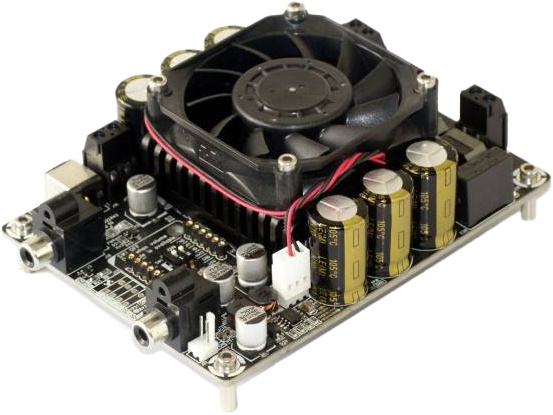

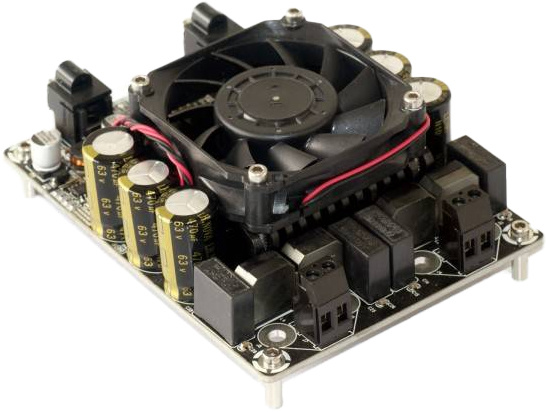

      Sure Electronics AA-AB32192 2x300W TAS5630 4 Ohm Class D Audio versterkermodule Compact

      € 61,94€ 74,95 3 Op voorraad
      • -5% Bestelling 4 voor slechts € 71,20 per stuk

      Buy now, pay later

      • Gratis verzending vanaf € 99 (NL & BE)
      • Nu besteld, morgen bezorgd
      • In-house technische support
      • 45 dagen zorgeloos retourneren
      Zakelijke offerteaanvraag
      Heeft u vragen over dit product?

      Heeft u vragen over dit product?

      Onze klantenservice helpt u graag verder!

      Productomschrijving

      This is the upgraded version of the original 2 X 300 watt TAS5630 class D audio amplifier board.

      This amplifier board supports stereo amplification by using two channel PBTL topology. By means of dedicated heat sink design with temperature controlled fan, it is capable of delivering dual channel maximum power 300W RMS @ 4ohm simultaneously without extraordinary heat sink.



      Highlights

      • Excellent heatsink performance
      • Capable of 2x300W RMS output @ 4 Ohm
      • Requires 25 to 48 VDC power supply
      • Size: 8 inch x 3.6 inch x 1.8 inch
      • Under voltage protection
      • Over current protection
      • Short circuit and over temperature protection



      Product details

      Sure Electronics AA-AB32192 2x300W TAS5630 4 Ohm Class D Audio Amplifier Board Compact

      Tip:  Take a look at the table in this blogpost to see which power supply to choose for this product.



      Introducing Sure Electronics new compact 2x300W audio amplifier board with audiophile-grade TAS5630. Amp includes a quiet running fan to keep things cool. It inherits its original high performance basis, including support for dual channel simultaneous outputting 300W RMS @ 4Ohm, low THD+N, high SNR, powering up with music signal input. The most significant change is the reduction in size down to 4.8inch X 3.6inch X 1.8inch, which improves the power density and help space saving in design of audio playback system. Besides that, the function of temperature control fan is also introduced. Fan works when the temperature of heatsink reaches up to 45 degrees Celsius and stops when the temperature reduces down to 40 degrees Celsius.



      Connection:





      Typical Performance Graphs:

      Frequency response:





      Noise Floor:





      THD+N VS Frequency:





      Thermal Image:





      All parameters were tested with Rohde & Schwarz UPV audio analyzer and AP AUX0025 filter with AES17 filter enabled.

      Toon meer

      Specificaties

      Artikelnummer
      AA-AB32192
      Nominaal vermogen
      2 300 watts at 4 ohms
      Minimale belasting
      3.5 ohms
      Efficiëntie
      91 - 96 %
      Signaal-ruisverhouding (SNR)
      89 dB
      Vervorming

      0.07 % THD at 4 ohms, 1 watt, 1 kHz
      0.028 % THD at 4 ohms, 10 watts, 1 kHz

      Frequentierespons
      20 - 20,000 Hz
      Versterkingsfactor
      28 - 32 dB
      Ingangsgevoeligheid
      1.2 V
      Ingangsimpedantie
      10k ohms
      Amplifier Classification
      Class D
      Versterkertopologie
      Texas Instruments TAS5630
      Uitgangskanalen
      2
      Ingangsconnector
      RCA
      Uitgangsconnector

      Screw terminals
      PCB solder connector

      DSP-functionaliteit
      -
      Bluetooth
      -
      EQ-correctie
      -
      Voedingsvereisten
      25 - 48 VDC
      Voedingsconnector

      Screw terminals
      DC jack 5.5 / 2.5mm

      Stroomlimiet
      13.5 A
      Onder-/overspanningsbeveiliging
      Afmetingen (L x B x H)
      121.92 x 91.44 x 38.86 mm
      Afstand tussen bevestigingsgaten
      -
      Diameter bevestigingsgaten
      3.8 mm

      Toon meer

      Reviews

      5 from 5Based on 1 reviews
      Schrijf een review
      5 van 5
      perfect amp. i build a 2.1 system, combining with the 600w mono amp, 2.1 pre amp and 48v 31a power supply. the system rocks....sure electronics , if you want to be sure...!!!
      Door george k on 27 Oktober 2021
