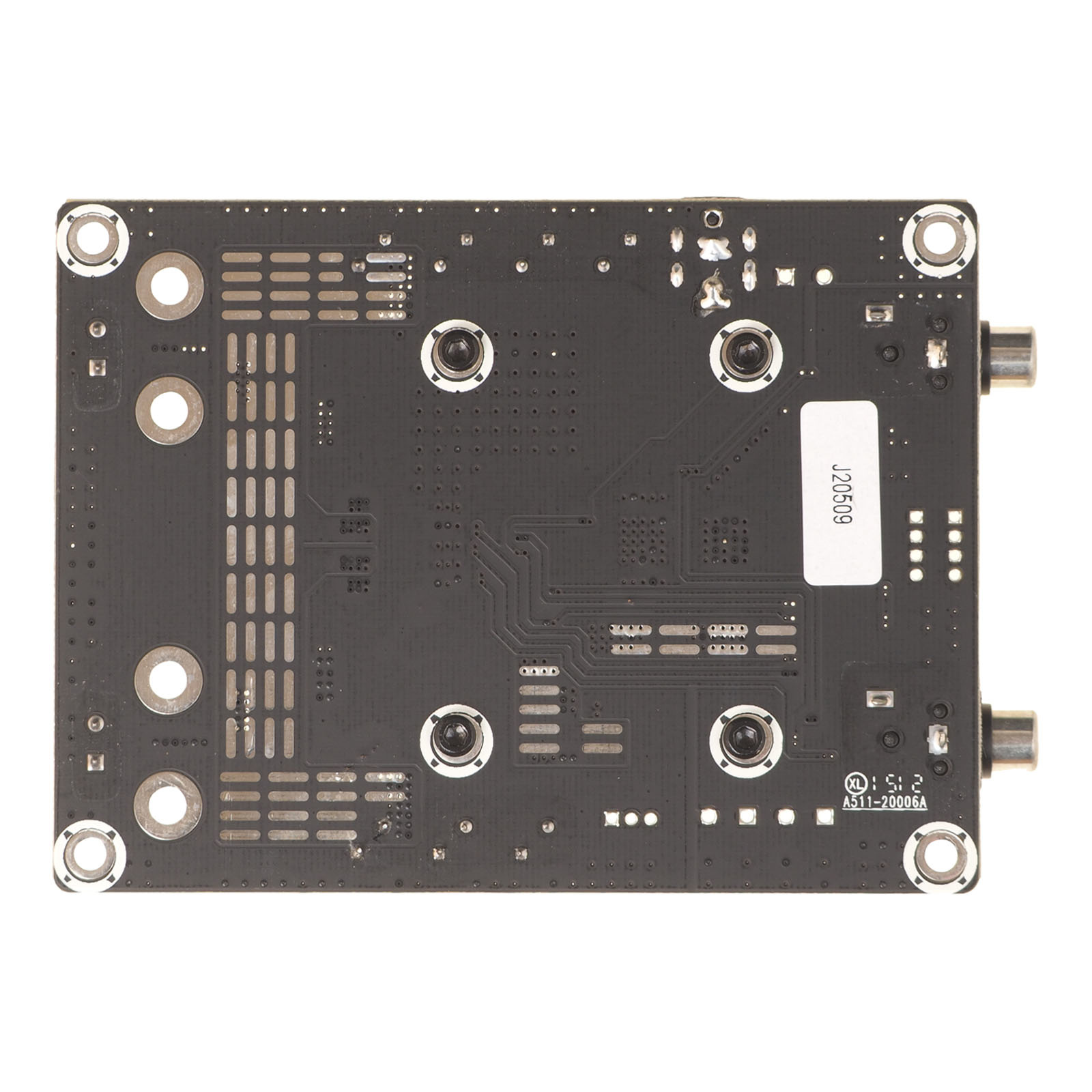

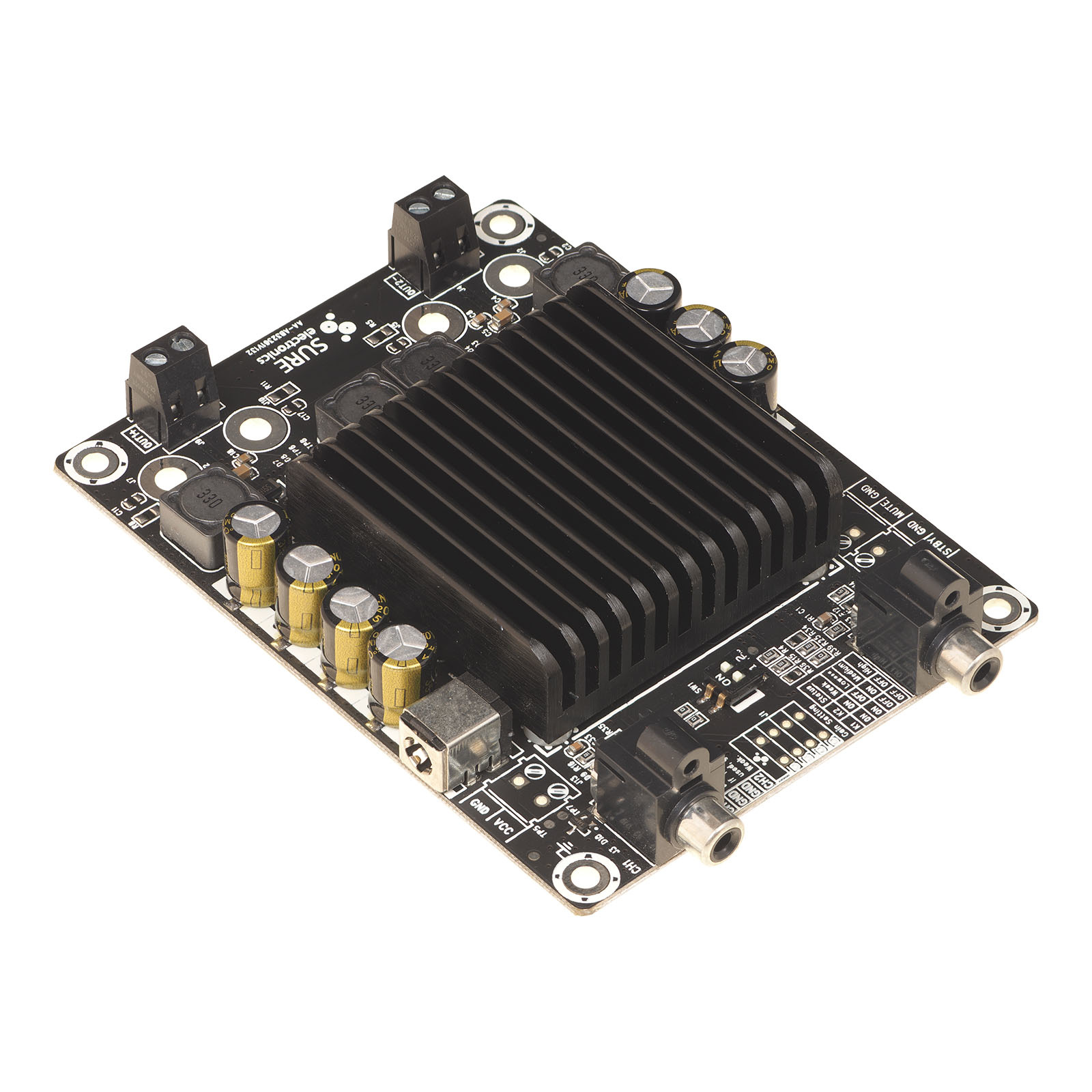

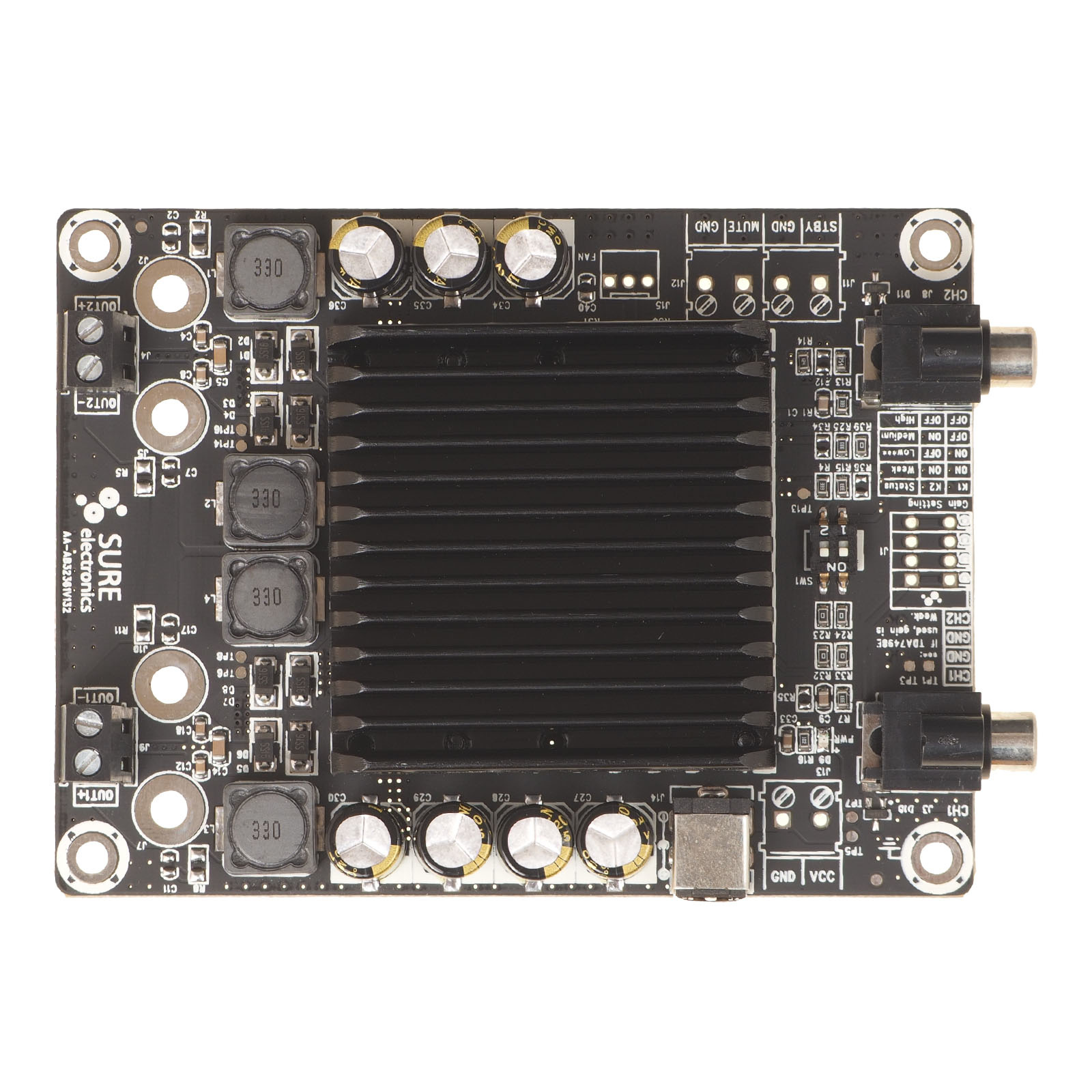

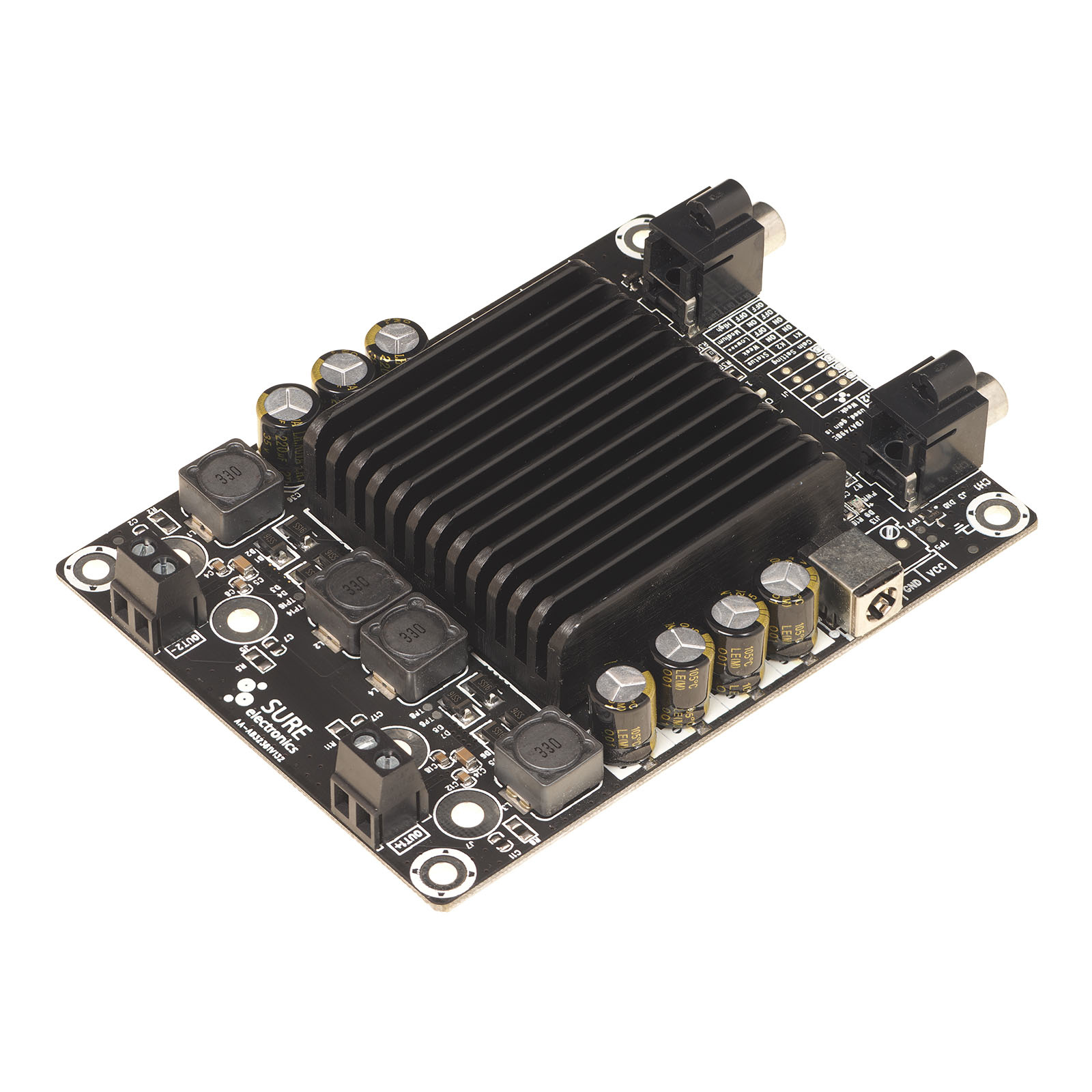

    Sure Electronics AA-AB32165 2x25W 6 Ohm TDA7492 Class-D Audio Amplifier Board

    € 31,95 >10 Op voorraad: levertijd 1 werkdag
    Choose this 2 x 25 watt amplifier board to power your next speaker project. A Texas Instrument's Class D TDA7492 amplifier chip is employed to produce high fidelity sound efficiently.... Toon meer
    Volume voordeel Geniet van deze geweldige kortingsdeals
    • -5% Bestel 4 voor slechts €30,35 per stuk
    • Verzending altijd verzekerd en met track & trace
    • Voor 16u besteld, vandaag verstuurd*
    • Gratis verzending vanaf €99
    • In-house technische support

    Productomschrijving

    Choose this 2 x 25 watt amplifier board to power your next speaker project. A Texas Instrument's Class D TDA7492 amplifier chip is employed to produce high fidelity sound efficiently.



    Highlights

    • Pre-assembled, pre-tested
    • Superb sound quality
    • Perfect Class D architecture
    • Two channels—each up to 25W
    • Up to 90% efficiency
    • Does not require a heat sink for most applications
    • Line level analog audio input



    Product details

    Sure Electronics AA-AB32165 2x25W 6 Ohm TDA7492 Class-D Audio Amplifier Board

    Tip:  Take a look at the table in this blogpost to see which power supply to choose for this product.



    This Class D dual channel amplifier board employs a Tripath-style Texas Instruments TDA7492 chip. Each channel is rated at 25W, delivered with state-of-the-art sound quality. The TDA7492's efficiency eliminates the need for an external heat sink when playing music under average listening conditions. Integration of high-quality capacitors ensures hi-fi amplification output. Requires a DC power supply ranging from 14 to 19 VDC (available separately) and can be used to drive any 4 ohm or 8 ohm passive speakers. Gain control is accomplished by setting two DIP switches, and there are four gain modes available: 24.6 to 26.6 dB, 30.6 to 32.6 dB, 34.1 to 36.1 dB, and 36.6 to 38.6 dB.

    Specificaties

    Artikelnummer
    AA-AB32165
    Rated power output
    <p>2 x 20 watts at 8 ohms </br>2 x 25 watts at 6 ohms </p>
    Minimum load
    4 ohms
    Efficiency
    87 - 93 %
    Signal-to-noise ratio (SNR)
    91 dB
    Distortion
    0.05 % THD at 1 kHz, 6 ohms, 1 watt
    Frequency response
    20 - 20,000 Hz
    Gain
    <p>20.6 - 22.6 dB</br>26.6 - 28.6 dB </br>30.1 - 32.1 dB</br>32.6 - 34.6 dB</p>
    Input sensitivity
    <p>1.5 V at 22 dB</br>0.7 V at 28 dB </br>0.5 V at 31 dB</br>0.4 V at 34 dB </p>
    Input impedance
    60k ohms
    Amplifier Classification
    Class D
    Circuit Topology
    STMicroelectronics TDA7492
    Speaker output channels
    2
    Input connection type
    <p>RCA</br>PCB solder connection</p>
    Speaker output connection type
    <p>Screw terminal</br> PCB solder connection</p>
    DSP function
    -
    Bluetooth
    -
    EQ Adjustment
    -
    Power Requirements
    14 - 19 VDC
    Power inlet connector
    <p>Screw terminal</br> PCB solder connection</p>
    Current limit
    3.5 A
    Under/over voltage protection
    -
    Dimensions (L x W x H)
    122 x 91 x 24 mm
    Mounting hole spacing
    112 x 81 mm
    Mounting hole diameter
    3.8 mm

    Reviews

    5 from 5Based on 3 reviews
    Schrijf een review
    5 van 5
    This a robust and good performing amp. Sound Imports had the best price! Also I’m based in the UK the items arrived quickly.
    Door David G. on 9 Februari 2021
    5 van 5
    Nice amp and compact. No overheating. No terminal for the power cable, only using the dc connector. So the image is not correct. I had to get a dc plug, to be able to use the amp.
    Door Rikard E. on 2 Mei 2020
