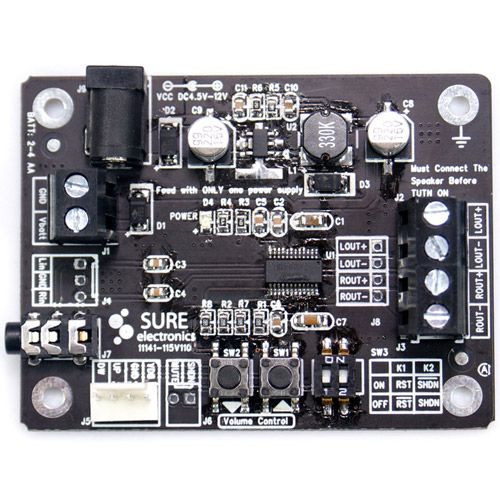

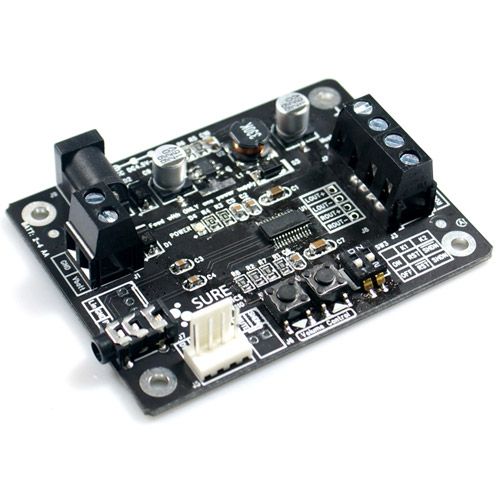

    Sure Electronics AA-AB32131 2x2W 4 Ohm Class-D Audio Amplifier Board

    € 15,95 6 Op voorraad: levertijd 1 werkdag
    This high-quality dual channel Class-D audio amplifier board is capable of delivering 2W per channel of output power into a 4 ohm load.... Toon meer
    Volume voordeel Geniet van deze geweldige kortingsdeals
    • -5% Bestel 4 voor slechts €15,15 per stuk
    • Verzending altijd verzekerd en met track & trace
    • Voor 16u besteld, vandaag verstuurd*
    • Gratis verzending vanaf €99
    • In-house technische support

    Productomschrijving

    This high-quality dual channel Class-D audio amplifier board is capable of delivering 2W per channel of output power into a 4 ohm load.



    Highlights

    • Pre-assembled, pre-tested
    • Small size but big sound quality
    • Perfect Class-D architecture
    • Fully-bridged stereo output
    • Two channels—each up to 2W
    • Up to 88% efficiency
    • Does not require a heat sink for most applications



    Product details

    Sure Electronics AA-AB32131 2x2W 4 Ohm Class-D Audio Amplifier Board

    Tip:  Take a look at the table in this blogpost to see which power supply to choose for this product.

    This high-quality dual channel Class-D audio amplifier board is capable of delivering 2W per channel of output power into a 4 ohm load. A PAM's PAM8803 IC offers ultra-low total harmonic distortion and noise, allowing it to deliver outstanding sound reproduction. Especially suitable for small speakers with an impedance of 4 or 8 ohms. This board can be powered by an external DC supply (4.5V to 12V) via a power port, 2.5V to 4.0V DC via a terminal block, or 2 to 3 AA batteries. Audio signal is input by a 2510 connector or 3.5 mm headphone jack, and volume control is adjustable by on-board buttons.

    Specificaties

    Artikelnummer
    AA-AB32131
    Rated power output
    <p>2 x 2.6 watts at 4 ohms </br> 2 x 1.5 watts at 8 ohms </p>
    Minimum load
    4 ohms
    Efficiency
    70 - 75 %
    Signal-to-noise ratio (SNR)
    84 dB
    Distortion
    <p>0.17 % THD at 1 kHz, 4 ohms, 1 watt</br>0.19 % THD at 1 kHz, 8 ohms, 0.5 watt</p>
    Frequency response
    20 - 20,000 Hz
    Gain
    23.8 dB
    Input sensitivity
    0.72 V
    Input impedance
    60k ohms
    Amplifier Classification
    Class D
    Circuit Topology
    Diodes Incorporated PAM8803
    Speaker output channels
    2
    Input connection type
    <p>3.5 mm jack</br>PCB solder connection</p>
    Speaker output connection type
    Screw terminal
    DSP function
    -
    Bluetooth
    -
    EQ Adjustment
    -
    Power Requirements
    <p>4.5 - 12 VDC (DC jack) </br> 2.5 - 4 VDC (PCB screw terminal)</p>
    Power inlet connector
    <p>2.1 mm DC jack</br> PCB solder connection</p>
    Current limit
    0.46 A
    Under/over voltage protection
    -
    Dimensions (L x W x H)
    72 x 55 x 18 mm
    Mounting hole spacing
    62 x 45 mm
    Mounting hole diameter
    -
