      Sure Electronics AA-AB31241 1x600W TAS5630 Class-D versterkermodule

      € 66,07€ 79,95 6 Op voorraad: levertijd 1 werkdag
      Volume voordeel Geniet van deze geweldige kortingsdeals
      • -5% Bestelling 4 voor slechts € 75,95 per stuk
      • Voor 16u besteld, vandaag verstuurd
      • Gratis verzending vanaf € 99 (NL & BE)
      • In-house technische support
      • 45 dagen zorgeloos retourneren
      Heeft u vragen over dit product?

      Heeft u vragen over dit product?

      Onze klantenservice helpt u graag verder!

      Productomschrijving

      Amplifiers this powerful used to take up as much room and generate as much heat as a space heater! Up to 600W of pure Class-D power is on tap and ready for you to use this amplifier board with the meanest subwoofer you can find.



      Highlights

      • Perfect for use as a subwoofer amplifier
      • Up to 600W of Class-D power
      • 1.5-ohm stable
      • Over-engineered protection circuits
      • Requires 25 to 52 VDC power supply



      Product details

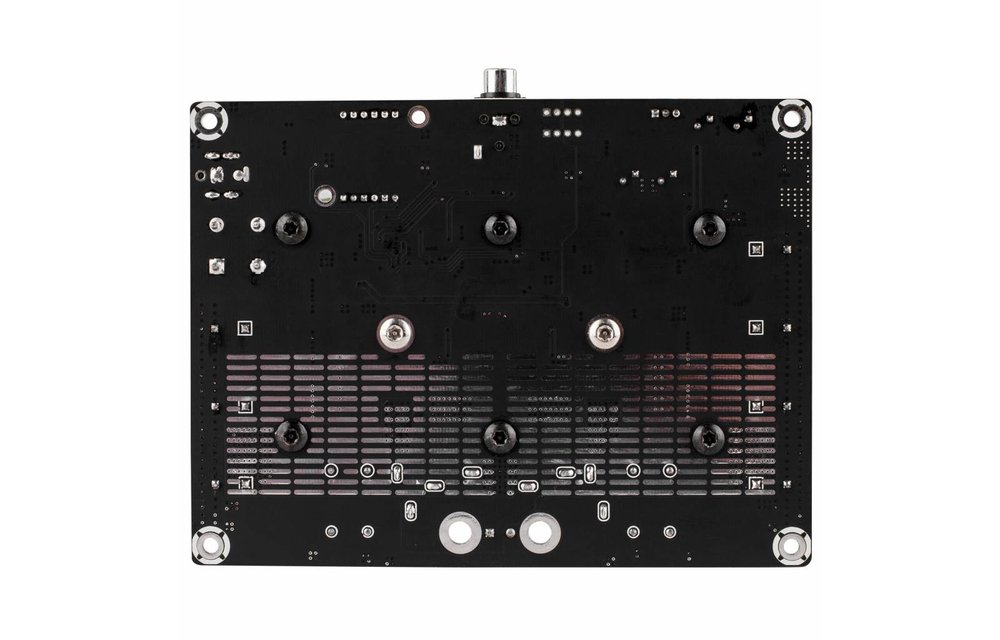

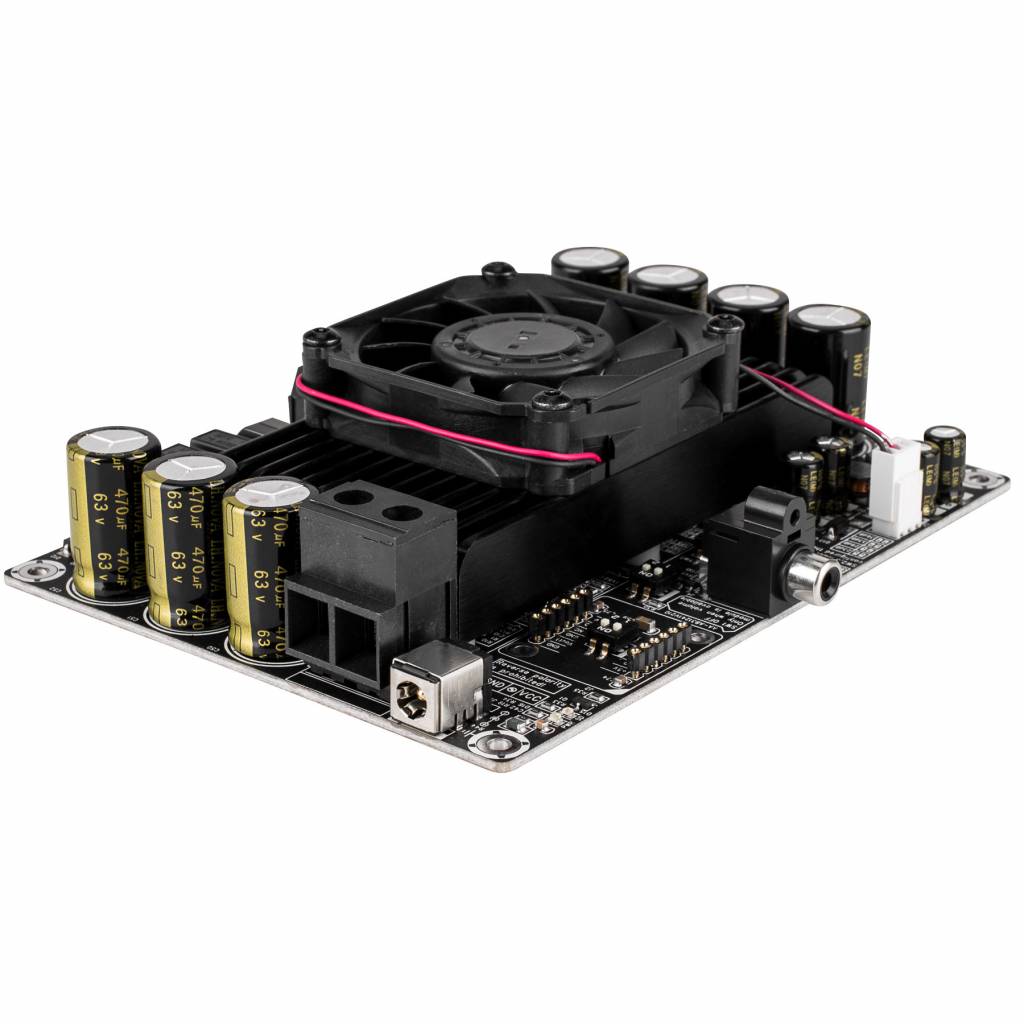

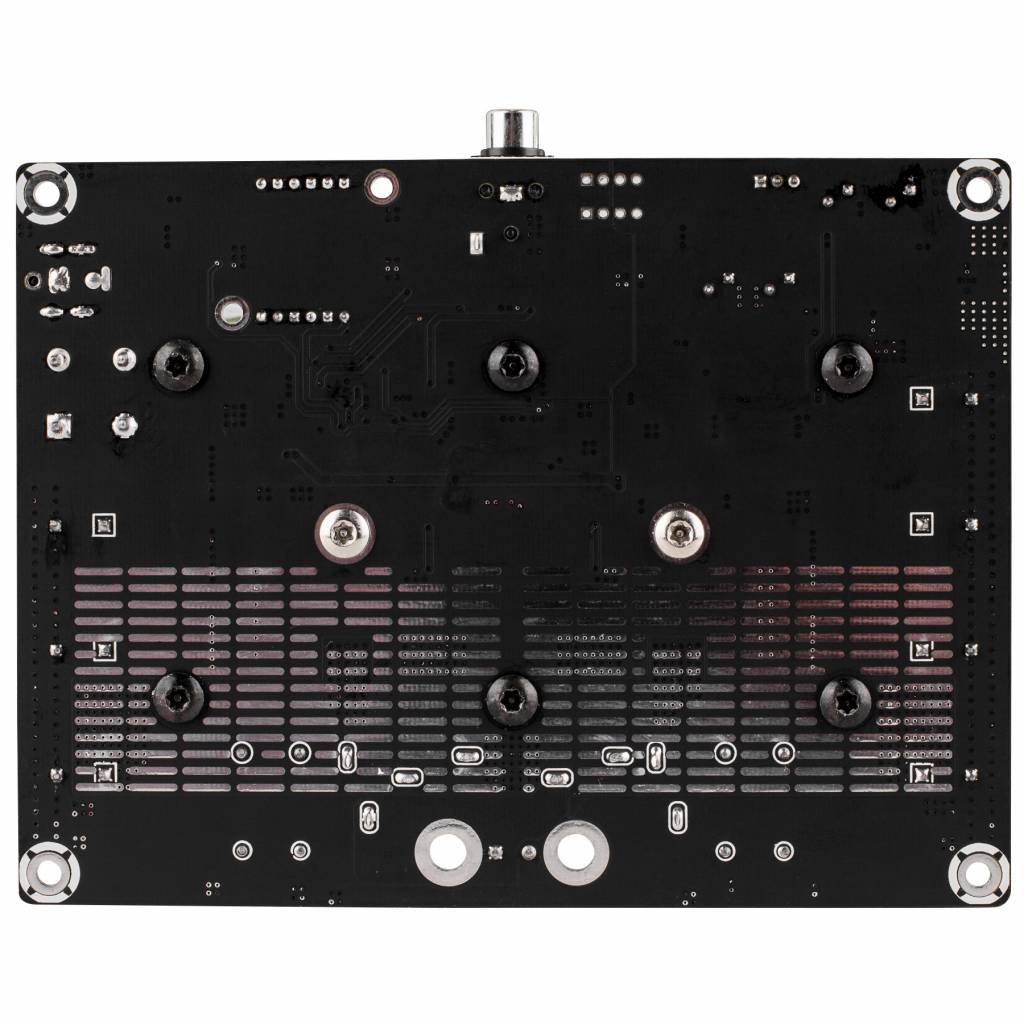

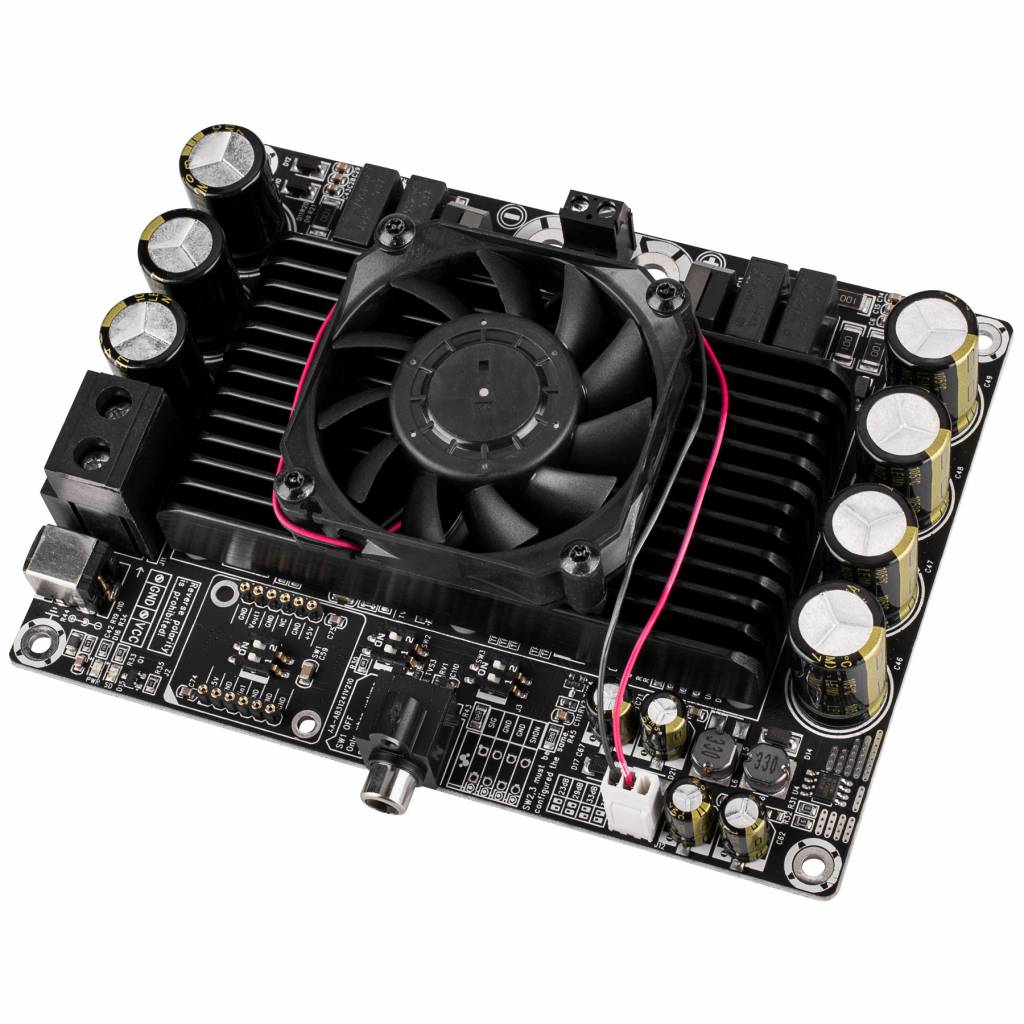

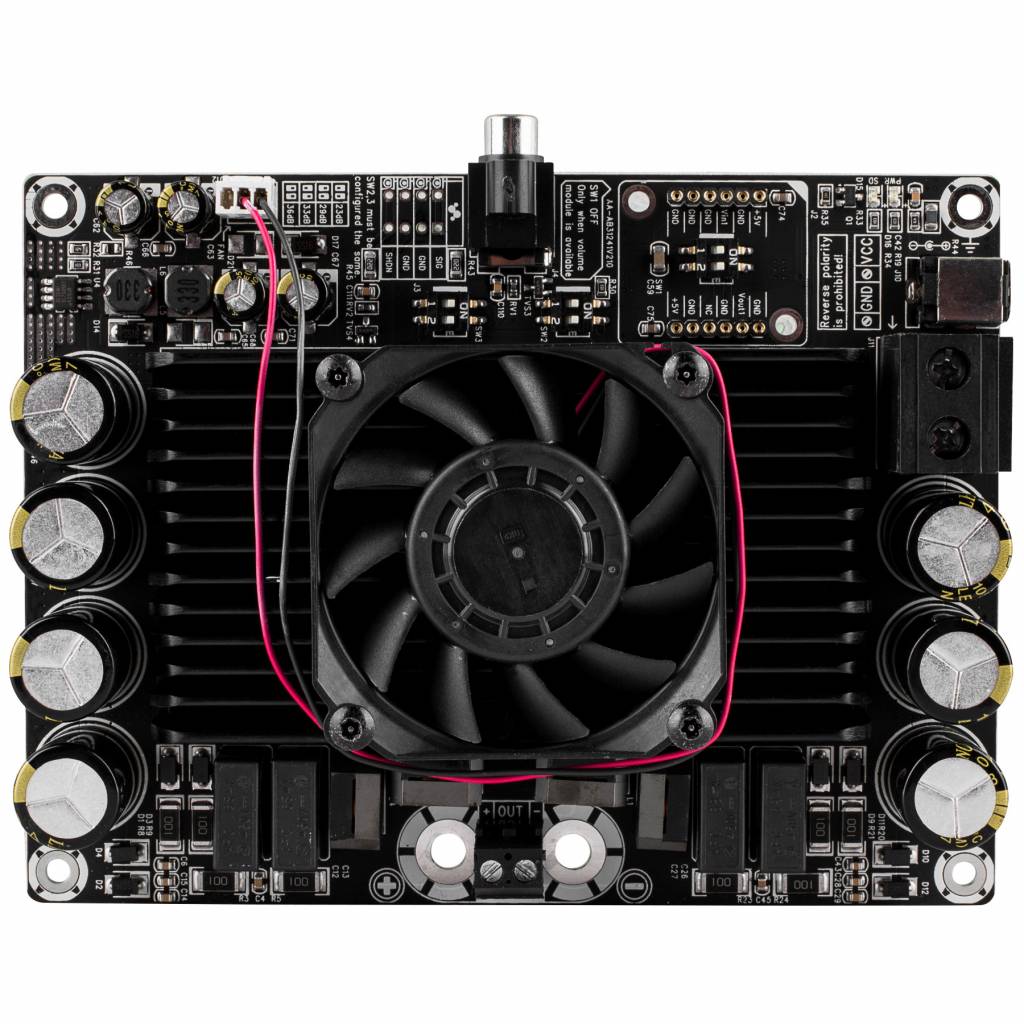

      Sure Electronics AA-AB31241 1x600W TAS5630 Class-D Amplifier Board

      Tip:  Take a look at the table in this blogpost to see which power supply to choose for this product.



      This mono-block amplifier board means serious business! A Class-D Texas Instruments TAS5630 with PurePath™ HD enabled integrated feedback develops up to 600W into a single channel with complete control and accuracy. For do-it-yourselfers looking for a subwoofer amplifier—look no further!



      A robust heatsink, two-stage cooling fan, as well as protection circuits to protect against over/under voltage, over current, short circuit, and over temperature conditions are built-in for years of enjoyment. Four fixed gain settings allow you to match the amplifier to your source, and use your source as the volume control. A 25 to 52 VDC power supply is required.



      Note: The minimum recommended wire gauge to be used for power is 16 AWG.



      Features:
      • Class-D Texas Instruments TAS5630 with PurePath™ HD enabled integrated feedback

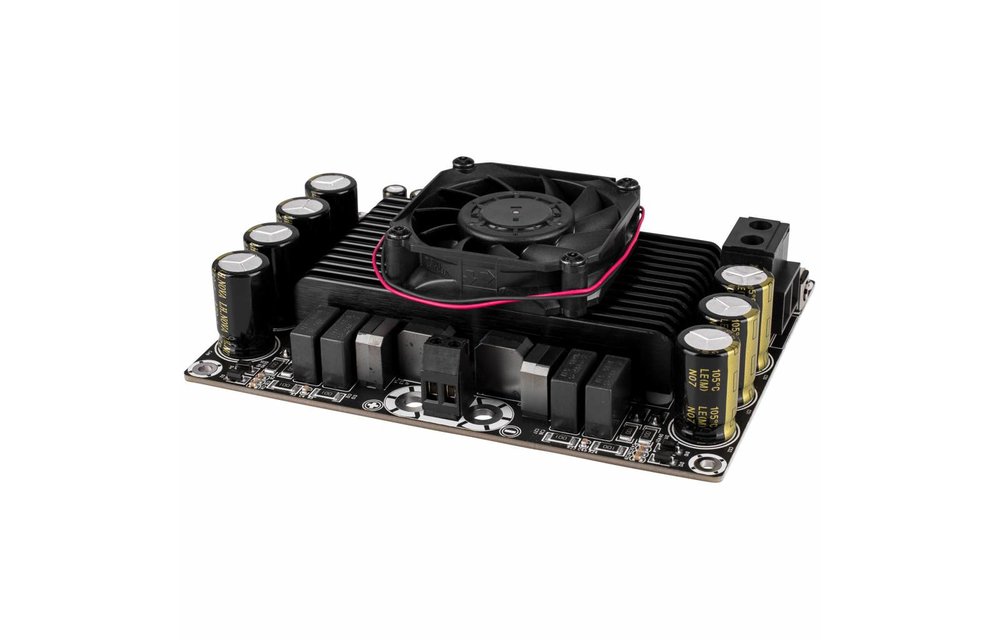

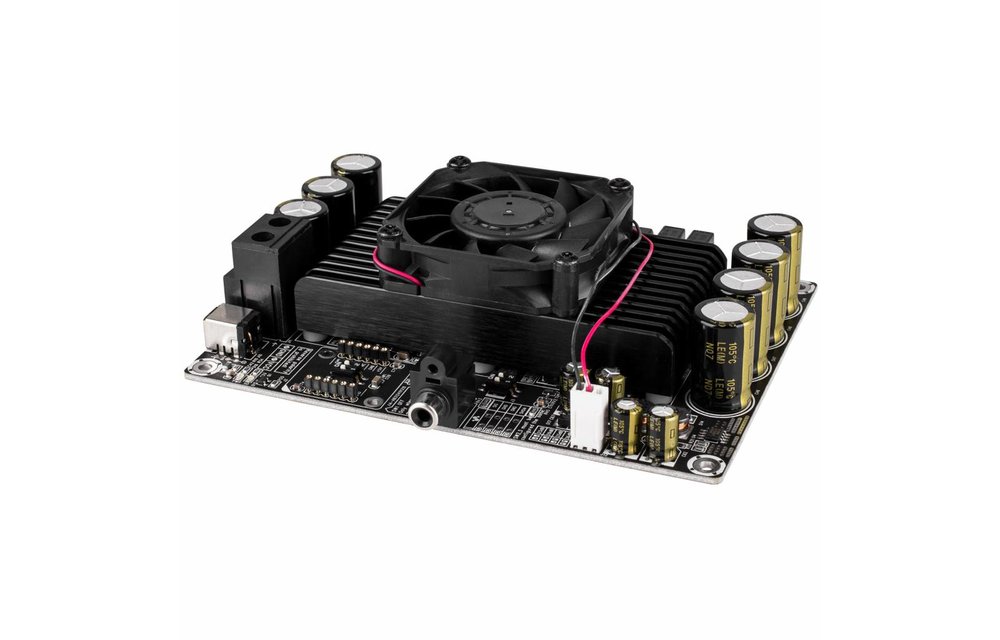

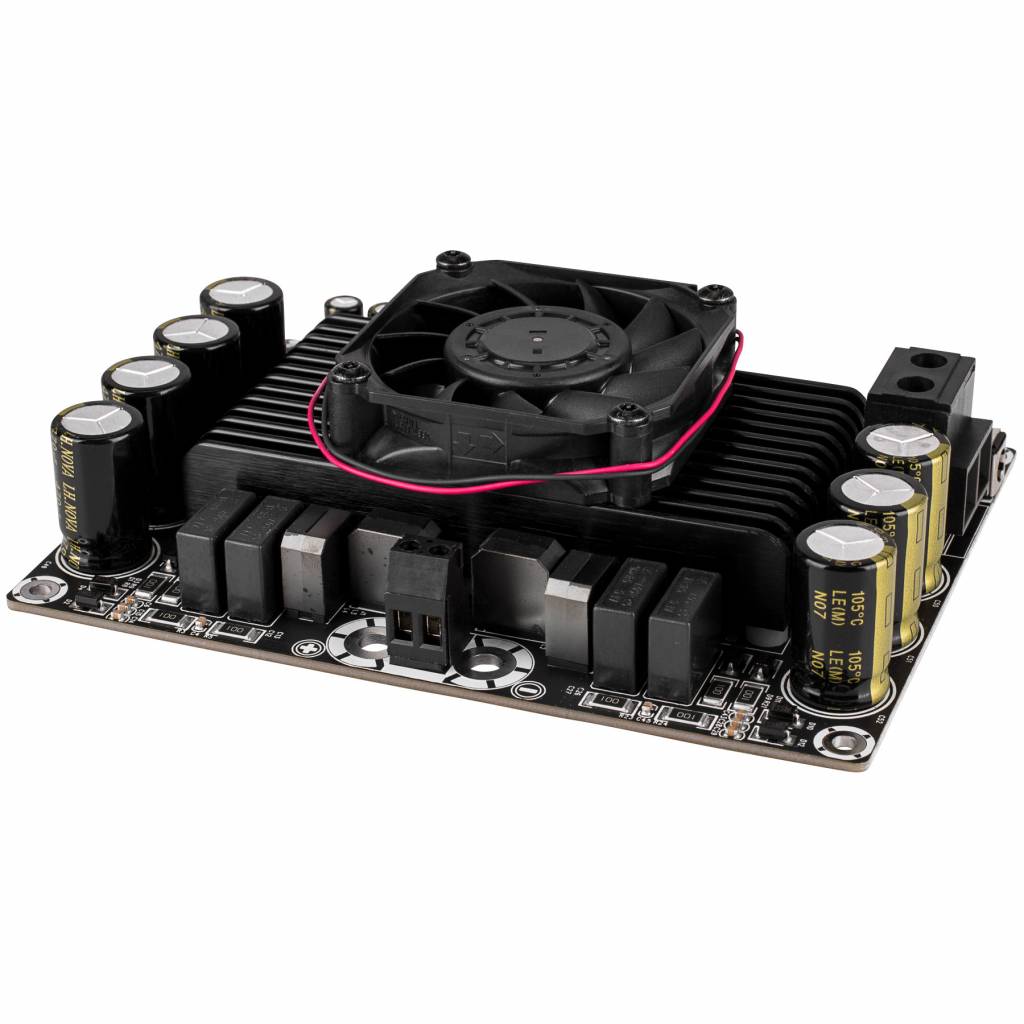

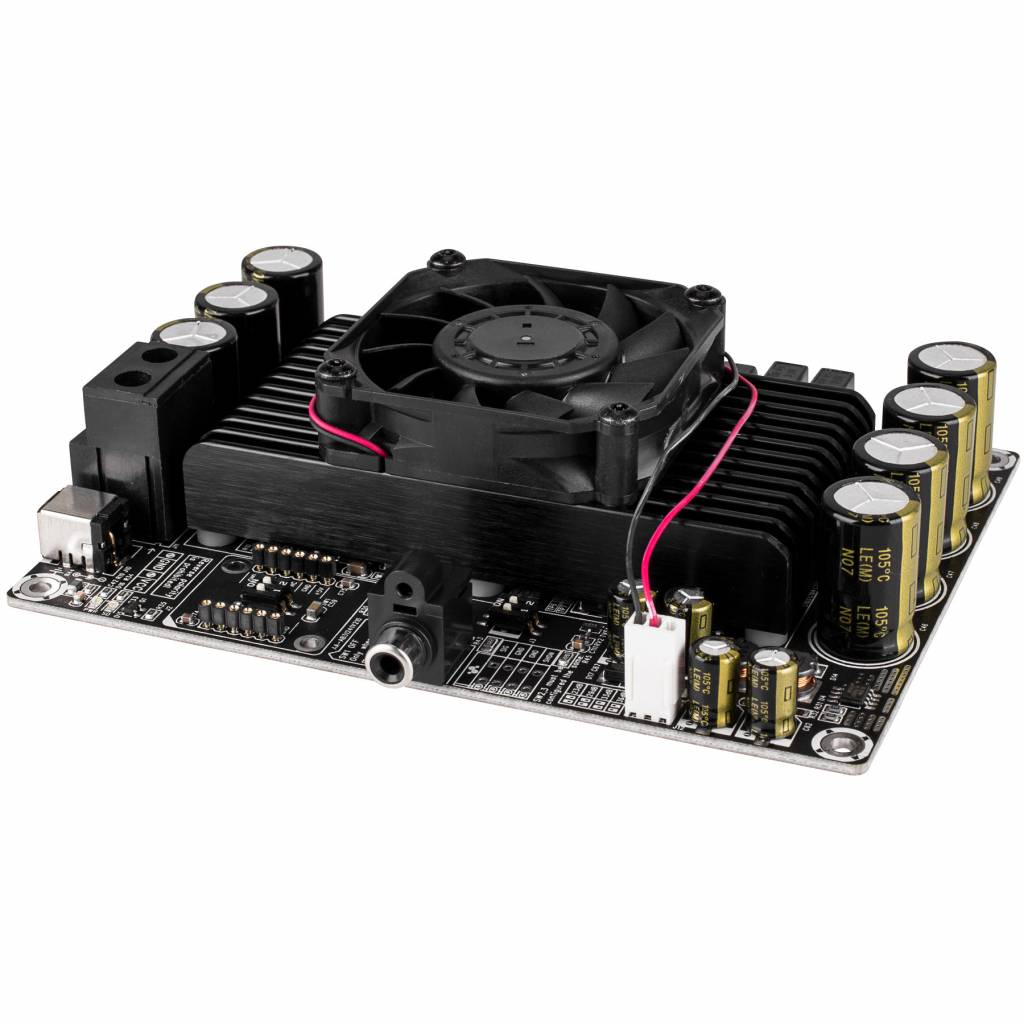

      • Robust heatsink with two-stage cooling fan
      • Pre-drilled mounting holes
      • Over/under voltage, over current, short circuit, and over temperature protection circuits
      • Click and pop noise reduction
      • Phoenix-type speaker terminals
      • One line-level RCA inputs
      • Large screw-down power input terminals



      Connection:



      Typical Performance Graphs:

      Frequency response:



      Noise Floor:



       THD+N VS Frequency:





      Thermal Image:

      All parameters were tested with Rohde & Schwarz UPV audio analyzer and AP AUX0025 filter with AES17 filter enabled.

      Specificaties

      Artikelnummer
      AA-AB31241
      Nominaal vermogen
      1 x 600 watts at 2 ohms
      Minimale belasting
      1.5 ohms
      Efficiëntie
      90 - 95 %
      Signaal-ruisverhouding (SNR)
      94 dB
      Vervorming

      0.056 % THD at 2 ohms, 10 watts, 1 kHz
      0.103 % THD at 2 ohms, 50 watts, 1 kHz

      Frequentierespons
      20 - 20,000 Hz
      Versterkingsfactor
      23, 29, 33, 35 dB
      Ingangsgevoeligheid

      3.5 V at 23 dB
      1.7 V at 29 dB
      1.1 V at 33 dB
      0.9 V at 35 dB

      Ingangsimpedantie
      13 - 16.7k ohms
      Amplifier Classification
      Class D
      Versterkertopologie
      Texas Instruments TAS5630 (PBTL Architecture)
      Uitgangskanalen
      1
      Ingangsconnector
      RCA
      Uitgangsconnector
      Screw terminals
      DSP-functionaliteit
      -
      Bluetooth
      -
      EQ-correctie
      -
      Voedingsvereisten
      25 - 52 VDC
      Voedingsconnector
      Screw terminals
      Stroomlimiet
      13.5 A
      Onder-/overspanningsbeveiliging
      Afmetingen (L x B x H)
      152.4 x 114.3 x 38.86 mm
      Afstand tussen bevestigingsgaten
      -
      Diameter bevestigingsgaten
      3.60 mm

      Toon meer

      Reviews

      5 from 5Based on 2 reviews
      Schrijf een review
      5 van 5
      This is a good amplifier for this price, but i think the ventilator of the amplifier is too loud.
      Door Levente V. on 24 Maart 2020
      5 van 5
      Great. I have not tested to see how much of the 600 watts I am using but I am heavily eq'ing the low end with an Antimode :). The fan came on so it must be getting above 40 celcius. I have low bass extention in a 1.9 ft³ sealed box. My driver is Dayton Audio 12" reference HF 4. Sound imports pointed me in the right direction with this amp. Thank You!
      Door Chris J. on 15 Mei 2019
