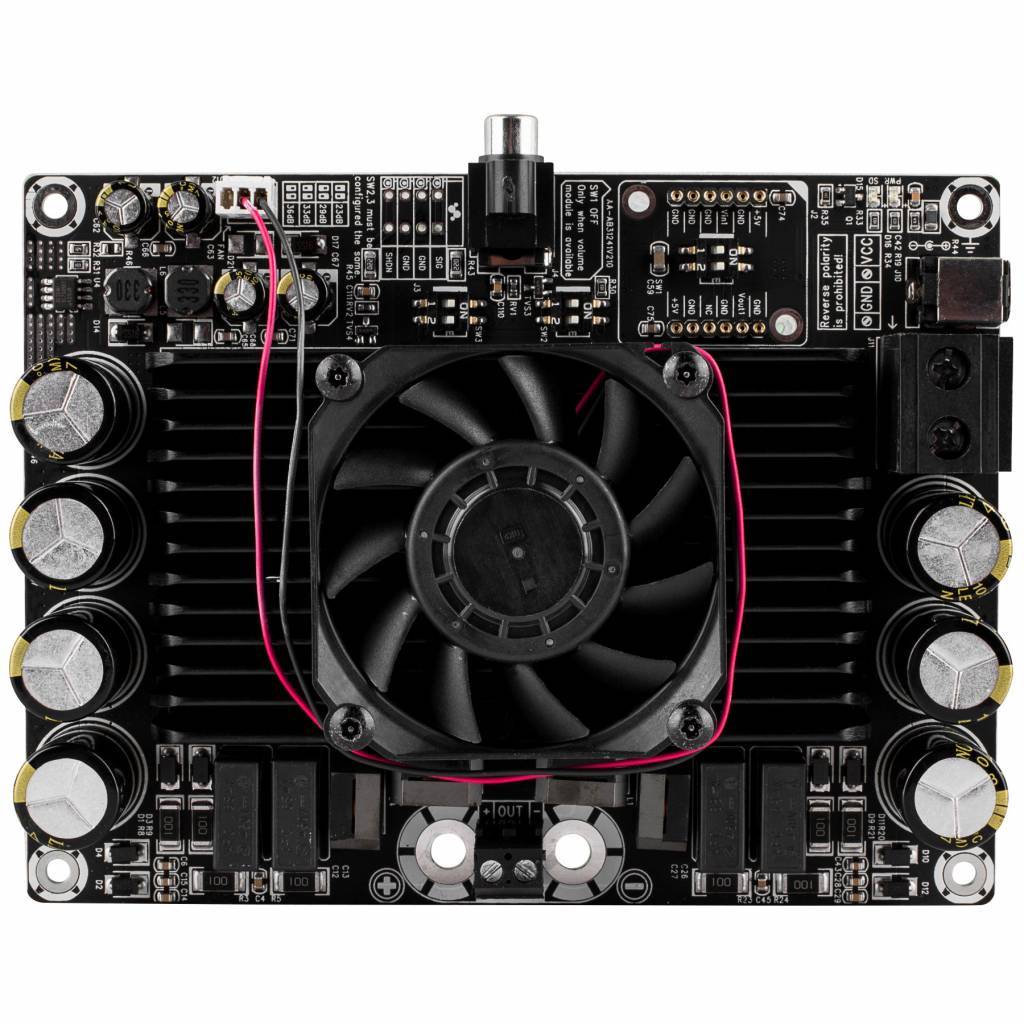

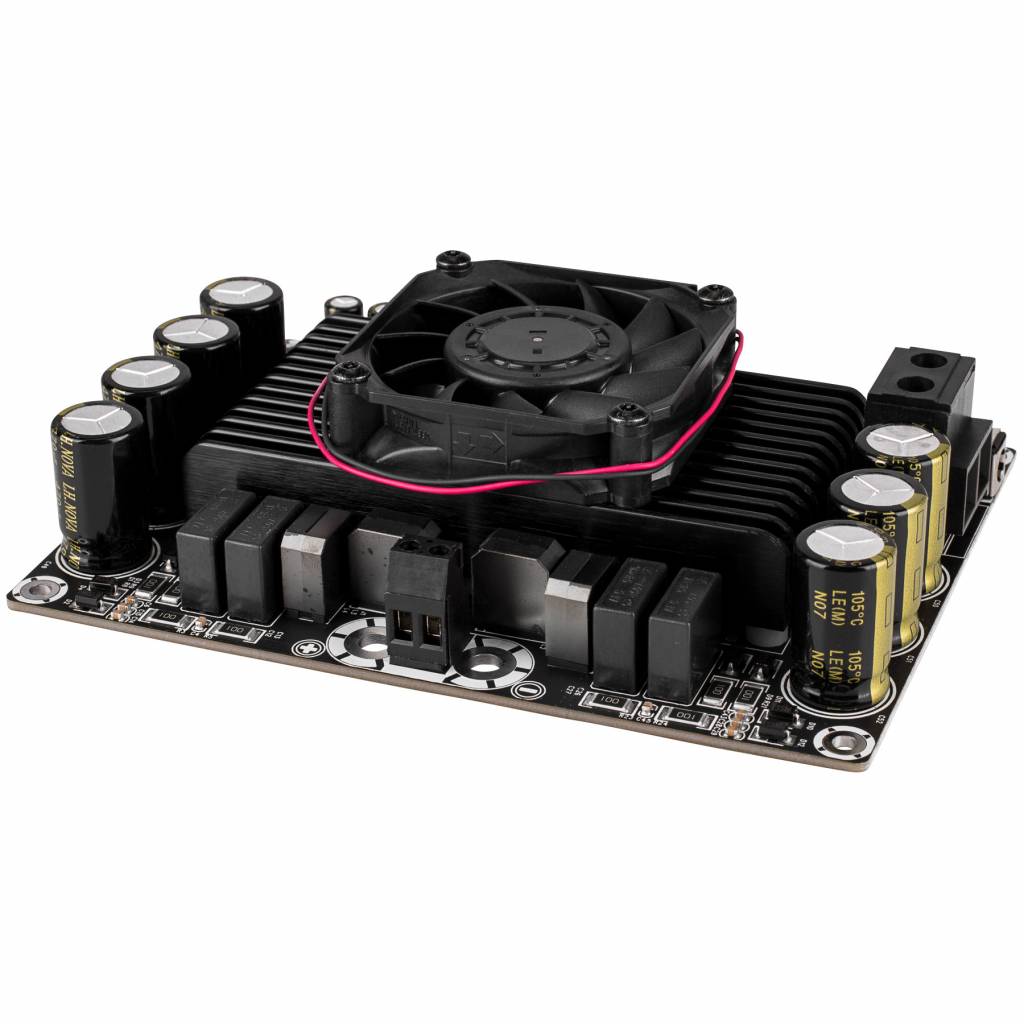

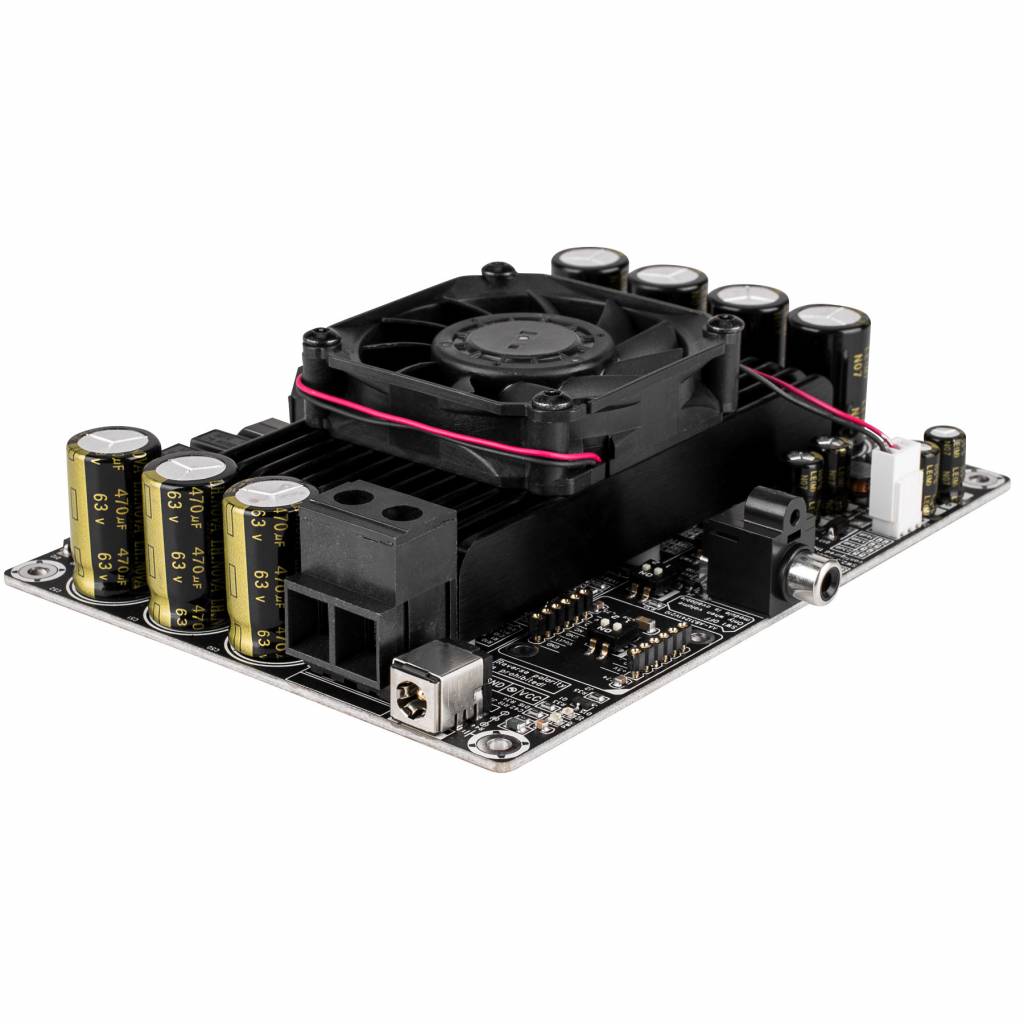

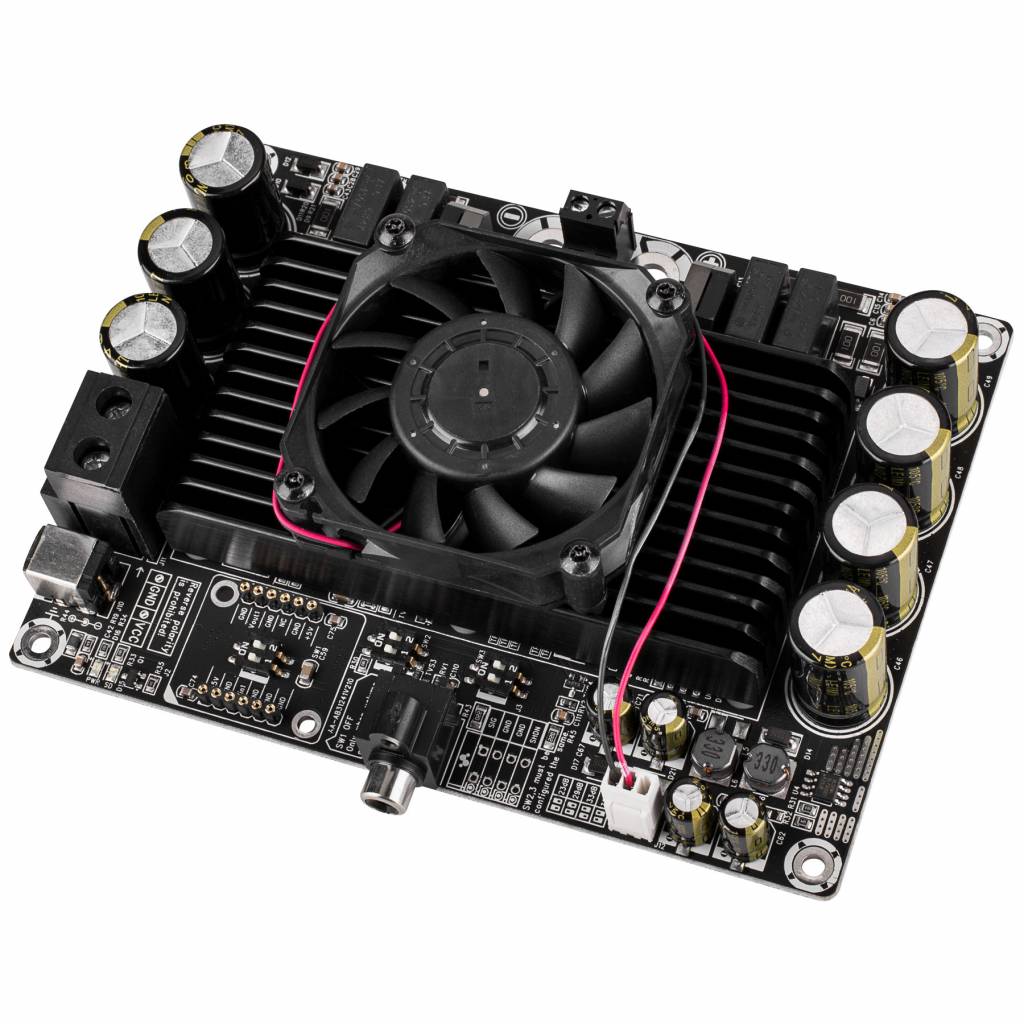

    Sure Electronics AA-AB31191 1x300W TAS5613 Class D Audio Amplifier Board

    € 69,95 8 Op voorraad: levertijd 1 werkdag
    This 1 x 300W Class-D audio amplifier board integrates TI’s high performance TAS5613 supporting single channel audio amplification.... Toon meer
    Volume voordeel Geniet van deze geweldige kortingsdeals
    • -5% Bestel 4 voor slechts €66,45 per stuk
    • Verzending altijd verzekerd en met track & trace
    • Voor 16u besteld, vandaag verstuurd*
    • Gratis verzending vanaf €99
    • In-house technische support

    Productomschrijving

    This 1 x 300W Class-D audio amplifier board integrates TI’s high performance TAS5613 supporting single channel audio amplification.



    Highlights

    • Perfect for use as a subwoofer amplifier for home or vehicle
    • Up to 300W of Class-D clean power
    • Over-engineered protection circuits
    • Requires 18 to 38 VDC power supply
    • Temperature controlled cooling fan



    Product details

    Sure Electronics AA-AB31191 1x300W TAS5613 Class D Audio Amplifier Board

    Tip:  Take a look at the table in this blogpost to see which power supply to choose for this product.



    This 1 x 300W Class-D audio amplifier board integrates TI’s high performance TAS5613 supporting single channel audio amplification. For do-it-yourselfers, looking for a subwoofer amp for your home or vehicle. Temperature controlled cooling fan, as well as protection circuits to protect against over/under voltage, over current, short circuit, and over temperature conditions are built-in for years of enjoyment. Requires a DC power supply ranging from 18 to 38V.

    Specificaties

    Artikelnummer
    AA-AB31191
    Rated power output
    1 x 300 watts at 2 ohms
    Minimum load
    2 ohms
    Efficiency
    >90 %
    Signal-to-noise ratio (SNR)
    -
    Distortion
    -
    Frequency response
    20 - 22,000 Hz
    Gain
    20, 26, 30 or 32 dB
    Input sensitivity
    <p>2450 mV at 20 dB gain<br />1225 mV at 26 dB gain<br /> 766 mV at 30 dB gain<br /> 583 mV at 32 dB gain</p>
    Input impedance
    13 - 16.7k ohms
    Amplifier Classification
    Class D
    Circuit Topology
    Texas Instruments TAS5613
    Speaker output channels
    1
    Input connection type
    RCA
    Speaker output connection type
    <p>Screw terminals<br />PCB solder connectors<p>
    DSP function
    -
    Bluetooth
    -
    EQ Adjustment
    -
    Power Requirements
    18 - 38 VDC
    Power inlet connector
    <p>Screw terminals<br />DC jack<p>
    Current limit
    -
    Under/over voltage protection
    check
    Dimensions (L x W x H)
    152.4 x 114.3 mm
    Mounting hole spacing
    -
    Mounting hole diameter
    -
